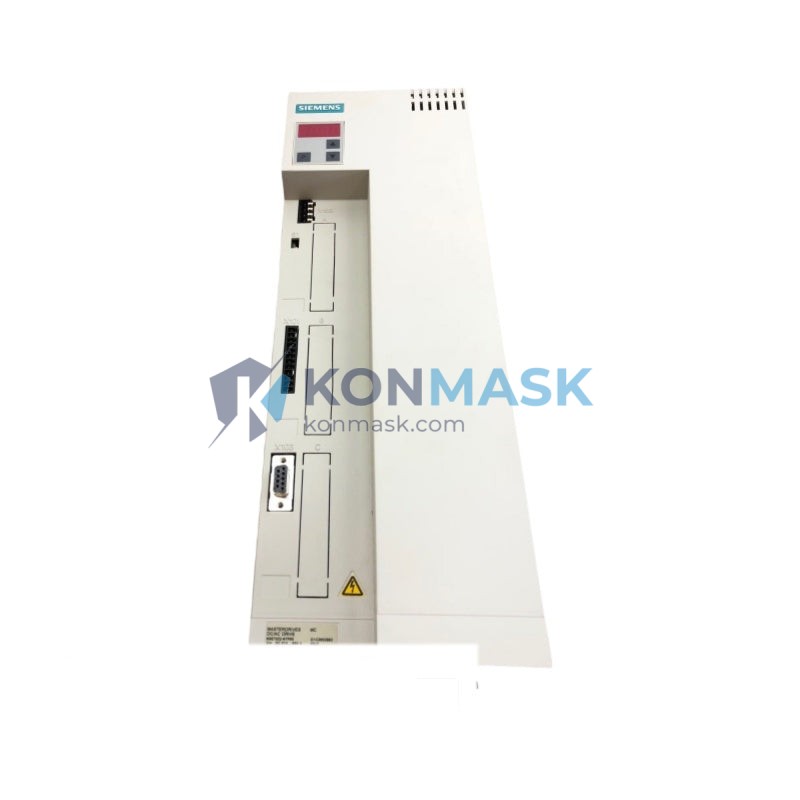

Siemens 6SE7022-6TP50/60/70 A5E00110983 – Vector Control Unit for AC Drives | MASTERDRIVES MC/VC Platform
Engineering Background: The Siemens MASTERDRIVES series represents one of the most widely deployed variable-frequency drive platforms in global industrial automation. Engineered for demanding motion-control and process-drive applications, the MASTERDRIVES MC (Motion Control) and VC (Vector Control) platforms deliver high-dynamic torque regulation, closed-loop speed control, and seamless integration with Siemens SIMATIC S7 PLC ecosystems. The 6SE7022-6TP50/60/70 control unit is the intelligence core of this drive family, housing the DSP-based control firmware, I/O interface logic, and communication front-end.
Product Positioning: The A5E00110983 control unit (CU) is a direct-fit replacement and OEM-sourced spare for MASTERDRIVES Compact Plus and chassis-format inverters in the 7.5–22 kW power range. It is the preferred choice for maintenance engineers managing legacy MASTERDRIVES installations in steel mills, paper machines, cranes, extruders, and HVAC plants where downtime cost is critical.
Complete Technical Specifications
- Part Number: 6SE7022-6TP50 / 6SE7022-6TP60 / 6SE7022-6TP70
- Siemens Material No.: A5E00110983
- Product Family: SIEMENS MASTERDRIVES MC/VC
- Unit Type: Control Unit (CU) / Reglerboard
- Compatible Drive Format: Compact Plus, Chassis (frame sizes C–F)
- Control Mode: Vector Control (VC) / Motion Control (MC) selectable via firmware
- Processor: DSP-based dual-processor architecture
- Digital Inputs: 6 × DI (24 V DC, optoisolated)
- Digital Outputs: 3 × DO (relay, 30 V DC / 0.5 A)
- Analog Inputs: 2 × AI (±10 V / 0–20 mA, 12-bit resolution)
- Analog Outputs: 2 × AO (0–20 mA, 11-bit)
- Encoder Interface: HTL/TTL incremental encoder, 5 V / 24 V
- Serial Interface: RS-485 (USS protocol), PROFIBUS-DP optional via CBP2 board
- Parameterization: PMU operator panel, DriveMonitor, STARTER software
- Supply Voltage (CU): 24 V DC (internal from power section)
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: −25 °C to +70 °C
- Protection Class: IP20 (installed in drive enclosure)
- Dimensions (W × H × D): Refer to drive frame-size datasheet
- Weight: ~5 kg (with packaging)
- Certifications: CE, UL, cUL
- Country of Origin: Germany
Proven Application Environments
- Steel & metals: rolling mill main drives, coiler/uncoiler tension control
- Paper & printing: winder drives, section speed synchronization
- Crane & hoist: hoist, travel, and slewing motion control
- Plastics & rubber: extruder screw drives, calendar roll control
- HVAC & utilities: large pump and fan variable-speed drives
- Mining: conveyor belt drives, crusher motor control
- Marine & offshore: thruster and winch drive systems
Engineering Advantages
- High-dynamic vector control: Field-oriented control (FOC) with <5 ms torque response for demanding servo-like applications without a servo drive price tag.
- Encoder-based closed-loop speed: HTL/TTL encoder feedback enables ±0.01% speed accuracy at rated load.
- Plug-and-play replacement: Direct board-swap into existing MASTERDRIVES chassis — no mechanical modification, parameter set transferable via MMC card.
- PROFIBUS-DP ready: Add CBP2 communication board for seamless SIMATIC S7 / TIA Portal integration without additional gateways.
- Robust EMC design: Shielded PCB layers and optoisolated I/O minimize interference in high-noise industrial environments.
- Long service life: Industrial-grade components rated for 100,000+ operating hours under standard conditions.
System Architecture & Signal Flow
The 6SE7022-6TP50/60/70 control unit interfaces with the MASTERDRIVES power section via the internal CU/PMU bus connector. Signal flow: Setpoint input (AI/fieldbus) → Speed/torque ramp generator → DSP vector controller → PWM modulator → IGBT gate driver (power section) → Motor encoder feedback → Speed/current regulator loop closure. The CU also manages fault logging, parameter storage (EEPROM), and communication with the PMU operator panel or PC-based STARTER tool.
Sourcing & Quality Verification
- Units sourced from authorized Siemens distribution channels and verified OEM surplus stock.
- Each unit undergoes visual inspection, firmware version verification, and functional power-on test prior to shipment.
- Siemens material number A5E00110983 verified against Siemens Industry Mall cross-reference database.
- Anti-static packaging with humidity indicator card; shock-absorbing foam insert for international freight.
- Certificate of conformity and test report available upon request.
Procurement Process
- Step 1: Confirm your drive frame size and existing CU firmware version (readable from PMU display, parameter r069).
- Step 2: Place order on Konmask.com — stock status shown in real time.
- Step 3: Receive order confirmation with estimated lead time (in-stock units ship within 1–2 business days).
- Step 4: Receive unit with packing list, test report, and installation reference card.
- Step 5: Install, restore parameter set from MMC/PC backup, and commission. Contact support@konmask.com for remote commissioning assistance.
Technical FAQ
Q: Is the 6SE7022-6TP50 interchangeable with the 6TP60 and 6TP70 variants?
A: Yes — the TP50/60/70 suffix denotes minor hardware revision levels. All three share the same A5E00110983 board assembly and are functionally interchangeable within the same drive frame.
Q: Can I use this CU with a MASTERDRIVES VC (Vector Control) power section?
A: Yes. The CU supports both MC and VC operating modes, selectable via parameter P095.
Q: What software is needed for parameterization?
A: Siemens DriveMonitor (legacy) or STARTER v4.x and above. USB-to-RS485 adapter required for PC connection.
Q: Is PROFIBUS-DP built in?
A: No — PROFIBUS-DP requires the optional CBP2 communication board installed in the CU option slot.
Q: What is the warranty?
A: Konmask.com provides a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.
