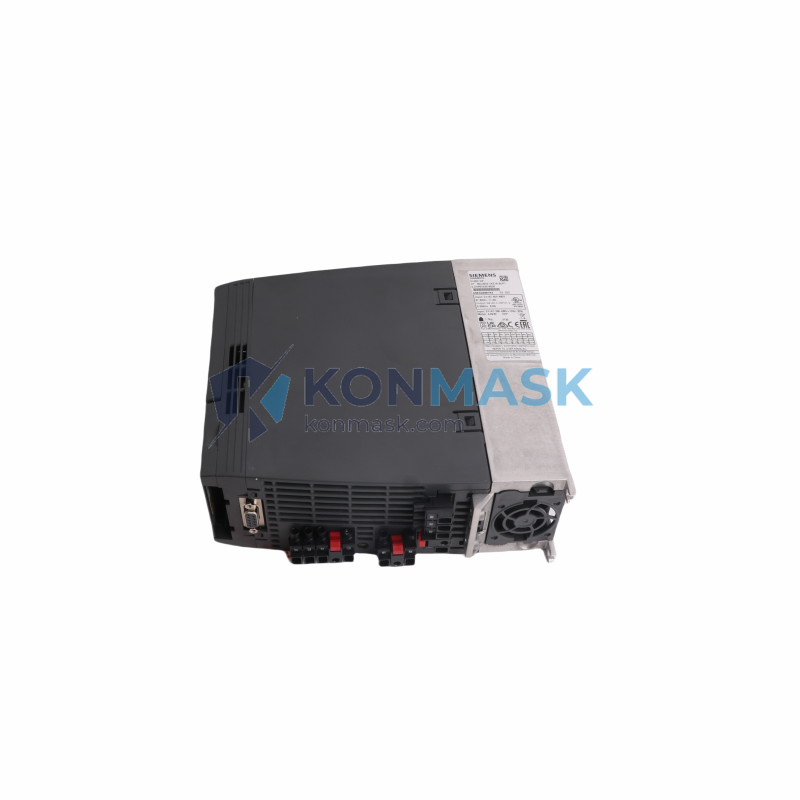

SIEMENS 6SL3210-1KE18-8UP1 SINAMICS S120 Power Module Booksize 18.5kW | Replacement, Equivalent & Selection Guide
The SIEMENS 6SL3210-1KE18-8UP1 is a Booksize Power Module from the SINAMICS S120 series, designed for high-performance servo and vector drive applications. Rated at 18.5 kW, it delivers precise motor control for demanding industrial automation environments. Konmask.com supplies genuine and compatible units with full traceability.
Technical Specifications
- Manufacturer: Siemens AG
- Part Number / SKU: 6SL3210-1KE18-8UP1
- Series: SINAMICS S120
- Form Factor: Booksize
- Rated Output Power: 18.5 kW
- Rated Output Current: 38 A (at 400 V AC)
- Input Voltage: 380–480 V AC, 3-phase, 47–63 Hz
- DC Link Voltage: 600 V DC (nominal)
- Cooling Method: Forced air cooling (internal fan)
- Protection Class: IP20
- Ambient Temperature: 0 °C to +40 °C (derated up to +55 °C)
- Country of Origin: Germany
- Weight: approx. 1.64 kg
- Compliance: CE, UL, cUL
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or direct replacements for the 6SL3210-1KE18-8UP1. Always verify electrical ratings and firmware compatibility before substitution.
- 6SL3210-1KE18-8AF1 — Same power class, chassis format variant
- 6SL3210-1KE21-3UP1 — Next power tier (22 kW), upward-compatible in many applications
- 6SL3210-1KE15-8UP1 — Lower power tier (15 kW), downward selection option
- 6SL3210-1KE18-8UB1 — Built-in filter variant for EMC-sensitive environments
- Third-party compatible units available — contact Konmask.com for cross-reference verification
Why Choose the Original Model
- Guaranteed compatibility with SINAMICS S120 Control Units (CU320-2, CU310-2, etc.)
- Full DRIVE-CLiQ integration for seamless commissioning via STARTER / TIA Portal
- Factory-calibrated current and torque control loops — no re-tuning required
- Siemens warranty and long-term spare parts availability
- Certified for functional safety (STO, SS1) when paired with compatible Safety Integrated options
Typical Applications
- CNC machine tool spindle and feed axis drives
- Packaging and printing machinery
- Conveyor and material handling systems
- Textile and winding machines
- Robotics and multi-axis servo systems
- Pump and fan variable-speed drives in process industries
System Compatibility
- Control Units: CU320-2 DP, CU320-2 PN, CU310-2 DP, CU310-2 PN
- Line Modules: Active Line Module (ALM), Smart Line Module (SLM), Basic Line Module (BLM) — Booksize
- Motor Types: Synchronous servo motors (1FK7, 1FT7), induction motors (1LA, 1LE)
- Fieldbus: PROFIBUS DP, PROFINET IO (via Control Unit)
- Engineering Software: STARTER V5.x, TIA Portal V14 and above, SCOUT TIA
Selection Guide
Use the table below to select the correct S120 Booksize Power Module for your application:
- ≤ 11 kW / ≤ 26 A: 6SL3210-1KE11-8UP1
- 15 kW / 32 A: 6SL3210-1KE15-8UP1
- 18.5 kW / 38 A → This unit: 6SL3210-1KE18-8UP1
- 22 kW / 45 A: 6SL3210-1KE21-3UP1
- 30 kW / 60 A: 6SL3210-1KE23-2UP1
Key selection criteria: motor rated current, overload cycle (150% / 60 s for servo; 110% / 60 s for vector), DC link bus configuration, and cabinet depth constraints.
Quality Assurance & Sourcing
- Units sourced from authorized Siemens distribution channels or certified industrial surplus
- Each unit inspected: visual check, label verification, firmware version confirmation
- Anti-static packaging with humidity indicator card
- Batch traceability records available on request
- 12-month warranty on all units supplied by Konmask.com
How to Order
- Confirm your part number: 6SL3210-1KE18-8UP1
- Specify quantity and required delivery timeline
- Contact us via email or phone for stock confirmation and pricing
- Receive proforma invoice → arrange payment → shipment with tracking
- DHL / FedEx / UPS express available; sea freight for bulk orders
📧 [email protected] | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace 6SL3210-1KE18-8UP1 with 6SL3210-1KE18-8AF1?
A: The AF1 suffix denotes a chassis (floor-standing) format. It is electrically equivalent but physically incompatible with a Booksize cabinet — do not substitute without verifying mechanical fit.
Q: Is the 6SL3210-1KE18-8UP1 compatible with older S120 firmware?
A: Firmware version must match the Control Unit. Units shipped by Konmask.com include the firmware version on the label; contact us if a specific version is required.
Q: Can this module run in single-axis or multi-axis configurations?
A: Yes. It supports both single-axis (standalone) and multi-axis (shared DC bus) configurations within the S120 Booksize system.
Q: What is the lead time for out-of-stock units?
A: Typical lead time is 3–10 business days for standard stock; 4–8 weeks for factory-new orders. Contact us for current availability.
