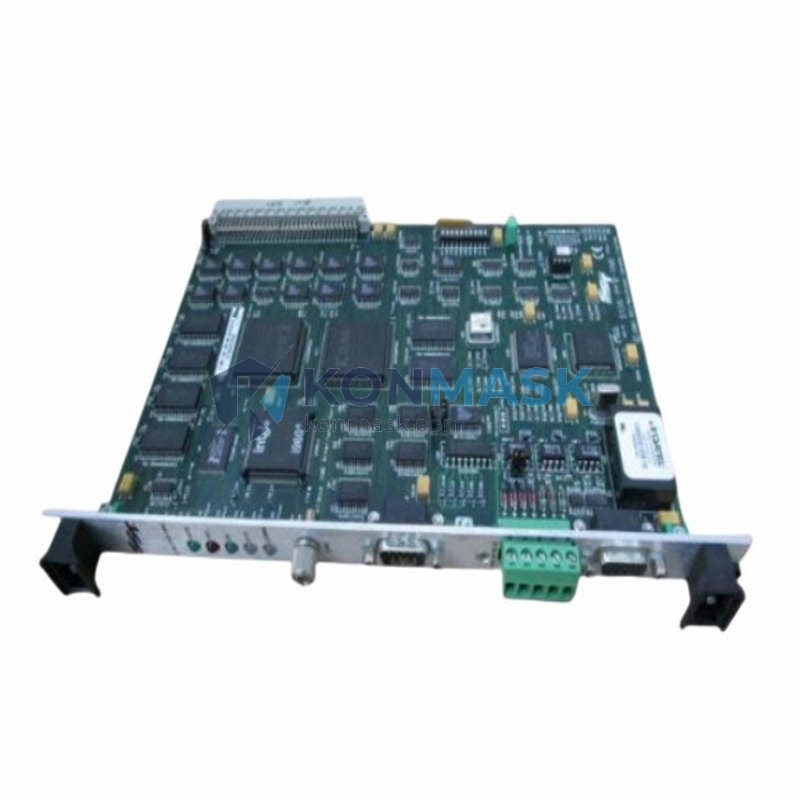

SST 5136-DNP-CPCI DeviceNet Interface Card – 5136 Series CompactPCI Communication Module
When a DeviceNet communication link fails on the factory floor, the consequences are immediate and severe: conveyor lines halt, robotic arms freeze mid-cycle, and safety interlocks trip across entire production cells. Without a reliable interface card bridging your host controller to the DeviceNet network, thousands of field devices — sensors, drives, valve manifolds, and I/O blocks — go silent. The SST 5136-DNP-CPCI exists precisely to prevent that scenario, delivering deterministic, high-integrity DeviceNet communication in a rugged CompactPCI form factor engineered for continuous industrial duty.
Within the SST 5136 series, the DNP-CPCI variant occupies the CompactPCI (cPCI) segment — the preferred platform for telecom-grade and ruggedized industrial computing environments where hot-swap capability and mechanical robustness are non-negotiable. SST (Woodhead / Molex SST) has been a cornerstone supplier of fieldbus interface solutions for over two decades, and the 5136-DNP-CPCI is widely deployed across automotive assembly, food & beverage processing, material handling, and discrete manufacturing worldwide.
Technical Specifications
- Model: SST 5136-DNP-CPCI
- SKU: 5136-DNP-CPCI
- Vendor: SST (Molex / Woodhead SST)
- Form Factor: CompactPCI (cPCI), 3U
- Network Protocol: DeviceNet (CAN-based, ISO 11898)
- Node Support: Up to 64 nodes per network segment
- Operating Mode: Master / Slave / Peer-to-Peer
- Data Rate: 125 kbps / 250 kbps / 500 kbps (auto or manual)
- Bus Interface: CompactPCI backplane
- Operating Temperature: 0°C to +60°C
- Weight: 150 g
- Software Support: Windows, Linux; SST API / OPC-compatible drivers
Note: Specifications are based on published SST product documentation. Always verify against the official datasheet for your specific revision.
Key Features & Benefits
- CompactPCI Form Factor: Designed for 3U cPCI chassis, enabling hot-swap and high-vibration environments where standard PCI cards cannot be used.
- Full DeviceNet Master/Slave: Operates as scanner (master) or adapter (slave), providing maximum flexibility for both new system design and legacy integration.
- Multi-Rate Support: Selectable baud rates (125/250/500 kbps) allow seamless integration into existing DeviceNet segments without reconfiguring the entire network.
- Deterministic Communication: Hardware-based message scheduling ensures cycle-time consistency critical for motion control and safety applications.
- Broad Driver Ecosystem: SST-supplied Windows and Linux drivers, plus OPC server compatibility, reduce integration time and lower total cost of ownership.
- Industrial-Grade Reliability: Designed to IEC 61131 environmental standards, suitable for 24/7 continuous operation in harsh plant environments.
Industry & Equipment Applications
- Automotive Manufacturing: Body-in-white welding lines, paint shop conveyors, and final assembly stations using Allen-Bradley or Omron DeviceNet scanners.
- Food & Beverage: Packaging lines, filling machines, and palletizers where hygienic design and network reliability are paramount.
- Material Handling: Automated storage and retrieval systems (AS/RS), sortation conveyors, and AGV fleet controllers.
- Discrete Manufacturing: CNC machining centers, press lines, and robotic welding cells requiring deterministic I/O communication.
- Process Industries: Compressor control panels and pump stations integrating DeviceNet drives and soft starters.
System Integration & Compatible Parts
The SST 5136-DNP-CPCI is designed to work within broader DeviceNet ecosystems. Compatible and commonly paired components include:
- Allen-Bradley / Rockwell Automation 1756-DNB, 1769-SDN DeviceNet Scanner Modules
- Omron CJ1W-DRM21 DeviceNet Master Units
- Turck, Balluff, and Pepperl+Fuchs DeviceNet I/O blocks
- Danfoss, ABB, and Yaskawa DeviceNet-enabled variable frequency drives
- SST 5136-PFB-CPCI (PROFIBUS variant) for mixed-protocol cPCI chassis configurations
- Standard DeviceNet trunk/drop cables, T-taps, and termination resistors (121 Ω)
Our Quality Assurance Process
At Konmask.com, every SST 5136-DNP-CPCI unit undergoes a structured verification process before shipment:
- Source Verification: Units are sourced from authorized distributors or verified surplus channels with full traceability documentation.
- Visual Inspection: PCB, connectors, and labeling are inspected for physical integrity and authenticity markers.
- Functional Check: Where applicable, cards are bench-tested for basic communication initialization and driver recognition.
- Secure Packaging: Anti-static packaging with moisture barrier and shock-absorbing foam, compliant with IPC/JEDEC standards for sensitive electronics.
- Documentation: Certificate of conformance and inspection report available upon request.
How to Order
- Submit an inquiry via the “Request a Quote” button or email support@konmask.com.
- Provide your required quantity, delivery timeline, and destination country.
- Receive a formal quotation with lead time, shipping options, and payment terms within 1 business day.
- Confirm the order and receive a proforma invoice.
- Upon payment confirmation, your order is processed and dispatched with full tracking.
We support T/T bank transfer, PayPal, and other B2B payment methods. Export documentation (commercial invoice, packing list, COO) is provided for all international shipments.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, and fieldbus components — not a generalist marketplace.
- Global Sourcing Network: Access to new, surplus, and refurbished stock from verified suppliers across Asia, Europe, and North America.
- Fast Response: Dedicated B2B inquiry team responds within 24 hours on business days.
- Export Experience: Experienced in shipping to 50+ countries with full customs documentation support.
- Technical Support: Pre-sales engineering consultation available for integration and compatibility questions.
Frequently Asked Questions
Q: Is the SST 5136-DNP-CPCI compatible with Windows 10/11?
A: SST provides driver packages for Windows XP through Windows 10. Windows 11 compatibility depends on driver version — please contact us with your OS version for confirmation before ordering.
Q: Can this card operate as both master and slave on the same DeviceNet network?
A: The 5136-DNP-CPCI supports master (scanner) and slave (adapter) modes, but typically operates in one mode per instance. Consult the SST API documentation for multi-mode configurations.
Q: Do you provide a warranty?
A: Yes. We offer a 90-day functional warranty on all units. Extended warranty options are available — please inquire at the time of quotation.
Q: What is the lead time for this part?
A: Lead time depends on current stock availability. In-stock units typically ship within 2–5 business days. Please submit an inquiry for real-time availability.
Q: Can you provide a datasheet or technical manual?
A: Yes. SST product documentation is available upon request. Contact support@konmask.com with your model number.
