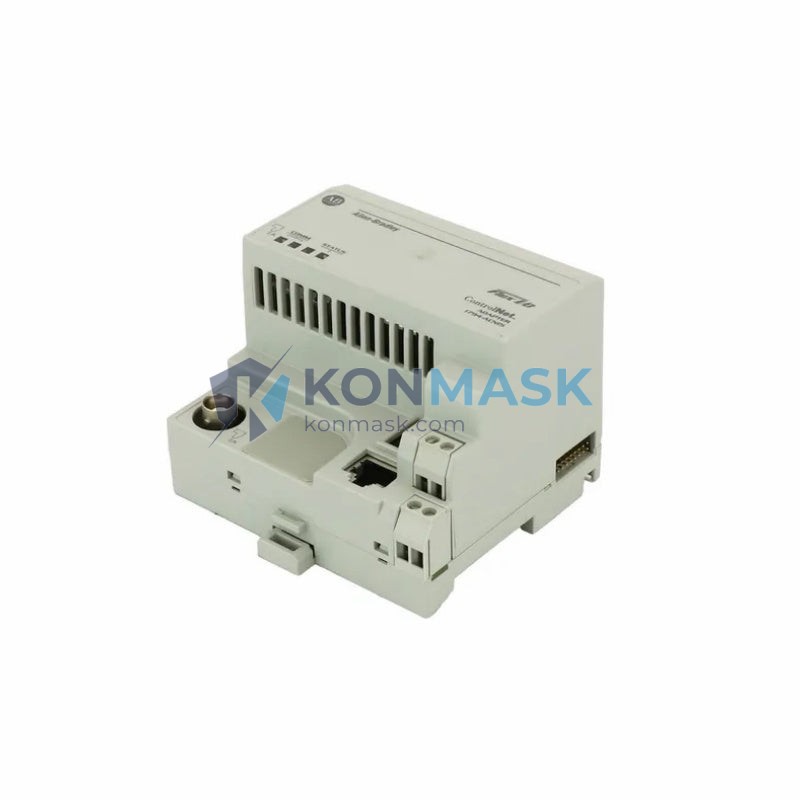

Allen-Bradley 1794-ACN15 – FLEX I/O ControlNet Adapter | Rockwell Automation FLEX I/O Platform
Engineering Background
The 1794-ACN15 is a ControlNet communication adapter designed for the Allen-Bradley FLEX I/O distributed I/O platform by Rockwell Automation. It enables FLEX I/O terminal bases and I/O modules to communicate over a ControlNet network at 5 Mbps, providing deterministic, high-speed data exchange in demanding industrial environments. This adapter is a cornerstone component in Logix-based control architectures where real-time I/O performance and network redundancy are critical.
Product Positioning
Targeted at process control, discrete manufacturing, and hybrid automation systems, the 1794-ACN15 bridges field-level I/O with ControlLogix, CompactLogix, and other ControlNet-capable controllers. It is the preferred choice for procurement engineers specifying distributed I/O nodes in high-availability plant networks.
Complete Technical Specifications
- Part Number / SKU: 1794-ACN15
- Manufacturer: Allen-Bradley / Rockwell Automation
- Series / Platform: FLEX I/O (1794 Series)
- Network Protocol: ControlNet (ANSI/IEC 61158)
- Network Data Rate: 5 Mbps
- ControlNet Ports: 2 × BNC coaxial connectors (redundant media capable)
- Max I/O Modules per Adapter: Up to 8 FLEX I/O modules
- Backplane Current Supply: 1.0 A @ 5 VDC (to I/O modules)
- Power Supply Input: 24 VDC (via terminal base)
- Operating Temperature: 0 °C to +55 °C (32 °F to 131 °F)
- Storage Temperature: -40 °C to +85 °C
- Relative Humidity: 5% to 95% (non-condensing)
- Enclosure Rating: IP20 (panel-mount, open-style)
- Vibration: IEC 68-2-6 compliant
- Shock: IEC 68-2-27 compliant
- Agency Certifications: UL, CE, C-Tick, FM Class I Div 2
- Weight: Approx. 1,050 g (with terminal base)
- Dimensions (H × W × D): 94 mm × 35 mm × 87 mm (adapter only)
- Firmware: Field-upgradeable via RSNetWorx for ControlNet
- Compatible Software: RSLogix 5000 / Studio 5000 Logix Designer, RSNetWorx for ControlNet
Proven Application Environments
- Automotive body-in-white and powertrain assembly lines
- Oil & gas upstream/downstream process control panels
- Water and wastewater treatment SCADA nodes
- Pharmaceutical batch processing (21 CFR Part 11 environments)
- Food & beverage packaging and filling lines
- Mining conveyor and crusher control systems
- Power generation and substation automation
- Chemical plant distributed control system (DCS) integration
Engineering Advantages
- Deterministic ControlNet Communication: Scheduled and unscheduled messaging ensures predictable I/O scan times critical for motion and process control.
- Redundant Media Support: Dual BNC ports allow coaxial cable redundancy, eliminating single points of network failure.
- Compact FLEX I/O Form Factor: DIN-rail mountable, space-efficient design reduces panel footprint versus traditional rack-based I/O.
- Hot-Swap Capability: I/O modules can be replaced under power without disrupting the ControlNet network or other nodes.
- Broad I/O Module Compatibility: Supports the full 1794 FLEX I/O module library — digital, analog, specialty, and safety variants.
- Seamless Logix Integration: Native EDS-based configuration in Studio 5000 with automatic device recognition.
System Architecture & Signal Flow
The 1794-ACN15 mounts on a 1794 terminal base and connects to the FLEX I/O backplane. The ControlNet network cable connects to either or both BNC ports. The adapter acts as a ControlNet slave node, exchanging I/O data with the ControlNet scanner (e.g., 1756-CNB in a ControlLogix chassis) via scheduled connections. Configuration is performed offline in RSNetWorx for ControlNet and downloaded to the adapter. Real-time I/O data flows from field devices → FLEX I/O modules → 1794-ACN15 backplane → ControlNet network → controller scanner → Logix controller program.
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels.
- Each module undergoes visual inspection, label authenticity check, and functional power-on verification prior to shipment.
- Firmware version documented and provided upon request.
- Original Rockwell Automation packaging preserved where available.
- Counterfeit risk mitigation: serial number cross-referenced against known authentic production batches.
- Certificate of conformance (CoC) available for qualified orders.
Procurement Process
- Submit RFQ via support@konmask.com or WhatsApp +0086 19859288691 with quantity and required delivery date.
- Receive quotation with lead time, unit price, and shipping options within 24 business hours.
- Confirm purchase order — payment via T/T, PayPal, or credit card accepted.
- Unit inspected, packed, and dispatched with tracking number provided.
- Post-delivery technical support available for integration and commissioning queries.
Technical FAQ
Q: Is the 1794-ACN15 compatible with ControlLogix 1756-CNB and 1756-CNBR scanners?
A: Yes. The 1794-ACN15 is fully compatible with all standard ControlNet scanner modules in the 1756 ControlLogix platform, including redundant scanner configurations.
Q: Can this adapter support redundant ControlNet cabling?
A: Yes. Both BNC ports support simultaneous connection to redundant ControlNet cable plants (Channel A and Channel B), providing automatic media failover.
Q: What is the maximum number of I/O modules supported per adapter?
A: Up to 8 FLEX I/O modules (1794 series) can be connected to a single 1794-ACN15 adapter via the backplane.
Q: Is firmware upgrade possible in the field?
A: Yes. Firmware can be updated using RSNetWorx for ControlNet without removing the adapter from service, subject to network configuration.
Q: What is the typical lead time for in-stock units?
A: In-stock units ship within 1–3 business days. Contact us for current availability and expedited shipping options.
