Variable Frequency Drive Solution – Allen-Bradley 1336-BDB-SP38A | 1336 Series
Where This Product Is Used

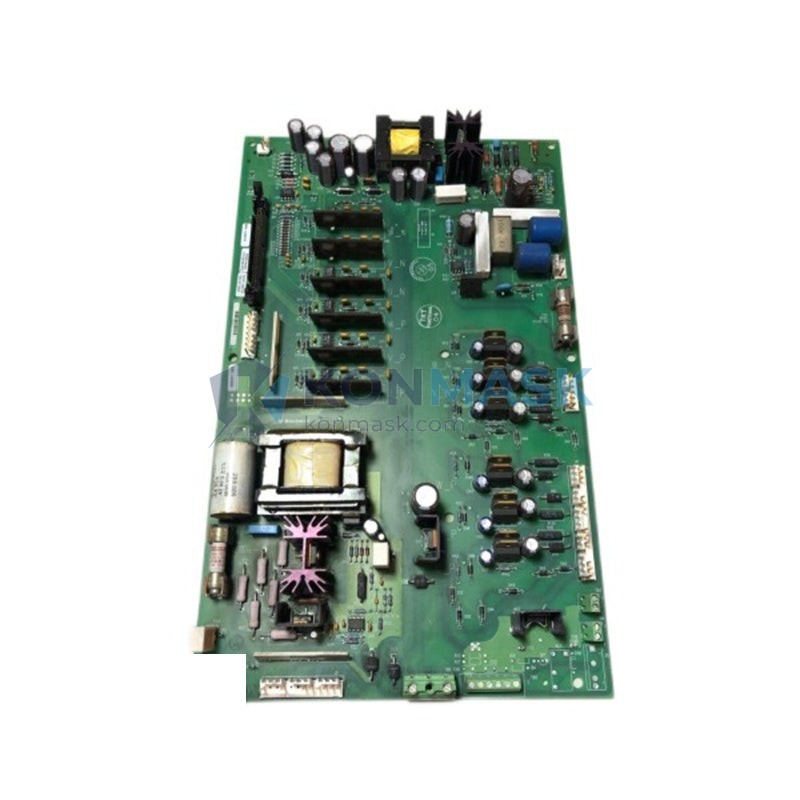

The Allen-Bradley 1336-BDB-SP38A is a base drive board (PC board) designed as a direct replacement component for the 1336 Series Variable Frequency Drive (VFD). It is deployed across a wide range of industrial motor control applications where precise speed regulation, energy efficiency, and system uptime are critical.
- Manufacturing & Assembly Lines – Conveyor systems, robotic arms, and automated assembly requiring consistent motor speed control
- HVAC & Building Automation – Fan and pump motor control in commercial and industrial HVAC systems
- Water & Wastewater Treatment – Pump station drives requiring reliable, continuous operation
- Oil & Gas Processing – Compressor and pump drives in hazardous and demanding environments
- Pulp & Paper / Metals – High-torque applications with variable load profiles
- Food & Beverage Processing – Hygienic production lines with frequent start/stop cycles
Engineers specify this board as a field-replaceable unit (FRU) to restore failed 1336 drives to full operation without replacing the entire drive chassis, significantly reducing downtime and capital expenditure.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 1336-BDB-SP38A |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Family | 1336 Series Variable Frequency Drive |
| Component Type | PC Board / Base Drive Board |
| Form Factor | Plug-in replacement board |
| Weight | 3,300 g (approx.) |
| Compatibility | Allen-Bradley 1336 Series VFD platforms |
| Condition | New / Refurbished (specify at inquiry) |
| Warranty | Contact Konmask for warranty terms |
Note: Always cross-reference your drive’s nameplate and firmware revision before ordering. Contact our technical team for compatibility confirmation.
Why Engineers Specify This Model
- OEM-Grade Replacement – Direct Allen-Bradley part; no re-engineering or adaptation required for 1336 Series drives
- Minimizes Downtime – Board-level replacement restores drive function in hours vs. days for full drive procurement
- Cost-Effective Repair Path – Fraction of the cost of a new drive chassis; ideal for MRO (Maintenance, Repair & Operations) budgets
- Proven Platform – The 1336 Series has decades of field deployment across global industrial facilities
- Plug-and-Play Compatibility – Designed to slot directly into existing 1336 drive enclosures with no mechanical modification
- Supports Predictive Maintenance Programs – Stocking this board as a spare reduces MTTR (Mean Time to Repair) for critical drive assets
Complete System Bill of Materials
For a fully operational 1336 Series VFD repair or spare parts kit, engineers typically source the following alongside the 1336-BDB-SP38A:
- 1336 Series Drive Chassis / Enclosure
- 1336-MOD-xxx Communication Module (DeviceNet, Ethernet/IP, etc.)
- 1336-BRF-SP-xx Brake/Resistor Module (if dynamic braking required)
- 1336-GM-xxx Gate Driver Board
- 1336-PB-SP-xx Power Board
- 1336-L10E / L11E HIM (Human Interface Module)
- Appropriate input/output fusing and line reactors per drive rating
Contact support@konmask.com for a complete BOM quotation for your 1336 drive repair project.
Compliance & Industry Standards
- UL Listed – Allen-Bradley 1336 Series drives carry UL/cUL listing for North American installations
- CE Marked – Compliant with EU Low Voltage Directive and EMC Directive
- ISO 9001 – Manufactured under Rockwell Automation’s ISO 9001-certified quality management system
- RoHS Compliant – Meets EU Restriction of Hazardous Substances requirements
- NEMA / IEC Standards – Compatible with NEMA and IEC motor control installation standards
Quality Assurance & Sourcing
At Konmask.com, every Allen-Bradley component undergoes a structured quality verification process before dispatch:
- Visual Inspection – PCB surface, solder joints, connectors, and component markings checked against OEM reference
- Functional Verification – Where applicable, boards are bench-tested or verified against known-good drive configurations
- Authenticity Screening – Parts are sourced from authorized distributors or verified surplus channels; counterfeit screening protocols applied
- ESD-Safe Packaging – All PC boards shipped in anti-static bags with foam cushioning to prevent transit damage
- Traceability – Lot and date codes documented for full supply chain traceability
How to Source This Part
- Confirm Compatibility – Verify your 1336 drive model number and firmware revision. Share your drive nameplate data with our team if unsure.
- Request a Quote – Email support@konmask.com or call +0086 19859288691 with your part number and required quantity.
- Receive Stock Confirmation – Our team will confirm availability, condition (new/refurbished), lead time, and pricing within 1 business day.
- Place Order & Ship – Orders are processed with ESD-safe packaging and shipped via your preferred carrier. Express options available for urgent MRO needs.
- Post-Sale Support – Technical support available for installation guidance and drive commissioning questions.
Application-Specific FAQ
Q: Is the 1336-BDB-SP38A compatible with all 1336 Series drives?
A: The 1336-BDB-SP38A is designed for specific variants within the 1336 Series. Please provide your full drive model number (e.g., 1336-B007-EAE-FA2) to our team for a definitive compatibility check before ordering.
Q: Can I install this board myself, or do I need a certified technician?
A: Board replacement should be performed by a qualified electrical technician or Rockwell Automation-certified engineer. Always de-energize and lock out/tag out (LOTO) the drive before any internal work.
Q: What is the lead time if the part is not in stock?
A: Lead times vary by sourcing channel. Contact us for current stock status. We maintain relationships with multiple surplus and authorized distribution channels to minimize lead times.
Q: Do you offer a warranty on this part?
A: Yes. Warranty terms depend on part condition (new vs. refurbished). Contact support@konmask.com for specific warranty documentation.
Q: Can Konmask source other 1336 Series spare parts?
A: Yes. We specialize in Allen-Bradley and Rockwell Automation components across the 1336, 1756, 1769, 1771, and 1785 product families. Submit your full BOM for a consolidated quotation.
