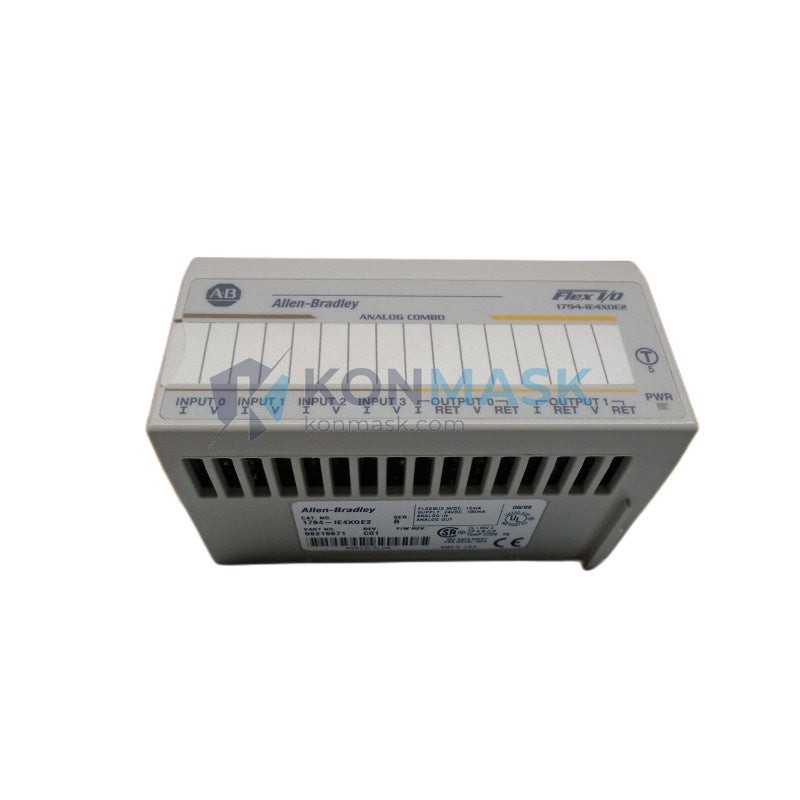

Allen-Bradley 1794-IE4XOE2 – 4-Ch Analog Input / 2-Ch Analog Output Combination Module | FLEX I/O Platform
Engineering Background
The Allen-Bradley 1794-IE4XOE2 is a high-density analog combination module designed for the FLEX I/O distributed I/O platform. It integrates four analog input channels and two analog output channels into a single compact module, reducing panel footprint and wiring complexity in process-control and machine-automation applications. The module communicates via the FLEX I/O adapter backplane and is fully compatible with ControlLogix, CompactLogix, and SLC 500 controller families through the appropriate adapter.
Product Positioning
Targeted at process engineers and OEM machine builders who require precise analog signal conditioning within a modular, DIN-rail-mounted architecture, the 1794-IE4XOE2 is the preferred choice when a single module must handle both measurement (temperature, pressure, flow) and actuation (valve positioner, variable-speed drive reference) tasks. Its combination form factor eliminates the need for separate input and output modules, lowering BOM cost and simplifying spare-parts management.

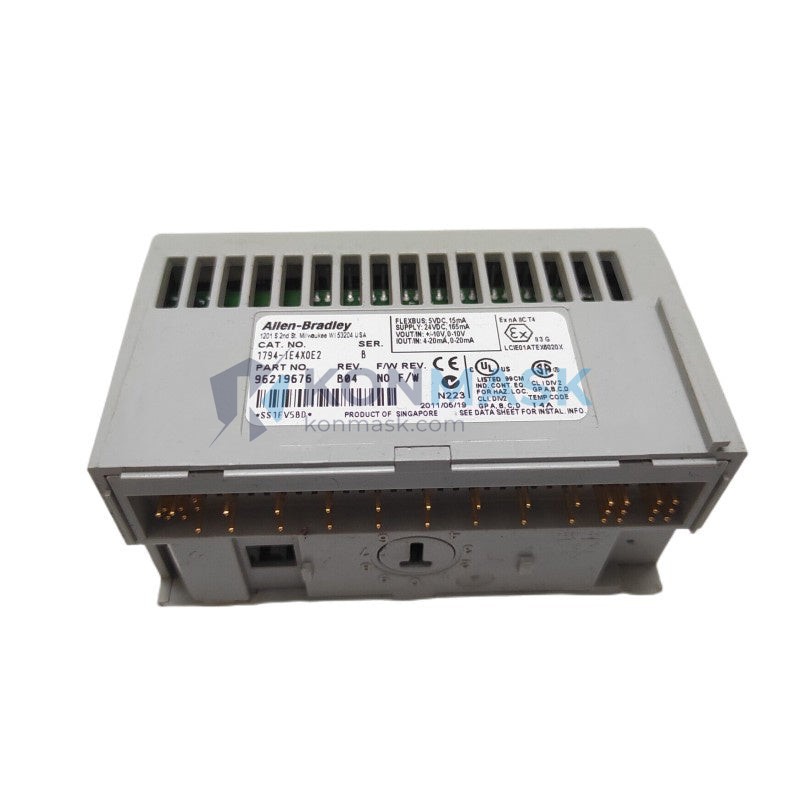

Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 1794-IE4XOE2 |
| Series | FLEX I/O |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Module Type | Analog Combination (Input + Output) |
| Analog Input Channels | 4 (single-ended) |
| Analog Output Channels | 2 |
| Input Signal Ranges | 4–20 mA, 0–20 mA, 0–10 V DC, ±10 V DC, 1–5 V DC |
| Output Signal Ranges | 4–20 mA, 0–20 mA, 0–10 V DC, ±10 V DC |
| Resolution | 12-bit (input & output) |
| Input Impedance (Voltage) | > 1 MΩ |
| Input Impedance (Current) | 250 Ω (internal shunt) |
| Output Load (Current) | 0–600 Ω |
| Output Load (Voltage) | ≥ 1 kΩ |
| Accuracy | ±0.1% of full scale (at 25 °C) |
| Repeatability | ±0.05% of full scale |
| Conversion Time | ≤ 5 ms per channel (all channels) |
| Backplane Current (5 V DC) | 75 mA |
| Backplane Current (24 V DC) | 2 mA |
| Field-Side Power | 24 V DC (±10%), externally supplied |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5–95% (non-condensing) |
| Isolation (Field to Backplane) | 250 V AC continuous |
| Enclosure Rating | Open-style (IP20); requires enclosure |
| Dimensions (H × W × D) | 94 mm × 23 mm × 87 mm |
| Weight | Approx. 100 g |
| Certifications | UL, CE, C-Tick |
| Compatible Adapters | 1794-AENT, 1794-ADN, 1794-APB, 1794-ACN15, and others |
Proven Application Environments
- Process Control: PID loop control for temperature, pressure, and flow in chemical, pharmaceutical, and food & beverage plants.
- Machine Automation: Servo and VFD speed-reference output combined with feedback signal acquisition on packaging and converting lines.
- Water & Wastewater: Level transmitter input and pump-speed output in distributed pump-station architectures.
- Oil & Gas: Wellhead instrumentation and valve-positioner control in remote FLEX I/O drops.
- Building Automation: HVAC damper control and sensor monitoring via EtherNet/IP adapter integration.
- Automotive Assembly: Torque and force measurement with proportional valve output on press and weld stations.
Engineering Advantages
- Combination Form Factor: Eliminates a separate output module slot, saving panel space and reducing wiring terminations by up to 40%.
- Universal Signal Ranges: Software-selectable input and output ranges allow a single module SKU to cover the majority of field-device signal types.
- 12-Bit Resolution: Provides 4,096 counts of resolution, sufficient for precise PID control and accurate analog measurement.
- Hot-Swap Capable: FLEX I/O architecture supports module replacement under power (with appropriate adapter), minimizing process downtime.
- Scalable Architecture: Up to 8 I/O modules per adapter; multiple adapters can be networked for large distributed systems.
- Rockwell Ecosystem Integration: Native RSLogix 5000 / Studio 5000 Add-On Profile (AOP) support for rapid commissioning and diagnostics.
System Architecture & Signal Flow

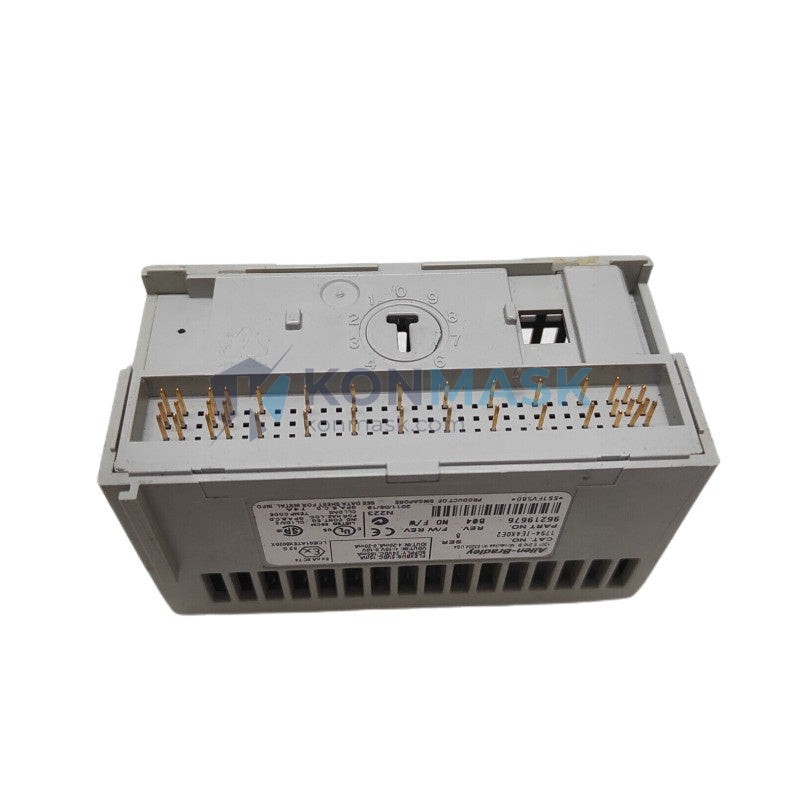

The 1794-IE4XOE2 mounts on a FLEX I/O terminal base (e.g., 1794-TB3 or 1794-TB3S) and connects to the backplane via the module’s edge connector. Field wiring terminates at the terminal base screw terminals. The adapter (e.g., 1794-AENT for EtherNet/IP) bridges the FLEX I/O backplane to the controller network. The controller reads input data and writes output data through the adapter’s I/O image table. Channel configuration (signal range, filter frequency, fault state) is performed in the controller’s I/O configuration tree and downloaded to the module at startup.
Signal Flow (Input): Field transmitter → Terminal base screw terminal → Internal A/D converter → 12-bit digital value → Backplane → Adapter → Controller tag.
Signal Flow (Output): Controller tag → Adapter → Backplane → Internal D/A converter → Terminal base screw terminal → Field actuator.
Sourcing & Quality Verification
- All units sourced from authorized distributors or verified surplus channels with full traceability documentation.
- Each module undergoes incoming inspection: visual check, label verification (catalog number, series, firmware revision), and functional power-on test.
- Firmware revision and hardware series are confirmed against Rockwell Automation product compatibility matrices prior to shipment.
- Original Rockwell Automation packaging preserved where available; repackaged units include inspection report.
- Counterfeit-risk screening performed per AS6081 guidelines for all surplus-channel inventory.
Procurement Process
- Inquiry: Submit your BOM or part number via the product page or email support@konmask.com with required quantity and delivery timeline.
- Quote: Receive a formal quotation within 1 business day, including unit price, lead time, and shipping options.
- Order Confirmation: Purchase order or online checkout accepted; proforma invoice issued for wire-transfer orders.
- Inspection & Dispatch: Module inspected, packed with anti-static protection, and dispatched within 1–3 business days of payment confirmation.
- Tracking & Support: Shipment tracking number provided; post-delivery technical support available via email or phone.
Technical FAQ
Q: Is the 1794-IE4XOE2 compatible with ControlLogix systems?
A: Yes. When paired with a compatible FLEX I/O adapter (e.g., 1794-AENT), the module integrates seamlessly into ControlLogix and CompactLogix systems via EtherNet/IP, DeviceNet, or ControlNet.
Q: Can input and output channels be configured independently?
A: Yes. Each input channel and each output channel is independently configurable for signal range, filter, and fault/program-mode behavior via the controller’s I/O configuration.
Q: What terminal base is required?
A: The 1794-IE4XOE2 requires a FLEX I/O terminal base. The 1794-TB3 (3-wire) or 1794-TB3S (3-wire, spring clamp) are the most common choices. Verify terminal base compatibility with your wiring method.
Q: Does the module support HART pass-through?
A: No. The 1794-IE4XOE2 does not support HART protocol. For HART-enabled analog I/O, consider the 1794-IE8H or similar HART-capable modules.
Q: What is the warranty on surplus units?
A: Konmask provides a 90-day functional warranty on all surplus units. New/factory-sealed units carry the standard Rockwell Automation warranty.
