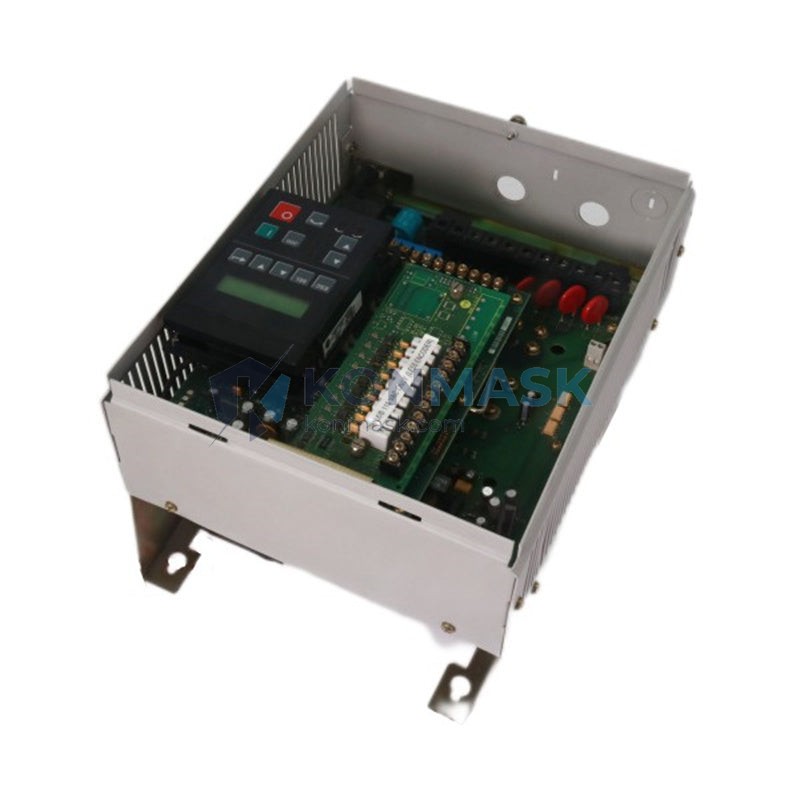

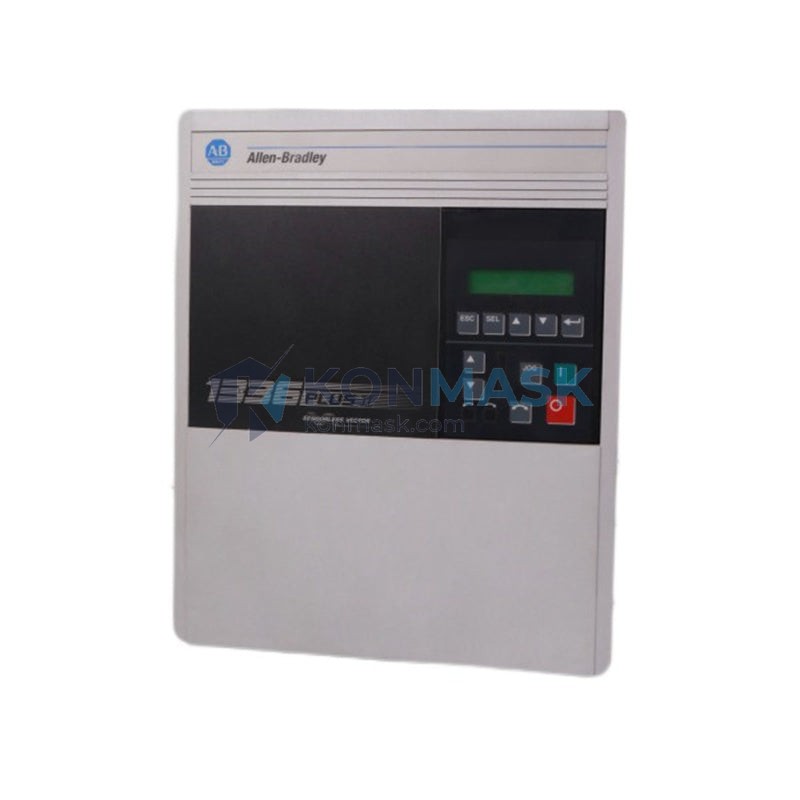

Allen-Bradley 1336F-BRF75-AA-EN – Variable Frequency AC Drive | 1336 PLUS II Series
Engineering Background
The Allen-Bradley 1336 PLUS II is a cornerstone of Rockwell Automation’s legacy drive portfolio, engineered for demanding industrial motor control applications. Designed to deliver precise speed and torque regulation across a wide range of AC induction motors, the 1336 PLUS II series has accumulated decades of proven field performance in process, manufacturing, and infrastructure environments worldwide.
Product Positioning
The 1336F-BRF75-AA-EN is a 75 HP (55 kW), 460 V three-phase AC drive within the 1336 PLUS II family. It is purpose-built for procurement engineers sourcing reliable, specification-accurate replacement drives for existing Rockwell-based control architectures. Konmask.com supplies this unit from verified surplus and OEM-grade channels, fully tested and ready for integration.
Complete Technical Specifications
| Catalog Number | 1336F-BRF75-AA-EN |
| Series | 1336 PLUS II |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Drive Type | AC Variable Frequency Drive (VFD) |
| Output Power | 75 HP / 55 kW |
| Input Voltage | 380–480 V AC, Three-Phase |
| Output Voltage | 0–480 V AC, Three-Phase |
| Input Frequency | 47–63 Hz |
| Output Frequency Range | 0–400 Hz |
| Output Current (Continuous) | ~96 A (nominal at 460 V) |
| Control Method | Sensorless Vector / V/Hz |
| Enclosure Rating | IP20 / NEMA Type 1 (Open) |
| Communication Option | EN – EtherNet/IP Adapter |
| Braking Option | BR – Internal Dynamic Braking Transistor |
| Cooling Method | Forced Air (Internal Fan) |
| Ambient Temperature | 0°C to +40°C (operating) |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5–95% RH, Non-condensing |
| Altitude | Up to 1000 m without derating |
| Weight | ~10.94 kg |
| Approvals / Certifications | UL, CE, CSA |
| Programming Interface | HIM (Human Interface Module) or DriveExplorer / RSLogix |
Proven Application Environments
- Pump & Fan Control – Municipal water treatment, HVAC systems, cooling towers
- Conveyor & Material Handling – Automotive assembly lines, distribution centers
- Compressor Drives – Oil & gas upstream/midstream compression stations
- Mixer & Agitator Control – Chemical processing, food & beverage production
- Machine Tool Spindle Drives – CNC machining centers requiring precise speed control
- Infrastructure & Utilities – Power generation auxiliaries, wastewater lift stations
Engineering Advantages
- EtherNet/IP Native Integration – The EN communication option enables seamless integration with ControlLogix, CompactLogix, and other Logix-based PLCs via standard EtherNet/IP messaging, eliminating the need for external communication adapters.
- Internal Dynamic Braking Transistor (BR) – Built-in braking transistor supports rapid deceleration of high-inertia loads when paired with an external braking resistor, reducing stopping time and improving process cycle efficiency.
- Sensorless Vector Control – Delivers high starting torque and stable speed regulation without the cost and complexity of encoder feedback, suitable for most industrial pump, fan, and conveyor applications.
- Rockwell Ecosystem Compatibility – Fully compatible with RSLogix 5000 / Studio 5000 Add-On Instructions (AOIs), DriveExplorer, and Connected Components Workbench for rapid commissioning.
- Robust Thermal Management – Forced-air cooling with intelligent thermal modeling protects power components under sustained high-load duty cycles.
- Extensive Fault Diagnostics – Onboard fault logging and configurable fault actions reduce unplanned downtime and simplify root-cause analysis.
System Architecture & Signal Flow
The 1336F-BRF75-AA-EN operates as a standalone drive node within a Rockwell Automation control architecture:
- Network Layer: EtherNet/IP (EN adapter) connects to the plant-level Logix controller via standard Cat5e/Cat6 infrastructure. Supports explicit messaging and I/O (implicit) messaging for real-time speed/torque reference and status feedback.
- Control Layer: Internal DSP-based control board executes V/Hz or sensorless vector algorithms at high update rates. Speed reference can be sourced from network, analog input (0–10 V / 4–20 mA), or preset speeds via digital inputs.
- Power Layer: Three-phase 460 V input is rectified to DC bus, then PWM-inverted to variable-frequency AC output. The internal braking transistor connects to an external resistor to dissipate regenerative energy during deceleration.
- I/O Interface: Configurable digital inputs (start/stop, direction, fault reset, preset speeds), analog inputs/outputs, and relay outputs for run/fault status signaling to PLC or DCS.
Sourcing & Quality Verification
- Source: Verified surplus, authorized distributor overstock, and OEM-grade refurbished units — no counterfeit or grey-market supply chains.
- Incoming Inspection: Each unit undergoes visual inspection, label/nameplate verification, and functional power-up testing prior to listing.
- Packaging: Anti-static foam-lined carton with moisture-barrier bag; shock indicators included for freight monitoring.
- Documentation: Original Allen-Bradley user manual reference (Publication 1336 PLUS II-5.0) available upon request; CE/UL declaration of conformity on file.
- Warranty: 12-month Konmask operational warranty covering manufacturing defects and verified functional failures.
Procurement Process
- Confirm Specification Match – Verify catalog number 1336F-BRF75-AA-EN against your BOM or existing drive nameplate. Cross-reference HP rating, voltage class, and communication option (EN = EtherNet/IP).
- Request a Formal Quote – Contact support@konmask.com or call +0086 19859288691 for volume pricing, lead time confirmation, and export documentation (CO, packing list, commercial invoice).
- Place Order & Confirm Payment – Orders accepted via T/T (bank transfer), PayPal, or platform checkout. Pro-forma invoice issued within 1 business day.
- Shipping & Logistics – Standard dispatch within 3–5 business days. DHL / FedEx / UPS express available. Sea freight consolidation available for bulk orders. All shipments include tracking and insurance.
- Incoming Acceptance – Recommended: perform incoming inspection against provided test report. Konmask technical support available for commissioning guidance at no additional charge.
Technical FAQ
Q: Is the 1336F-BRF75-AA-EN compatible with my existing 1336 PLUS II installation?
A: Yes. The 1336F-BRF75-AA-EN is a direct catalog replacement within the 1336 PLUS II frame size F. Verify mounting dimensions and input/output wiring terminals match your existing installation. Parameter sets from the replaced drive can be uploaded via DriveExplorer for rapid recommissioning.
Q: What is the difference between the 1336F and 1336S/1336B variants?
A: The 1336F (PLUS II) is the second-generation platform with enhanced sensorless vector control, improved EMC filtering, and broader communication option availability compared to the original 1336 (PLUS) and 1336B series. The F-frame designation also indicates the physical enclosure size class.
Q: Can this drive be used with a 380 V supply?
A: Yes. The 1336F-BRF75-AA-EN accepts 380–480 V AC three-phase input, making it compatible with standard 380 V industrial supplies common in China, Europe, and other regions.
Q: Does the internal braking transistor eliminate the need for an external braking unit?
A: The internal transistor (BR option) eliminates the need for a separate braking chopper/unit. However, an external braking resistor sized to the application’s duty cycle is still required to dissipate regenerative energy. Konmask can advise on resistor sizing upon request.
Q: What programming software is required for commissioning?
A: DriveExplorer (legacy) or Connected Components Workbench (CCW) can be used for parameter configuration via the EtherNet/IP port or a 1203-USB DPI adapter. RSLogix 5000 / Studio 5000 AOIs are available for integrated Logix control.
Q: Is a spare HIM (Human Interface Module) available?
A: Yes. Compatible HIMs (e.g., 1336-GM1, 1336-PB102) are available separately. Contact Konmask for availability and pricing.
