Allen-Bradley 1440-TBS-J Terminal Base | Replacement, Equivalent & Selection Guide

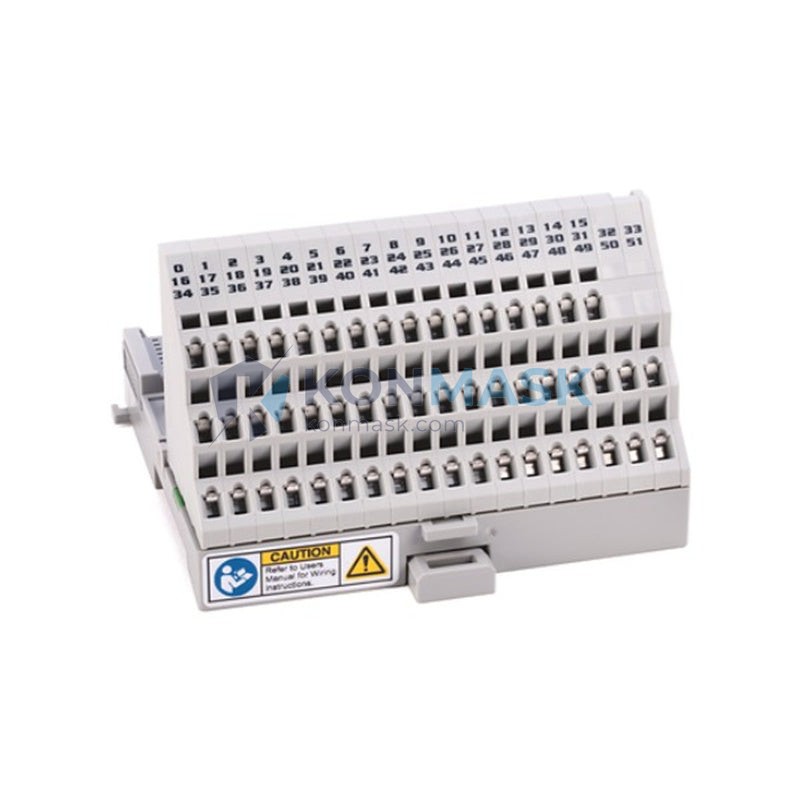

The Allen-Bradley 1440-TBS-J is a terminal base module designed for use within the Rockwell Automation 1440 series ArmorBlock MaXum condition monitoring platform. It provides the mechanical and electrical interface between the sensor/module and the DIN-rail mounted system, enabling reliable signal routing and power distribution in industrial environments.
This page serves as a comprehensive selection and sourcing reference for engineers, procurement teams, and system integrators evaluating the 1440-TBS-J or its compatible replacements.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 1440-TBS-J |
| Brand / Manufacturer | Allen-Bradley (Rockwell Automation) |
| Series | 1440 ArmorBlock MaXum |
| Module Type | Terminal Base |
| Mounting | DIN Rail |
| Weight (approx.) | 280 g |
| Communication Interface | Compatible with 1440-series backplane |
| Operating Temperature | -20°C to +60°C (refer to OEM datasheet) |
| Protection Rating | IP67 (when fully assembled) |
| Certifications | CE, UL (refer to OEM documentation) |
Note: Always verify specifications against the official Rockwell Automation product datasheet before final design-in.
Compatible Replacement & Equivalent Models
When the 1440-TBS-J is unavailable or discontinued, the following models may serve as functional equivalents or drop-in replacements depending on your system configuration. Always validate electrical and mechanical compatibility before substitution.
| Model | Brand | Compatibility Notes | Key Difference |
|---|---|---|---|
| 1440-TBS-J | Allen-Bradley | OEM Original | — |
| 1440-TBS-A | Allen-Bradley | Same 1440 series, different connector variant | Connector type / pin configuration |
| 1440-TBS-B | Allen-Bradley | Same 1440 series, alternate wiring option | Terminal block layout |
| 1440-TBS-C | Allen-Bradley | Same 1440 series | Confirm backplane revision compatibility |
| 1440-TBS-D | Allen-Bradley | Same 1440 series | Confirm firmware/hardware revision |
⚠ Disclaimer: Replacement compatibility must be confirmed with your system documentation or a qualified Rockwell Automation integrator. Konmask.com provides sourcing support but does not guarantee interchangeability without engineering validation.
Why Choose the Original Model
- Guaranteed OEM Fit: The 1440-TBS-J is engineered specifically for the 1440 ArmorBlock MaXum platform — no adaptation required.
- Backplane Integrity: Maintains certified signal and power routing without risk of impedance mismatch or connector wear.
- Warranty & Support: Eligible for Rockwell Automation TechConnect support and OEM warranty coverage.
- Regulatory Compliance: Pre-certified for CE/UL environments — avoids re-certification costs when using OEM parts.
- Long-Term Availability: Sourcing OEM parts through authorized channels ensures traceability and counterfeit protection.
Typical Applications
- Vibration and condition monitoring systems in rotating machinery (motors, pumps, compressors, fans)
- Predictive maintenance architectures in manufacturing plants
- Oil & gas upstream/downstream equipment monitoring
- Food & beverage processing lines requiring IP67-rated field devices
- Automotive assembly line condition monitoring
- Power generation and utilities infrastructure
System Compatibility
The 1440-TBS-J terminal base is designed to work within the following system context:
- Platform: Rockwell Automation 1440 ArmorBlock MaXum Condition Monitoring
- Compatible Modules: 1440-series input modules (vibration, temperature, speed, etc.)
- Network Integration: DeviceNet, EtherNet/IP (via gateway modules)
- Software: Rockwell FactoryTalk, Studio 5000 (for system-level configuration)
- PLC Compatibility: Allen-Bradley ControlLogix, CompactLogix (via network interface)
Confirm system firmware versions and catalog revisions with your Rockwell Automation distributor or system integrator.
Selection Guide
Use the following decision framework to select the correct terminal base for your application:
| Requirement | Recommended Action |
|---|---|
| Direct OEM replacement, same system | Order 1440-TBS-J (this listing) |
| Different connector wiring layout needed | Compare 1440-TBS-A / B / C variants |
| Upgrading to newer 1440 platform revision | Consult Rockwell migration guide; verify backplane revision |
| Third-party / cost-optimized alternative | Contact Konmask.com for sourcing consultation |
| Spare parts / MRO stocking | Request bulk quote via support@konmask.com |
Quality Assurance & Sourcing
- Traceability: All units sourced with full supply chain documentation available on request.
- Inspection: Visual, dimensional, and functional pre-shipment inspection performed on stocked units.
- Authenticity: Konmask.com sources from authorized distributors and verified secondary market channels — counterfeit risk mitigation is a core process.
- Packaging: OEM or equivalent ESD-safe packaging; original labels preserved where available.
- Lead Time: In-stock units ship within 1–3 business days; sourced units typically 5–15 business days depending on origin.
How to Order
- Confirm your part number: 1440-TBS-J and required quantity.
- Add to cart directly on this page, or contact us for bulk/project pricing.
- Provide your shipping destination and preferred Incoterms (EXW, FOB, CIF available).
- Receive proforma invoice and confirm payment (T/T, PayPal, or trade terms for qualified accounts).
- Shipment dispatched with tracking and commercial invoice / packing list.
📧 Email: support@konmask.com
📞 Phone / WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can I use a 1440-TBS-A instead of the 1440-TBS-J?
A: Possibly — both are in the 1440 terminal base family, but connector pinouts and wiring configurations may differ. Always cross-reference the wiring diagram for your specific module before substitution.
Q: Is the 1440-TBS-J still in production?
A: Rockwell Automation periodically updates product lifecycle status. Contact us or check the Rockwell Product Lifecycle page for current status. We maintain stock of both active and end-of-life parts.
Q: Do you provide a warranty on this part?
A: Yes — Konmask.com offers a standard 90-day DOA (Dead on Arrival) warranty on all stocked units. Extended warranty options available for project orders.
Q: Can you source this part if it’s not in stock?
A: Yes. Contact us with your timeline and quantity — we have access to global distributor networks and can typically source within 5–15 business days.
Q: What documentation can you provide?
A: Certificate of conformance, packing list, commercial invoice, and supply chain traceability documentation available on request.
