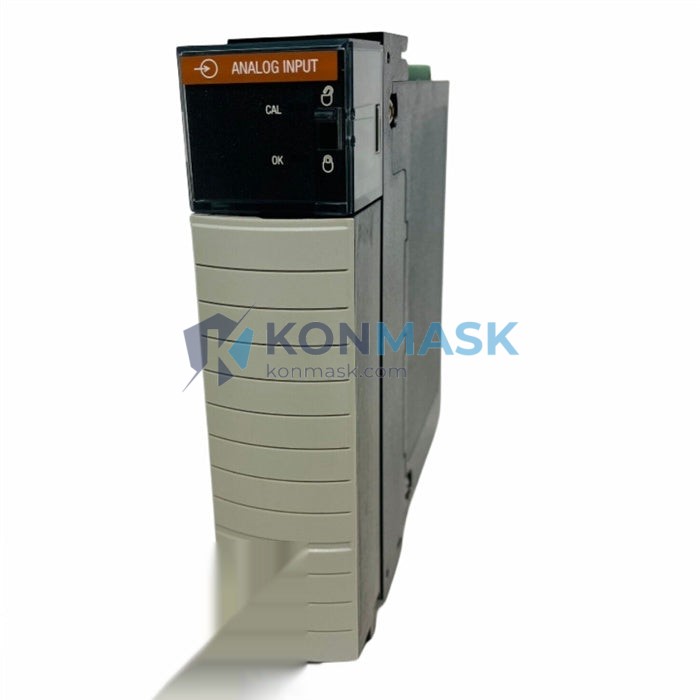

Genuine Allen-Bradley 1756-IF8 Analog Input Module | ControlLogix Series – Verified Source
Konmask.com is a trusted global distributor of Allen-Bradley ControlLogix components. The 1756-IF8 is an 8-channel analog input module designed for the ControlLogix platform, delivering high-resolution signal acquisition for demanding industrial process control environments. Every unit we supply is sourced through verified channels and undergoes our in-house quality verification before dispatch.
Technical Specifications
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Part Number: 1756-IF8
- Series: ControlLogix 1756
- Module Type: Analog Input
- Number of Channels: 8 (single-ended) / 4 (differential)
- Input Signal Types: Voltage (±10 V, 0–10 V, 0–5 V) and Current (0–20 mA, 4–20 mA)
- Resolution: 16-bit
- Backplane Current Draw: 250 mA @ 5 VDC; 3 mA @ 24 VDC
- Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)
- Dimensions (H × W × D): 94.0 × 94.5 × 58.5 mm
- Weight: Approx. 1,200 g (packaged)
- Certifications: UL, CE, C-Tick
Our 4-Step Quality Verification Process
Every 1756-IF8 module shipped by Konmask passes through a rigorous 4-step inspection protocol:
- Step 1 — Source Authentication: We verify the supply chain origin and cross-reference manufacturer batch records to confirm genuine Allen-Bradley provenance.
- Step 2 — Physical Inspection: Trained technicians inspect housing, label integrity, connector pins, and firmware revision markings against Rockwell Automation specifications.
- Step 3 — Functional Bench Test: Where applicable, modules are powered up and channel I/O is validated against published accuracy tolerances.
- Step 4 — Packaging & Documentation: Units are repackaged with anti-static protection, and a quality inspection record is included with each shipment.
Key Features & Benefits
- High-resolution 16-bit analog-to-digital conversion for precise process measurement
- Flexible channel configuration — supports both voltage and current inputs on the same module
- Seamless integration with ControlLogix chassis via standard 1756 backplane
- Real-time diagnostics and channel-level fault reporting via Studio 5000 / RSLogix 5000
- Low backplane power consumption — minimises thermal load in dense chassis configurations
- Wide operating temperature range suitable for industrial plant environments
Typical Applications
- Process temperature and pressure monitoring (4–20 mA transmitter inputs)
- Flow measurement and level sensing in oil & gas, water treatment, and chemical plants
- Batch process control in food & beverage and pharmaceutical manufacturing
- Machine condition monitoring and vibration signal acquisition
- HVAC and building automation systems requiring multi-channel analog feedback
Compatible System Components
- Chassis: 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17
- Power Supplies: 1756-PA72, 1756-PB72, 1756-PA75, 1756-PB75
- Controllers: 1756-L61, 1756-L62, 1756-L63, 1756-L71, 1756-L72, 1756-L73, 1756-L74, 1756-L75, 1756-L81E, 1756-L82E, 1756-L83E, 1756-L84E, 1756-L85E
- Programming Software: Studio 5000 Logix Designer v21 and above; RSLogix 5000 v16 and above
- Wiring Arm: 1756-TBNH / 1756-TBSH (sold separately)
Global Sourcing & Shipping Capabilities
- Stock Status: In-stock and ex-stock units available — contact us for real-time availability
- Lead Time: Typically 1–5 business days for in-stock items; 7–21 days for sourced orders
- Shipping Destinations: Worldwide — including mainland China, Southeast Asia, Europe, Middle East, and the Americas
- Export Compliance: All shipments are processed in accordance with applicable export control regulations (EAR/ECCN)
- Packaging: Anti-static bag + foam-lined carton; optional wooden crate for bulk orders
- Customs Documentation: Commercial invoice, packing list, and certificate of origin provided upon request
Certifications & Compliance Statement
The Allen-Bradley 1756-IF8 carries the following certifications as issued by Rockwell Automation:
- UL Listed — Industrial Control Equipment (UL 508)
- CE Marked — EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- C-Tick / RCM — Australian Communications and Media Authority
- RoHS Compliant — Restriction of Hazardous Substances Directive 2011/65/EU
Konmask.com does not manufacture or modify any hardware. We are an independent distributor. All trademarks and product names remain the property of Rockwell Automation / Allen-Bradley.
How to Order
- Online: Add to cart and complete checkout — we will confirm availability and pricing within 1 business day
- Email RFQ: Send your part number, quantity, and required delivery date to support@konmask.com
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Bulk / Project Orders: Request a formal quotation with volume pricing and extended warranty options
Authenticity & Trust FAQ
Q: Are these modules new or refurbished?
A: We supply both new (factory-sealed) and tested-used units. Condition is clearly stated on each listing. Contact us if you require new-only stock.
Q: Can you provide a certificate of authenticity?
A: Yes. A quality inspection report is included with every shipment. Manufacturer traceability documentation is available upon request for new units.
Q: Do you offer a warranty?
A: All units carry a minimum 90-day Konmask warranty covering defects in materials and workmanship. Extended warranty terms are available for project orders.
Q: What if the module is DOA (dead on arrival)?
A: We offer a full replacement or refund for DOA units reported within 7 days of receipt. Please retain original packaging and contact us immediately.
Q: Are you an authorised Allen-Bradley distributor?
A: Konmask is an independent distributor. We are not an authorised Rockwell Automation channel partner. Our sourcing is conducted through established secondary-market supply chains with full traceability.
