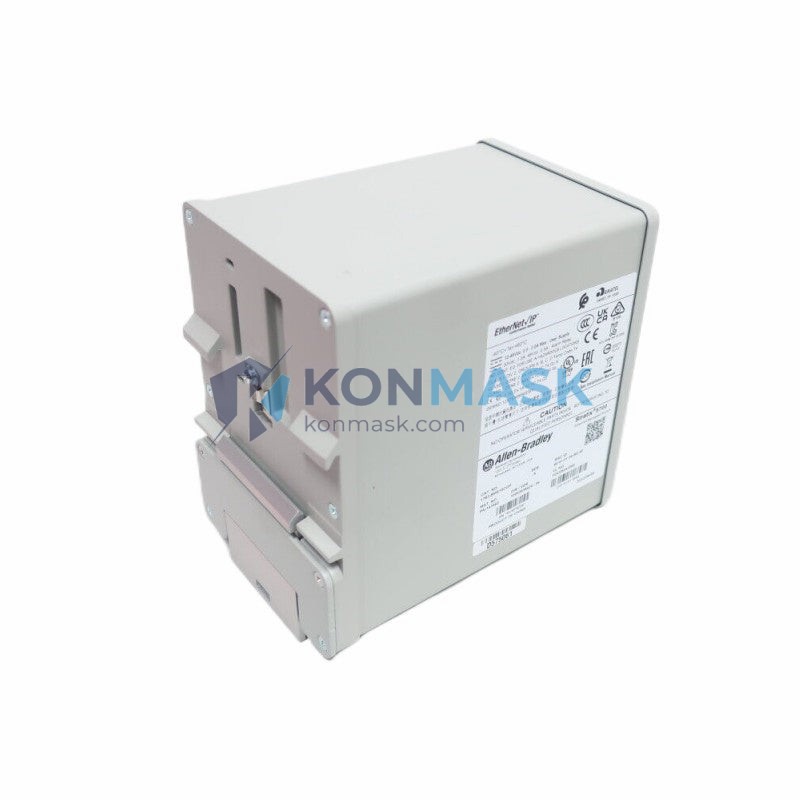

Industrial Ethernet Networking Solution – Allen-Bradley 1783-BMS10CGP | Stratix 5700 Series
The Allen-Bradley 1783-BMS10CGP is a 10-port Layer 2/3 managed Ethernet switch from the Stratix 5700 series, engineered specifically for demanding industrial environments. Designed in collaboration with Cisco, it delivers enterprise-grade networking performance with the ruggedness and integration required for factory floors, process plants, and critical infrastructure.
Where This Product Is Used
The 1783-BMS10CGP is deployed across a wide range of industrial applications where reliable, deterministic Ethernet communication is non-negotiable:
- Automotive Manufacturing: Backbone switch for robot cell networks, conveyor control systems, and vision inspection stations requiring low-latency, high-throughput communication between PLCs, HMIs, and servo drives.
- Oil & Gas Processing: Installed in control rooms and remote wellhead panels to connect DCS controllers, RTUs, and SCADA systems over EtherNet/IP with redundant ring topology (DLR/RSTP).
- Food & Beverage Production: Connects filling lines, CIP systems, and packaging equipment in hygienic zones where network uptime directly impacts OEE and product quality.
- Water & Wastewater Treatment: Provides managed switching for pump stations, filtration control panels, and SCADA telemetry nodes across geographically distributed sites.
- Pharmaceutical & Life Sciences: Supports 21 CFR Part 11-compliant network architectures with VLAN segmentation between process control and MES/ERP layers.
- Power Generation & Utilities: Used in substation automation and energy management systems requiring IEC 61850-compatible Ethernet infrastructure.
- Mining & Metals: Deployed in harsh environments with wide temperature ranges, connecting PLCs, drives, and safety systems on the plant floor.
- Material Handling & Logistics: Integrates conveyor networks, barcode scanners, and WMS interfaces in distribution centers and automated warehouses.

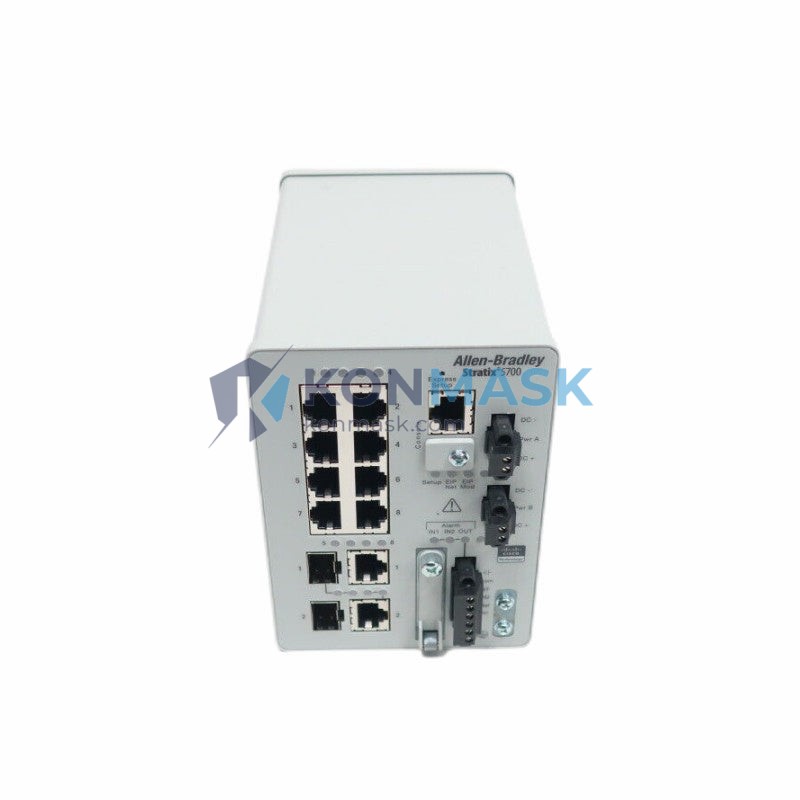

Technical Specifications
| Attribute | Specification |
|---|---|
| Part Number | 1783-BMS10CGP |
| Series | Stratix 5700 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Total Ports | 10 |
| Copper Ports (RJ45) | 8 × 10/100/1000BASE-T |
| SFP Uplink Ports | 2 × Gigabit SFP (fiber or copper) |
| Switching Type | Layer 2 / Layer 3 Managed |
| Switching Capacity | 20 Gbps |
| EtherNet/IP Support | Yes — native CIP integration |
| Redundancy Protocols | DLR, RSTP, REP |
| VLAN Support | Yes (IEEE 802.1Q) |
| QoS | IEEE 802.1p, DSCP |
| Power Input | 24 VDC (18–32 VDC range) |
| Operating Temperature | 0°C to +60°C |
| Mounting | DIN Rail |
| Enclosure Rating | IP30 |
| Weight | Approx. 2.5 kg |
| Certifications | UL, CE, cUL, ATEX (Zone 2) |
| Studio 5000 / RSLogix Integration | Yes — Add-On Profile (AOP) supported |
Why Engineers Specify This Model
- Native EtherNet/IP Integration: Unlike generic IT switches, the Stratix 5700 is recognized as a network device within Studio 5000 Logix Designer, enabling configuration, diagnostics, and alarming directly from the PLC programming environment.
- Device Level Ring (DLR) Support: Enables sub-3ms failover in ring topologies — critical for motion control and safety-rated networks where packet loss causes faults.
- Cisco IOS Feature Set: Built on Cisco’s proven IOS platform, providing enterprise-class security (802.1X, port security, ACLs) and manageability (SNMP, RSPAN, Syslog) familiar to IT teams.
- Dual SFP Uplinks: The 2 × Gigabit SFP ports allow fiber uplinks for long-distance runs or electrically noisy environments, eliminating ground loop issues common in industrial settings.
- Wide DC Power Input: 18–32 VDC range accommodates standard 24 VDC industrial power supplies with voltage sag tolerance — no separate power conditioning required.
- Compact DIN Rail Form Factor: Fits directly into standard control panels alongside PLCs, I/O modules, and power supplies without requiring a separate network cabinet.
Complete System Bill of Materials
The 1783-BMS10CGP is typically deployed as part of a broader Rockwell Automation control architecture. Common companion components include:
- PLC / Controller: Allen-Bradley ControlLogix (1756 series), CompactLogix (1769 series), or GuardLogix for safety applications
- I/O Modules: 1756-EN2T, 1756-EN2TR (EtherNet/IP adapter modules for ControlLogix chassis)
- HMI: PanelView Plus 7 (2711P series) or FactoryTalk View SE for supervisory visualization
- Drives: PowerFlex 525 / 755 with embedded EtherNet/IP for variable speed control
- SFP Transceivers: 1783-SFP1GSX (multimode fiber), 1783-SFP1GLX (single-mode fiber), or 1783-SFP1GCX (copper)
- Power Supply: 1606-XLP95E or equivalent 24 VDC DIN rail power supply
- Network Management: FactoryTalk Network Manager for topology visualization and switch configuration management
- Uplink Switch: Stratix 8300 (1783-RMS series) for Layer 3 routing between network zones
Compliance & Industry Standards
- IEEE 802.3 (Ethernet), 802.1Q (VLAN), 802.1p (QoS), 802.1X (Network Access Control)
- IEC 61158 / IEC 61784 — EtherNet/IP fieldbus standard
- IEC 62443 — Industrial cybersecurity framework (network segmentation, access control)
- UL 508 — Industrial control equipment
- CE Marking — EU electromagnetic compatibility and low voltage directives
- ATEX / IECEx Zone 2 — Suitable for use in areas with occasional explosive atmospheres
- RoHS Compliant — Restriction of hazardous substances
- ODVA Conformance Tested — EtherNet/IP interoperability verified
Quality Assurance & Sourcing
At Konmask.com, every Allen-Bradley 1783-BMS10CGP unit is subject to a rigorous multi-stage verification process before shipment:
- Authenticity Verification: Physical inspection of Rockwell Automation holographic labels, date codes, and firmware version consistency
- Functional Testing: Port-level connectivity, VLAN configuration, and DLR ring formation tested on a live EtherNet/IP network bench
- Firmware Integrity: IOS firmware version verified against Rockwell’s published release notes; no unauthorized modifications
- Condition Grading: New-in-box (NIB), factory-refurbished, and tested-used units clearly labeled with condition grade and warranty terms
- Traceability: Full supply chain documentation available on request, including distributor invoices and test records
- Warranty: 12-month replacement warranty on all units; expedited RMA processing for critical production environments
How to Source This Part
- Confirm Part Number: Verify 1783-BMS10CGP matches your network design — check port count, SFP requirements, and Layer 3 routing needs against your system architecture drawing.
- Check Firmware Compatibility: Confirm the required IOS firmware version is compatible with your version of Studio 5000 / RSLogix 5000 and FactoryTalk Network Manager.
- Request a Quote: Contact us via support@konmask.com or +0086 19859288691 with your required quantity, condition preference (new/refurbished), and delivery timeline.
- Expedited Availability: For urgent production line requirements, we maintain stock of common Stratix 5700 variants and can arrange same-day or next-day dispatch.
- Volume Pricing: OEM integrators and panel builders sourcing multiple units are eligible for project pricing — contact us with your BOM for a consolidated quote.
Application-Specific FAQ
Q: Can the 1783-BMS10CGP be used in a Device Level Ring (DLR) topology with ControlLogix?
A: Yes. The Stratix 5700 supports DLR as a ring supervisor or ring node. When used with a 1756-EN2TR or compatible EtherNet/IP adapter, it enables sub-3ms network recovery — suitable for motion and safety-critical applications.
Q: Does this switch require a separate Cisco IOS license?
A: The 1783-BMS10CGP ships with the Lanbase IOS image pre-installed, which covers Layer 2 features including VLANs, RSTP, QoS, and port security. Layer 3 routing features require the IP Services license (1783-LICSRVR8 or equivalent).
Q: Is the 1783-BMS10CGP compatible with non-Rockwell EtherNet/IP devices?
A: Yes. As a standard IEEE 802.3 Ethernet switch, it is fully interoperable with any EtherNet/IP-compliant device from any vendor. The Rockwell-specific features (AOP, Studio 5000 integration) are additive and do not restrict interoperability.
Q: What SFP modules are compatible with the uplink ports?
A: Rockwell-branded SFPs (1783-SFP series) are recommended and tested. Third-party Cisco-compatible SFPs may function but are not officially supported. For fiber runs over 550m, use single-mode SFPs (1783-SFP1GLX).
Q: Can this switch be configured without Studio 5000?
A: Yes. The switch can be configured via its web-based GUI, Cisco IOS CLI (console/SSH/Telnet), or SNMP management tools. Studio 5000 integration is optional but provides the most streamlined experience in a Rockwell architecture.
Q: What is the difference between 1783-BMS10CGP and 1783-BMS10CGL?
A: Both are 10-port Stratix 5700 switches. The BMS10CGP includes the full Cisco IOS IP Services feature set (Layer 3 routing, advanced QoS), while the BMS10CGL ships with the Lanbase image (Layer 2 only). Select BMS10CGP for multi-subnet routing or advanced network segmentation requirements.
