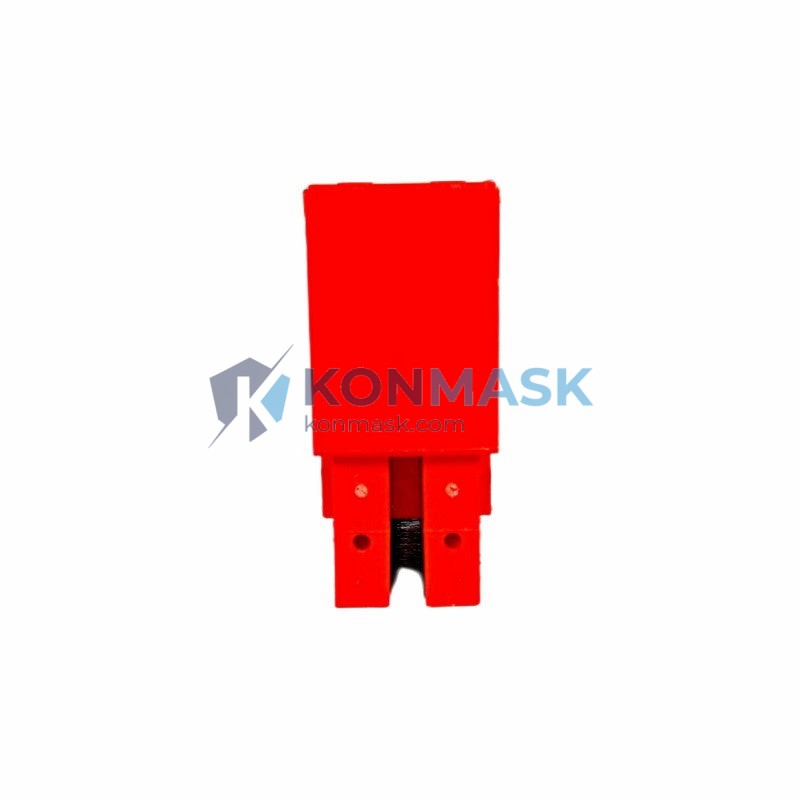

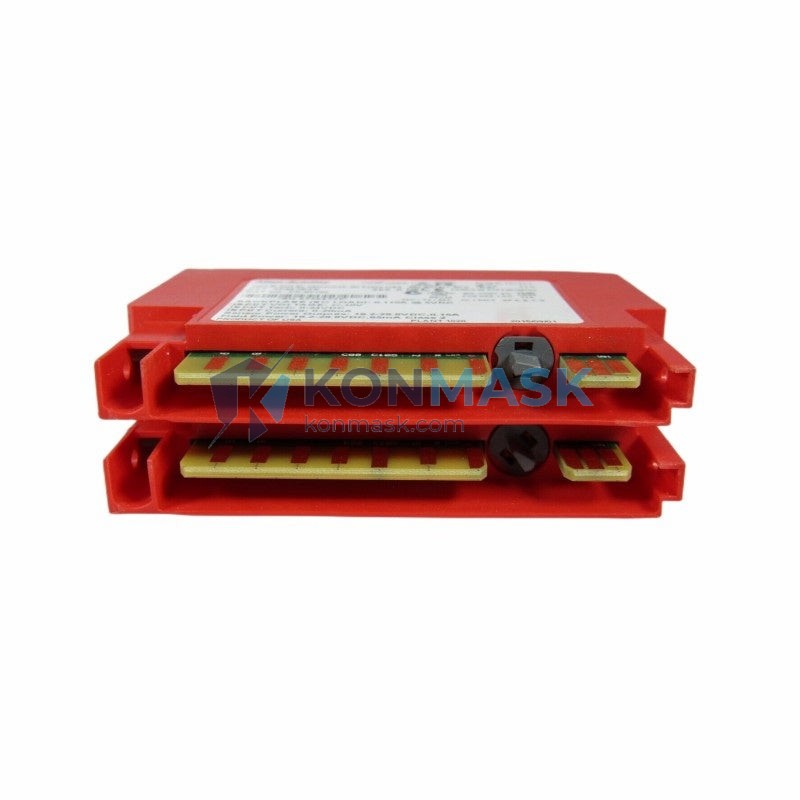

Allen-Bradley 1734-IE4S – 4-Channel Analog Input Module | POINT I/O Platform
Engineering Background
The Allen-Bradley 1734-IE4S is a high-density analog input module designed for the POINT I/O distributed I/O platform — Rockwell Automation’s modular, DIN-rail-mounted I/O system optimized for compact machine-level control. The 1734 series is widely deployed in discrete, process, and hybrid manufacturing environments where precise analog signal acquisition is critical to closed-loop control performance.
Product Positioning
The 1734-IE4S addresses the need for accurate, channel-isolated analog input in space-constrained control panels. With 4 independently configurable channels supporting current (4–20 mA) and voltage (0–10 V / ±10 V) input ranges, it serves as the primary field-signal interface between sensors, transmitters, and the ControlLogix / CompactLogix / MicroLogix controller ecosystem. It is the preferred choice for procurement engineers specifying modular I/O in new machine builds or legacy system expansions.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 1734-IE4S |
| Platform | Allen-Bradley POINT I/O (1734 Series) |
| Number of Input Channels | 4 (independently configurable) |
| Input Signal Types | 4–20 mA (current) | 0–10 V / ±10 V (voltage) |
| Resolution | 16-bit (65,536 counts) |
| Accuracy | ±0.1% of full scale at 25 °C |
| Input Impedance (Voltage) | > 1 MΩ |
| Input Impedance (Current) | 250 Ω (internal shunt) |
| Channel-to-Channel Isolation | Yes (optical isolation per channel) |
| Update Rate | Configurable; typical 10 ms per channel |
| Supply Voltage (Module) | 5 V DC (via POINT I/O backplane) |
| Field-Side Power | 24 V DC (external, user-supplied) |
| Current Consumption (Backplane) | 75 mA @ 5 V DC |
| Operating Temperature | 0 °C to +55 °C (32 °F to 131 °F) |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Enclosure Rating | IP20 (open-style, panel-mount) |
| Mounting | DIN rail (35 mm) via POINT I/O base unit |
| Communication Interface | Via POINT I/O adapter (EtherNet/IP, DeviceNet, PROFIBUS, ControlNet) |
| Certifications | UL, CE, cUL, C-Tick, ATEX (Zone 2) |
| Weight | Approx. 500 g (module + base) |
| Country of Origin | USA / Singapore (Rockwell Automation) |
Proven Application Environments
- Process Control: Temperature, pressure, flow, and level transmitter signal acquisition in chemical, oil & gas, and water treatment plants.
- Machine Automation: Servo drive feedback, load cell monitoring, and position transducer input in packaging and assembly machinery.
- Building Automation: HVAC sensor integration (CO₂, humidity, differential pressure) via BACnet gateway adapters.
- Pharmaceutical & Food Processing: GMP-compliant analog monitoring with audit-trail-capable controller integration.
- Energy Management: Power quality monitoring and sub-metering via 4–20 mA transducer inputs.
- Panel Retrofits: Drop-in replacement for legacy analog I/O in existing POINT I/O racks without rewiring.
Engineering Advantages
- 16-Bit Resolution: Delivers 0.0015% full-scale granularity — critical for PID loop stability and precision dosing applications.
- Per-Channel Isolation: Eliminates ground loops between field devices; each channel is independently isolated to prevent cross-channel interference.
- Universal Input Flexibility: Software-configurable per channel between current and voltage modes — no hardware jumpers required.
- Hot-Swap Capable: Modules can be inserted and removed under power without shutting down the POINT I/O rack, minimizing downtime.
- Compact Footprint: 4 channels in a single POINT I/O slot — maximizes channel density in space-constrained panels.
- Studio 5000 / RSLogix 5000 Native: Full Add-On Profile (AOP) support for seamless tag-based programming and online diagnostics.
- Diagnostic Data: Reports open-wire, over-range, and under-range faults directly to the controller tag database.
System Architecture & Signal Flow
The 1734-IE4S integrates into the POINT I/O node as follows:

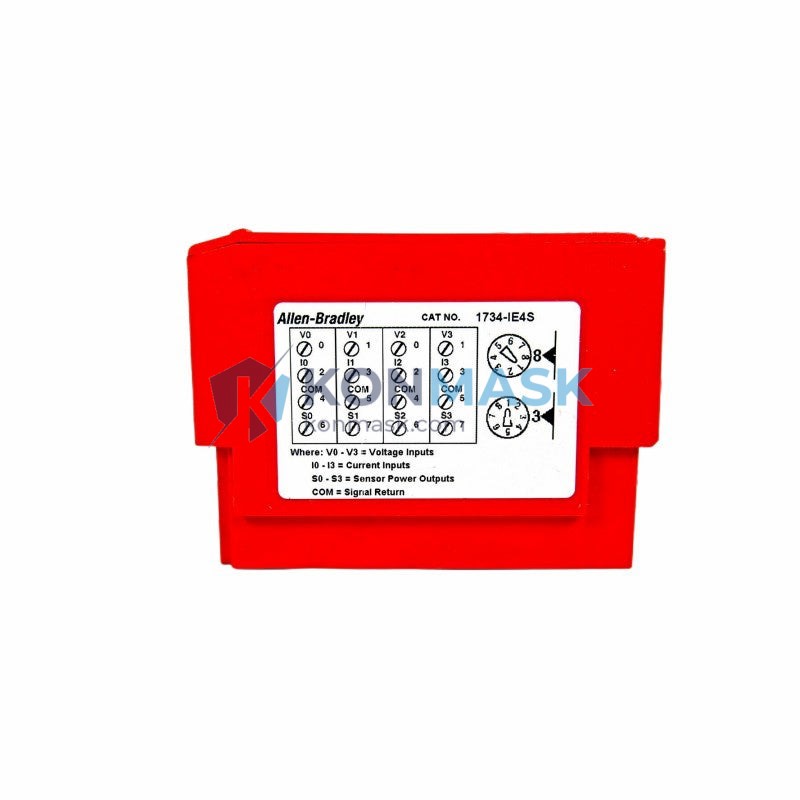

- Field Wiring: 2-wire or 3-wire transmitters connect to the module’s removable terminal block (RTB). Current-loop devices wire directly; voltage sources connect with a common reference.
- Signal Conditioning: Each channel passes through an anti-aliasing filter, then a 16-bit sigma-delta ADC. The digitized value is optically isolated before transfer to the backplane.
- Backplane Communication: The module communicates with the POINT I/O adapter (e.g., 1734-AENT for EtherNet/IP) via the internal POINT I/O bus at the configured RPI (Requested Packet Interval).
- Network Transport: The adapter encapsulates I/O data in CIP (Common Industrial Protocol) packets and transmits to the ControlLogix / CompactLogix controller over the selected network.
- Controller Tag: Analog values appear as scaled engineering-unit REAL tags in the Studio 5000 project, ready for use in PID, HMI, and historian blocks.
Sourcing & Quality Verification
- Authorized Distribution Network: Konmask.com sources 1734-IE4S modules through verified industrial automation distributors and OEM surplus channels with documented chain of custody.
- Inspection Protocol: Every unit undergoes visual inspection (label integrity, connector condition, housing), functional power-on verification, and firmware revision check prior to shipment.
- Authenticity Assurance: Catalog number, date code, and country-of-origin markings are cross-referenced against Rockwell Automation’s published specifications. Counterfeit-risk items are quarantined and not listed.
- Condition Grading: Units are graded as New (factory-sealed), Refurbished (tested, cleaned, re-labeled), or Surplus (used, tested, cosmetic wear noted). Grade is stated explicitly in the listing.
- Warranty: 12-month operational warranty against defects in materials and workmanship. RMA process initiated within 48 hours of defect report.
Procurement Process
- Confirm Compatibility: Verify your POINT I/O adapter model and firmware revision support the 1734-IE4S AOP. Refer to Rockwell Automation Publication 1734-TD002.
- Specify Quantity & Condition: Contact Konmask for volume pricing on orders of 5+ units. Bulk RFQ available via support@konmask.com.
- Place Order: Add to cart and complete checkout. HKD pricing shown; multi-currency invoicing available for cross-border procurement.
- Lead Time: In-stock units ship within 1–3 business days (CN domestic). International orders: 5–10 business days via DHL/FedEx with full tracking.
- Documentation: Commercial invoice, packing list, and test report provided with every shipment. Certificate of Conformance available on request.
Technical FAQ
Q: Can the 1734-IE4S be used with a CompactLogix controller?
A: Yes. Any POINT I/O adapter compatible with EtherNet/IP (e.g., 1734-AENT) can connect to a CompactLogix L-series controller. The module’s AOP installs in Studio 5000 v21 and later.
Q: What base unit is required?
A: The 1734-IE4S requires a 1734-TB or 1734-TBS terminal base (sold separately). Ensure the base is ordered to match your wiring style (screw or spring-clamp).
Q: Is channel-to-channel isolation sufficient for high-voltage field devices?
A: The isolation is designed for signal-level ground loop elimination (typically 250 V DC working isolation). For high-voltage field environments, external signal conditioners are recommended.
Q: What firmware version does the module ship with?
A: Firmware is factory-set and not field-upgradeable on the 1734-IE4S. Confirm AOP compatibility with your Studio 5000 version before ordering.
Q: Can I mix current and voltage inputs on the same module?
A: Yes. Each of the 4 channels is independently configurable in software. No hardware changes are required to switch between 4–20 mA and voltage input modes.
Q: Do you offer expedited shipping for urgent MRO requirements?
A: Yes. Contact support@konmask.com with your required delivery date. Express courier options (DHL Express, FedEx Priority) are available at checkout or via direct quote.
