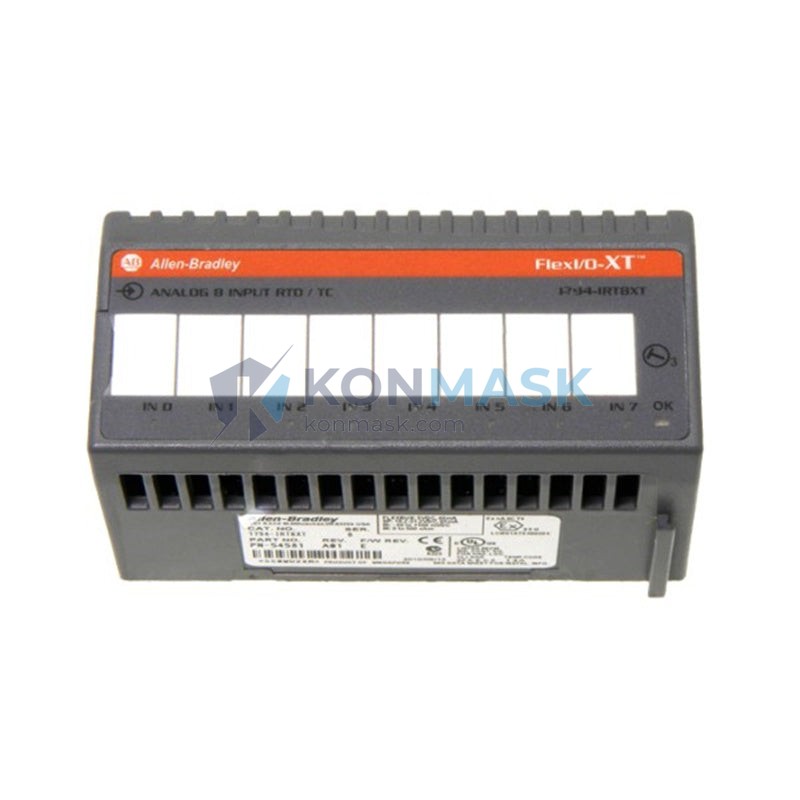

Genuine Allen-Bradley 1794-IRT8XT Flex XT 8-Point Thermocouple/RTD Input Module | Flex XT Series – Verified Source
Konmask.com is a dedicated industrial automation components supplier specializing in Allen-Bradley / Rockwell Automation hardware. Every unit we ship is sourced through verified channels, inspected by our technical team, and backed by our authenticity guarantee. When your process depends on accurate temperature measurement, you need a supplier you can trust — that’s us.
Technical Specifications
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Part Number: 1794-IRT8XT
- Series: Flex XT (Extended Temperature)
- Module Type: 8-Point Thermocouple / RTD Analog Input
- Input Channels: 8 (individually configurable per channel)
- Thermocouple Types Supported: B, C, D, E, J, K, N, R, S, T
- RTD Types Supported: 100Ω Platinum (PT100), 200Ω Platinum, 500Ω Platinum, 1000Ω Platinum; 10Ω Copper; 120Ω Nickel
- Resolution: 16-bit
- Operating Temperature: -25°C to +70°C (Extended Temperature rating)
- Storage Temperature: -40°C to +85°C
- Communication: FLEX I/O backplane (1794 series)
- Power Consumption: 75 mA @ 5 VDC (from backplane)
- Dimensions (H × W × D): 94 mm × 23 mm × 87 mm (approx.)
- Weight: Approx. 100 g
- Certifications: CE, UL, cUL, ATEX (refer to Rockwell documentation for full listing)
Our 4-Step Quality Verification Process
Every 1794-IRT8XT unit sold by Konmask passes through our rigorous 4-step QC protocol before shipment:
- Step 1 — Source Verification: We trace each unit back to its original supply chain. We only procure from authorized distributors, OEM surplus channels, or factory-sealed stock. No grey-market or counterfeit sources.
- Step 2 — Physical Inspection: Our technicians inspect housing integrity, label authenticity (hologram, date codes, Rockwell part markings), connector condition, and board-level cleanliness under magnification.
- Step 3 — Functional Bench Test: Where applicable, modules are powered up and tested for correct backplane communication and channel response using calibrated test equipment.
- Step 4 — Packaging & Documentation: Units are re-packaged in anti-static ESD bags with desiccant, and shipped with a Konmask inspection certificate. Original documentation or datasheets are included where available.
Key Features & Benefits
- ✅ Extended Temperature Range — XT-rated for harsh industrial environments down to -25°C, ideal for outdoor or unheated enclosures
- ✅ 8 Independent Channels — Mix thermocouple and RTD inputs on the same module, reducing hardware footprint and wiring complexity
- ✅ High-Resolution 16-bit ADC — Delivers precise temperature readings critical for process control and quality assurance
- ✅ Wide Sensor Compatibility — Supports 10+ thermocouple types and 6+ RTD configurations, maximizing flexibility across applications
- ✅ Seamless Flex XT Integration — Drop-in compatible with existing 1794 Flex XT backplane infrastructure; no additional adapters required
- ✅ Rockwell Studio 5000 / RSLogix 5000 Ready — Full EDS file support for rapid configuration and commissioning
Typical Applications
- Furnace and kiln temperature monitoring in metals and ceramics manufacturing
- Boiler and heat exchanger control in power generation and utilities
- Pharmaceutical batch process temperature validation (FDA 21 CFR Part 11 environments)
- Food & beverage pasteurization and sterilization lines
- Chemical reactor temperature profiling
- HVAC and building automation systems requiring extended temperature operation
- Oil & gas wellhead and pipeline monitoring in cold climates
Compatible System Components
- Adapters: 1794-AENT (EtherNet/IP), 1794-ADN (DeviceNet), 1794-APB (PROFIBUS), 1794-ACN15 (ControlNet)
- Power Supplies: 1794-PS13, 1794-PS3
- Terminal Bases: 1794-TB3, 1794-TB3S, 1794-TB32
- Controllers: ControlLogix (1756 series), CompactLogix (1769 series), SoftLogix 5800
- Programming Software: Studio 5000 Logix Designer v21+, RSLogix 5000
Need a compatible adapter or terminal base? Contact us — we stock the full Flex XT ecosystem.
Global Sourcing & Shipping Capabilities
- Stock Location: Shenzhen, China (primary warehouse)
- Lead Time: In-stock items typically ship within 1–3 business days of payment confirmation
- Shipping Methods: DHL Express, FedEx International Priority, UPS Worldwide, SF Express (domestic CN), sea freight for bulk orders
- Export Compliance: We handle all export documentation including commercial invoices, packing lists, and certificates of origin
- Customs Support: HS code guidance and customs value documentation provided upon request
- Regions Served: Asia-Pacific, Europe, North America, Middle East, Southeast Asia
- Bulk & Project Orders: Contact us for volume pricing, project reservations, and blanket purchase agreements
Certifications & Compliance Statement
The Allen-Bradley 1794-IRT8XT is manufactured by Rockwell Automation and carries the following certifications (verify current status in the official Rockwell Automation Product Certification database):
- CE Marking (EU Low Voltage Directive & EMC Directive)
- UL Listed / cUL Listed (North America)
- ATEX / IECEx (consult Rockwell documentation for zone ratings)
- RoHS Compliant
Konmask.com is an independent reseller and is not an authorized Rockwell Automation distributor. All brand names, trademarks, and part numbers are the property of their respective owners and are used for identification purposes only.
How to Order
- Add to Cart — Click the purchase button above for standard single-unit orders
- Request a Quote — For quantities of 3+ units, project orders, or special requirements, email support@konmask.com with your required quantity and delivery timeline
- Payment — We accept T/T (bank wire transfer), PayPal, and major credit cards via Shopify Payments
- Confirmation & Dispatch — You will receive an order confirmation and tracking number within 24 hours of payment clearance
- After-Sales Support — Our technical team is available to assist with installation questions, compatibility checks, and warranty claims
Authenticity & Trust FAQ
Q: How do I know this is a genuine Allen-Bradley module?
A: Every unit passes our 4-step QC process (detailed above). We provide a Konmask inspection certificate with each shipment. If you have any doubts upon receipt, contact us immediately — we stand behind every unit we sell.
Q: Is Konmask an authorized Rockwell Automation distributor?
A: We are an independent reseller specializing in surplus, excess, and hard-to-find industrial automation components. We are not an authorized distributor. If your project requires an authorized channel purchase, we recommend contacting Rockwell Automation directly.
Q: What is your return policy?
A: We offer a 30-day return window for items that are DOA (dead on arrival) or not as described. Items must be returned in original packaging. Please contact support@konmask.com to initiate a return.
Q: Can you provide a datasheet or user manual?
A: Yes. The official Rockwell Automation publication for this module is 1794-UM065. Contact us and we will send you the PDF, or download it directly from the Rockwell Automation literature library.
Q: Do you offer a warranty?
A: Yes — Konmask provides a 90-day functional warranty on all modules. This covers defects in the module itself, not damage caused by incorrect installation or electrical faults in the customer’s system.
Q: What if I need a large quantity urgently?
A: Contact us directly at support@konmask.com or call +0086 19859288691. We maintain relationships with multiple supply channels and can often source additional stock quickly.
