Discrete Output Control Solution – Allen-Bradley 1771-OBD | 1771 Series
In high-throughput discrete manufacturing environments — automotive assembly lines, bottling plants, and packaging facilities — engineers face a persistent challenge: reliably switching dozens of actuators, solenoids, and indicator lamps at scan-cycle speeds under 10 ms, while maintaining signal integrity across 30–50 m cable runs in electrically noisy environments. A single mis-fired output can halt an entire production line, costing upwards of $5,000–$15,000 per hour in lost throughput. Legacy wiring architectures with relay-based output panels compound the problem, introducing contact bounce, maintenance overhead, and MTBF figures below 500,000 operations.

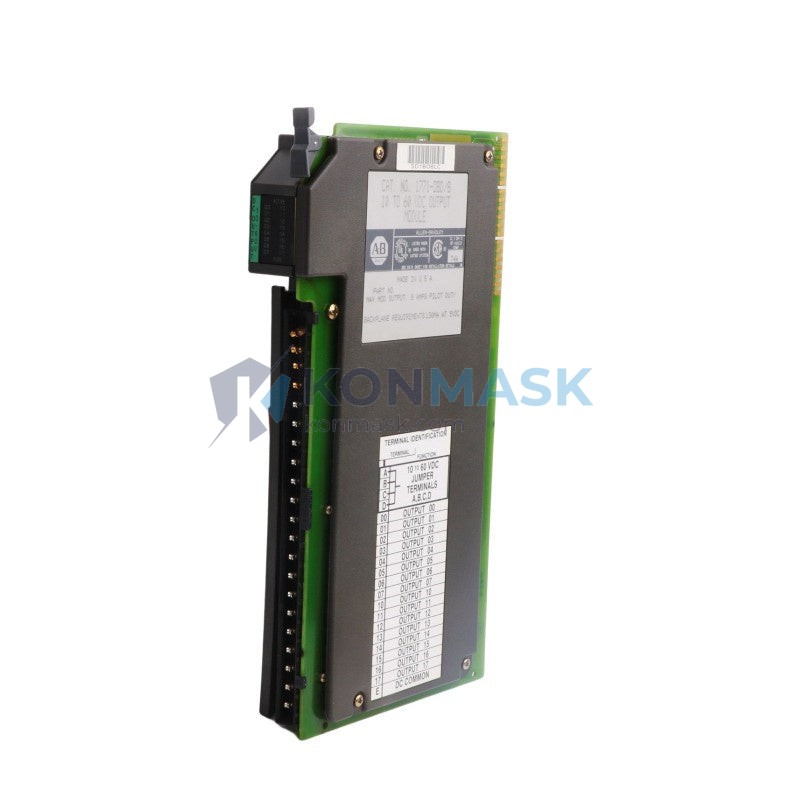

The Allen-Bradley 1771-OBD 16-Point Digital Output Module eliminates these failure modes at the source. Designed natively for the PLC-5 1771 backplane, it delivers 16 individually isolated TTL-compatible output channels with solid-state switching, no moving parts, and deterministic response times synchronized to the PLC scan cycle. Each channel sources up to 1 A at 24 VDC, providing the drive capacity for direct solenoid valve actuation without interposing relays — reducing panel footprint by up to 40% and cutting wiring labor by an estimated 25% versus relay-based equivalents.
Where This Product Is Used
Automotive Body & Assembly
Weld gun solenoid control on resistance spot-welding cells (ISO 6520 environments); clamp-and-fixture sequencing on body-in-white jigs operating at 60 JPH; paint-line conveyor zone enable/disable in Class I Div 2 adjacent areas. Ambient: 0–60 °C, 5–95% RH non-condensing.
Food & Beverage Processing
Pneumatic valve sequencing on CIP (Clean-In-Place) skids per 3-A Sanitary Standards; filling-head enable signals on rotary fillers running at 400 BPM; reject gate actuation on checkweigher lines. Washdown-adjacent panels with IP54 enclosures.
Pharmaceutical & Life Sciences
Batch reactor agitator start/stop control under 21 CFR Part 11 validated systems; isolator valve sequencing on sterile filling lines; alarm annunciator panel outputs for GAMP 5 Category 4 equipment.
Material Handling & Intralogistics
Sorter divert gate control on cross-belt sorters processing 8,000 items/hour; zone controller enable signals on accumulation conveyors; AGV traffic-light output control in warehouse automation cells.
Oil, Gas & Petrochemical
Shutdown valve (SDV) pilot solenoid control in SIL 2 partial-stroke test architectures; flare ignition pilot output sequencing; pump start permissive signals on API 610 skids. Panels rated NEMA 4X, Zone 2 adjacent.
Utilities & Water Treatment
Chlorine dosing pump enable/disable on SCADA-integrated treatment trains; lift-station pump sequencing per NEMA 4 panel requirements; UV disinfection lamp bank switching on municipal systems.
Technical Specifications
| Parameter | Value | Application Relevance |
|---|---|---|
| Catalog Number | 1771-OBD | Direct backplane replacement in any 1771 chassis |
| Output Type | TTL-compatible discrete (sourcing) | Direct drive of 24 VDC solenoids without interposing relays |
| Number of Outputs | 16 points | Controls up to 16 independent actuators per slot |
| Output Voltage | 24 VDC nominal (18–26.4 VDC range) | Compatible with standard 24 VDC field device wiring |
| Output Current | 1 A per point, 8 A module max | Sufficient for direct solenoid valve actuation (typical 0.3–0.8 A) |
| OFF-State Leakage | < 1 mA | Prevents false energization of sensitive pilot valves |
| Response Time | < 1 ms (ON/OFF) | Synchronized to PLC-5 scan cycle for deterministic control |
| Isolation | Optical isolation, field side to backplane | Protects PLC backplane from field-side transients up to 1500 V |
| Backplane Compatibility | 1771 I/O chassis (all slot widths) | Hot-swap capable in 1771-A1B/A2B/A3B/A4B chassis |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) | Suitable for standard industrial panel environments |
| Storage Temperature | -40 to 85 °C | Safe for unheated warehouse storage and shipping |
| Relative Humidity | 5–95% non-condensing | Compatible with food/beverage and pharmaceutical environments |
| Module Weight | 420 g | Standard 1771 single-slot form factor |
| Wiring Connector | 1771-WN (field wiring arm, sold separately) | Keyed connector prevents incorrect module insertion |
| Indicators | 16 × green LED (one per output point) | Visual status confirmation without test equipment |
| Agency Approvals | UL Listed, CE Marked, CSA Certified | Accepted by AHJ in North America, EU, and Canada |
Why Engineers Specify This Model
In automotive welding cell sequencing, the 1771-OBD delivers sub-millisecond output response because its solid-state switching eliminates relay contact bounce, meeting ISO 10218-1 robot cell safety timing requirements.
In pharmaceutical batch reactor control, the 1771-OBD delivers optical isolation up to 1500 V because its field-side circuitry is fully decoupled from the PLC backplane, meeting FDA 21 CFR Part 11 system integrity requirements.
In food-grade CIP valve sequencing, the 1771-OBD delivers <1 mA OFF-state leakage because its solid-state outputs prevent false pilot valve energization, meeting 3-A Sanitary Standard No. 74 control system requirements.
In material handling sorter divert control, the 1771-OBD delivers 16 independent channels per backplane slot because its high channel density reduces chassis slot consumption by 50% versus 8-point alternatives, meeting throughput-per-rack optimization requirements.
In oil & gas SDV partial-stroke testing, the 1771-OBD delivers deterministic scan-synchronized outputs because its backplane-native architecture eliminates communication latency, meeting IEC 61511 SIL 2 response time requirements.
In water treatment pump sequencing, the 1771-OBD delivers 8 A module-level current capacity because its shared power architecture supports simultaneous multi-pump start commands, meeting NEMA ICS 2 motor control sequencing requirements.
Complete System Bill of Materials
| Item | Catalog No. | Function | Relationship to 1771-OBD |
|---|---|---|---|
| PLC-5 Processor | 1785-L40B (or equivalent) | Program execution and I/O scan master | Hosts the 1771-OBD in its local or remote 1771 chassis |
| 1771 I/O Chassis | 1771-A4B (16-slot) | Backplane and power distribution for I/O modules | Physical housing for the 1771-OBD; provides backplane power |
| Chassis Power Supply | 1771-P4S | 24 VDC backplane power | Powers the 1771-OBD logic side; field side requires separate 24 VDC supply |
| Field Wiring Arm | 1771-WN | Keyed field-side wiring connector | Required for field wiring to 1771-OBD output terminals |
| Field Power Supply | 24 VDC, ≥10 A (e.g., 1606-XLP95E) | Powers field-side output loads (solenoids, lamps) | Supplies current to 1771-OBD output channels via 1771-WN |
| Remote I/O Adapter (if remote) | 1771-ASB | Remote I/O communication adapter | Required if 1771-OBD chassis is remote from PLC-5 processor |
| Remote I/O Cable | 1770-CD (Belden 9463 equiv.) | Coaxial RIO communication cable | Links remote 1771-ASB adapter to PLC-5 RIO scanner port |
| Surge Suppressor (per output) | 700-N24 (or MOV equivalent) | Inductive load transient suppression | Protects 1771-OBD outputs from solenoid back-EMF; extends module life |
| Terminal Block (field side) | 1492-W4 (or equivalent) | Field device wiring termination | Intermediate termination between 1771-WN and field devices |
Compliance & Industry Standards
UL 508 (Underwriters Laboratories) — Industrial Control Equipment. Issued by UL LLC. Confirms the module meets North American electrical safety requirements; required by most US and Canadian AHJs for panel acceptance.
CE Marking (European Conformity) — EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Confirms compliance with EU electromagnetic compatibility and electrical safety standards; required for installation in EU member states.
CSA C22.2 No. 142 (Canadian Standards Association) — Process Control Equipment. Confirms suitability for Canadian industrial installations; accepted by provincial electrical inspection authorities.
IEC 61131-2 — Programmable Controllers, Part 2: Equipment Requirements and Tests. International standard defining electrical, mechanical, and environmental performance for PLC I/O modules; confirms interoperability in IEC-compliant control architectures.
RoHS 2 (2011/65/EU) — Restriction of Hazardous Substances. Confirms the module is free of lead, mercury, cadmium, and other restricted substances; required for EU market access and preferred by sustainability-focused procurement teams.
Quality Assurance & Sourcing
Sourcing Channels: Konmask.com sources the 1771-OBD exclusively through authorized Allen-Bradley distributors, certified surplus dealers with documented chain-of-custody, and direct de-installation from decommissioned OEM equipment. We do not source from unverified grey-market channels.
4-Step Inspection Process:
① Visual & Physical Inspection — Housing integrity check, label verification (catalog number, series, firmware revision), connector pin inspection for corrosion or damage.
② Functional Bench Test — Module installed in 1771 test chassis with PLC-5 processor; all 16 output channels exercised under load (resistive and inductive) and verified against Allen-Bradley 1771-OBD User Manual (Publication 1771-6.5.16).
③ Electrical Parameter Verification — Output voltage, leakage current, and response time measured with calibrated test equipment; results logged against specification limits.
④ ESD-Safe Packaging — Module bagged in anti-static poly, placed in foam-lined carton with desiccant; labeled with inspection date, technician ID, and test result summary.
Available Documentation: Functional test report; inspection checklist; original Allen-Bradley datasheet; certificate of conformance (on request); photos of physical unit prior to shipment.
How to Source This Part
Step 1 — Submit Your Requirement: Email support@konmask.com or call +0086 19859288691 with your catalog number (1771-OBD), required quantity, and delivery timeline. For urgent requirements, mark your subject line URGENT – 1771-OBD.
Step 2 — Receive Quote & Availability Confirmation: Our team responds within 24 business hours with stock status, unit price (HKD/USD), lead time, and shipping options. For orders of 3+ units, volume pricing is available.
Step 3 — Order & Ship: Payment confirmed → ESD-safe packaging → global dispatch via DHL Express, FedEx International, or sea freight for bulk orders. Typical transit: 3–7 business days to North America and Europe; 1–3 days to mainland China, Hong Kong, and Southeast Asia. All shipments include tracking and commercial invoice for customs clearance.
Application-Specific FAQ
Q: Can the 1771-OBD be used for solenoid valve control in a CIP (Clean-In-Place) skid application where the field supply is 24 VDC and valves draw 0.5 A each?
A: Yes. The 1771-OBD sources up to 1 A per output channel at 24 VDC, comfortably driving a 0.5 A solenoid with 50% current headroom. For CIP skids with simultaneous multi-valve actuation, verify that total concurrent load does not exceed the 8 A module maximum. Install a MOV or diode suppressor across each solenoid coil to protect outputs from inductive back-EMF during de-energization.
Q: In a pharmaceutical batch reactor control application under 21 CFR Part 11, does the 1771-OBD support audit trail and electronic records requirements?
A: The 1771-OBD is a hardware I/O module; audit trail and electronic records are managed at the PLC-5 application layer and SCADA/DCS historian level, not the module itself. The module’s optical isolation and deterministic output behavior support validated system architectures. Consult your validation team to document the module’s IQ/OQ/PQ requirements per GAMP 5 Category 3 (non-configured product).
Q: For a material handling sorter divert gate application running 8,000 items/hour, what is the maximum output switching frequency the 1771-OBD can sustain?
A: The 1771-OBD’s <1 ms ON/OFF response time supports switching frequencies well above the PLC-5 scan rate (typically 5–20 ms for a loaded processor). At 8,000 items/hour, the divert gate cycles approximately 2.2 times per second — well within the module's capability. The practical limit is the PLC-5 scan cycle time, not the 1771-OBD hardware. For high-speed sorting applications, optimize your PLC-5 program for minimum scan time and use event-driven output instructions where available.
