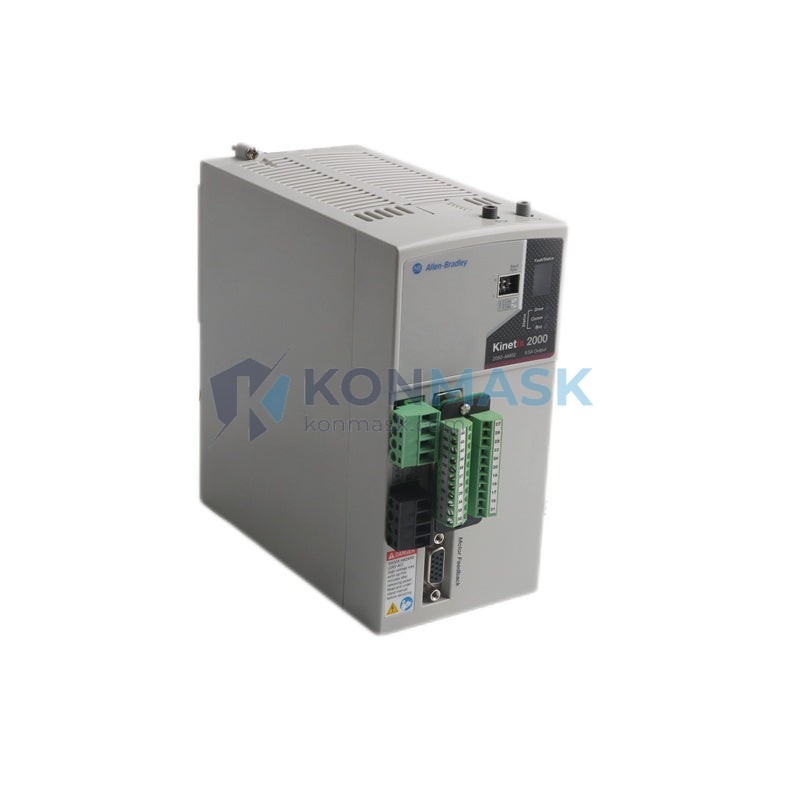

Allen-Bradley 2093-AM02 – Dual-Axis Servo Drive Module | Kinetix 2000 Series
Engineering Background
The Kinetix 2000 platform was developed by Rockwell Automation / Allen-Bradley to address the growing demand for compact, cost-effective multi-axis servo control in mid-range machine automation. Designed for integration with the 1756 ControlLogix and 1769 CompactLogix ecosystems, the Kinetix 2000 system uses a shared DC bus architecture that significantly reduces panel space and wiring complexity compared to standalone drive solutions.
Product Positioning
The 2093-AM02 is a dual-axis inverter module within the Kinetix 2000 family. It operates as a slave axis module powered by a shared bus from a 2093-AC05-MP1 or compatible power rail. This module is the preferred choice for OEMs and system integrators requiring synchronized multi-axis motion in packaging, assembly, and material handling applications where panel space is at a premium.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 2093-AM02 |
| Series | Kinetix 2000 |
| Module Type | Dual-Axis Inverter (Axis Module) |
| Bus Architecture | Shared DC Bus (Integrated Motion) |
| Compatible Power Rail | 2093-PRS5, 2093-PRS10 |
| Compatible IAM | 2093-AC05-MP1, 2093-AC05-MP2 |
| Feedback Interface | Hiperface / Incremental Encoder |
| Communication | SERCOS II (via IAM) |
| Axes Supported | 2 (independent) |
| Continuous Output Current | Per axis — refer to IAM rating |
| Operating Temperature | 0 °C to +50 °C (ambient) |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% RH, non-condensing |
| Protection Rating | IP20 |
| Mounting | DIN rail / panel mount via power rail |
| Weight | 1.04 kg |
| Certifications | UL, CE, cUL |
| Country of Origin | USA |
Proven Application Environments
- Packaging Machinery — High-speed pick-and-place, form-fill-seal, and cartoning lines requiring tight axis synchronization
- Assembly Automation — Gantry systems and rotary indexers where coordinated multi-axis motion is critical
- Material Handling — Conveyor diverters, palletizers, and sortation systems with variable load profiles
- Printing & Converting — Web tension control and registration applications demanding sub-millisecond response
- Semiconductor & Electronics — Precision positioning stages requiring smooth, low-ripple torque output
Engineering Advantages
- Shared DC Bus Efficiency — Regenerative energy from decelerating axes is redistributed across the bus, reducing net energy consumption by up to 30% versus standalone drives
- Compact Footprint — Modular rail-mount design minimizes cabinet depth; multiple AM02 modules stack directly onto the power rail without additional wiring
- Seamless Studio 5000 Integration — Native Add-On Profiles (AOPs) eliminate manual parameter entry; axis tuning via Logix Designer Auto-Tune wizard
- SERCOS II Determinism — 1 ms or 2 ms update rates ensure isochronous motion coordination across all axes on the ring
- Unified Diagnostics — Fault codes surfaced directly in RSLogix 5000 / Studio 5000 with plain-language descriptions, reducing MTTR
System Architecture & Signal Flow
The 2093-AM02 plugs into a Kinetix 2000 power rail alongside the Integrated Axis Module (IAM). The IAM converts incoming AC supply to a regulated DC bus; the AM02 draws from this bus and inverts it to variable-frequency, variable-voltage AC for each connected servo motor. Feedback signals (encoder or Hiperface) return from the motor to the AM02’s feedback ports, closing the position/velocity/torque loop locally. The SERCOS II fiber ring carries cyclic set-point and actual-value data between the ControlLogix controller and all drives at deterministic intervals.
Signal path: ControlLogix → SERCOS II ring → IAM → DC Bus → 2093-AM02 → Servo Motor → Feedback → 2093-AM02 → SERCOS II ring → ControlLogix
Sourcing & Quality Verification
- Units sourced from authorized distributors, OEM decommissions, and certified refurbishers with full chain-of-custody documentation
- Each module undergoes incoming inspection: visual check, label verification, and functional power-up test where applicable
- Firmware version and hardware revision recorded and disclosed prior to shipment
- Original Rockwell Automation packaging preserved where available; anti-static packaging used for all shipments
- Counterfeit-mitigation: holographic labels, date codes, and PCB markings verified against Rockwell Automation reference standards
Procurement Process
- Inquiry — Submit your BOM or part number via the contact form or email support@konmask.com with required quantity and delivery timeline
- Quote — Receive a formal quotation within 1 business day including unit price, lead time, and warranty terms
- Order Confirmation — Purchase order accepted; payment terms NET30 available for qualified accounts
- Quality Check & Dispatch — Module inspected, photographed, and packed; tracking number issued within 24–48 hours
- After-Sales Support — 12-month warranty on all units; technical support available via email and phone
Technical FAQ
Q: Can the 2093-AM02 operate without a Kinetix 2000 IAM?
A: No. The AM02 is a pure inverter module and requires a DC bus supplied by a compatible IAM (e.g., 2093-AC05-MP1). It cannot be powered independently.
Q: Is the 2093-AM02 compatible with Kinetix 6000 or Kinetix 6500 power rails?
A: No. The Kinetix 2000 power rail (2093-PRS5 / 2093-PRS10) is mechanically and electrically specific to the 2093 series. Cross-family mixing is not supported.
Q: What servo motors are compatible?
A: The AM02 is designed for use with MPL, MPF, and MPS series Allen-Bradley servo motors with Hiperface or incremental encoder feedback. Consult Rockwell Automation Publication 2093-UM001 for the full motor compatibility matrix.
Q: Can I use Studio 5000 v32+ with this drive?
A: Yes, provided the correct AOP version is installed. Kinetix 2000 AOPs are available via the Rockwell Automation Product Compatibility and Download Center (PCDC).
Q: What is the warranty on units purchased from Konmask?
A: All units carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. DOA claims are processed within 5 business days.
