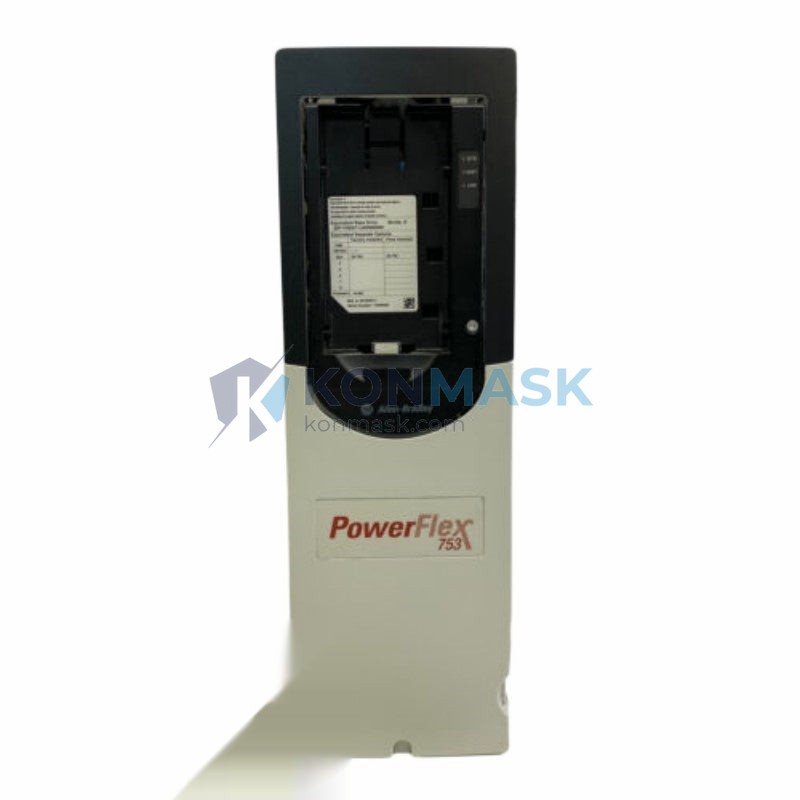

Allen-Bradley 20F11NC011JA0NNNNN PowerFlex 753 AC Drive | Replacement, Equivalent & Selection Guide
The Allen-Bradley 20F11NC011JA0NNNNN is a member of the PowerFlex 753 general-purpose AC drive family from Rockwell Automation. Designed for demanding industrial applications, this drive delivers precise motor speed and torque control with a robust feature set suitable for OEM machine builders and end-user plant installations alike. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information to help engineers and procurement teams make confident selection decisions.
Technical Specifications
- Catalog Number: 20F11NC011JA0NNNNN
- Series: PowerFlex 753
- Manufacturer: Allen-Bradley / Rockwell Automation
- Output Power: 5.5 kW / 7.5 HP (400–480 V class, verify nameplate)
- Input Voltage: 380–480 V AC, 3-Phase
- Output Current: 11 A (Normal Duty)
- Enclosure: IP20 / Open Type (Frame C)
- Control Mode: V/Hz, Sensorless Vector (SVC), Flux Vector (FVC with encoder)
- Communication: Embedded EtherNet/IP (dual-port), optional DeviceNet / PROFIBUS via option card
- I/O: 6 digital inputs, 2 digital outputs, 2 analog inputs, 1 analog output (expandable)
- Braking: Dynamic braking transistor built-in
- Standards: UL, CE, RoHS
- Weight: ~6.4 kg
Compatible Replacement & Equivalent Models
The table below lists direct and near-equivalent replacements for the 20F11NC011JA0NNNNN. Always verify electrical ratings, frame size, and communication requirements before substituting.
| Manufacturer | Model / Part No. | Power Rating | Compatibility Notes |
|---|---|---|---|
| Allen-Bradley | 20F11NC011JA0NNNNN (OEM) | 5.5 kW / 11 A | Original — direct fit |
| Allen-Bradley | 20F11NC011AA0NNNNN | 5.5 kW / 11 A | Same frame, different option suffix; verify I/O config |
| Allen-Bradley | PowerFlex 755 (20G series) | 5.5 kW+ | Next-gen upgrade; enhanced safety & motion features |
| Siemens | SINAMICS G120 6SL3224-0BE21-5UA0 | 5.5 kW | Functional equivalent; requires rewiring & parameter migration |
| ABB | ACS580-01-012A-4 | 5.5 kW / 12 A | Close equivalent; different mounting footprint |
| Schneider Electric | ATV630D11N4 | 11 kW (next size up) | Nearest catalog match; verify load requirements |
| Yaskawa | GA700 CIMR-AC4A0011FAA | 5.5 kW / 11 A | Functional equivalent; EtherNet/IP option available |
⚠ Disclaimer: Third-party replacements require engineering validation. Konmask.com recommends consulting your system integrator before substitution in safety-critical applications.
Why Choose the Original Model
- Seamless Rockwell Integration: Native Studio 5000 / RSLogix 5000 Add-On Profile (AOP) support — zero configuration overhead in existing AB architectures.
- Embedded Dual-Port EtherNet/IP: Device-level ring (DLR) topology support for high-availability networks without additional hardware.
- Safe Torque Off (STO): SIL 2 / PLd certified safety function built-in — no external safety relay required.
- Scalable I/O: Modular option card slots for encoder feedback, expanded I/O, and additional fieldbus protocols.
- Proven Reliability: Widely deployed across automotive, food & beverage, water/wastewater, and material handling industries globally.
Typical Applications
- Conveyor and material handling systems
- Pump and fan variable-speed control
- Compressor and blower drives
- Packaging and filling machinery
- HVAC air handling units
- Water treatment and wastewater pumping stations
- Crane and hoist auxiliary drives
System Compatibility
- PLC / Controller: Allen-Bradley ControlLogix, CompactLogix, MicroLogix (via EtherNet/IP or DeviceNet)
- HMI: PanelView Plus, FactoryTalk View SE/ME
- Network Topology: Linear, Star, Device Level Ring (DLR)
- Software: Studio 5000 Logix Designer v21+, Connected Components Workbench, DriveExecutive
- Motor Types: Induction (AC), PM motors (with FVC mode)
- Braking Resistor: External resistor compatible (AK-R2-091P3-Nxxx series recommended)
Selection Guide
Use the following criteria to confirm the 20F11NC011JA0NNNNN is the right drive for your application — or to identify the correct alternative:
- Step 1 — Load Type: Confirm Normal Duty (ND) vs. Heavy Duty (HD) requirement. This model is rated 11 A ND / 9 A HD.
- Step 2 — Supply Voltage: Verify 380–480 V, 3-phase supply. For 200–240 V applications, select the 20F1 series with voltage code “NC” replaced by “NC” 200 V variant.
- Step 3 — Communication Protocol: If EtherNet/IP is not required, consider the 20F11NC011JA0NNNNN base variant or a lower-cost 753 without embedded Ethernet.
- Step 4 — Safety Requirements: STO (SIL 2) is standard. For higher safety integrity (SIL 3), evaluate PowerFlex 755 with safety option module.
- Step 5 — Enclosure: IP20 open type — suitable for panel mounting. For harsh environments, specify IP54/IP66 enclosure kits or select a pre-engineered drive package.
- Step 6 — Feedback: Sensorless vector is standard. For high-precision torque control, add encoder feedback via option card (20-750-ENC-1).
Quality Assurance & Sourcing
- ✅ Genuine OEM Parts: All Allen-Bradley units sourced through authorized distribution channels or verified surplus with full traceability documentation.
- ✅ Pre-shipment Inspection: Each unit inspected for physical integrity, firmware version, and label authenticity before dispatch.
- ✅ Warranty: 12-month warranty against manufacturing defects on all stocked units.
- ✅ Counterfeit Prevention: Holographic label verification and serial number cross-check with Rockwell Automation’s product authentication portal.
- ✅ Export Compliance: ECCN classification and export documentation available upon request.
How to Order
- Confirm your part number: 20F11NC011JA0NNNNN
- Specify quantity and required delivery timeline.
- Contact us via email or phone for a formal quotation (RFQ).
- Receive proforma invoice — payment via T/T, L/C, or agreed terms.
- Shipment via DHL / FedEx / sea freight with full tracking and commercial invoice.
📧 Email: support@konmask.com
📞 Phone / WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can I replace the 20F11NC011JA0NNNNN with a PowerFlex 755?
A: Yes, the PowerFlex 755 (20G series) is the next-generation successor and is backward-compatible in most applications. Parameter migration and wiring changes are required. Consult Rockwell Migration Guide PFLEX-AT001.
Q: Is the Siemens G120 a drop-in replacement?
A: No. While electrically equivalent in power rating, the G120 uses a different mounting footprint, parameter structure, and communication stack. Full re-engineering of the control panel is required.
Q: What is the difference between suffix variants (e.g., JA0 vs. AA0)?
A: The catalog suffix encodes option card slots, HIM (Human Interface Module) type, and factory-installed options. JA0 indicates a specific option configuration — contact us to decode your exact requirements.
Q: Do you supply firmware update files or programming cables?
A: Yes. We can supply 1203-USB or 20-HIM-A6 programming accessories. Firmware files are available via Rockwell’s Product Compatibility and Download Center (PCDC).
Q: What is the lead time for this model?
A: In-stock units ship within 1–3 business days. For out-of-stock items, typical lead time is 2–6 weeks depending on sourcing channel.
