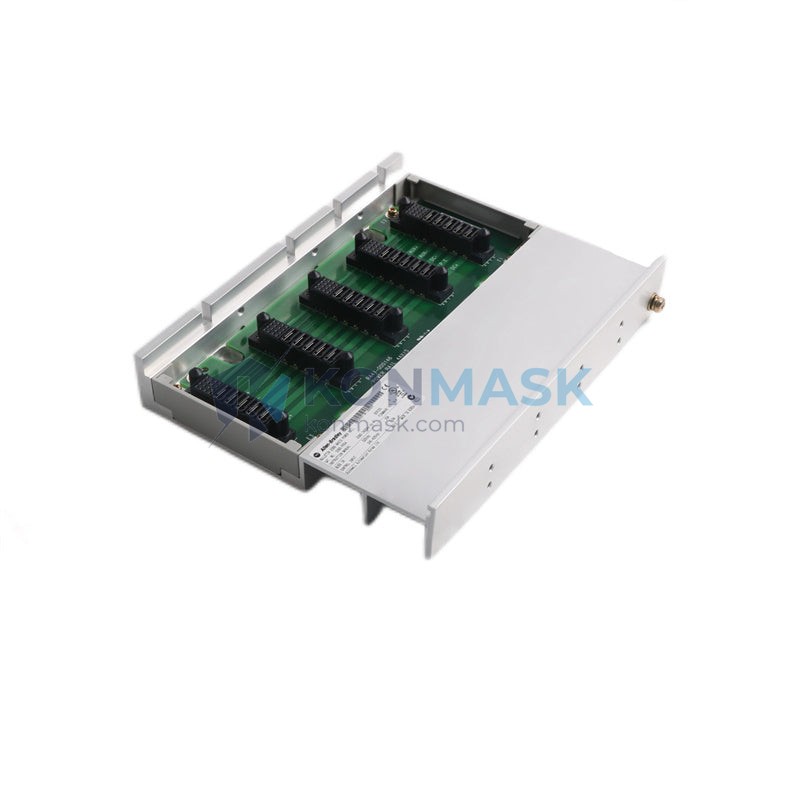

Allen-Bradley 2093-PRS4 Kinetix 2000 4-Axis Slim Power Rail | Replacement, Equivalent & Selection Guide
The Allen-Bradley 2093-PRS4 is a 4-Axis Slim Power Rail designed for the Kinetix 2000 multi-axis servo drive system. It provides a shared DC bus architecture that distributes power and communications across up to four servo drive modules, reducing wiring complexity and panel footprint in compact machine designs.
Technical Specifications
| Parameter | Value |
|---|---|
| Catalog Number | 2093-PRS4 |
| Brand / Manufacturer | Allen-Bradley (Rockwell Automation) |
| Series | Kinetix 2000 |
| Description | 4-Axis Slim Power Rail |
| Number of Axes Supported | 4 |
| Form Factor | Slim / Compact |
| Bus Architecture | Shared DC Bus |
| Compatible Drive Modules | 2093-AM01, 2093-AM02, 2093-AMP1, 2093-AMP2 |
| Mounting | DIN Rail / Panel Mount |
| Weight (approx.) | 700 g |
| Country of Origin | USA |
Compatible Replacement & Equivalent Models
When the original 2093-PRS4 is unavailable or end-of-life, the following alternatives may be considered depending on axis count and system requirements:
- 2093-PRS2 — Allen-Bradley Kinetix 2000 2-Axis Slim Power Rail (reduced axis count)
- 2093-PRS1 — Allen-Bradley Kinetix 2000 1-Axis Slim Power Rail (single-axis applications)
- 2094-PRS4 — Kinetix 6000 4-Axis Power Rail (higher power class, requires Kinetix 6000 drives)
- 2094-PRS8 — Kinetix 6000 8-Axis Power Rail (expanded axis count, different series)
- 2198-CAPMOD-2240 — Kinetix 5700 Capacitor Module (next-gen platform, not a direct drop-in)
Note: Cross-series replacements require firmware, wiring, and compatibility verification. Contact Konmask.com for pre-sales technical support before substituting.
Why Choose the Original Model
- Guaranteed compatibility — Engineered specifically for Kinetix 2000 drive modules; no firmware or parameter changes required.
- Shared DC bus efficiency — Enables regenerative energy sharing between axes, reducing overall power consumption.
- Compact slim-rail design — Minimizes panel space while supporting four full servo axes.
- Plug-and-play integration — Direct connection to 2093-series drive modules with no additional interface hardware.
- Rockwell Automation ecosystem — Full support via Studio 5000, RSLogix 5000, and Integrated Motion on EtherNet/IP.
Typical Applications
- Multi-axis CNC machining centers and milling machines
- Packaging and labeling machinery (pick-and-place, form-fill-seal)
- Printing and converting equipment
- Semiconductor and electronics assembly automation
- Textile and winding machines requiring coordinated multi-axis motion
- Robotics and gantry systems with up to 4 servo axes
System Compatibility
- Drive Modules: 2093-AM01, 2093-AM02, 2093-AMP1, 2093-AMP2 (Kinetix 2000 series)
- Power Supply: 2093-AC05-MP1, 2093-AC05-MP2 (Kinetix 2000 integrated axis modules)
- Controllers: CompactLogix (L2x, L3x, L4x), ControlLogix (L6x, L7x, L8x) with Sercos or EtherNet/IP motion
- Software: Studio 5000 Logix Designer v20+, RSLogix 5000 v16+
- Not compatible with: Kinetix 300, Kinetix 350, Kinetix 5500, Kinetix 5700 drive families
Selection Guide
Use the table below to select the correct Kinetix 2000 Power Rail for your application:
| Model | Axes | Series | Best For |
|---|---|---|---|
| 2093-PRS1 | 1 | Kinetix 2000 | Single-axis compact machines |
| 2093-PRS2 | 2 | Kinetix 2000 | Dual-axis coordinated motion |
| 2093-PRS4 | 4 | Kinetix 2000 | 4-axis multi-axis systems (this model) |
| 2094-PRS4 | 4 | Kinetix 6000 | Higher power 4-axis systems |
| 2094-PRS8 | 8 | Kinetix 6000 | Large 8-axis installations |
Key selection criteria: axis count required → drive series in use → bus voltage class → available panel space → controller platform.
Quality Assurance & Sourcing
- Genuine OEM parts — Sourced directly from authorized Allen-Bradley / Rockwell Automation distribution channels.
- Inspection protocol — Each unit undergoes visual inspection, label verification, and functional pre-check before shipment.
- Traceability — Full lot traceability with original manufacturer documentation available on request.
- Warranty — 12-month warranty against manufacturing defects; replacement or refund policy applies.
- Anti-counterfeit — Holographic labels and serial number verification against Rockwell Automation databases.
How to Order
- Confirm your axis count and verify existing drive module catalog numbers (2093-AMxx / 2093-AMPx).
- Check controller compatibility (CompactLogix / ControlLogix + Sercos or EtherNet/IP).
- Add 2093-PRS4 to cart or contact us for volume pricing and lead time.
- Provide your PO number, shipping address, and any required certifications (CE, UL, etc.).
- Receive order confirmation with tracking within 1 business day.
For urgent requirements or system integration support, email support@konmask.com or call +0086 19859288691.
Replacement & Compatibility FAQ
Q: Can I use the 2093-PRS4 with Kinetix 6000 drives?
A: No. The 2093-PRS4 is exclusively designed for Kinetix 2000 (2093-series) drive modules. Kinetix 6000 requires the 2094-PRS4 or 2094-PRS8 power rails.
Q: Is the 2093-PRS4 still in production?
A: Rockwell Automation has announced end-of-life for the Kinetix 2000 platform. Konmask.com maintains stock of genuine new and surplus units. Contact us for current availability.
Q: Can I mix 1-axis and 2-axis modules on the 4-axis rail?
A: Yes. The 2093-PRS4 supports any combination of 2093-series single-axis and dual-axis modules up to a total of 4 axes.
Q: What is the lead time for the 2093-PRS4?
A: In-stock orders ship within 1–3 business days. Out-of-stock lead time is 2–6 weeks depending on sourcing. Contact us for real-time availability.
Q: Do you provide a certificate of conformance (CoC)?
A: Yes. CoC and original manufacturer documentation are available upon request for all genuine OEM units.
