Machine Control & Process Visualization Solution — Allen-Bradley 2711P-B7C4D1 | PanelView Plus 700 Series
Where This Product Is Used

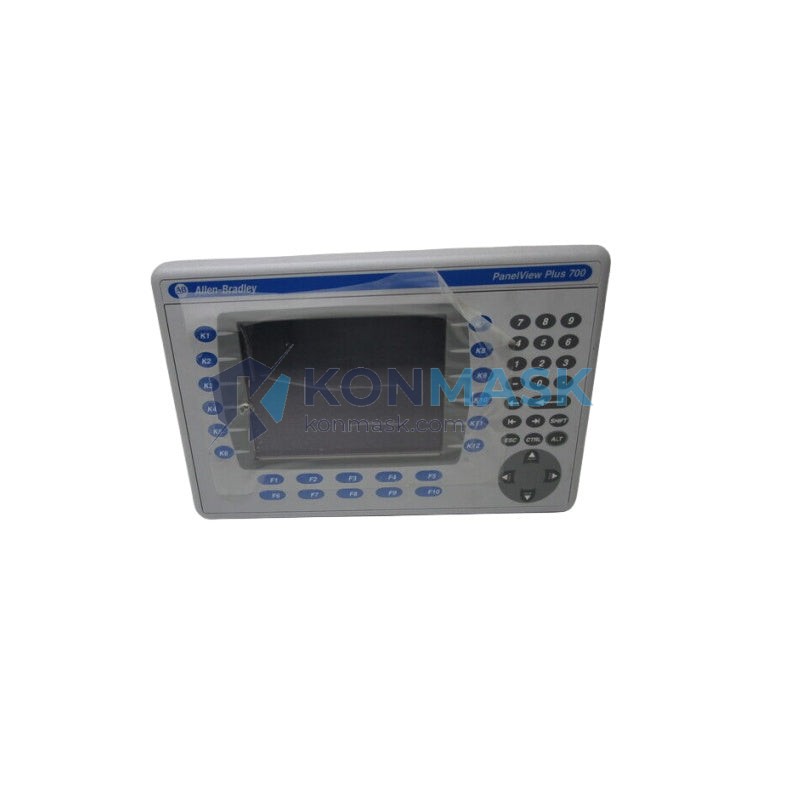

The Allen-Bradley 2711P-B7C4D1 is a 7-inch combination key/touch HMI terminal from the PanelView Plus 700 series, engineered for demanding industrial environments where operators require both tactile keypad input and touchscreen flexibility. Typical deployment sites include:
- Discrete Manufacturing — Assembly lines, robotic work cells, and conveyor control panels requiring reliable operator interaction with PLCs (ControlLogix, CompactLogix, MicroLogix).
- Food & Beverage Processing — Washdown-adjacent control stations monitoring fill levels, temperature loops, and batch sequencing.
- Automotive Body Shops & Paint Lines — High-cycle operator stations where gloved operators prefer physical keys alongside touch navigation.
- Water & Wastewater Treatment — Pump station HMI panels displaying flow rates, valve positions, and alarm annunciation.
- Oil & Gas Upstream/Midstream — Wellhead and compressor station local operator interfaces integrated with ControlLogix safety systems.
- Pharmaceutical & Life Sciences — GMP-compliant batch control visualization with audit-trail-capable FactoryTalk View ME runtime.
- Material Handling & Warehousing — Sortation system control panels and palletizer operator interfaces.
- HVAC & Building Automation — Chiller plant and AHU control panels requiring local setpoint adjustment and alarm acknowledgment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 2711P-B7C4D1 |
| Series | PanelView Plus 700 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Display Size | 7.0 in (177.8 mm) diagonal |
| Display Type | Color TFT LCD |
| Display Resolution | 640 × 480 (VGA) |
| Input Method | Combination Key & Touch Screen (Analog Resistive) |
| Function Keys | 12 configurable function keys + navigation keys |
| Processor | Intel PXA255 @ 400 MHz |
| RAM | 64 MB SDRAM |
| Flash Storage | 64 MB |
| Operating System | Windows CE 5.0 |
| HMI Software | FactoryTalk View ME (pre-installed runtime) |
| Communication Ports | RS-232 (2×), USB Type-A (1×), USB Type-B (1×), Ethernet 10/100 (1×) |
| Network Protocol | EtherNet/IP, DH-485, DF1 |
| Power Supply | 24 VDC (±10%), Class 2 |
| Power Consumption | Approx. 30 W |
| Operating Temperature | 0 °C to +55 °C (32 °F to 131 °F) |
| Storage Temperature | −20 °C to +70 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Enclosure Rating (front) | NEMA 4/4X, 12, 13; IP65 |
| Panel Cutout | 212 mm × 158 mm (W × H) |
| Weight | Approx. 1.9 kg (4.2 lb) |
| Certifications | UL, CE, C-Tick |
Why Engineers Specify This Model
- Dual Input Redundancy — The combination key/touch design ensures operators can interact with the HMI even if the touchscreen surface is contaminated with oil, coolant, or heavy gloves in use — a critical reliability factor in metalworking and heavy industry.
- Native EtherNet/IP Integration — Direct tag-based communication with ControlLogix and CompactLogix PLCs eliminates gateway hardware, reducing panel BOM cost and latency.
- FactoryTalk View ME Ecosystem — Seamless integration with Rockwell’s FactoryTalk suite (Historian, Alarms & Events, AssetCentre) enables enterprise-level data visibility from a single terminal.
- NEMA 4X / IP65 Front Panel — Suitable for washdown and dust-laden environments without additional enclosure engineering.
- Proven Platform Longevity — PanelView Plus 700 has an extensive installed base globally, ensuring long-term spare parts availability and technician familiarity.
- Configurable Function Keys — 12 programmable keys allow one-touch navigation to critical screens, reducing operator error in high-speed production environments.
- USB Application Transfer — Runtime applications can be loaded and backed up via USB without a PC connection, simplifying field commissioning and disaster recovery.
Complete System Bill of Materials
For a fully operational PanelView Plus 700 operator station, engineers typically specify the following complementary components:
| Item | Catalog Number | Description |
|---|---|---|
| HMI Terminal | 2711P-B7C4D1 | PanelView Plus 700 Key/Touch, 24 VDC (this unit) |
| Power Supply | 1606-XLP30E | 24 VDC, 30 W DIN-rail power supply |
| EtherNet/IP Cable | 1585J-M8CBJM-2 | Shielded Cat5e patch cable, 2 m |
| Panel Mounting Gasket | 2711P-RGASS7 | Replacement NEMA 4/4X gasket for 7-inch terminals |
| USB Flash Drive | 2711P-UMEM2G | 2 GB USB memory module for application backup |
| FactoryTalk View ME | 9701-VWSS100AENE | FactoryTalk View Studio ME, 1 developer seat |
| PLC (typical) | 1769-L33ER | CompactLogix 5370 L3 EtherNet/IP controller |
| DIN Rail | 199-DR1 | 35 mm DIN rail, 1 m length |
Compliance & Industry Standards
- UL 508A — Industrial Control Panels (USA/Canada)
- CE Marking — EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- NEMA 4 / NEMA 4X / NEMA 12 / NEMA 13 — Enclosure ratings (front face)
- IP65 — IEC 60529 ingress protection (front face)
- C-Tick — Australian Communications and Media Authority (ACMA) compliance
- RoHS — Restriction of Hazardous Substances Directive compliant
- IEC 61131-2 — Programmable controllers: equipment requirements and tests
Quality Assurance & Sourcing
Konmask.com sources the 2711P-B7C4D1 through verified industrial automation distributors and authorized channel partners. Every unit offered undergoes the following quality process before dispatch:
- Visual Inspection — Enclosure, display surface, keypad, and connector integrity checked against OEM cosmetic standards.
- Power-On Verification — Unit is powered at 24 VDC; display, backlight, touch calibration, and key response are confirmed functional.
- Firmware Version Check — FactoryTalk View ME runtime version is documented and disclosed to the buyer prior to shipment.
- Serial Number Traceability — Full serial number recorded for warranty and authenticity tracking.
- Anti-Static Packaging — Shipped in ESD-safe bags with foam cushioning inside double-wall corrugated cartons.
- 90-Day Functional Warranty — All units carry a 90-day warranty against defects in materials and workmanship under normal operating conditions.
How to Source This Part
- Add to Cart — Click the purchase button above to place an order directly on Konmask.com with secure checkout.
- Request a Quote — For bulk orders (5+ units), OEM integrators, or EPC contractors, email [email protected] for volume pricing and lead-time confirmation.
- WhatsApp / Phone — Reach our technical sales team at +0086 19859288691 for urgent requirements or cross-reference assistance.
- Shipping — We ship globally via DHL Express, FedEx International Priority, and UPS Worldwide. Typical transit: 3–7 business days to most destinations.
- Export Documentation — Commercial invoice, packing list, and certificate of origin available upon request for customs clearance.
Application-Specific FAQ
Q: Is the 2711P-B7C4D1 compatible with CompactLogix and ControlLogix PLCs?
A: Yes. Via EtherNet/IP, the terminal communicates natively with the full Logix family (ControlLogix, CompactLogix, GuardLogix) using tag-based addressing. Legacy DH-485 and DF1 serial connections are also supported for older SLC 500 and MicroLogix systems.
Q: What version of FactoryTalk View ME is pre-installed?
A: The runtime version varies by unit production date. Konmask discloses the installed version prior to shipment. FactoryTalk View Studio ME (developer software) is sold separately by Rockwell Automation.
Q: Can this terminal replace a 2711P-B7C4A1 or 2711P-B7C4A2?
A: The D1 suffix denotes the DC power input variant. Functionally, the display, keypad, and communication capabilities are equivalent to the A-series units. Verify power supply compatibility (24 VDC) before substitution.
Q: Is the touchscreen resistive or capacitive?
A: Analog resistive. This allows operation with gloved hands, stylus, or any firm object — a key advantage in industrial environments where capacitive touch is unreliable.
Q: What is the panel cutout dimension?
A: 212 mm (W) × 158 mm (H). Refer to Rockwell Automation installation instructions document 2711P-IN006 for full mounting template and torque specifications.
Q: Does Konmask offer repair or refurbishment services?
A: We currently offer exchange units and sourcing of tested-functional surplus stock. For factory repair, contact Rockwell Automation’s authorized repair network or a certified Rockwell service center.
Q: Can I use this HMI with a Siemens or Mitsubishi PLC?
A: The 2711P-B7C4D1 is optimized for Rockwell Automation ecosystems. Third-party PLC connectivity via Modbus RTU or generic serial protocols may be possible with custom driver configurations, but is not officially supported by Rockwell. Contact our team for application-specific guidance.
