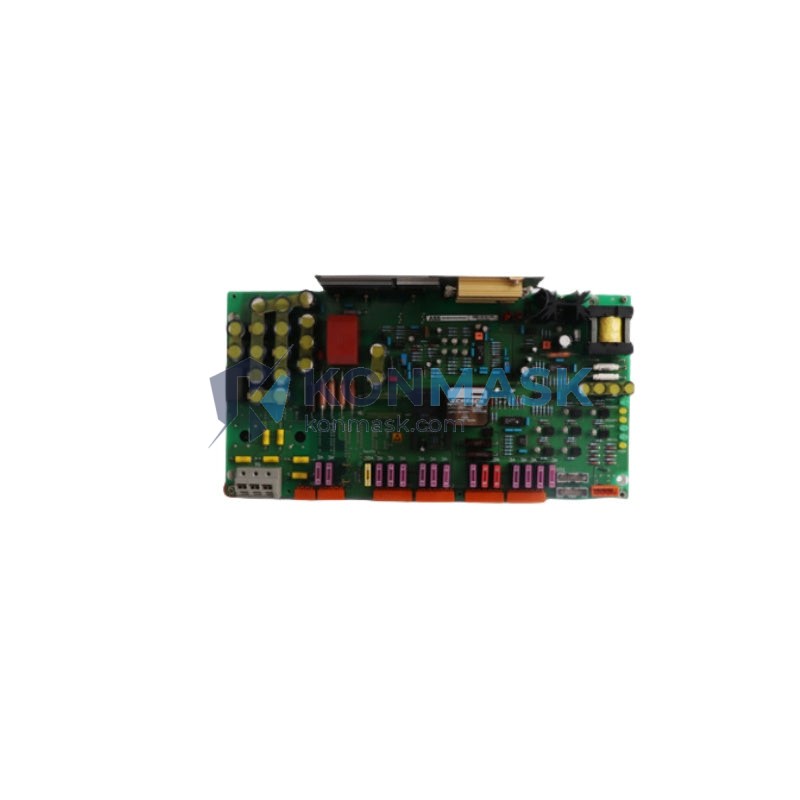

ABB 3BHB003431R0101 KUC720AE01 Excitation Control Circuit Board – ACS800 Variable Frequency Drive Series
When an excitation control board fails inside an ABB ACS800 variable frequency drive, the consequences are immediate and severe: the drive loses its ability to regulate motor flux and torque, triggering fault codes, emergency shutdowns, and unplanned production halts. In paper mills, cement plants, marine propulsion systems, and heavy-process industries where ACS800 drives manage multi-megawatt loads, even a single hour of downtime can cost tens of thousands of dollars. The ABB 3BHB003431R0101 KUC720AE01 excitation control circuit board is the precision component that prevents this scenario — it is not interchangeable, not approximated, and not optional.
The KUC720AE01 board (assembly reference 3BHB003431R0101) occupies a critical position within the ABB ACS800 direct torque control (DTC) drive platform — one of ABB’s most widely deployed industrial drive families globally, with installations spanning six continents and applications from oil & gas compression to wind turbine pitch control. This board interfaces directly with the RDCU or RMIO control unit, managing excitation feedback loops that are fundamental to DTC performance. Its design reflects ABB’s industrial-grade engineering standards, built to withstand the thermal cycling, vibration, and EMI environments typical of heavy industrial enclosures.
Technical Specifications
- Part Number: 3BHB003431R0101
- Module Reference: KUC720AE01
- Manufacturer: ABB Ltd.
- Compatible Drive Series: ACS800 (multi-drive and single-drive configurations)
- Board Type: Excitation Control Circuit Board
- Weight: 1,960 g (approx.)
- Condition Available: New / Refurbished / Tested Used
- Warranty: 12 months (Konmask.com standard)
Note: Electrical parameters (voltage, current ratings, firmware revision) vary by drive configuration. Please provide your drive nameplate data when inquiring.
Key Features & Benefits
- Direct Torque Control Integration: Engineered specifically for ABB’s DTC algorithm, ensuring precise flux and torque regulation without encoder feedback in many configurations.
- Industrial-Grade Reliability: Designed to ABB’s stringent quality standards for continuous operation in harsh industrial environments including high-vibration and high-EMI settings.
- Drop-In Replacement: Maintains original connector pinout and mechanical footprint for straightforward swap-out during maintenance windows.
- Broad Drive Compatibility: Supports multiple ACS800 cabinet and module variants, reducing the number of spare parts required in a plant’s inventory.
- Tested Before Shipment: Every unit dispatched from Konmask.com undergoes functional verification to confirm board integrity prior to delivery.
Industry & Equipment Applications
- Pulp & Paper: Refiner drives, winder drives, and paper machine section drives using ACS800 multi-drives.
- Cement & Mining: Kiln drives, ball mill drives, and conveyor systems requiring high-torque low-speed control.
- Oil & Gas: Compressor and pump drives in offshore platforms and onshore processing facilities.
- Marine & Offshore: Thruster and propulsion drives in vessels equipped with ABB ACS800 marine-rated drives.
- Water & Wastewater: Large pump station drives where continuous uptime is critical to municipal operations.
- Steel & Metals: Rolling mill and crane drives demanding precise speed and torque profiles.
System Integration & Compatible Parts
The KUC720AE01 board operates within the ACS800 control architecture alongside the following commonly associated components:
- RDCU-02C / RDCU-12C — Drive Control Unit
- RMIO-11C / RMIO-02C — Motor Control and I/O Board
- AINT-02C — Inverter Control Interface Board
- APBU-44C / APBU-12C — Pulse Encoder Interface
- AIMA-01C — Analog I/O Extension Module
When replacing the KUC720AE01, it is recommended to inspect the RDCU control unit and fiber optic connections simultaneously to rule out cascading faults. Contact our technical team for a full BOM review.
Our Quality Assurance Process
At Konmask.com, every ABB circuit board passes through a structured quality workflow before shipment:
- Visual Inspection: Check for burnt components, cracked solder joints, corrosion, and physical damage.
- Functional Test: Board-level power-on test using compatible test fixtures where applicable.
- Anti-Static Packaging: Shipped in ESD-safe bags with foam cushioning inside double-wall cartons.
- Documentation: Each shipment includes a test report and packing list; CE/RoHS documentation available on request.
How to Order
- Submit an inquiry via the Contact / RFQ form on this page or email support@konmask.com.
- Provide your drive model, serial number, and required quantity for accurate lead time and pricing.
- Receive a formal quotation within 1 business day.
- Confirm order and arrange payment via T/T, PayPal, or other agreed methods.
- Shipment via DHL / FedEx / UPS with full tracking — typical delivery 3–7 business days worldwide.
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation: 10+ years sourcing ABB, Siemens, Schneider, Rockwell, and Fanuc components for global OEMs and end-users.
- ✅ Genuine & Traceable Parts: We source from authorized channels and maintain full traceability documentation.
- ✅ Fast Global Shipping: Stocked items ship within 24–48 hours; expedited sourcing available for urgent requirements.
- ✅ 12-Month Warranty: All parts covered against manufacturing defects and functional failure.
- ✅ Technical Support: Our engineers assist with installation guidance, fault diagnosis, and compatible part identification.
- ✅ B2B Focused: Tailored service for maintenance teams, procurement departments, and system integrators.
Frequently Asked Questions
- Q: Is the 3BHB003431R0101 KUC720AE01 compatible with all ACS800 variants?
- A: The KUC720AE01 is designed for specific ACS800 configurations. Compatibility depends on your drive’s hardware revision and software version. Please share your drive nameplate data so our team can confirm fitment before you order.
- Q: Do you supply new or refurbished boards?
- A: We supply both new-in-box and professionally refurbished units. All refurbished boards are tested and carry the same 12-month warranty. Stock availability is confirmed at time of inquiry.
- Q: What is the lead time for this part?
- A: Lead time depends on current stock. In-stock units ship within 24–48 hours. For sourced units, typical lead time is 5–15 business days. Contact us for real-time availability.
- Q: Can you assist with installation or commissioning?
- A: Yes. Our technical team can provide installation guidance and reference ABB service documentation. On-site support can be arranged through our partner network for large projects.
- Q: Do you accept returns?
- A: Yes, within 30 days of receipt for unused items in original packaging. Defective items are covered under our 12-month warranty with free replacement or full refund.
