Genuine Allen-Bradley 1336-BDB-SP29C Gate Drive PC Board 460VAC 75HP | 1336 Series – Verified Source
Konmask.com supplies genuine Allen-Bradley 1336-BDB-SP29C (P/N: 74101-169-53) PC Board Gate Drive units for the 1336 Series AC Variable Frequency Drive platform. Every unit passes our documented 4-step verification process before dispatch. We serve MRO buyers, OEM integrators, and plant maintenance teams worldwide who cannot afford counterfeit or untested components in live production environments.
Technical Specifications
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Part Number: 1336-BDB-SP29C
- Assembly / Board Number: 74101-169-53

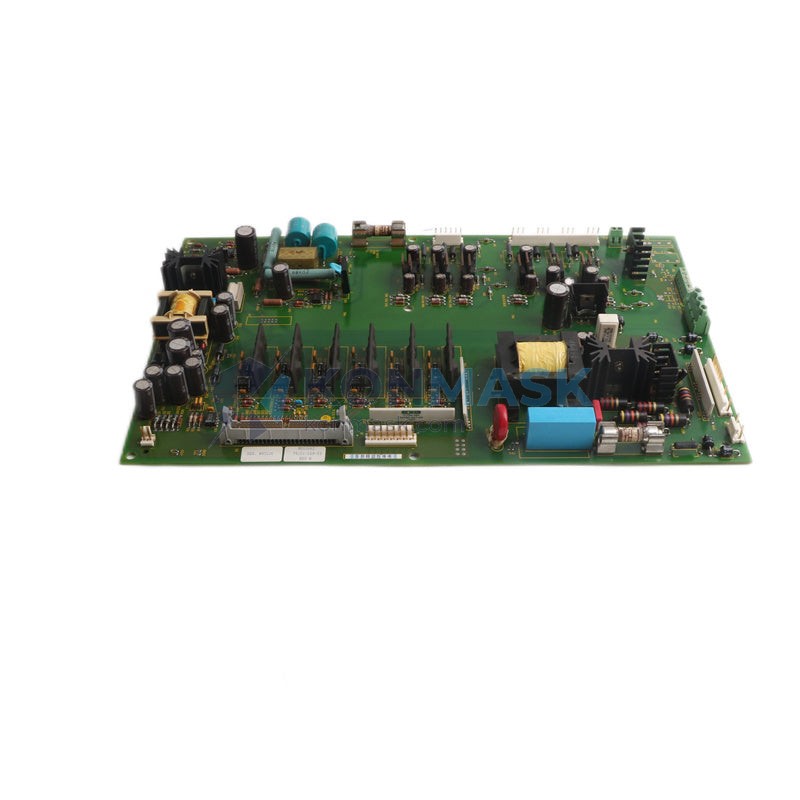

- Description: PC Board – Gate Drive
- Rated Voltage: 460 VAC
- Rated Power: 75 HP (≈ 55 kW)
- Drive Series: Allen-Bradley 1336 / 1336 PLUS / 1336 IMPACT
- Board Function: IGBT gate signal conditioning and firing control
- Form Factor: OEM replacement PCB assembly
- Weight: 1,240 g (approx.)
- Condition: New / Surplus New / Tested Refurbished (stated at time of order confirmation)
Our 4-Step Quality Verification Process
Every 1336-BDB-SP29C unit shipped from Konmask.com passes the following documented checks:
- Step 1 – Source Traceability: Unit origin is traced to authorised distributor stock, factory-sealed surplus, or certified refurbishment partners. No grey-market or unverifiable sources accepted.
- Step 2 – Physical Inspection: Board markings, silkscreen part number, revision code, and date codes are cross-referenced against Allen-Bradley engineering documentation. Counterfeit indicators (misaligned silk, incorrect component footprints, cloned ICs) are checked under magnification.
- Step 3 – Functional Bench Test: Where applicable, gate drive output signals are verified under controlled bench conditions. Test records are retained for 12 months.
- Step 4 – Packaging & ESD Protection: Boards are packed in anti-static bags, foam-lined boxes, and double-boxed for international freight. Humidity indicator cards are included for long-haul shipments.
Key Features & Benefits
- ✅ Genuine OEM part – Allen-Bradley label, correct revision, traceable lot
- ✅ Drop-in replacement – No firmware changes or parameter re-entry required for standard 1336 drive frames
- ✅ Reduces downtime risk – Pre-verified before shipment; no on-site debugging of a suspect board
- ✅ Documented chain of custody – Sourcing records available on request for regulated industries
- ✅ ESD-safe packaging – Arrives ready for immediate installation
- ✅ Responsive technical support – Our team can assist with cross-reference, installation guidance, and drive fault diagnosis
Typical Applications
- Replacement of failed or damaged gate drive boards in Allen-Bradley 1336 Series VFDs
- Preventive maintenance stock for 460 VAC / 75 HP drive installations
- OEM machine refurbishment and retrofit projects
- Plant MRO inventory for continuous-process industries (food & beverage, water treatment, mining, pulp & paper, HVAC)
- Drive repair centres requiring verified spare boards
Compatible System Components
- Allen-Bradley 1336 PLUS II VFD (460 VAC, 75 HP frame)
- Allen-Bradley 1336 IMPACT Series (matching voltage/HP rating)
- Allen-Bradley 1336 FORCE Series (verify frame compatibility before ordering)
- Associated power modules, precharge boards, and control boards within the 1336 drive family
Not sure if this board fits your exact drive serial number? Contact us with your drive nameplate data and we will confirm compatibility before you order.
Global Sourcing & Shipping Capabilities
- Stock location: China (Mainland) – ships internationally via DHL Express, FedEx International Priority, UPS Worldwide, and sea freight for bulk orders
- Lead time: In-stock orders typically dispatched within 1–3 business days; lead time for sourced units quoted individually
- Export documentation: Commercial invoice, packing list, and certificate of origin provided as standard; CITES / dual-use declarations on request
- Customs HS Code: 8537.10 (indicative – buyer responsible for import classification in destination country)
- Minimum order: 1 unit; volume pricing available for 5+ units
Certifications & Compliance Statement
Allen-Bradley / Rockwell Automation products are manufactured to UL, CE, and RoHS standards where applicable. Konmask.com is an independent distributor and is not an authorised Rockwell Automation reseller. We do not represent Rockwell Automation. All trademarks, brand names, and part numbers are the property of their respective owners and are referenced solely for product identification purposes. Buyers in regulated industries (nuclear, aerospace, medical) are advised to conduct their own incoming inspection and qualification testing.
How to Order
- Online: Add to cart and complete checkout. We will confirm stock condition and lead time by email within 1 business day.
- Email RFQ: Send your part number, required quantity, and destination country to support@konmask.com for a formal quotation.
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Payment: T/T (bank transfer), PayPal, and major credit cards accepted. Pro-forma invoice issued before payment for B2B orders.
Authenticity & Trust FAQ
Q: How do I know the part is genuine?
A: We provide sourcing documentation and physical inspection photos on request. Our 4-step verification process is documented above. If you receive a unit that does not match the stated part number or revision, we offer a full replacement or refund.
Q: Can you provide a test report?
A: Yes, for functionally tested units a bench test record is available. Please request this at the time of ordering.
Q: What is your return policy?
A: DOA (Dead on Arrival) claims accepted within 7 days of delivery. Please contact support@konmask.com with photos and a fault description. We will arrange replacement or credit.
Q: Do you offer a warranty?
A: New/surplus-new units carry a 90-day Konmask warranty against manufacturing defects. Tested-refurbished units carry a 30-day warranty. Warranty does not cover damage caused by incorrect installation or electrical faults in the host drive.
Q: Can you source other 1336 series boards?
A: Yes. We regularly source the full range of 1336 spare boards including power supplies, control boards, and precharge assemblies. Contact us with your part number.
