ABB 3BHB020538R0001 — High-Power IGCT Gate Driver & Thyristor Module | GV C714 / ACS Series Platform
Engineering Background
The Integrated Gate-Commutated Thyristor (IGCT) represents ABB’s flagship power semiconductor technology for medium-voltage drive and converter applications. Unlike conventional GTO or IGBT topologies, the IGCT integrates the gate unit and thyristor wafer into a single low-inductance package, enabling turn-off at full rated current with minimal snubber requirements. This architecture is the foundation of ABB’s ACS1000, ACS5000, ACS6000, and MEGADRIVE-LCI product families.
Product Positioning

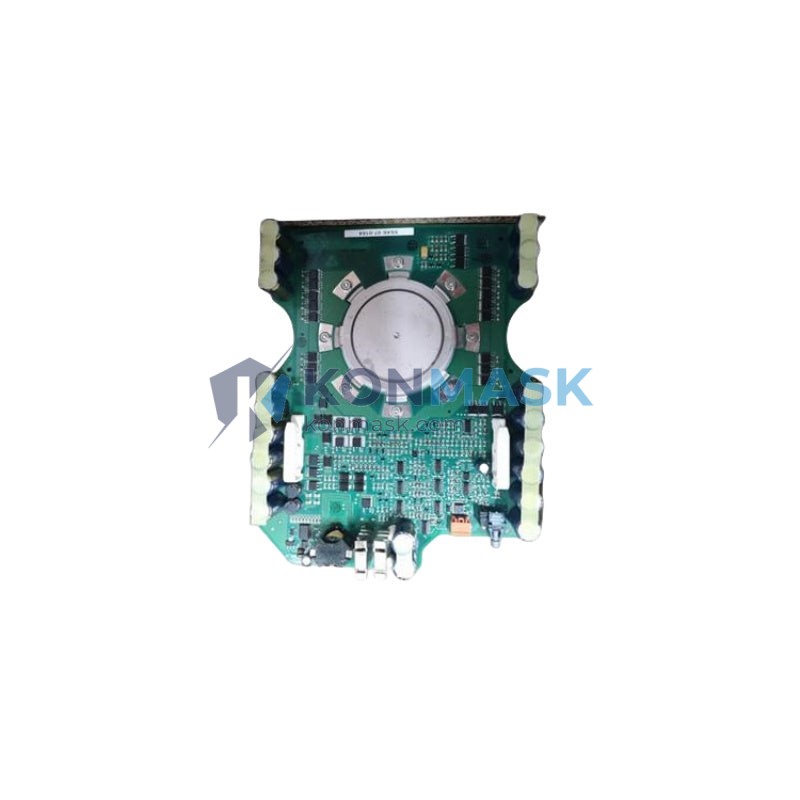

Part number 3BHB020538R0001 (gate unit assembly) works in conjunction with thyristor wafer 5SHX1060H0003 and driver board 3BHE024415R0101 to form the complete GV C714 A101 IGCT stack. This assembly is the primary switching element in the power cell of medium-voltage variable-speed drives and static frequency converters operating at 2.3 kV–6.9 kV bus voltages. Procurement engineers specifying replacement or spare parts must source all three part numbers as a matched set to ensure gate-thyristor impedance compatibility and safe commutation.
Complete Technical Specifications
| Manufacturer | ABB Ltd. (Switzerland) |
| Part Number (Gate Unit) | 3BHB020538R0001 |
| Part Number (Thyristor Wafer) | 5SHX1060H0003 |
| Part Number (Driver Board) | 3BHE024415R0101 |
| Assembly Designation | GV C714 A101 |
| Device Technology | IGCT (Integrated Gate-Commutated Thyristor) |
| Repetitive Peak Off-State Voltage (VDRM) | 4,500 V (typical for 5SHX10xx series) |
| Average On-State Current (IT(AV)) | ~1,060 A RMS (wafer rating) |
| Gate Turn-Off Current (ITGQ) | Matched to gate unit 3BHB020538R0001 |
| Switching Frequency | Up to 500 Hz (drive-dependent) |
| Cooling Method | Forced liquid cooling (deionized water circuit) |
| Operating Temperature | 0 °C to +40 °C (ambient); coolant ≤ 25 °C inlet |
| Storage Temperature | −25 °C to +70 °C |
| Humidity | 5%–95% RH, non-condensing |
| Weight (assembly) | ~400 g |
| Compatible Platforms | ACS1000, ACS5000, ACS6000, MEGADRIVE-LCI, PCS6000 |
| Standards Compliance | IEC 60747-6, CE, RoHS |
Proven Application Environments
- Oil & Gas: Compressor and pump drives on offshore platforms and LNG terminals requiring high MTBF and SIL-rated control loops.
- Mining & Minerals: Gearless mill drives (GMD) and conveyor variable-speed drives operating under heavy cyclic load profiles.
- Power Generation: Static frequency converters (SFC) for gas turbine starting and synchronous condenser excitation.
- Marine & Propulsion: Shaft generator converters and podded propulsion systems requiring low harmonic distortion.
- Steel & Metals: Rolling mill main drives and DC link converters in continuous casting lines.
- Water & Utilities: High-power pump drives in desalination plants and water treatment facilities.
Engineering Advantages
- Low Conduction Losses: IGCT on-state voltage drop is lower than equivalent IGBT modules at the same current rating, reducing heat sink requirements and improving overall drive efficiency by 0.3%–0.8%.
- Snubberless Operation: The integrated gate unit provides the di/dt control necessary for snubberless turn-off, eliminating RC snubber banks and reducing component count in the power cell.
- Robust Short-Circuit Withstand: The thyristor heritage of the IGCT provides inherent overcurrent ruggedness superior to IGBT-based topologies at medium voltage.
- Matched Assembly: Gate unit, wafer, and driver board are factory-matched and tested as a set, ensuring consistent gate charge characteristics and eliminating field-matching uncertainty.
- Long Service Life: Designed for >100,000 operating hours in continuous industrial service with scheduled coolant maintenance.
System Architecture & Signal Flow
In the GV C714 power cell, the IGCT stack operates as follows:
- Control Signal: The drive’s DSP control board generates a PWM gate command via fiber-optic link to the driver board (3BHE024415R0101).
- Gate Driver: The driver board amplifies the signal and delivers a high-current gate pulse (>1,000 A peak, <1 µs rise time) to the gate unit (3BHB020538R0001).
- Thyristor Switching: The gate unit distributes the pulse uniformly across the thyristor wafer (5SHX1060H0003), achieving simultaneous turn-on/turn-off across the full wafer area.
- Power Conversion: The commutated current flows through the DC link and motor windings, producing the variable-frequency output voltage.
- Feedback & Protection: On-state voltage and junction temperature are monitored by the driver board and reported back to the control system for thermal derating and fault protection.
Sourcing & Quality Verification
- Origin: Sourced from ABB-authorized distribution channels and verified industrial decommissioning projects.
- Inspection Protocol: Each unit undergoes visual inspection, gate impedance measurement, and leakage current verification prior to shipment.
- Traceability: Date codes, lot numbers, and serial numbers are recorded and available upon request for maintenance records.
- Packaging: Anti-static shielding bag + foam-lined carton; humidity indicator card included.
- Warranty: 90-day functional warranty against manufacturing defects under normal operating conditions.
Procurement Process
- Submit your RFQ via support@konmask.com or WhatsApp +0086 19859288691 with your required quantity and delivery timeline.
- Receive a formal quotation with lead time, unit price, and shipping options (DHL Express / sea freight) within 24 business hours.
- Confirm purchase order — we accept T/T bank transfer, PayPal, and trade assurance.
- Inspection photos and test reports dispatched before shipment upon request.
- Tracking number provided within 48 hours of payment confirmation.
Technical FAQ
Q: Can I replace only the thyristor wafer (5SHX1060H0003) without replacing the gate unit?
A: Not recommended. ABB matches gate unit and wafer as a set during factory calibration. Mismatched assemblies risk uneven current distribution and premature failure. Always replace as a complete GV C714 A101 stack.
Q: Is this part compatible with ACS800 drives?
A: No. The ACS800 uses IGBT power modules. The GV C714 IGCT stack is specific to the ACS1000/5000/6000 and MEGADRIVE-LCI platforms. Verify your drive’s power cell type before ordering.
Q: What coolant specification is required?
A: ABB specifies deionized water with conductivity <5 µS/cm, pH 7–8.5, and corrosion inhibitor per ABB service manual 3BHS135153. Do not use glycol-based coolants without consulting ABB service engineering.
Q: Do you provide installation support?
A: We supply the hardware and documentation. For on-site commissioning, we recommend engaging an ABB-certified service partner. We can provide the relevant ABB service manual references upon request.
Q: What is the lead time for this part?
A: Typically 3–7 business days for in-stock units. For large quantities or urgent requirements, contact us directly for expedited options.
