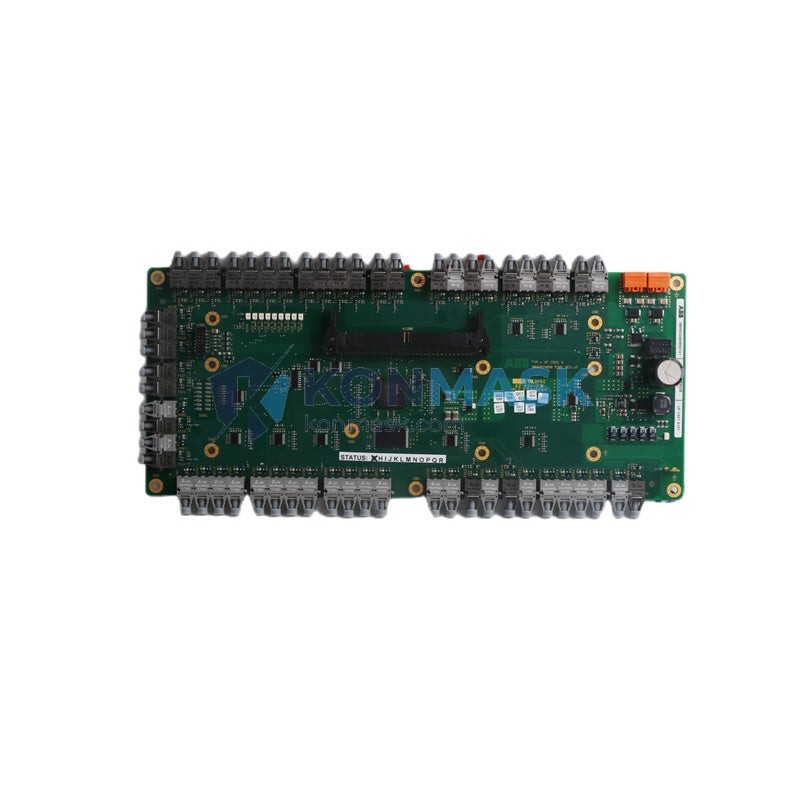

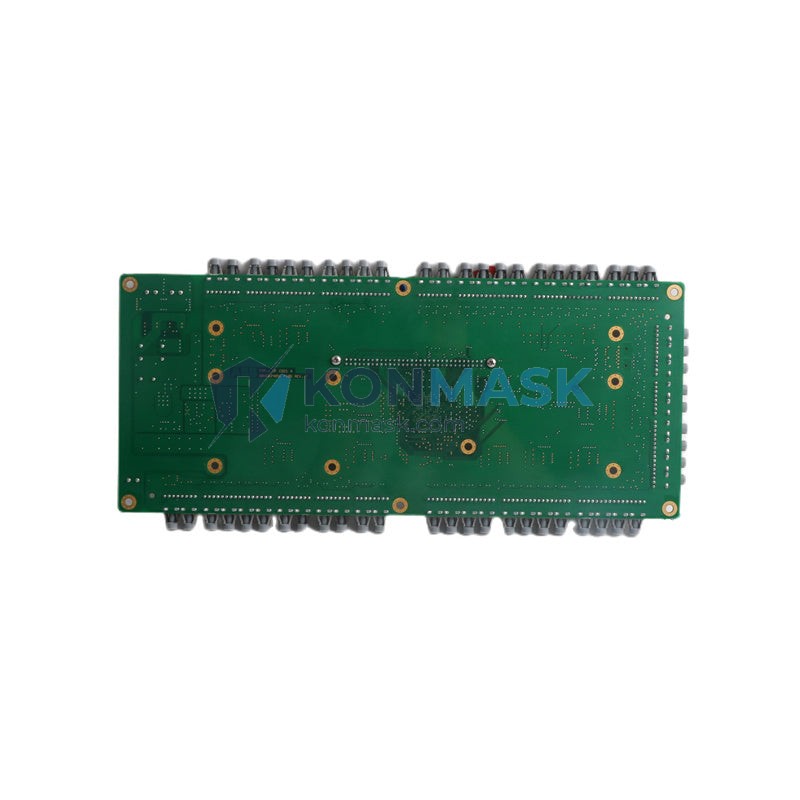

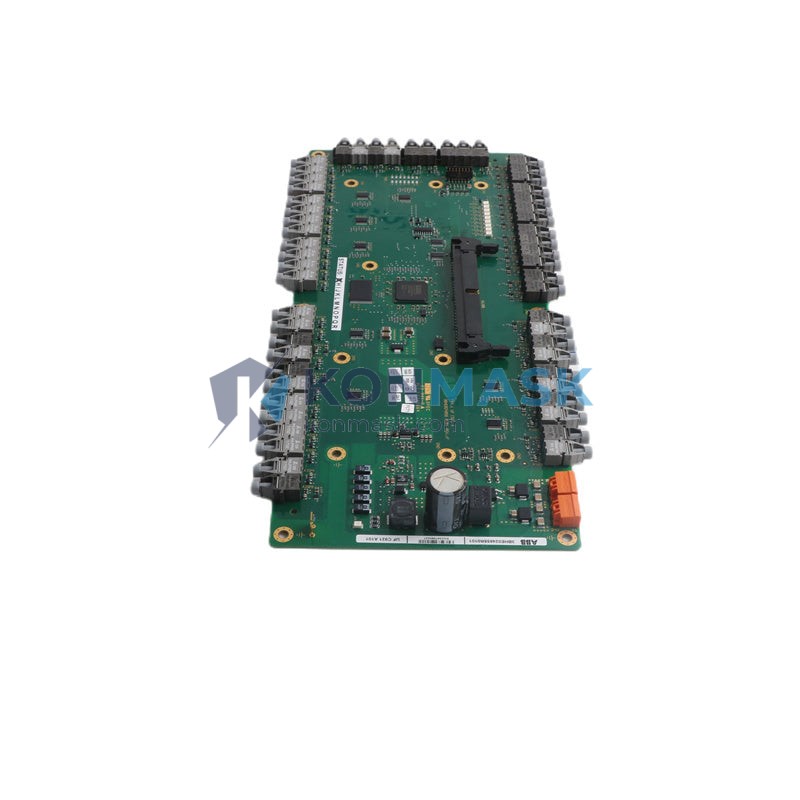

ABB 3BHE024855R0101 UFC921A101 – IGBT Gate Drive & Inverter Control Board | ACS800 / ACS1000 Platform
Engineering Background
The ABB ACS800 and ACS1000 medium-voltage drive families are the backbone of demanding industrial motion-control installations worldwide — from pulp & paper mills and cement plants to offshore pump stations and steel rolling lines. At the heart of these drives sits the inverter section, where precise IGBT gate-drive timing and real-time fault monitoring are non-negotiable. The 3BHE024855R0101 UFC921A101 is the OEM inverter control board engineered specifically for this role.
Product Positioning
This board is a direct OEM replacement for failed or degraded inverter boards in ACS800 and ACS1000 drive cabinets. It is sourced through verified industrial channels, individually inspected, and dispatched with full traceability documentation — making it the preferred procurement path for maintenance engineers who cannot afford extended downtime.
Complete Technical Specifications
| Part Number | 3BHE024855R0101 |
| Module Designation | UFC921A101 |
| Manufacturer | ABB Ltd. (Switzerland) |
| Compatible Platforms | ACS800 Series, ACS1000 Series |
| Board Function | IGBT Gate Drive & Inverter Control |
| Form Factor | PCB Assembly, DIN-rail / chassis mount |
| Weight | 340 g (bare board) |
| Communication Interface | Internal DDCS / fiber-optic backplane |
| Operating Temperature | 0 °C to +55 °C (drive cabinet ambient) |
| Storage Temperature | −40 °C to +70 °C |
| Humidity | 5–95 % RH, non-condensing |
| Pollution Degree | PD2 (IEC 60664-1) |
| Compliance | CE, RoHS |
| Condition Available | New OEM / Refurbished-tested |
Proven Application Environments
- Pulp & Paper: Winder and refiner drives requiring continuous-duty IGBT control with sub-millisecond fault response
- Cement & Mining: Kiln and conveyor drives operating under high-vibration, high-dust conditions
- Oil & Gas / Offshore: Pump and compressor VFDs in classified or marine environments
- Steel & Metals: Rolling-mill main drives demanding precise torque linearity and thermal stability
- Water & Wastewater: High-power pump stations with 24/7 uptime requirements
- Power Generation: Auxiliary drive systems in thermal and hydro plants
Engineering Advantages
- OEM Gate-Drive Timing: Factory-calibrated PWM dead-time and shoot-through protection — no field tuning required after swap
- Integrated Fault Diagnostics: On-board IGBT desaturation detection and over-temperature sensing feed directly into the drive’s fault log
- Fiber-Optic Isolation: Full galvanic isolation between control logic and high-voltage inverter section eliminates ground-loop interference
- Conformal Coating: PCB protected against humidity, condensation, and airborne contaminants common in industrial enclosures
- Drop-In Replacement: Identical connector pinout and firmware compatibility — restores drive to OEM specification without parameter re-commissioning
- Thermal Design: Low-profile heat-spreading layout sustains rated performance at full drive load up to +55 °C cabinet ambient
System Architecture & Signal Flow
The UFC921A101 board sits between the drive’s main control unit (RMIO / RDCU) and the IGBT power modules. Signal flow is as follows:
- Reference Input: PWM gate-drive commands received from the main control board via fiber-optic DDCS link
- Gate Drive Amplification: On-board gate drivers amplify logic-level signals to the ±15 V / high-current levels required by each IGBT
- Protection Layer: Desaturation detection monitors collector-emitter voltage; any anomaly triggers immediate gate-off and fault signal within <2 µs
- Feedback Path: Temperature and status signals returned to the main control board for real-time drive health monitoring
- Power Supply: Isolated DC/DC converters on-board supply each gate-drive channel independently, preventing cross-channel interference
Sourcing & Quality Verification
- Supply Chain: Sourced from ABB authorized distributors, certified MRO suppliers, and decommissioned OEM equipment — never grey-market or counterfeit channels
- Incoming Inspection: Each unit undergoes visual PCB inspection, component-level continuity check, and functional power-on test before listing
- Traceability: Batch records, serial numbers, and test reports available on request for regulated industries (nuclear, offshore, food & beverage)
- Packaging: Anti-static bag + foam-lined carton; humidity indicator card included for long-distance shipments
- Warranty: 12-month replacement warranty against manufacturing defects under normal operating conditions
Procurement Process
- Confirm Compatibility: Verify your drive model and existing board part number against 3BHE024855R0101 / UFC921A101
- Request Quote: Contact support@konmask.com with quantity, required condition (new / refurbished), and delivery timeline
- Order Confirmation: Pro-forma invoice issued within 1 business day; T/T, L/C, and PayPal accepted
- Dispatch: Standard lead time 3–7 business days; express DHL/FedEx available for AOG (aircraft-on-ground equivalent) emergencies
- Installation Support: Free remote technical guidance for board swap and drive recommissioning
Technical FAQ
Q: Is this board compatible with both ACS800 and ACS1000 drives?
A: Yes. The 3BHE024855R0101 UFC921A101 is used across multiple frame sizes in both the ACS800 and ACS1000 series. Always cross-reference your drive’s hardware manual or contact us with your drive nameplate data to confirm exact fit.
Q: Can I install this board myself, or do I need an ABB service engineer?
A: The board is a plug-in replacement requiring no soldering. However, work inside a medium-voltage drive cabinet must be performed by qualified personnel following LOTO (lockout/tagout) procedures. We provide free remote commissioning support.
Q: What is the difference between a new OEM and a refurbished-tested unit?
A: New OEM units are unused, in original ABB packaging. Refurbished-tested units have been removed from service, fully inspected, cleaned, and functionally verified — they carry the same 12-month warranty and are typically available at 30–50 % lower cost.
Q: Do you provide a test report with the board?
A: Yes. A functional test report is available upon request at no additional charge. For regulated industries, full traceability documentation can be provided.
Q: What is your return policy if the board does not resolve the drive fault?
A: We offer a 30-day return window for boards that are unused and in original condition. If the board was installed and the fault persists, our technical team will assist in root-cause analysis before processing any return.
