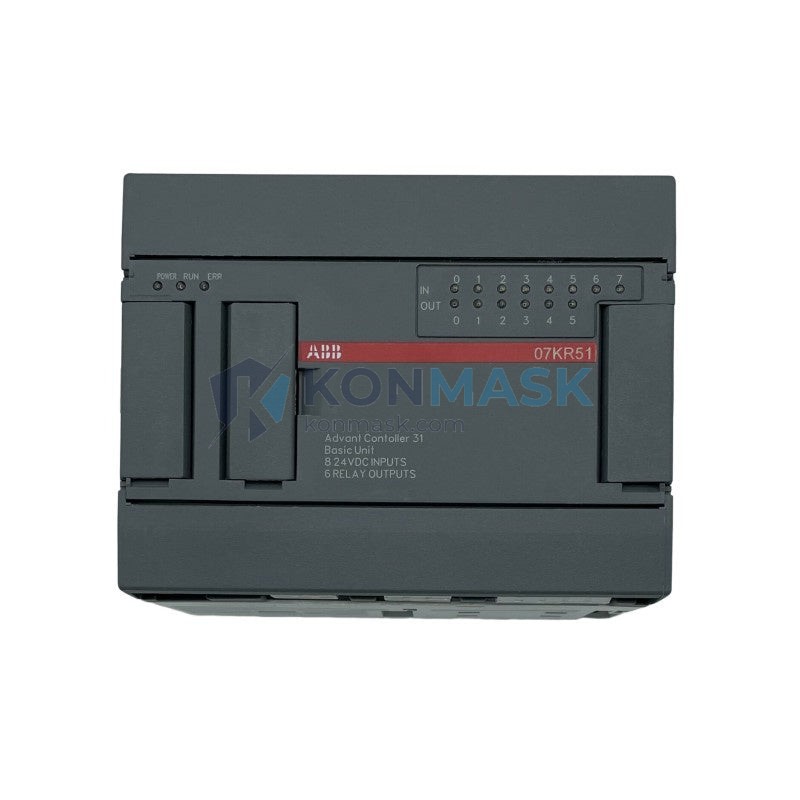

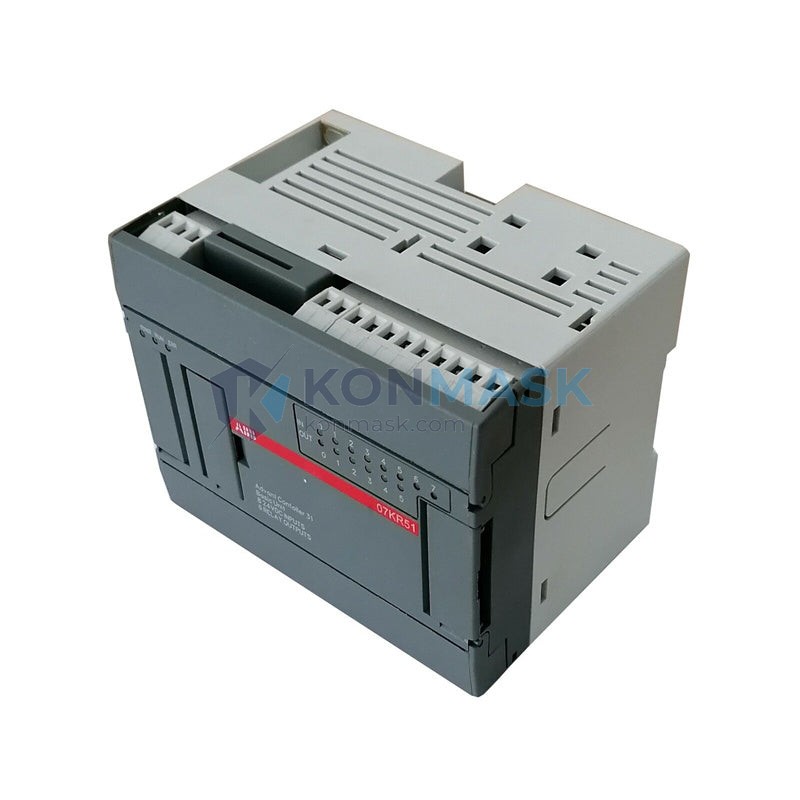

ABB 07KR51 – Basic Processing Unit | Advant Controller 31 (AC31) Series
Engineering Background: The ABB Advant Controller 31 (AC31) platform is a compact, modular programmable logic controller series engineered for distributed control in process-intensive industries. Deployed extensively across petrochemical refineries, thermal and hydroelectric power stations, and municipal water/wastewater treatment facilities, the AC31 architecture supports both standalone and networked configurations via PROFIBUS-DP and CS31 fieldbus. The 07KR51 is the central processing unit of this platform — it executes the application program, manages I/O communication, and coordinates all inter-module data exchange. Without a functioning 07KR51, the entire AC31 node is inoperative.
Product Positioning: The 07KR51 is the standard-capacity CPU within the AC31 Basic Unit family, distinguished from the 07KR91 (enhanced memory) and 07KT98 (high-performance variant) by its balance of processing throughput and cost efficiency. It is the correct selection for applications requiring deterministic scan cycles under 10 ms, moderate I/O point counts (up to 512 digital / 128 analog via expansion), and CS31 bus master functionality. It is not recommended for applications requiring IEC 61131-3 structured text programming or Ethernet-native communication without additional gateway modules.
Complete Technical Specifications
Electrical
- Supply Voltage: 24 V DC (18–30 V DC operating range)
- Power Consumption: ≤ 5 W (CPU module only)
- Program Memory: 32 KB RAM (battery-backed) + 32 KB EPROM
- Data Memory: 16 KB
- Cycle Time: 0.8 ms / 1K instructions (Boolean)
- Communication Ports: 1× CS31 bus master, 1× RS-232 programming interface
- Digital I/O (onboard): 16 DI / 8 DO (relay or transistor output variants)
- Max Expandable I/O: 512 DI/DO + 128 AI/AO via CS31 expansion modules
Mechanical
- Form Factor: DIN rail mount, compact modular housing
- Dimensions: Approx. 160 × 90 × 60 mm (W × H × D)
- Weight: ~400 g
- Connector Type: Screw-terminal I/O, front-access programming port
- Backplane Interface: Proprietary AC31 bus connector
Environmental
- Operating Temperature: 0°C to +55°C
- Storage Temperature: −25°C to +70°C
- Relative Humidity: 5–95% RH (non-condensing)
- Protection Rating: IP20 (panel-mount installation required)
- Vibration Resistance: IEC 60068-2-6 compliant
- EMC: EN 61000-4 series (industrial environment)
Certifications
- CE Marking: Yes (EMC Directive 2014/30/EU)
- UL Listed: Yes (UL 508 industrial control equipment)
- ATEX: Not rated — requires external barrier for Zone 1/2 hazardous area use
Data sourced from ABB AC31 Series Technical Reference Manual (3ADR010066M0201) and ABB product datasheet 07KR51. Specifications subject to revision; confirm with official ABB documentation for safety-critical applications.
Proven Application Environments
- Petrochemical Refinery – Crude Distillation Unit: Controls feed pump sequencing and column pressure regulation under continuous 24/7 operation with high ambient temperature and vibration from rotating equipment.
- Thermal Power Plant – Boiler Auxiliary Control: Manages induced draft fan start/stop logic and combustion air damper positioning, requiring deterministic scan cycles and reliable CS31 bus communication to remote I/O racks.
- Municipal Water Treatment – Dosing Station Automation: Coordinates chemical dosing pump interlocks and flow-proportional control loops in high-humidity, corrosive-atmosphere panel enclosures.
- Hydroelectric Power Station – Gate Control System: Executes sluice gate open/close sequences with position feedback, operating in low-temperature, high-moisture environments typical of dam infrastructure.
- Pharmaceutical Manufacturing – Clean Utility Control: Manages purified water loop circulation and CIP (Clean-In-Place) valve sequencing under GMP-compliant panel conditions.
- Wastewater Treatment – Aeration Basin Control: Regulates blower speed references and dissolved oxygen setpoints via analog output modules, operating continuously in high-humidity outdoor panel enclosures.
Engineering Advantages
- For high-vibration rotating equipment environments, this CPU module maintains program integrity, because the battery-backed RAM retains the application program through power interruptions without requiring EPROM re-flash.
- For distributed control architectures with remote I/O, this controller reduces wiring cost and installation time, because the CS31 bus master supports up to 31 remote I/O nodes over a single twisted-pair cable at distances up to 500 m.
- For legacy system maintenance scenarios, this basic unit enables direct drop-in replacement, because the 07KR51 maintains full hardware and software compatibility with all AC31-generation expansion modules and programming tools (907 PC331).
- For panel space-constrained installations, this module minimizes cabinet footprint, because the compact DIN-rail form factor integrates CPU, power supply interface, and onboard I/O within a single housing.
- For applications requiring deterministic response, this controller delivers consistent scan performance, because the fixed-cycle execution engine processes 1K Boolean instructions in 0.8 ms regardless of communication bus load.
- For procurement teams managing multi-site standardization, this unit simplifies spare parts inventory, because a single 07KR51 serves as the universal CPU replacement across all AC31 Basic Unit configurations deployed before 2005.
System Architecture & Signal Flow
In a typical AC31 node, the 07KR51 CPU reads digital and analog inputs from onboard terminals and remote I/O modules connected via the CS31 serial bus. The CPU executes the ladder logic or function block program stored in battery-backed RAM, then writes output states back to local relay/transistor outputs and remote modules within each scan cycle. Programming and monitoring are performed via the RS-232 front port using ABB 907 PC331 software on a Windows-based engineering workstation.
Compatible Modules & Reason for Compatibility:
- 07KT31 / 07KT51 – AC31 I/O expansion modules; share the same CS31 bus protocol and backplane connector standard.
- 07KP62 / 07KP63 – AC31 power supply modules; provide the 24 V DC rail required by the 07KR51 CPU.
- 07KT98 – Higher-performance AC31 CPU; compatible with the same I/O infrastructure but not a direct pin-compatible swap without program migration.
- PROFIBUS-DP Gateway (07KT84) – Enables integration of the AC31 node into PROFIBUS networks for supervisory SCADA connectivity.
Substitution Conditions: The 07KR51 may be substituted by the 07KR91 when expanded memory (>32 KB program) is required, or by the 07KT98 when migration to a higher-performance platform is planned. Substitution requires program backup, hardware configuration update in 907 PC331, and I/O address remapping verification before commissioning.
Sourcing & Quality Verification
Units offered through Konmask.com are sourced from decommissioned industrial control panels, authorized surplus distributors, and verified secondary-market channels. Each unit undergoes the following 4-step inspection process before listing:
- Visual Inspection: Housing integrity check, connector pin condition, label legibility, and absence of burn marks, corrosion, or physical damage.
- Power-On Functional Test: Unit is powered at 24 V DC; CPU RUN/STOP LED status, memory self-test pass, and CS31 bus initialization are verified.
- Program Load Test: A standard test ladder program is loaded via 907 PC331 to confirm RAM write/read integrity and RS-232 communication functionality.
- Firmware & Revision Logging: Hardware revision code and firmware version are recorded and disclosed in the product listing or upon request.
Documentation available upon request: Test report, hardware revision label photograph, original ABB datasheet, and CE declaration of conformity (where applicable to unit revision).
Procurement Process
- Submit Inquiry: Contact via support@konmask.com or +0086 19859288691 with your required quantity, delivery timeline, and any specific hardware revision requirements.
- Receive Quote & Stock Confirmation: A response with pricing, available stock, lead time, and shipping options will be provided within 24 hours on business days.
- Order Confirmation & Dispatch: Upon payment confirmation, units are packaged with anti-static protection and shipped with tracking. Export documentation (commercial invoice, packing list, COO) is included for international shipments.
Technical pre-sales support is available for compatibility verification, system architecture review, and substitution assessment. Post-sales support covers installation guidance and basic commissioning troubleshooting.
Technical FAQ
Q: Is the 07KR51 compatible with the newer AC500 series I/O modules?
A: No. The AC31 and AC500 platforms use fundamentally different bus architectures (CS31 vs. AC500 I/O bus). The 07KR51 cannot communicate with AC500 I/O modules. Migration to AC500 requires a complete hardware replacement including CPU, power supply, and all I/O modules.
Q: Can the 07KR51 directly replace a 07KR91 in an existing installation?
A: Only if the installed application program fits within the 07KR51’s 32 KB program memory. If the 07KR91 was selected specifically for its extended memory capacity, a direct swap will result in a program load failure. A memory audit of the existing program is required before substitution is attempted.
Q: Is the 07KR51 suitable for use in ATEX Zone 1 classified hazardous areas?
A: The 07KR51 itself is not ATEX-rated (IP20, standard industrial). For Zone 1 or Zone 2 installations, the unit must be housed in a certified Ex e or Ex d enclosure with appropriate cable glands and intrinsic safety barriers on all field wiring. Consult the site’s area classification drawing and Ex protection documentation before specifying.
