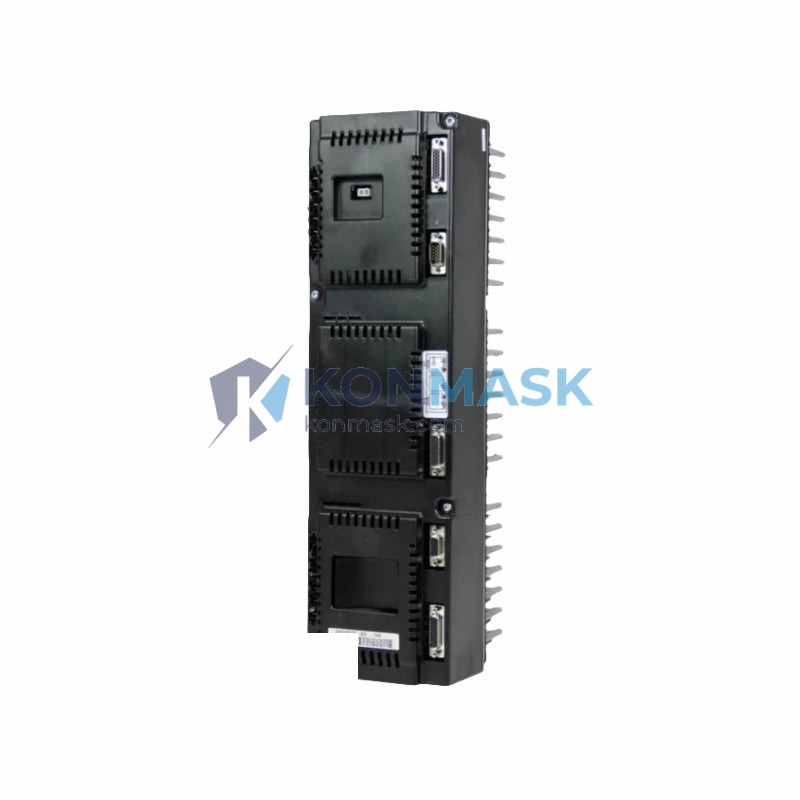

ABB 3HAC025338-003/08A – Main Servo Drive Unit | IRC5 Robot Controller Platform
Engineering Background
The ABB IRC5 controller platform represents ABB Robotics’ fifth-generation motion control architecture, engineered for high-precision, multi-axis industrial robot applications. At the heart of the IRC5 drive cabinet sits the Main Servo Drive Unit — the power electronics backbone responsible for converting DC bus power into precisely regulated AC current for each robot axis motor.
Product Positioning
The ABB 3HAC025338-003/08A (hardware revision 08A) and its predecessor revision 3HAC025338-003/06D are OEM-grade main servo drive units sourced directly from ABB’s IRC5 drive module ecosystem. These units are the authoritative replacement for failed or degraded servo drive assemblies in IRC5 single-cabinet and dual-cabinet robot installations. Konmask.com supplies verified, tested units to procurement engineers requiring traceable, specification-accurate components.
Complete Technical Specifications
| Manufacturer | ABB Robotics |
| Part Number (Primary) | 3HAC025338-003/08A |
| Part Number (Alternate Rev.) | 3HAC025338-003/06D |
| Description | Main Servo Drive Unit |
| Compatible Platform | ABB IRC5 Robot Controller (Single & Dual Cabinet) |
| Compatible Robot Series | IRB 140, IRB 1600, IRB 2400, IRB 4400, IRB 6600, IRB 6640, IRB 7600 and other IRC5-based models |
| Drive Topology | Multi-axis AC servo drive module |
| Input Voltage | DC Bus (from rectifier/capacitor bank within IRC5 cabinet) |
| Axes Supported | Up to 6 axes (axis 1–6 motor drive outputs) |
| Communication Interface | Internal IRC5 backplane / drive bus |
| Hardware Revision | /08A (primary); /06D (alternate, functionally equivalent) |
| Form Factor | Rack-mount drive module, IRC5 drive cabinet format |
| Weight | Approx. 1.9 kg |
| Country of Origin | Sweden / EU (ABB OEM) |
| Condition | New / Refurbished-Tested (specify at inquiry) |
| Warranty | 12 months from shipment date |
Proven Application Environments
- Automotive Body-in-White (BIW): Spot welding and MIG welding robot lines using IRB 6640 / IRB 7600 with IRC5 controllers
- Electronics Assembly: High-speed pick-and-place with IRB 140 / IRB 1600 in cleanroom environments
- Palletizing & Material Handling: IRB 4400 / IRB 6600 in FMCG and logistics facilities
- Machine Tending: CNC machine loading/unloading with IRC5 single-cabinet configurations
- Painting & Coating: IRC5P paint controller variants sharing the same servo drive architecture
- Foundry & Heavy Industry: High-duty-cycle applications requiring robust drive thermal management
Engineering Advantages
- Drop-in Replacement: 3HAC025338-003/08A and /06D are cross-compatible within the same IRC5 drive cabinet slot — no firmware re-flashing required in most installations
- Integrated IGBT Protection: Built-in overcurrent, overvoltage, and thermal shutdown circuitry protects downstream motor windings
- Synchronized Multi-Axis Control: Coordinates torque and velocity loops across all 6 robot axes via the IRC5 motion controller
- ABB TrueMove™ & QuickMove™ Compatibility: Supports ABB’s proprietary motion algorithms for path accuracy and cycle time optimization
- Reduced Downtime: Modular design allows hot-swap replacement without full cabinet disassembly
- Long Service Life: Designed for 24/7 industrial duty cycles with active thermal management
System Architecture & Signal Flow
Within the IRC5 drive cabinet, power flows from the AC mains input → Transformer → Rectifier Unit (3HAC024488-001) → DC Bus → Main Servo Drive Unit (3HAC025338-003). The Main Servo Drive Unit receives motion commands from the Main Computer Unit (DSQC639 / 3HAC025097-001) via the drive bus, converts DC bus voltage into PWM-modulated three-phase AC output for each axis motor, and returns encoder feedback to the motion controller for closed-loop position control.
The /08A and /06D hardware revisions differ in minor PCB component specifications but maintain identical electrical and communication interfaces, making them functionally interchangeable in the field.
Sourcing & Quality Verification
- All units are inspected upon receipt against ABB OEM part markings and serial number traceability
- Refurbished units undergo full power-on functional testing on an IRC5 test bench prior to shipment
- New units are supplied in original ABB packaging with factory documentation where available
- Anti-static packaging and shock-absorbing foam used for all international shipments
- Certificate of conformity available upon request for regulated industries
Procurement Process
- Confirm Part Number: Verify your IRC5 cabinet label shows 3HAC025338-003 (revision /08A or /06D)
- Submit Inquiry: Contact support@konmask.com with your robot model, serial number, and required quantity
- Receive Quotation: Lead time and pricing confirmed within 24 business hours
- Place Order: Secure checkout via Konmask.com or bank transfer (T/T) for bulk orders
- Shipment: DHL / FedEx express worldwide; EXW Xiamen available for freight forwarder arrangements
- After-Sales Support: 12-month warranty with technical support from Konmask engineering team
Technical FAQ
Q: Is 3HAC025338-003/08A backward compatible with /06D installations?
A: Yes. Both revisions share the same mechanical form factor, connector pinout, and drive bus protocol. Field replacement is direct without software changes in standard IRC5 configurations.
Q: What fault codes indicate a failed Main Servo Drive Unit?
A: Common IRC5 fault codes include 20001 (Drive unit: Internal error), 20002 (Drive unit: Overcurrent), 20010 (Drive unit: DC bus overvoltage), and 20050 (Drive unit: Temperature too high). Persistent faults after capacitor bank and cabling checks typically indicate drive unit failure.
Q: Can this unit be used with IRC5 Compact controllers?
A: The 3HAC025338-003 series is designed for the standard IRC5 drive cabinet. IRC5 Compact uses a different integrated drive architecture. Please confirm your controller type before ordering.
Q: Do you provide installation support?
A: Yes. Konmask’s engineering team provides remote installation guidance and IRC5 commissioning documentation upon request.
Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 unit. Volume pricing available for orders of 3+ units.
