ABB CI522 3BSE012790R1 – PROFIBUS DP Communication Interface | AC 800M Controller Platform
Engineering Background: The ABB AC 800M is ABB’s flagship mid-to-high-end process controller platform, deployed extensively in continuous process industries including refining, power generation, pulp & paper, and water treatment. Within the AC 800M architecture, communication interface modules serve as the critical bridge between the controller CPU and field device networks. The CI522 specifically implements the PROFIBUS DP (Decentralized Periphery) protocol — the dominant fieldbus standard for deterministic, high-speed I/O communication in process automation. Without a correctly specified communication interface, the controller cannot address remote I/O stations, variable-speed drives, or intelligent field instruments on the PROFIBUS segment.

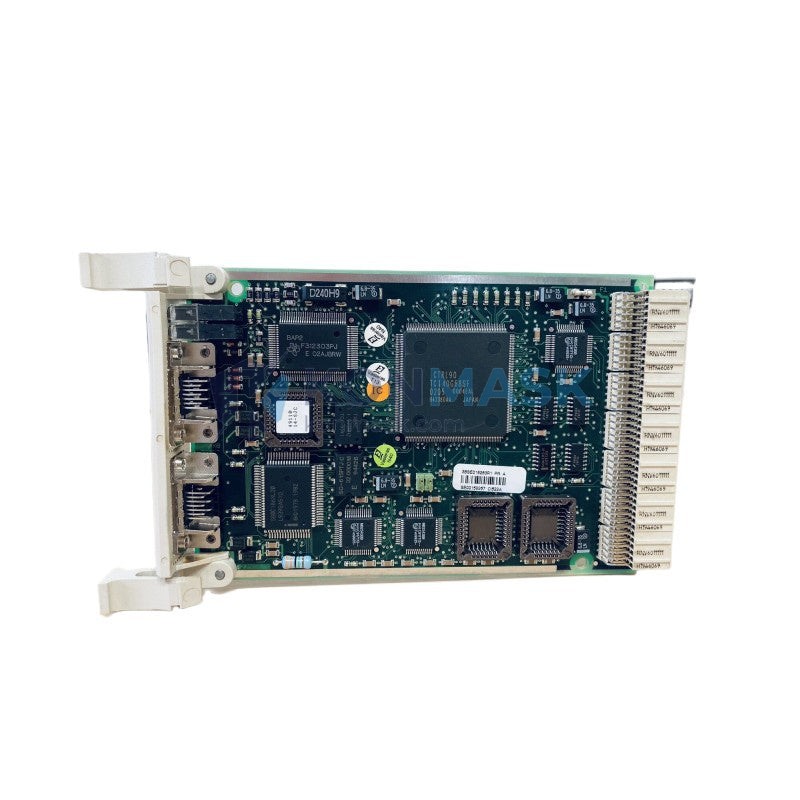

Product Positioning: The CI522 (Part No. 3BSE012790R1) is ABB’s standard single-channel PROFIBUS DP master interface for the AC 800M platform, supporting up to 12 Mbit/s transmission rates. It is distinct from the CI526 (dual-channel) and CI527 (redundant PROFIBUS) variants — the CI522 is the correct selection for non-redundant, single-segment PROFIBUS DP topologies where cost efficiency and straightforward commissioning are priorities. It is not suitable for safety-instrumented systems (SIL-rated loops require dedicated safety modules) or installations requiring PROFIBUS PA without an additional DP/PA coupler.
Complete Technical Specifications
Electrical
- Protocol: PROFIBUS DP (EN 50170 / IEC 61158)
- Operating Mode: DP Master Class 1
- Transmission Rate: 9.6 kbit/s – 12 Mbit/s (auto-detect)
- Max. Slaves per Segment: 125 (with repeaters)
- Bus Connector: 9-pin Sub-D female (RS-485)
- Supply Voltage: 5 VDC (via AC 800M backplane)
- Power Consumption: ≤ 2.5 W
- Isolation: Galvanic isolation between PROFIBUS and backplane
Mechanical
- Form Factor: Single-slot AC 800M module
- Dimensions (H × W × D): 233 × 40 × 230 mm (approx.)
- Weight: ~300 g
- Mounting: DIN rail via AC 800M controller unit
- Part Number: 3BSE012790R1
- Firmware: Upgradeable via ABB Control Builder Plus
Environmental
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: −40 °C to +70 °C
- Relative Humidity: 5% – 95% (non-condensing)
- Vibration: IEC 60068-2-6
- Shock: IEC 60068-2-27
- Protection Class: IP20 (module), IP54 (cabinet-mounted)
Certifications
- CE Marking (EMC Directive 2014/30/EU)
- PROFIBUS Certified (PNO)
- UL Listed (UL 508)
- RoHS Compliant
Data sourced from ABB Product Manual 3BSE012790R1 Rev. D and ABB AC 800M Hardware Product Manual (3BSE040935R501). Specifications subject to revision — verify against current ABB documentation for safety-critical applications.
Proven Application Environments
- Petroleum Refining | Crude Distillation Unit | Continuous Operation: Connects AC 800M controller to PROFIBUS DP remote I/O racks managing column temperature and pressure loops under 24/7 process conditions.
- Thermal Power Generation | Boiler Control System | High-Temperature Ambient: Interfaces with ABB S800 I/O modules for burner management and steam drum level control in environments up to 50 °C.
- Municipal Water Treatment | SCADA-Integrated Pumping Station | Outdoor Cabinet: Provides deterministic fieldbus communication to variable-speed drives and flow meters across extended cable runs with repeaters.
- Chemical Processing | Reactor Temperature Control | Hazardous Area Boundary: Deployed in the safe-area controller cabinet, communicating via PROFIBUS DP to Ex-rated remote I/O in Zone 1 via certified barriers.
- Pulp & Paper | Digester Control | High-Humidity Environment: Sustains reliable DP communication in high-humidity mill environments where RS-485 galvanic isolation prevents ground-loop interference.
- Offshore Oil & Gas | Topside Process Control | Vibration-Intensive Platform: Operates within AC 800M controller racks qualified to IEC 60068-2-6 vibration standards for marine and offshore installations.
Engineering Advantages
- For high-noise industrial environments, this communication interface maintains signal integrity, because galvanic isolation on the RS-485 bus interface eliminates ground-loop currents that corrupt PROFIBUS telegrams.
- For multi-vendor field device integration, this communication interface achieves interoperability with any PROFIBUS DP-certified slave, because it conforms to EN 50170 and carries PNO certification — GSD files from any vendor load without modification.
- For rapid commissioning timelines, this communication interface reduces configuration effort, because ABB Control Builder Plus auto-discovers connected slaves and imports their GSD parameters directly into the project database.
- For installations requiring future bandwidth expansion, this communication interface supports the full 12 Mbit/s rate, because the auto-baud-rate detection adapts to the highest rate supported by all slaves on the segment without manual intervention.
- For spare-parts inventory management, this communication interface simplifies stocking strategy, because the 3BSE012790R1 part number has remained consistent across multiple AC 800M hardware generations, ensuring backward compatibility.
- For lifecycle-critical assets, this communication interface supports online firmware updates, because ABB Control Builder Plus can push firmware revisions without removing the module from service, minimizing planned downtime.
System Architecture & Signal Flow
Signal Flow: AC 800M CPU (PM851/PM856/PM860/PM866) → AC 800M Backplane Bus → CI522 Module → RS-485 PROFIBUS DP Segment → Field Devices (ABB S800 Remote I/O, ABB ACS Drives, Third-Party DP Slaves). The CI522 operates as DP Master Class 1, cyclically polling all configured slave addresses and exchanging process data with the CPU via the internal backplane at the controller scan rate.
Compatible Controller CPUs:
- PM851 / PM856 — Standard AC 800M CPUs; CI522 occupies any module slot in the controller unit.
- PM860 / PM860A — High-performance CPUs; CI522 supported with firmware ≥ 4.0.
- PM866 — Latest-generation CPU; CI522 fully supported, recommended firmware ≥ 5.1 for optimal cycle time.
Substitution Conditions: The CI522 may be replaced by the CI526 (dual-channel) when a second independent PROFIBUS segment is required within the same controller unit. For redundant PROFIBUS topologies (ring or line redundancy), the CI527 is the correct replacement. Direct substitution with non-ABB PROFIBUS master modules is not supported — the CI522 uses ABB’s proprietary backplane protocol and cannot be replaced by generic PROFIBUS PCI cards.
Sourcing & Quality Verification
Konmask.com sources ABB automation modules through established industrial distribution channels with documented supply chain traceability. All units undergo a 4-step incoming inspection before dispatch:
- Visual Inspection: Connector pins, PCB condition, label legibility, and housing integrity checked against ABB factory standards.
- Part Number & Revision Verification: 3BSE012790R1 label cross-referenced against ABB’s product database; hardware revision recorded.
- Functional Power-On Test: Module inserted into AC 800M test rack; LED status and backplane communication verified using ABB Control Builder Plus diagnostic tools.
- Packaging & ESD Protection: Shipped in anti-static bag with foam insert; humidity indicator card included for long-distance freight.
Available Documentation: Certificate of Conformity, ABB factory test report (where available), packing list with serial number, and commercial invoice for customs clearance.
Procurement Process
- Submit Inquiry: Provide the part number (CI522 / 3BSE012790R1), required quantity, and target delivery date via email to support@konmask.com or the on-site inquiry form.
- Quotation & Confirmation: A detailed quotation including unit price, lead time, and shipping options will be issued within 24 hours on business days. Stock availability is confirmed at time of quotation.
- Order & Dispatch: Upon purchase order confirmation and payment, the module is inspected, packed, and dispatched with full tracking. Express air freight (DHL/FedEx) is available for urgent requirements.
Technical Support: Pre-sales engineering support is available for compatibility verification, system architecture review, and firmware version guidance. Post-sales support covers installation queries and ABB documentation provision.
Technical FAQ
Q: Is the CI522 compatible with AC 800M controllers running ABB 800xA System version 6.x?
A: Yes. The CI522 is fully supported under ABB 800xA System versions 5.x and 6.x when used with compatible PM8xx CPUs running firmware ≥ 4.0. Verify the specific 800xA version compatibility matrix in ABB document 3BSE041434R201 before commissioning.
Q: Can the CI522 directly replace a CI520 or CI521 module?
A: The CI520 and CI521 are earlier PROFIBUS interface modules for the AC 800M platform. The CI522 is the current-generation replacement and is backward-compatible in terms of slot placement and PROFIBUS DP functionality. However, the Control Builder Plus project configuration must be updated to reflect the CI522 module type — a direct hardware swap without software reconfiguration will result in a module mismatch fault.
Q: Is the CI522 certified for use in SIL 2 safety loops?
A: No. The CI522 is a standard (non-safety) communication interface and is not certified for use in IEC 61508 SIL 2 or SIL 3 safety-instrumented functions. For safety-rated PROFIBUS communication within ABB’s AC 800M S platform, the dedicated safety communication modules (e.g., CI522S where applicable) or ABB’s Safety Builder environment must be used. Consult ABB’s functional safety documentation for the correct module selection.
