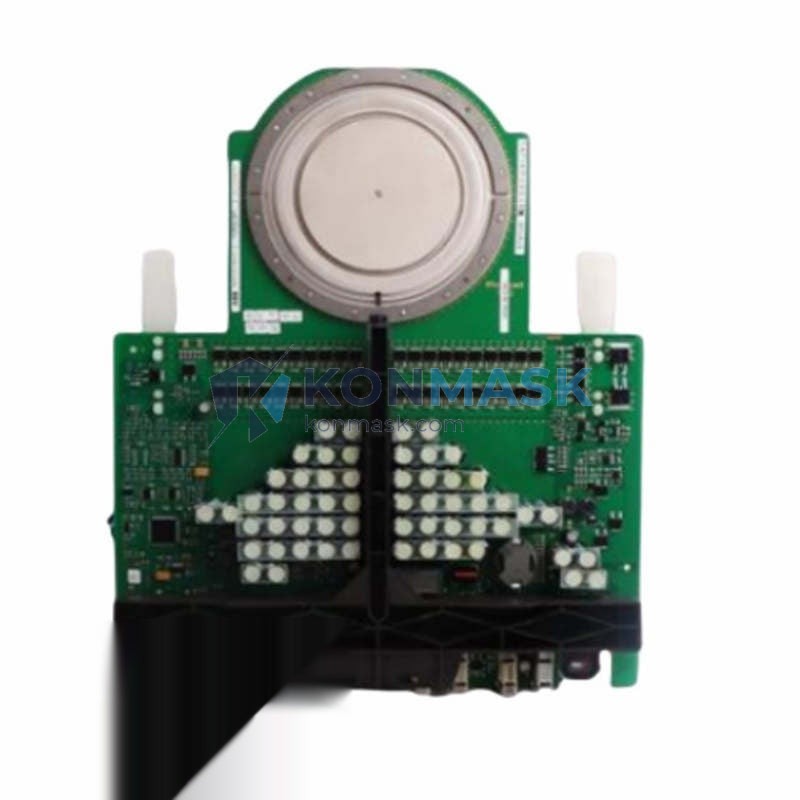

Genuine ABB 5SHY5055L0002 Integrated Gate Commutated Thyristor | 3BHB026114R0001 Series – Verified Source
Konmask.com is a dedicated industrial automation components supplier specializing in genuine ABB power semiconductors. The ABB 5SHY5055L0002 (Part No. 3BHB026114R0001) is a high-power Integrated Gate Commutated Thyristor (IGCT) engineered for demanding medium-voltage drive and power conversion applications. Every unit we supply is sourced through verified channels and undergoes our rigorous 4-step quality verification process before dispatch.
Technical Specifications
- Manufacturer: ABB Ltd. (Switzerland)
- Part Number: 5SHY5055L0002
- Reference / Assembly No.: 3BHB026114R0001
- Device Type: Integrated Gate Commutated Thyristor (IGCT)
- Repetitive Peak Off-State Voltage (VDRM): 4,500 V
- Average On-State Current (ITAV): 1,045 A
- Peak Controllable Current (ITGQM): 5,500 A
- Gate Unit: Integrated (GU included)
- Cooling: Double-sided water cooling (compatible with ABB press-pack stack)
- Package: Press-pack (hockey puck) ceramic housing
- Weight: Approx. 3,300 g
- Operating Temperature: –40 °C to +125 °C (junction)
- Standards: IEC 60747-15, RoHS compliant
Our 4-Step Quality Verification Process
Every ABB IGCT shipped from Konmask passes through the following verification stages:
- Step 1 – Source Authentication: Units are procured exclusively from ABB-authorized distributors or verified OEM surplus channels. Supplier documentation is retained on file.
- Step 2 – Physical Inspection: Ceramic housing, gate unit connector, and press-pack contact surfaces are inspected for cracks, corrosion, or tampering. Laser-etched markings are cross-referenced against ABB’s official part matrix.
- Step 3 – Functional Screening: Gate trigger response and leakage current are bench-tested using calibrated semiconductor test equipment. Units failing threshold parameters are quarantined and not sold.
- Step 4 – Packaging & Documentation: Passed units are anti-static packaged, sealed, and shipped with a Konmask inspection report, original ABB datasheet reference, and traceability record.
Key Features & Benefits
- ✅ Genuine ABB origin – not grey-market or counterfeit
- ✅ High blocking voltage (4,500 V) – suitable for medium-voltage grid-tied systems
- ✅ Integrated gate unit – reduces external drive circuit complexity
- ✅ Low on-state losses – optimized for high-efficiency power conversion
- ✅ Press-pack construction – superior thermal cycling reliability vs. module packages
- ✅ Traceable supply chain – full documentation available on request
- ✅ B2B-ready – bulk pricing, lead-time commitments, and consignment options available
Typical Applications
- Medium-voltage variable frequency drives (MVDs) – e.g., ABB ACS 6000, ACS 1000
- Static VAR compensators (SVC) and STATCOM systems
- High-power UPS and energy storage inverters
- Traction converters for rail and marine propulsion
- Wind turbine full-power converters
- Industrial rectifiers and cycloconverters
Compatible System Components
- Gate Driver Units: ABB GDU (integrated in this IGCT model)
- Snubber Capacitors: ABB-specified film capacitors for press-pack stacks
- Cooling Systems: ABB double-sided water-cooled heat sinks (IGCT stack assemblies)
- Clamping Hardware: ABB press-pack clamping fixtures per IEC 60747-15
- Control Boards: ABB RDCU, RINT, and compatible drive control platforms
- Fiber Optic Links: ABB IGCT gate fiber interface cables (PFEA series)
Global Sourcing & Shipping Capabilities
- Stock Location: China (Mainland) – bonded warehouse with export documentation
- Lead Time: In-stock units ship within 3–5 business days; sourced units 2–6 weeks
- Shipping Methods: DHL Express, FedEx International Priority, sea freight (LCL/FCL)
- Export Documentation: Commercial invoice, packing list, certificate of origin, HS code 8541.30
- Customs Support: We assist with HS classification, ECCN review, and import duty estimation
- Destinations Served: Worldwide – including EU, USA, Southeast Asia, Middle East, and South America
Certifications & Compliance Statement
- Product Standard: IEC 60747-15 (Semiconductor devices – Integrated gate commutated thyristors)
- RoHS: Compliant (EU Directive 2011/65/EU)
- CE Marking: Per ABB original product certification
- Export Control: This product may be subject to export licensing requirements. Buyers are responsible for compliance with applicable regulations in their jurisdiction.
- Konmask Disclaimer: Konmask.com is an independent distributor and is not an authorized ABB sales partner. All trademarks belong to their respective owners. We do not represent ABB Ltd. in any official capacity.
How to Order
- Confirm your requirement – Provide part number, quantity, and required delivery date via email or the contact form.
- Receive a quotation – We respond within 1 business day with pricing, lead time, and stock confirmation.
- Review & approve – We issue a proforma invoice with full product and shipping details.
- Payment & dispatch – Accepted methods: T/T (bank transfer), PayPal, Western Union. Units are dispatched upon payment clearance.
- Track & receive – Tracking number provided within 24 hours of dispatch. Konmask inspection report included in shipment.
📧 Email: support@konmask.com
📞 Phone / WhatsApp: +0086 19859288691
🌐 Website: https://konmask.com
Authenticity & Trust FAQ
Q: How do I know the IGCT is genuine ABB?
A: We provide the original ABB part label, laser-etched serial reference, and our internal inspection report with every shipment. Customers may request pre-shipment photos of the physical unit and markings.
Q: Do you offer a warranty?
A: Yes. We offer a 90-day DOA (Dead on Arrival) warranty. If the unit fails on first installation under normal operating conditions, we will replace or refund at our discretion.
Q: Can I order in bulk?
A: Yes. Volume pricing is available for orders of 3+ units. Contact us for a tailored B2B quotation.
Q: What if the part is not in stock?
A: We maintain a global sourcing network. If not immediately available, we will provide a sourcing lead time estimate within 48 hours of inquiry.
Q: Are you an authorized ABB distributor?
A: No. Konmask is an independent distributor. We source from verified surplus and secondary market channels. All units pass our 4-step verification before sale.
