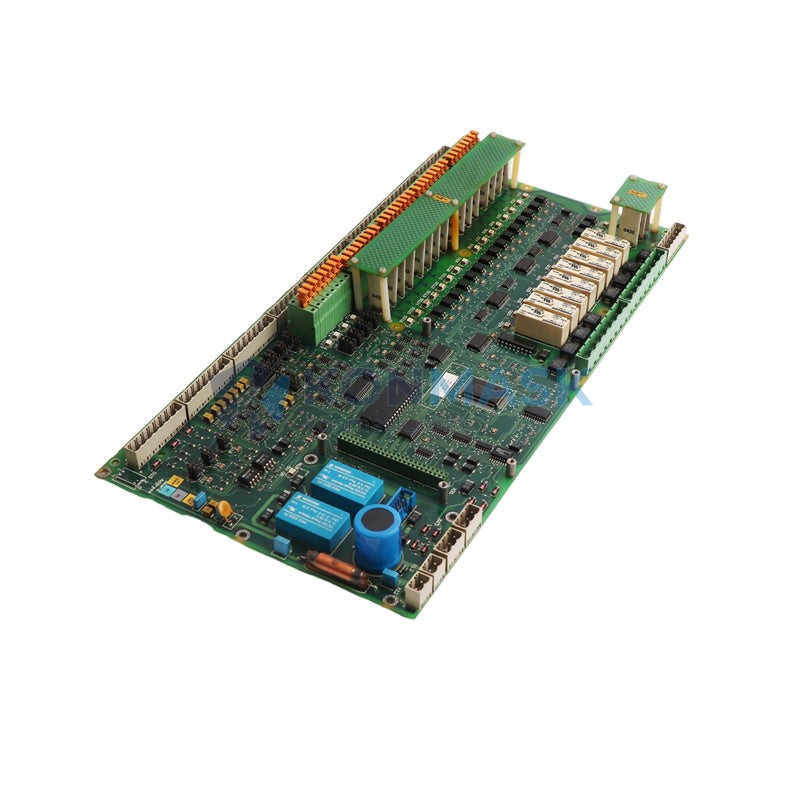

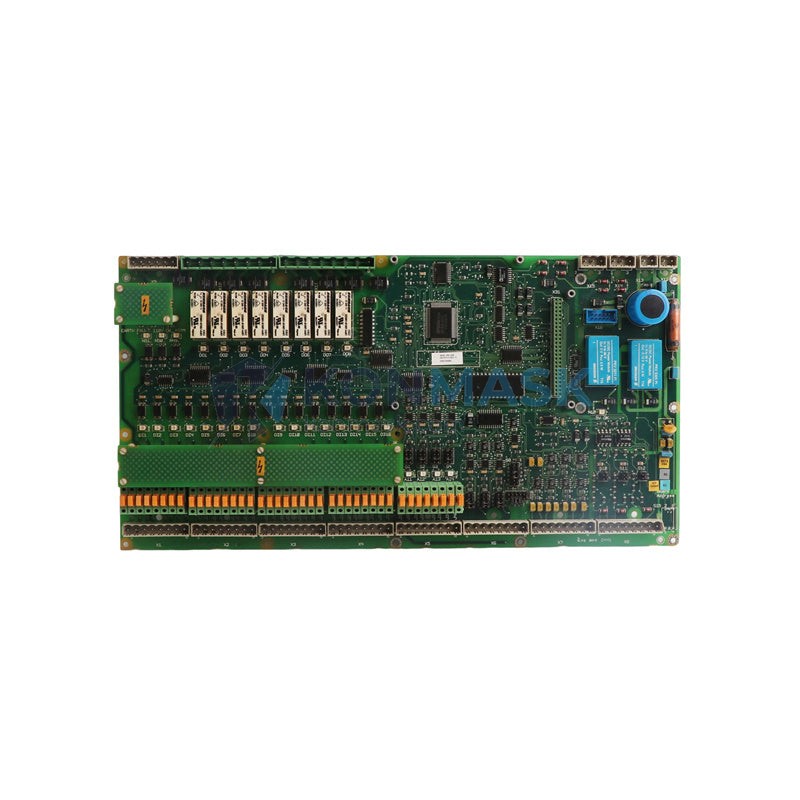

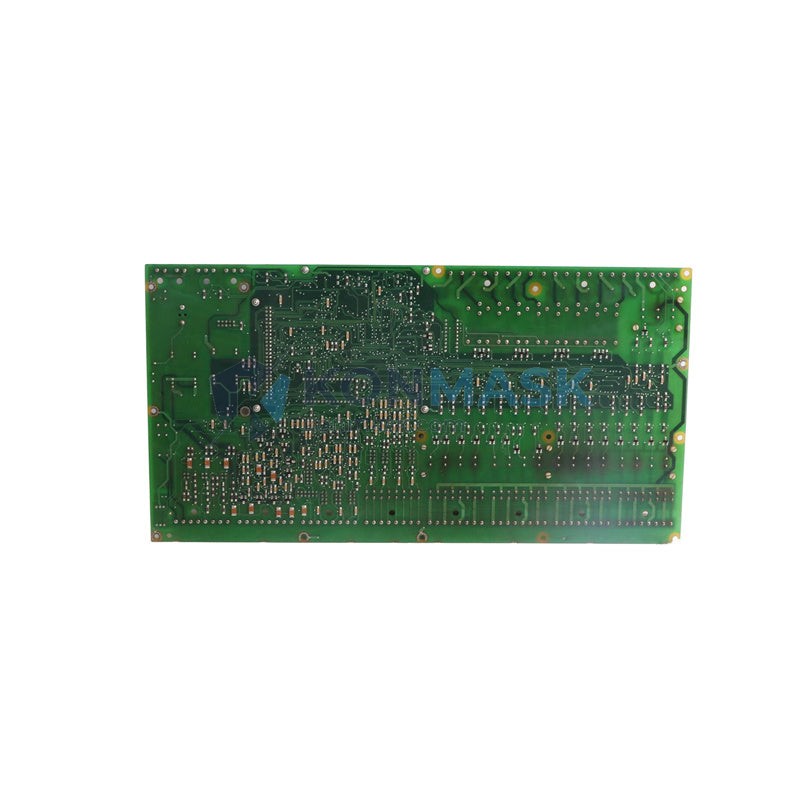

ABB ADATX110 3ASC25H209 I/O Board | Replacement, Equivalent & Selection Guide
The ABB ADATX110 (Part No. 3ASC25H209) is a dedicated I/O board designed for ABB’s industrial DCS and control system platforms. It serves as a critical interface module for analog and digital signal processing within distributed control architectures, enabling precise data acquisition and command output across process automation environments.
Whether you are sourcing a direct replacement for a failed unit, evaluating functional equivalents for a system upgrade, or comparing cross-brand alternatives for a new installation, this guide provides the technical foundation to make a confident selection decision.
Technical Specifications
- Manufacturer: ABB
- Part Number: ADATX110
- Reference Number: 3ASC25H209
- Module Type: I/O Board (Input/Output Interface)
- Weight: 620 g
- Application Platform: ABB DCS / Industrial Control Systems
- Signal Type: Analog & Digital I/O (verify channel count with system documentation)
- Mounting: Rack/backplane mount (ABB standard form factor)
- Operating Environment: Industrial grade; suitable for continuous process control
- Communication Interface: ABB proprietary backplane bus
- ⚠️ Key Replacement Parameters: Form factor, backplane connector pinout, I/O channel count, signal range, and firmware revision must all be verified before substitution.
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements
Direct replacements share the same part number family, form factor, and backplane interface. These can be swapped without system reconfiguration:
- ABB ADATX110 (any suffix variant — confirm 3ASC25H209 revision compatibility)
- ABB-certified refurbished ADATX110 units with original firmware
Prerequisite: Same firmware version or backward-compatible revision. Verify with ABB system release notes.
2. Functional Equivalents
Functional equivalents perform the same I/O role but may require configuration changes or adapter brackets:
- Other ABB I/O boards within the same DCS platform series (confirm channel mapping and backplane slot compatibility)
- ABB Advant / Symphony Plus I/O modules with equivalent signal specifications
Note: Functional equivalents may require parameter re-mapping in the engineering workstation. Always validate with a factory acceptance test (FAT) before live deployment.
3. Cross-Brand Alternatives
For system migrations or multi-vendor environments, the following platforms offer comparable I/O functionality:
- Honeywell TDC 3000 / Experion I/O modules — comparable analog I/O density; requires gateway or protocol converter
- Siemens SIMATIC S7 / PCS 7 I/O cards — widely available; integration requires engineering effort and signal re-wiring
- Emerson DeltaV I/O subsystem cards — suitable for greenfield or brownfield migration projects
⚠️ Cross-brand substitution always requires a full system integration review. Contact Konmask for compatibility assessment before ordering.
Why Choose the Original Model
- Precision Signal Integrity: Factory-calibrated to ABB’s exact analog/digital specifications, ensuring measurement accuracy within rated tolerances.
- OEM Certification: Fully certified for use within ABB DCS platforms; no additional validation burden on the end user.
- Seamless Backplane Compatibility: Designed to ABB’s proprietary bus standard — zero risk of connector mismatch or communication errors.
- Firmware & Software Support: Eligible for ABB firmware updates and engineering workstation recognition without manual driver configuration.
- Warranty & Traceability: Genuine units carry full manufacturer traceability, supporting audit and compliance requirements in regulated industries.
- Long-Term Technical Support: ABB and Konmask provide application-level support for original modules, including configuration guidance and fault diagnosis.
Typical Applications
- Oil & Gas: Wellhead control panels, pipeline SCADA systems, and compressor station automation requiring reliable analog I/O.
- Power Generation: Turbine control systems and boiler management where precise signal acquisition is safety-critical.
- Chemical Processing: Reactor monitoring and batch control systems with high-density I/O requirements.
- Pulp & Paper: Continuous process lines using ABB DCS for coordinated drive and process control.
- Water & Wastewater: Pump station automation and treatment plant control with remote I/O expansion needs.
- Mining & Minerals: Conveyor and crusher control systems requiring rugged, industrial-grade I/O interfaces.
System Compatibility
The ADATX110 3ASC25H209 is designed for integration within ABB control system architectures. Typical companion components include:
- ABB DCS Controller Modules — Central processing units that communicate with this I/O board via the backplane bus
- ABB Power Supply Units — Rack-mounted PSUs providing regulated voltage to the I/O board
- ABB Communication Interface Modules — Fieldbus or Ethernet gateway cards for supervisory integration
- ABB Termination Units / Signal Conditioners — Field wiring termination panels matched to ADATX110 channel assignments
- ABB Engineering Workstation Software — Configuration and diagnostic tools for I/O mapping and calibration
Contact Konmask to confirm specific rack, backplane, and firmware compatibility for your installation.
Selection Guide
Answer these three questions before finalizing your order:
- Is the backplane slot and connector pinout identical? — If you are replacing a failed board, confirm the target slot accepts the ADATX110 form factor. Mismatched connectors are the most common cause of failed substitutions.
- Does your system firmware support this board revision (3ASC25H209)? — Check your DCS controller firmware version against ABB’s compatibility matrix. An incompatible revision may cause the board to be unrecognized.
- Do your I/O channel count and signal ranges match your field wiring? — Verify that the number of analog/digital channels and their voltage/current ranges align with your existing field instruments.
Not sure? Contact Konmask at support@konmask.com — our engineers will review your system documentation and confirm compatibility within 24 hours.
Quality Assurance & Sourcing
Sourcing Channels: Konmask sources ABB ADATX110 3ASC25H209 modules through authorized distributors, certified refurbishers, and verified surplus channels with full traceability documentation.
4-Step Inspection Process:
- Visual Inspection: Check for physical damage, corrosion, burnt components, and connector integrity.
- Functional Test: Power-on test with signal simulation to verify all I/O channels respond within specification.
- Firmware Verification: Confirm firmware revision matches the declared part number and is free from unauthorized modification.
- Documentation Review: Cross-reference serial number, date code, and traceability records against supplier documentation.
Available Documentation: Test reports, certificate of conformance (CoC), material traceability records, and photos of actual unit upon request.
How to Order
- Submit Your Inquiry: Email support@konmask.com with your part number (ADATX110 / 3ASC25H209), required quantity, and any system compatibility details.
- Receive Confirmation & Quote: Our team will confirm stock availability, lead time, and pricing within 24 hours.
- Place Order & Ship: Confirm your order and we will arrange packaging, export documentation, and shipment via your preferred carrier.
📞 +0086 19859288691 | ✉️ support@konmask.com
Replacement & Compatibility FAQ
Q1: Can the ABB ADATX110 3ASC25H209 be used as a direct replacement for a failed I/O board in my existing ABB DCS system?
A: Yes — the ADATX110 3ASC25H209 is designed as a direct replacement within compatible ABB DCS racks. Confirm that the firmware revision and backplane slot assignment match your existing configuration before installation. Konmask can assist with pre-installation compatibility verification.
Q2: What is the equivalent or substitute for the ADATX110 if the original part is discontinued or unavailable?
A: Functional equivalents within the ABB platform include other I/O boards in the same DCS series with matching channel specifications. For cross-brand substitutes, Siemens SIMATIC or Honeywell Experion I/O modules can serve as alternatives in migration projects, but require engineering integration work. Contact Konmask for a tailored equivalent recommendation.
Q3: Is the ABB ADATX110 compatible with third-party DCS or PLC systems outside the ABB ecosystem?
A: The ADATX110 uses ABB’s proprietary backplane interface and is not natively compatible with third-party PLC or DCS backplanes. Integration into non-ABB systems would require a custom interface adapter and signal conditioning — a scenario that typically makes a purpose-built third-party I/O module a more practical substitute. Konmask can recommend compatible alternatives for your target platform.
