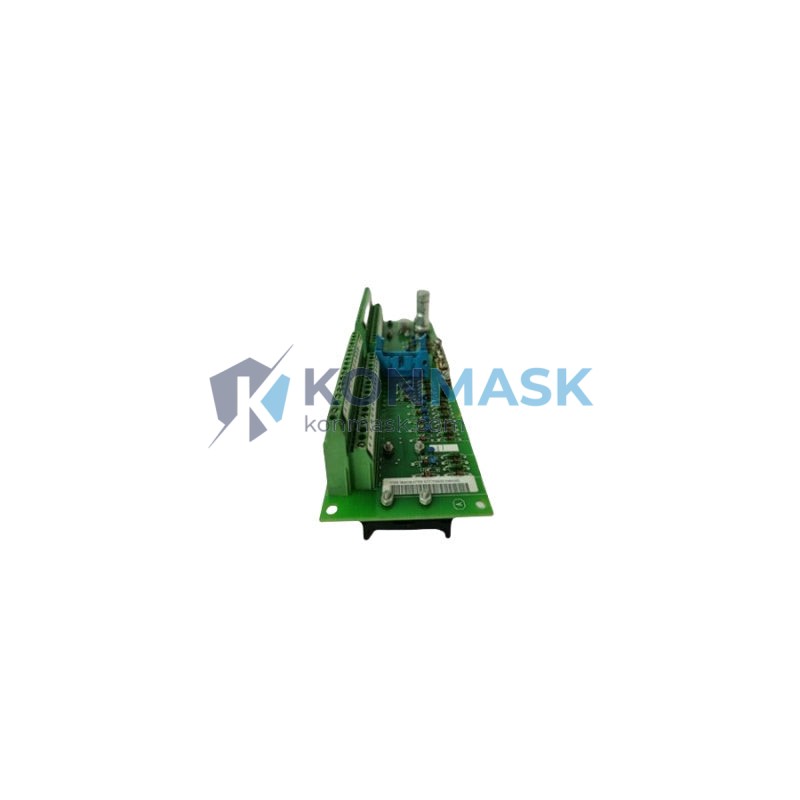

ABB 61320946 / 3AFE61320946 Analog Input Module | Replacement, Equivalent & Selection Guide
The ABB 61320946 (3AFE61320946) is a precision analog input module designed for ABB industrial drive and automation systems. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information to help engineers and procurement teams make confident selection decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 61320946 / 3AFE61320946 |
| Manufacturer | ABB |
| Module Type | Analog Input Module |
| Signal Type | Analog (voltage / current) |
| Weight | Approx. 400 g |
| Compatibility | ABB ACS / DCS drive series |
| Mounting | DIN rail / panel mount |
| Operating Temperature | 0 °C to +55 °C |
| Communication | Internal bus (drive-integrated) |
| Certifications | CE, UL (verify with datasheet) |
Note: Always verify specifications against the official ABB datasheet before installation.
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as functional equivalents or drop-in replacements for the ABB 61320946. Compatibility depends on firmware version, drive series, and application requirements — always confirm with your system documentation.
| Model | Manufacturer | Compatibility Notes |
|---|---|---|
| 3AFE61320946 | ABB | Same part, alternate catalog reference |
| RAIO-01 | ABB | Analog I/O extension module for ACS drives; verify channel count |
| AIMA-01 | ABB | Analog input module for select ACS800 series; confirm pinout |
| AI810 | ABB (800xA) | 8-channel analog input for 800xA DCS; different form factor |
Disclaimer: Third-party or cross-brand replacements must be validated by a qualified engineer. Konmask.com supplies OEM-sourced parts and does not endorse unverified substitutions.
Why Choose the Original Model
- OEM Guaranteed Compatibility: Designed and tested specifically for ABB drive ecosystems — no firmware conflicts or signal calibration issues.
- Plug-and-Play Integration: Recognized natively by ABB drive control boards without additional configuration.
- Long-Term Support: ABB provides firmware updates, technical documentation, and spare parts support for original modules.
- Warranty Compliance: Using OEM modules preserves your drive system warranty and meets insurance/compliance requirements.
- Proven Reliability: Validated in high-cycle industrial environments including steel, paper, and process industries.
Typical Applications
- Speed and torque reference signal input for ABB variable frequency drives (VFDs)
- Process feedback signal conditioning in closed-loop control systems
- Sensor signal acquisition (4–20 mA, 0–10 V) in DCS/SCADA architectures
- Motor control center (MCC) analog monitoring panels
- Retrofit and upgrade projects for legacy ABB ACS/DCS installations
- OEM machine builders integrating ABB drive platforms
System Compatibility
The ABB 61320946 / 3AFE61320946 is primarily associated with the following ABB drive and control platforms:
- ABB ACS800 series variable speed drives
- ABB ACS600 series (verify hardware revision)
- ABB DCS800 DC drives (confirm I/O board slot)
- ABB RDCU / RMIO control units
Always cross-reference the drive’s hardware manual and I/O option slot specifications before ordering.
Selection Guide
Use the following decision framework to select the correct analog input module for your application:
- Step 1 – Identify your drive series: Confirm the exact ABB drive model (e.g., ACS800-01, ACS800-04) from the nameplate.
- Step 2 – Check the option slot: Verify which I/O option slots are available and their slot type (e.g., Slot 1, Slot 2).
- Step 3 – Confirm signal requirements: Determine whether you need voltage (0–10 V) or current (4–20 mA) inputs, and how many channels.
- Step 4 – Review firmware compatibility: Some modules require minimum firmware versions — check the ABB firmware release notes.
- Step 5 – Validate with ABB documentation: Cross-check the module part number in the drive’s hardware manual appendix before purchase.
Quality Assurance & Sourcing
- OEM-Sourced Inventory: All units at Konmask.com are sourced from authorized distributors or directly from ABB-certified supply chains.
- Inspection Protocol: Each module undergoes visual inspection, label verification, and functional pre-check before dispatch.
- Traceability: Batch records and supplier documentation available upon request for MRO and compliance audits.
- Packaging: Anti-static packaging with original or equivalent protective materials to prevent ESD damage in transit.
- Lead Time: In-stock units ship within 1–3 business days. Contact us for bulk order lead times.
How to Order
- Confirm your drive model and required module part number (61320946 or 3AFE61320946).
- Add the item to your cart or contact us directly for a formal quotation.
- Provide your shipping address and preferred freight method (DHL, FedEx, sea freight available).
- Payment via T/T bank transfer, PayPal, or trade assurance — invoice provided for all orders.
- Receive tracking information within 24 hours of shipment confirmation.
For bulk orders (>5 units), OEM project procurement, or urgent requirements, email support@konmask.com or call +0086 19859288691.
Replacement & Compatibility FAQ
Q: Is 3AFE61320946 the same as 61320946?
A: Yes. 3AFE61320946 is the full ABB catalog reference; 61320946 is the short-form part number. They refer to the same module.
Q: Can I use a RAIO-01 as a direct replacement?
A: The RAIO-01 is a functional analog I/O module for ACS drives but may differ in channel configuration and mounting. Verify against your drive’s hardware manual before substituting.
Q: Will this module work with ACS550 or ACS355 drives?
A: The 61320946 is primarily designed for ACS800/DCS800 platforms. Compatibility with ACS550 or ACS355 is not confirmed — consult ABB technical support.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 12-month warranty on all OEM-sourced modules against manufacturing defects. Warranty does not cover damage from incorrect installation or electrical faults.
Q: Can I return the module if it’s incompatible?
A: Yes, within 30 days of receipt, provided the module is unused and in original packaging. Contact support@konmask.com to initiate a return.
