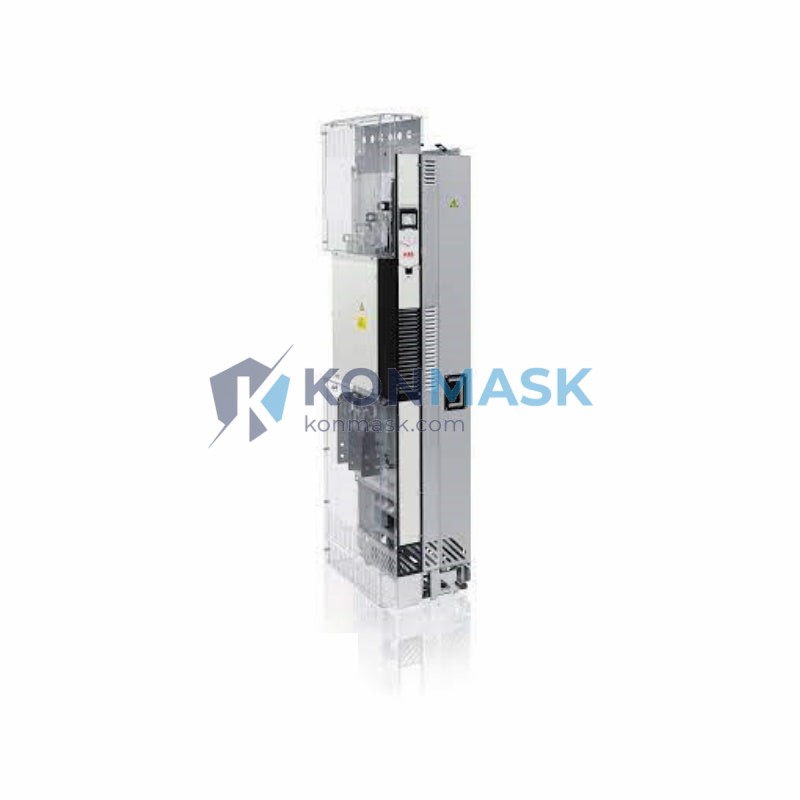

ABB ACS880-04-330A-7 Cabinet-Mounted AC Drive – ACS880 Industrial Drive Series
When a high-power variable frequency drive fails on a production line, the consequences are immediate and severe: motors run uncontrolled, process parameters collapse, and entire production cells grind to a halt. In heavy industries such as oil & gas, mining, metals processing, and marine applications, an unplanned drive outage can cost tens of thousands of dollars per hour. The ABB ACS880-04-330A-7 is engineered precisely to eliminate this risk — a cabinet-mounted, industrial-grade AC drive built for continuous, mission-critical operation where downtime is simply not an option.
Within ABB’s flagship ACS880 industrial drive series, the ACS880-04 is the cabinet-built variant designed for seamless integration into motor control centers (MCCs) and switchgear panels. The 330A / Frame R7 rating positions it as a high-current solution for large motor loads — typically 250 kW at 690 V — making it one of the most specified drives in global heavy-duty automation projects. Backed by ABB’s worldwide installed base of millions of drives, the ACS880 series is recognized by engineers across Europe, Asia, and the Americas as the benchmark for reliability and performance in demanding industrial environments.
Technical Specifications
- Model / SKU: ACS880-04-330A-7
- Drive Type: Cabinet-Mounted AC Variable Frequency Drive (VFD)
- Series: ABB ACS880 Industrial Drive Series
- Output Current: 330 A (continuous)
- Voltage Class: 690 V (Voltage Class 7)
- Frame Size: R7
- Typical Motor Power: ~250 kW at 690 V
- Control Method: Direct Torque Control (DTC)
- Protection Class: IP21 (cabinet-mounted configuration)
- Weight: 319 kg (approx.)
- Cooling: Forced air cooling
- Standards: IEC/EN 61800-5-1, CE, UL, cUL
- Communication: Compatible with FDNA-01 (PROFINET), FCAN-01 (CANopen), FEIP-01 (EtherNet/IP), FBAP-01 (PROFIBUS DP) option modules
Key Features & Benefits
- ABB Direct Torque Control (DTC): Industry-leading torque response without encoder feedback — precise speed and torque control even under rapid load changes.
- Cabinet-Ready Design: Pre-wired and pre-tested for fast integration into existing MCC panels, reducing installation time and commissioning costs.
- Built-in Safety Functions: STO (Safe Torque Off) as standard, meeting SIL 3 / PLe requirements for functional safety compliance.
- Wide Fieldbus Compatibility: Supports all major industrial protocols via plug-in option modules — no gateway required.
- Energy Optimization: Integrated energy efficiency features reduce motor energy consumption by up to 30% in variable torque applications.
- Adaptive Programming: ABB’s Drive Composer software enables full parameter configuration, diagnostics, and remote monitoring.
- Robust EMC Performance: Built-in EMC filter (C2 category) minimizes interference in sensitive industrial environments.
- Long Service Life: Designed for 24/7 continuous operation in harsh industrial conditions with extended component lifetime.
Industry & Equipment Applications
- Oil & Gas: Compressor drives, pump stations, wellhead control systems
- Mining & Minerals: Conveyor drives, crusher drives, hoist systems
- Metals & Steel: Rolling mill drives, cooling fan control, process line drives
- Marine & Offshore: Thruster drives, winch control, HVAC systems
- Water & Wastewater: Large pump stations, aeration blowers, centrifuge drives
- Pulp & Paper: Refiner drives, winder/unwinder control, fan and pump applications
- Power Generation: Auxiliary drives, cooling systems, feed pump control
System Integration & Compatible Parts
The ACS880-04-330A-7 is designed for seamless integration within ABB’s broader automation ecosystem. Compatible and commonly paired components include:
- Option Modules: FDNA-01 (PROFINET), FCAN-01 (CANopen), FEIP-01 (EtherNet/IP), FBAP-01 (PROFIBUS DP), FENA-21 (Ethernet/IP + Modbus TCP)
- I/O Extensions: FIO-01, FIO-11 analog/digital I/O extension modules
- Encoder Interfaces: FEN-01, FEN-11, FEN-21 for closed-loop speed control
- Braking Choppers: Compatible ABB braking chopper units for regenerative braking applications
- ABB PLC Systems: AC500 series PLCs for integrated drive-PLC control architectures
- HMI Panels: ABB CP600 series operator panels for local drive monitoring
Our Quality Assurance Process
At Konmask.com, every ABB ACS880-04-330A-7 unit we supply undergoes a rigorous multi-stage verification process before shipment:
- Source Verification: All units are sourced from authorized ABB distributors or verified surplus channels with full traceability documentation.
- Visual & Physical Inspection: Comprehensive check of housing integrity, connector condition, label authenticity, and serial number verification against ABB records.
- Functional Testing: Where applicable, units are powered-on tested to confirm firmware version, parameter accessibility, and basic drive functionality.
- Packaging: Anti-static packaging with moisture-barrier protection, shock-absorbing foam, and climate-controlled storage prior to dispatch.
- Documentation: Each shipment includes available original ABB documentation, test records, and Konmask quality inspection report.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page with your required quantity and delivery timeline.
- Our technical team will confirm availability, lead time, and provide a formal quotation within 24 business hours.
- Upon order confirmation, we arrange secure packaging and international freight (DHL, FedEx, sea freight) to your destination.
- Full shipping documentation (commercial invoice, packing list, COO) provided for customs clearance.
Why Choose Konmask.com?
- ✅ Industrial Automation Specialists: Focused exclusively on PLC, DCS, VFD, and industrial control components — not a general electronics reseller.
- ✅ Global B2B Supply: Serving engineering firms, system integrators, and MRO procurement teams across 50+ countries.
- ✅ Technical Pre-Sales Support: Our engineers can assist with compatibility verification, parameter backup, and application advice.
- ✅ Competitive Lead Times: Extensive network of verified suppliers enables fast sourcing for both standard and obsolete ABB parts.
- ✅ Secure International Shipping: Full export documentation, insurance options, and real-time shipment tracking.
- ✅ After-Sales Support: Post-delivery technical assistance and warranty claim coordination with ABB channels.
Frequently Asked Questions
Q: What motor power does the ABB ACS880-04-330A-7 support?
A: At 690 V (voltage class 7), the 330 A output current rating corresponds to approximately 250 kW motor power in standard heavy-duty applications. Exact power depends on motor efficiency and application duty cycle.
Q: Is the ACS880-04-330A-7 suitable for hazardous area installations?
A: The standard ACS880-04 is rated for general industrial environments (IP21). For ATEX/IECEx hazardous area requirements, the drive must be installed in a certified enclosure or the ACS880 ATEX-certified variant should be specified.
Q: Can this drive be integrated with a PROFINET network?
A: Yes. By installing the FDNA-01 PROFINET adapter module into the drive’s option slot, full PROFINET IO communication is enabled for integration with Siemens, ABB, or other PROFINET-compatible PLCs and SCADA systems.
Q: What is the difference between ACS880-04 and ACS880-01?
A: The ACS880-01 is a wall-mounted (standalone) drive unit, while the ACS880-04 is the cabinet-built variant pre-assembled for panel integration. The ACS880-04 is preferred for MCC installations where space optimization and pre-wired solutions are required.
Q: Do you provide the original ABB warranty?
A: Konmask.com supplies genuine ABB components. Warranty terms depend on the unit’s origin (new, surplus, or refurbished) and are clearly stated in the quotation. We coordinate warranty claims through our ABB supply chain partners.
Q: What is the typical lead time for the ACS880-04-330A-7?
A: Lead time varies by current stock availability. Please submit an RFQ and our team will confirm availability and estimated delivery within 24 business hours.
