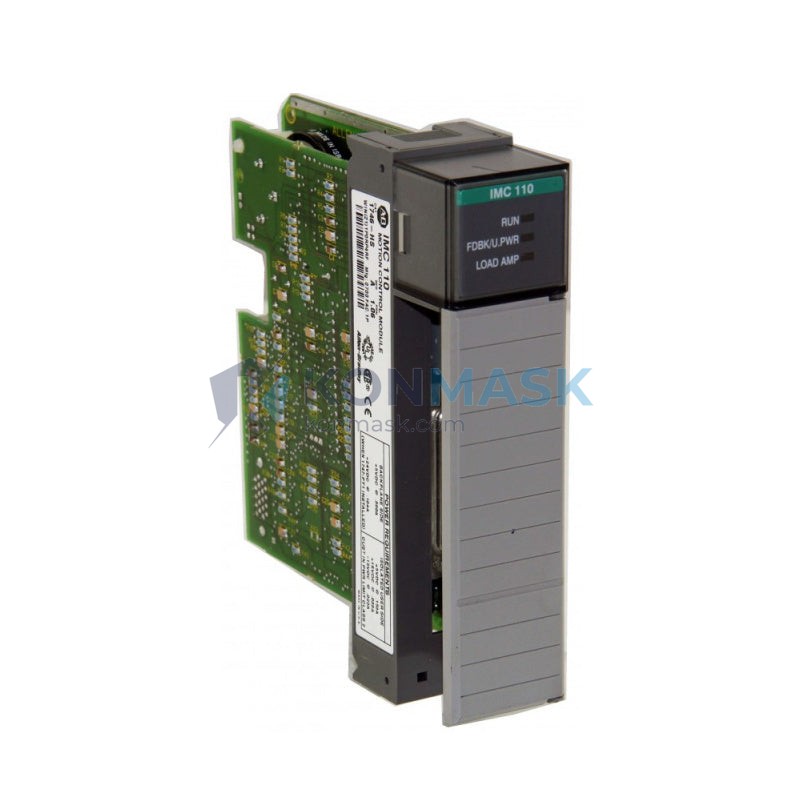

Allen-Bradley 1746-HS IMC 110 Motion Controller Module – SLC 500 Series

When a motion controller fails mid-shift on a packaging line or a CNC transfer machine, the entire production cell stops. Operators cannot jog axes, homing sequences abort, and coordinated multi-axis moves become impossible. Downtime accumulates at a rate that no spare-parts budget can ignore. The Allen-Bradley 1746-HS IMC 110 Motion Controller Module is the component that prevents that scenario — it is the dedicated motion-control intelligence inside the SLC 500 rack, handling encoder feedback, velocity profiling, and position loop closure so the main SLC processor is free to manage logic and I/O without motion-task overhead.

Within the SLC 500 family, the 1746-HS occupies a specific and non-interchangeable role: it is the single-axis, high-speed motion module designed for applications where pulse-and-direction or encoder-based closed-loop control must coexist with standard ladder logic in the same chassis. Globally, the SLC 500 platform remains one of the most widely deployed mid-range PLC architectures in discrete manufacturing, and the 1746-HS continues to be a critical spare for installed bases across North America, Europe, and Asia-Pacific where full system migration is not yet economically justified.

Technical Specifications

Electrical

• Backplane Power Consumption: 5 VDC from SLC 500 backplane
• Encoder Input: Differential quadrature encoder, 5 VDC line driver
• Maximum Encoder Input Frequency: Up to 250 kHz (model-dependent)
• Output Type: Pulse-and-direction or CW/CCW pulse output
• Output Voltage: 5 VDC differential line driver
• Analog Output: ±10 VDC velocity command (where applicable)

Mechanical

• Form Factor: Single-slot SLC 500 I/O module
• Chassis Compatibility: 1746-A4, 1746-A7, 1746-A10, 1746-A13 (all SLC 500 fixed and modular chassis)
• Weight: 340 g (approx.)
• Connector: 40-pin removable terminal block (RTB)

Environmental

• Operating Temperature: 0 °C to +60 °C
• Storage Temperature: -40 °C to +85 °C
• Relative Humidity: 5% to 95% non-condensing
• Vibration: IEC 68-2-6 compliant
• Shock: IEC 68-2-27 compliant

Certifications & Standards

• UL Listed
• CE Marked (EMC Directive)
• CSA Certified
• Compliant with IEC 61131-2 (Programmable Controllers — Equipment Requirements and Tests)

Key Features & Benefits

• Dedicated Motion Processor — Offloads position loop closure from the SLC CPU, allowing scan times to remain below 5 ms even during active servo moves, preventing logic-execution jitter that causes reject rates to climb.
• 250 kHz Encoder Input — Supports high-resolution linear and rotary encoders, enabling position repeatability within ±1 encoder count on axes running at speeds typical of pick-and-place and labeling equipment.
• Seamless RSLogix 500 Integration — Configured entirely through MSG instructions and motion control blocks in RSLogix 500; no separate motion-programming environment is required, reducing commissioning time by eliminating software context-switching.
• Pulse-and-Direction & Analog Output Modes — Compatible with both stepper drives (pulse/direction) and analog-input servo amplifiers (±10 VDC), giving engineers flexibility to standardize on one module across mixed-drive architectures.
• IEC 61131-2 Compliant Hardware — Meets the electrical immunity and environmental requirements of IEC 61131-2, ensuring reliable operation in environments with variable-frequency drive noise and inductive switching transients.
• Drop-in Replacement for Installed SLC 500 Bases — Slots directly into any 1746-series chassis without backplane modification; firmware is loaded via RSLogix 500, so replacement requires no hardware re-wiring beyond the RTB reconnection.

Industry & Equipment Applications

• Automotive Assembly — Transfer lines, servo-driven press feeders, and robotic weld positioners where coordinated axis motion must interlock with safety PLC logic in the same rack.
• Food & Beverage Packaging — Horizontal flow wrappers, case erectors, and filling machines requiring precise product registration via encoder feedback at line speeds up to 120 ppm.
• Printing & Converting — Web tension control systems and rotary die-cut stations where encoder-based dancer-roll position must be maintained within tight tolerance bands to prevent web breaks.
• Semiconductor & Electronics Manufacturing — Pick-and-place handlers and wafer-transport stages in legacy fab equipment where the cost of platform migration exceeds the cost of maintaining the existing SLC 500 architecture.
• Material Handling & Conveyance — Sortation systems, indexing conveyors, and palletizing cells where the 1746-HS controls the indexing axis while the SLC CPU manages barcode reading and divert logic.
• Machine Tool & CNC Retrofit — Axis control on knee mills, lathes, and grinding machines being retrofitted with modern servo drives while retaining the existing SLC 500 control cabinet to minimize capital expenditure.

System Integration & Compatible Parts

Upstream / Host Controllers: Any SLC 5/01, 5/02, 5/03, 5/04, or 5/05 processor installed in a 1746-series chassis communicates with the 1746-HS via the SLC backplane using MSG instructions.

Compatible Chassis: 1746-A4 (4-slot), 1746-A7 (7-slot), 1746-A10 (10-slot), 1746-A13 (13-slot).

Compatible Power Supplies: 1746-P1, 1746-P2, 1746-P3, 1746-P4.

Downstream Drives: Any servo amplifier accepting ±10 VDC analog command or pulse-and-direction input — including Allen-Bradley 1398-series Ultra drives and third-party amplifiers from Yaskawa, Mitsubishi, and Panasonic.

Encoder Compatibility: Standard 5 VDC differential quadrature encoders (A, B, Z channels); compatible with Heidenhain, Renishaw, and Dynapar encoder families.

Potential Alternatives (verify application requirements before substituting):

• 1746-HSTP1 — Stepper-specific variant; suitable only for open-loop stepper applications, not closed-loop servo.
• Kinetix 300 / 350 with CompactLogix — Recommended migration path when the SLC chassis reaches end-of-support; requires full re-engineering of motion logic.

Our Quality Assurance Process

Every 1746-HS unit shipped from Konmask.com passes through a four-stage inspection protocol:

1. Visual & Physical Inspection — Board-level examination for corrosion, damaged traces, bent connector pins, and capacitor condition. RTB contacts are cleaned and torque-tested.
2. Backplane Communication Test — Module is seated in a live SLC 500 test chassis; RSLogix 500 confirms module recognition, firmware revision readback, and fault-free initialization.
3. Encoder Input & Output Signal Verification — Encoder simulator applies quadrature signals at rated frequency; oscilloscope confirms output pulse integrity and analog output accuracy within ±0.1 VDC.
4. Burn-In & Final Functional Test — 24-hour powered soak at operating temperature; motion profile executed and position error logged to confirm closed-loop stability before packaging.

Available Documentation: Test report, functional verification certificate, photos of physical condition, firmware revision record, and certificate of conformity upon request.

How to Order

1. Submit Your Inquiry — Use the contact form on this page or email support@konmask.com with your required quantity, delivery timeline, and destination country.
2. Receive Your Quote — Our technical team reviews your request and responds within 24 hours with pricing, lead time, and shipping options. We confirm the exact firmware revision and physical condition before quoting.
3. Confirm & Ship — Once you approve the quotation, we arrange export documentation, packaging, and dispatch. Tracking information is provided on the same day as shipment.

Why Choose Konmask.com?

• Verified Stock, Not Broker Listings — We physically hold and inspect the units we sell; we do not list inventory we do not own or have not examined.
• Technical Pre-Sales Support — Our team includes engineers with hands-on SLC 500 commissioning experience who can confirm compatibility before you commit to a purchase.
• Export-Ready Documentation — We prepare commercial invoices, packing lists, and certificates of conformity suitable for customs clearance in the EU, US, Southeast Asia, and the Middle East.
• Responsive Communication — All inquiries receive a substantive response within 24 business hours; urgent requests are flagged and prioritized.
• Secure Packaging for International Freight — Modules are shipped in anti-static bags, foam-lined boxes, and outer cartons rated for air and sea freight, reducing transit damage risk.

Frequently Asked Questions

Q: Is the Allen-Bradley 1746-HS compatible with all SLC 500 processor types, including the SLC 5/05 Ethernet version?
A: Yes. The 1746-HS communicates over the SLC 500 backplane and is compatible with all SLC 5/01 through 5/05 processors. The SLC 5/05’s Ethernet port is independent of backplane communication, so it does not affect 1746-HS operation. Confirm your RSLogix 500 version supports the 1746-HS instruction set (version 7.0 or later recommended).

Q: Can I use the 1746-HS as a direct replacement for a failed unit without re-programming the SLC processor?
A: In most cases, yes — provided the replacement unit carries the same firmware revision as the original. The motion configuration is stored in the SLC processor’s data file, not in the module itself, so a same-revision swap typically requires only RTB reconnection and a processor restart. If firmware revisions differ, a configuration download via RSLogix 500 is required.

Q: What is the typical lead time for the Allen-Bradley 1746-HS IMC 110 module from Konmask.com, and do you ship to Europe and Southeast Asia?
A: Lead time depends on current stock levels and is confirmed at the time of quotation — typically 3 to 7 business days for in-stock units. We ship to all major markets including Germany, the Netherlands, Poland, Singapore, Malaysia, Thailand, and Vietnam, with full export documentation provided for each shipment.

---
