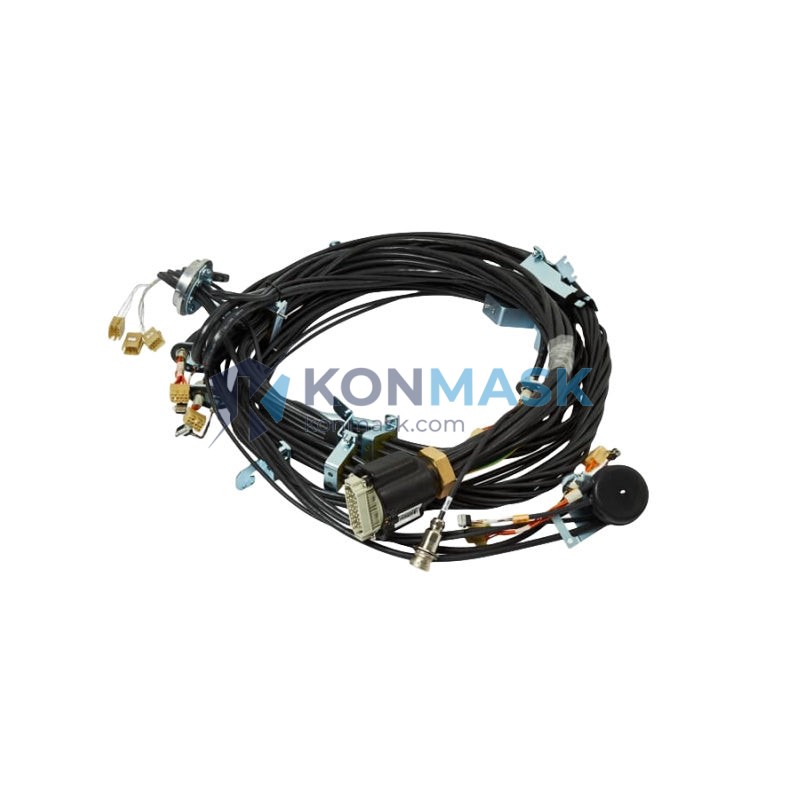

ABB ALED-02 3HNE06226-1 / 3HNE06227-1 Motor Cable (7m) – MU100 / MU200 / MU300 Series
When a motor cable fails on an ABB robot cell, the entire production line stops. Unplanned downtime in automotive welding, foundry, or palletizing operations can cost thousands of dollars per hour. The ABB ALED-02 motor cable — part numbers 3HNE06226-1, 3HNE06227-1, and 3HAC035346-001 — is the OEM-specified interconnect between the robot controller and the servo drive unit, and no generic substitute can replicate its shielding integrity, connector keying, or signal fidelity.
Within the ABB MU100/MU200/MU300 drive module family, the ALED-02 cable occupies a critical position: it carries both power and feedback signals across a 7-metre run, bridging the controller cabinet to the manipulator base in standard robot cell layouts. Globally, ABB IRB-series robots account for a significant share of installed industrial robot capacity, making this cable one of the most frequently sourced spare parts in the ABB ecosystem.
Technical Specifications
- Manufacturer: ABB
- Part Numbers: ALED-02 / 3HNE06226-1 / 3HNE06227-1 / 3HAC035346-001
- Cable Length: 7 metres (Motor A/B/C/D/K/R configurations)
- Compatible Drive Units: MU100, MU200, MU300
- Cable Type: Motor feedback & power cable assembly
- Connector Type: OEM-keyed, robot-side and cabinet-side
- Weight: Approx. 300 g
- Condition: New / Surplus New / Refurbished (specify on enquiry)
Key Features & Benefits
- OEM Specification: Exact ABB factory part — no adaptation or re-pinning required.
- Multi-Axis Coverage: Supports Motor A, B, C, D, K, and R axis configurations in a single cable family.
- EMI Shielding: Braided shield construction minimises interference in high-frequency drive environments.
- Plug-and-Play Replacement: Keyed connectors prevent mis-mating; zero commissioning time.
- 7m Standard Reach: Matches the most common robot cell cabinet-to-manipulator distance.
- Durable Jacket: Oil- and abrasion-resistant outer jacket rated for industrial floor environments.
Industry & Equipment Applications
- Automotive body welding and assembly lines using ABB IRB 6600 / IRB 6700 / IRB 7600
- Foundry and die-casting cells with ABB Foundry Prime robots
- Palletising and material handling with IRB 460 / IRB 660
- Painting and surface treatment robots requiring precise servo feedback
- Machine tending and press-tending applications
- Any ABB robot installation using MU100, MU200, or MU300 drive modules
System Integration & Compatible Parts
- ABB IRC5 Controller (single and multi-cabinet)
- ABB S4C+ Controller (legacy installations)
- Drive units: MU100, MU200, MU300
- Related cables: 3HAC031683-001, 3HAC025562-001 (axis-specific variants)
- Connector kits: 3HNE00313-1 (field repair)
Our Quality Assurance Process
- Source Verification: All ABB parts are sourced from authorised distributors or directly from ABB-certified surplus channels.
- Visual & Dimensional Inspection: Each cable is inspected for jacket integrity, connector condition, and label authenticity.
- Continuity & Insulation Test: Electrical continuity and insulation resistance are verified before dispatch.
- Secure Packaging: Anti-static bag + foam-lined carton to prevent transit damage.
- Traceability: Batch records and part number verification documents available on request.
How to Order
- Submit your enquiry via the Contact / RFQ form on this page.
- Include your required quantity, preferred condition (new / surplus / refurbished), and delivery timeline.
- Our team responds within 1 business day with availability, lead time, and a formal quotation.
- Upon PO confirmation, we arrange export documentation and international shipping (DHL / FedEx / sea freight).
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, robot, and drive components — no generalist catalogue noise.
- Global Export Experience: Serving buyers in Europe, Southeast Asia, the Middle East, and the Americas with compliant export documentation.
- Competitive Lead Times: In-stock items ship within 3–5 business days; sourced items within 2–4 weeks.
- Technical Pre-Sales Support: Our engineers verify compatibility before you commit to a purchase.
- Secure Transactions: T/T, L/C, and PayPal accepted; full invoice and packing list provided.
Frequently Asked Questions
Q: Is 3HNE06226-1 the same as 3HNE06227-1?
A: These two part numbers refer to the A-side and B-side connector variants of the ALED-02 cable assembly. Both are included in the 3HAC035346-001 kit. Please confirm your robot’s axis and cabinet connector type when ordering.
Q: Which ABB robot models use this cable?
A: The ALED-02 cable is used across multiple IRB-series robots that pair with MU100/MU200/MU300 drive modules, including IRB 6600, IRB 6700, IRB 7600, and Foundry Prime variants. Confirm your robot serial number for exact compatibility.
Q: Can I use a 7m cable if my original was shorter?
A: A longer cable can be routed with appropriate cable management, but we recommend matching the OEM length to avoid signal degradation or mechanical strain. Contact us if you need a different length.
Q: Do you provide a warranty?
A: New and surplus-new parts carry a 90-day functional warranty. Refurbished parts carry a 30-day warranty. Terms are stated on the quotation.
Q: How do I confirm authenticity?
A: We provide ABB label photographs, batch documentation, and continuity test reports upon request before shipment.
