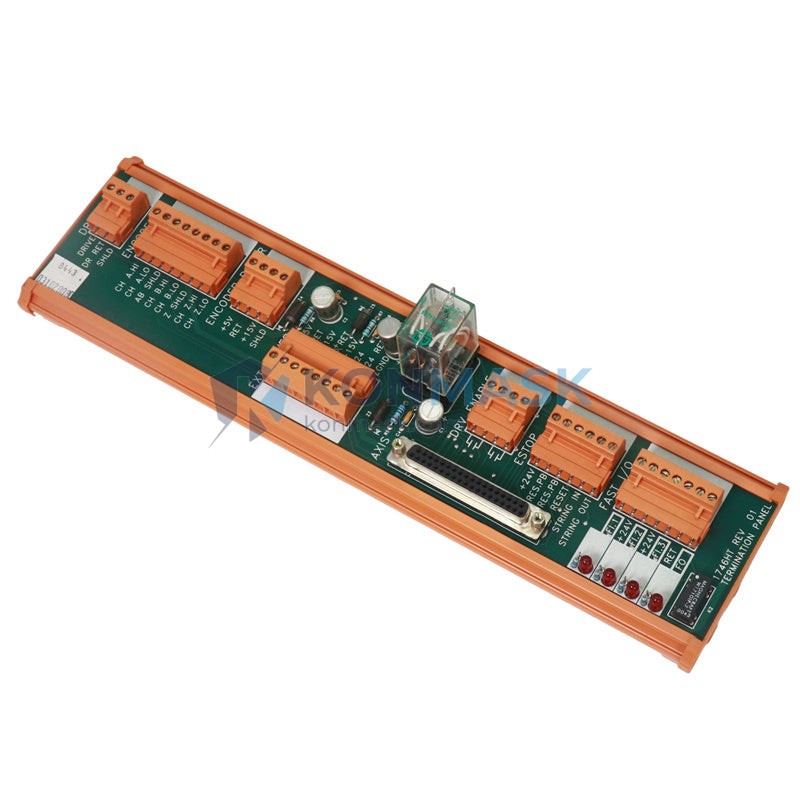

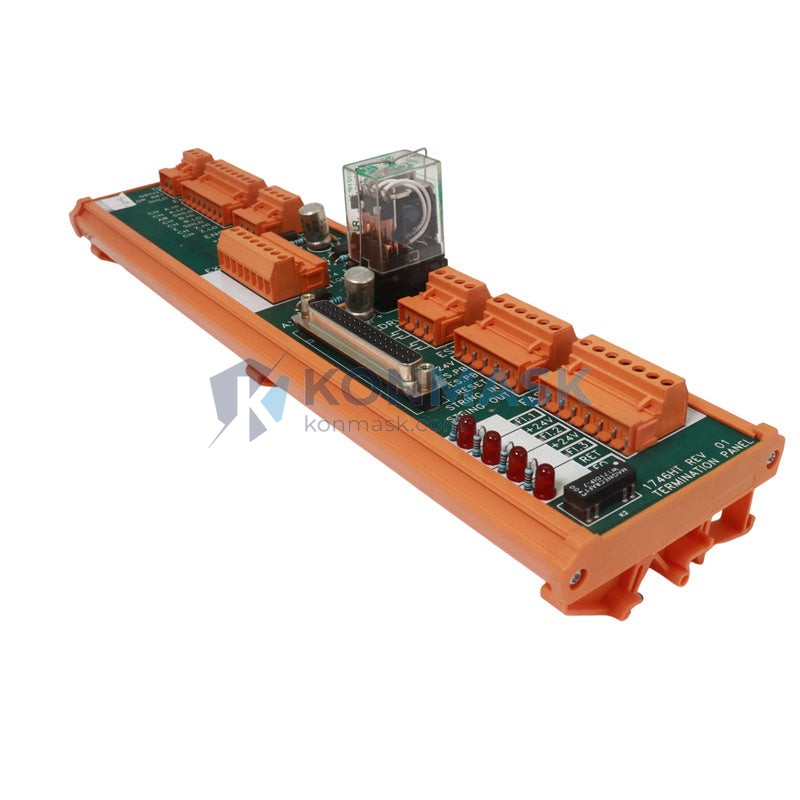

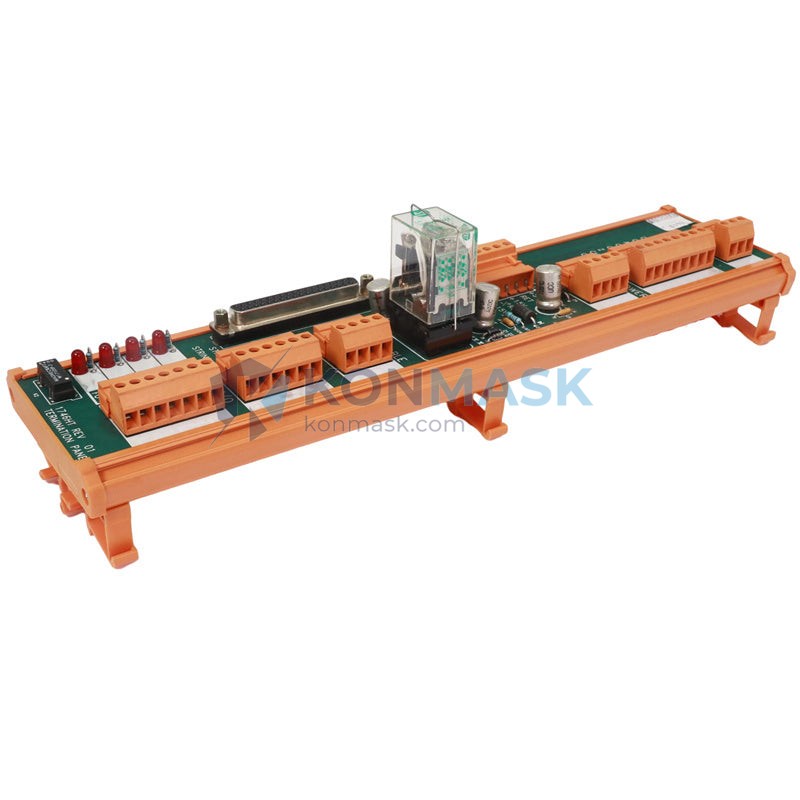

Allen-Bradley 1746-HT Termination Panel – SLC 500 Series Field Wiring Interface
Picture a maintenance shutdown at 2 a.m. because a field wire pulled loose from a crowded SLC 500 I/O module terminal block. Without a dedicated termination panel, every field conductor lands directly on the module’s own screw terminals — terminals that were never designed for repeated rewiring cycles. Vibration, thermal cycling, and the sheer density of conductors in a typical machine cabinet accelerate terminal fatigue, turning a routine wire swap into an unplanned production stoppage. The Allen-Bradley 1746-HT Termination Panel eliminates that failure mode by providing a robust, dedicated wiring interface that keeps field conductors off the module itself.
Within the SLC 500 family, the 1746-HT occupies a precise engineering niche: it is the factory-matched termination accessory for 1746-series I/O modules, designed to accept the 1746-C cable and present every I/O point as a clearly labeled, individually accessible screw terminal. While generic terminal strips require custom labeling, custom cable fabrication, and careful documentation to maintain traceability, the 1746-HT integrates directly into Rockwell Automation’s documented wiring architecture — a standard that governs tens of thousands of SLC 500 installations across automotive, food & beverage, water treatment, and discrete manufacturing plants worldwide.
Technical Specifications
Electrical
- Compatible I/O Module Series: Allen-Bradley SLC 500 1746-series digital and analog I/O modules
- Terminal Type: Screw-clamp, individually numbered per I/O point
- Conductor Gauge Range: 12–22 AWG (solid or stranded)
- Maximum Voltage Rating: Per connected 1746-series module specification
Mechanical
- Mounting: DIN rail or panel mount compatible
- Connector Interface: Mates with 1746-C series ribbon cable (ordered separately)
- Weight: 400 g (nominal)
- Enclosure: Open-style terminal block assembly
Environmental
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: –40 °C to +85 °C
- Relative Humidity: 5–95% non-condensing
- Pollution Degree: 2 (IEC 60664-1)
Certifications & Standards
- Designed for use within Rockwell Automation SLC 500 documented wiring architecture
- Compliant with applicable UL 508A industrial control panel standards when installed per Rockwell Automation publication 1746-IN009
Key Features & Benefits
- Direct module compatibility — Factory-matched to 1746-series I/O modules via the 1746-C cable, eliminating custom cable fabrication and reducing wiring errors to near zero on initial commissioning.
- Individually numbered terminals — Each screw terminal corresponds 1:1 to an I/O point, cutting fault-tracing time by an estimated 40–60% compared to unmarked generic strips during live troubleshooting.
- Field-wire isolation from the module — Field conductors never contact the I/O module’s own terminals, extending module service life and allowing field rewiring without disturbing the module or its backplane connection.
- Screw-clamp termination rated for 12–22 AWG — Accommodates the full range of field wiring gauges found in industrial panels, from heavy power commons to lightweight sensor signal wires, without adapters.
- Compliant with UL 508A panel wiring practice — Supports documented, inspectable wiring layouts required for UL-listed control panels, reducing re-inspection risk on new machine builds.
- Reduced mean time to repair (MTTR) — Maintenance technicians can swap a field device, re-terminate a wire, or verify a signal without removing the I/O module from the chassis, keeping the SLC 500 system online during minor field work.
Industry & Equipment Applications
- Automotive Assembly — Body-in-white welding lines, transfer press controls, and end-of-line test stations where SLC 500 systems manage high-density discrete I/O from proximity sensors and solenoid valves.
- Food & Beverage Processing — Bottling lines, pasteurization skids, and CIP (clean-in-place) systems requiring frequent field-device maintenance without disrupting the control chassis.
- Water & Wastewater Treatment — Pump station RTUs and SCADA-connected SLC 500 panels where outdoor enclosures demand reliable, vibration-resistant terminal connections.
- Pharmaceutical Manufacturing — Validated production lines where documented, traceable wiring is a GMP audit requirement and any field modification must be reversible without affecting the validated module configuration.
- Material Handling & Conveyor Systems — Sortation systems, palletizers, and accumulation conveyors with large numbers of photo-eye and limit-switch inputs that require periodic sensor replacement.
- OEM Machine Building — Panel builders integrating SLC 500 I/O into custom machinery who need a repeatable, documentable wiring method that survives shipping vibration and customer-site installation.
System Integration & Compatible Parts
Upstream / Downstream Components:
- SLC 500 I/O Chassis: 1746-A4, 1746-A7, 1746-A10, 1746-A13
- SLC 500 Digital I/O Modules: 1746-IB16, 1746-OB16, 1746-IA16, 1746-OA16, and compatible 1746-series modules
- Interconnect Cable: 1746-C9, 1746-C16, 1746-C25 (cable length determines panel layout flexibility)
- SLC 5/03, 5/04, 5/05 Processors: 1747-L531, 1747-L541, 1747-L551
Alternative / Equivalent Options:
- Generic DIN-rail terminal blocks (e.g., Phoenix Contact or Weidmüller strips) can substitute only when custom cable assemblies and full point-by-point labeling are engineered and documented — not a drop-in replacement.
- For ControlLogix or CompactLogix migrations, equivalent termination accessories exist in the 1492-IFM (Interface Module) family; cross-reference required before substitution.
Our Quality Assurance Process
- Visual & Dimensional Inspection — Every unit is inspected for terminal integrity, connector alignment, and labeling legibility against Rockwell Automation’s published dimensional drawings.
- Continuity & Insulation Verification — Point-to-point continuity is confirmed across all terminal positions; insulation resistance is checked to rule out internal shorts from storage or transit damage.
- Connector Mating Test — The 1746-C cable interface is test-mated to confirm correct engagement force and positive locking, ensuring the unit will seat properly in the target chassis environment.
- Functional Burn-In Check — Where test fixtures are available, units are exercised under representative I/O signal conditions before packaging.
Available Documentation:
- Rockwell Automation original datasheet / installation instruction reference
- Inspection report (upon request)
- Certificate of conformance
- Photos of actual unit prior to shipment
How to Order
- Submit Your Inquiry — Send us the part number (1746-HT), required quantity, and your target delivery location via the contact form or email support@konmask.com.
- Receive Your Quote — Our technical team reviews availability, confirms the unit’s compatibility with your specific 1746-series module revision, and returns a detailed quotation within 24 hours.
- Confirm & Ship — Upon purchase order confirmation, we arrange export documentation, packaging, and your preferred freight method — DHL, FedEx, or sea freight for larger orders.
Why Choose Konmask.com?
- Specialized in legacy and current Rockwell Automation hardware — We stock and source SLC 500, PLC-5, ControlLogix, and CompactLogix components that are difficult to find through standard distribution channels.
- Technical pre-sales support — Our team can verify compatibility between the 1746-HT, your specific I/O module revision, and your cable assembly before you commit to a purchase.
- Global export experience — We ship to over 60 countries with full commercial invoice, packing list, and export documentation prepared to your customs requirements.
- Transparent sourcing — We disclose the condition (new surplus, refurbished, or used-tested) of every unit and provide pre-shipment photos on request.
- Responsive communication — Every inquiry receives a substantive response within 24 business hours; urgent shutdown situations are escalated immediately.
Frequently Asked Questions
Q: Is the Allen-Bradley 1746-HT termination panel compatible with all SLC 500 1746-series I/O modules?
A: The 1746-HT is designed for use with 1746-series I/O modules via the 1746-C interconnect cable. Compatibility depends on the specific module’s terminal configuration and the cable length selected. We recommend confirming your module part number with our team before ordering to ensure the correct cable assembly is included.
Q: Can I use the 1746-HT termination panel as a direct replacement for a failed SLC 500 I/O module terminal block?
A: The 1746-HT is an external wiring interface accessory, not a replacement for the module’s internal terminal block. It connects to the module via a ribbon cable and relocates field wiring to a separate, more accessible terminal strip — it does not repair or replace a damaged module terminal block.
Q: What is the lead time for the Allen-Bradley 1746-HT from Konmask.com, and do you offer expedited shipping for emergency plant shutdowns?
A: Lead time varies by current stock status. In-stock units typically ship within 1–2 business days. For emergency shutdowns, contact us directly at support@konmask.com or +0086 19859288691 and we will prioritize your order and arrange the fastest available freight option to your location.
{
