ABB BHE036342R0101 XDD501 A101 DCS Control Board | Replacement, Equivalent & Selection Guide

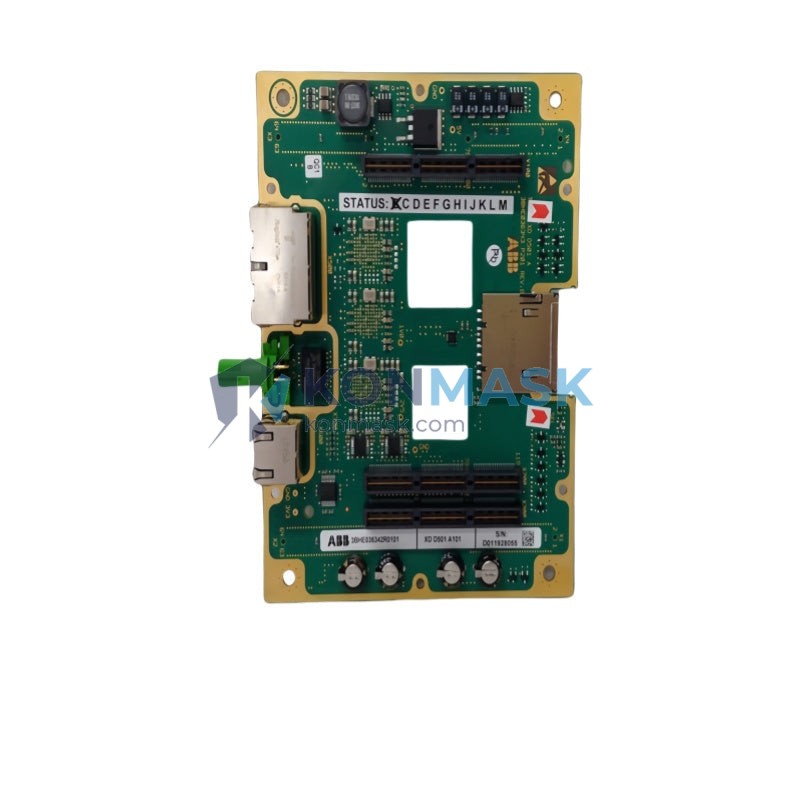

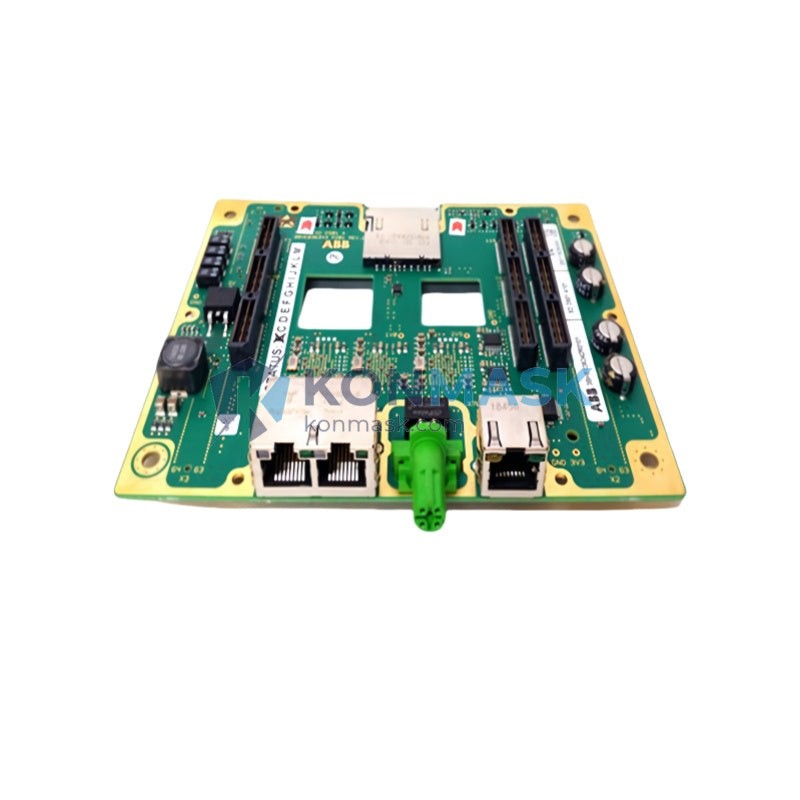

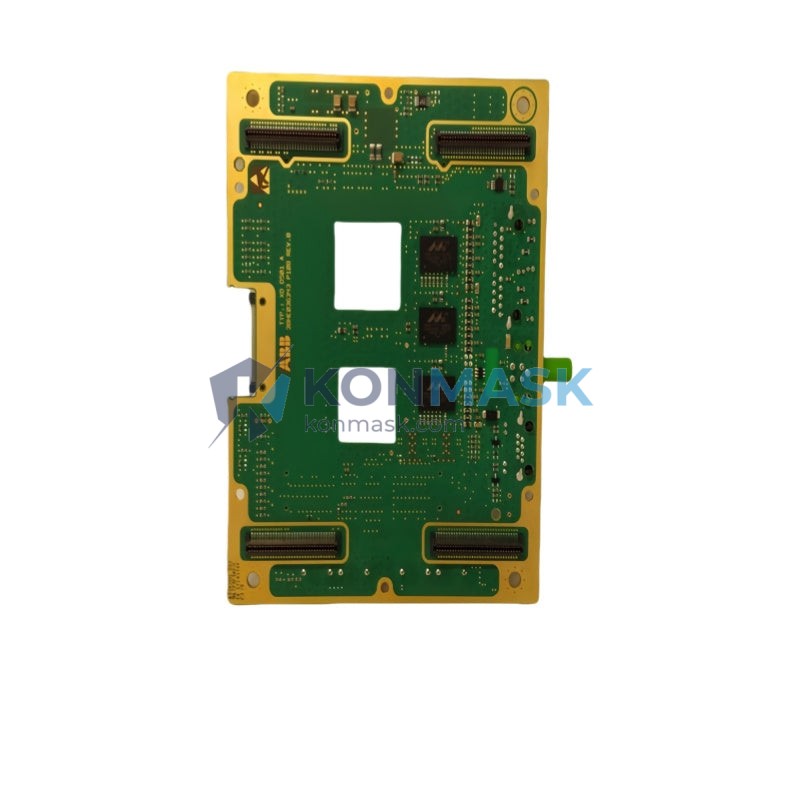

The ABB BHE036342R0101 (XDD501 A101) is a DCS control board engineered for ABB industrial automation platforms. This page provides full technical specifications, verified replacement options, and a structured selection guide for engineers and procurement teams.
Technical Specifications
- Part Number: BHE036342R0101
- Module Series: XDD501 A101
- Manufacturer: ABB
- Module Type: DCS Control Board
- Application: Distributed Control System (DCS)
- Form Factor: PCB Control Module
- Weight: ~500 g
- Condition Available: New, Refurbished, Tested
Compatible Replacement & Equivalent Models
When the original ABB BHE036342R0101 is unavailable or discontinued, the following models may serve as functional equivalents or drop-in replacements depending on your system configuration:
- ABB XDD501 Series – Same product family; verify revision suffix compatibility
- ABB DSQC Series Boards – Cross-platform DCS control modules with similar I/O architecture
- ABB 3BHE036342R0101 – Alternative part number format used in some regional catalogs
- Third-party OEM Equivalents – Contact Konmask for a verified cross-reference list
Note: Always verify firmware version, backplane compatibility, and I/O mapping before substituting control boards in live systems.
Why Choose the Original Model
- Factory-tested and certified for ABB DCS platforms
- Guaranteed firmware and hardware compatibility within the XDD501 series
- Full ABB technical support and documentation coverage
- Minimizes integration risk in safety-critical or continuous-process environments
- Traceable supply chain with original ABB packaging and labeling
Typical Applications
- Power generation and energy management systems
- Oil & gas process control and SCADA integration
- Chemical and petrochemical plant automation
- Pulp and paper manufacturing DCS networks
- Water treatment and utility infrastructure control
- Marine and offshore automation systems
System Compatibility
- Compatible DCS Platforms: ABB Symphony Plus, ABB 800xA, ABB Advant OCS
- Communication Protocols: PROFIBUS, MODBUS, ABB proprietary fieldbus
- Backplane Interface: Standard ABB DCS backplane (verify slot type before ordering)
- Power Supply: 24 VDC (typical; confirm with system documentation)
Selection Guide
Use the following criteria to confirm the ABB BHE036342R0101 XDD501 A101 is the right module for your application:
- ✅ Confirm the exact part number on the existing board label (BHE036342R0101)
- ✅ Verify the module series (XDD501) matches your system’s slot assignment
- ✅ Check the revision suffix (A101) — different revisions may have different firmware requirements
- ✅ Confirm backplane compatibility with your DCS cabinet model
- ✅ If replacing a failed board, note the firmware version from the original before ordering
- ✅ For cross-brand replacement, request a compatibility assessment from Konmask engineering support
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Pre-shipment functional testing available on request
- Anti-static packaging and secure export-grade shipping
- Certificates of conformance and test reports available for critical applications
- Konmask maintains traceability records for all industrial automation components
How to Order
- Add the ABB BHE036342R0101 XDD501 A101 to your cart directly on this page
- For bulk orders or custom configurations, email [email protected]
- Include your DCS system model and required quantity for fastest response
- Lead time: typically 3–7 business days for in-stock units; 2–4 weeks for sourced orders
Replacement & Compatibility FAQ
Q: Can I use a different revision (e.g., A102) as a replacement for A101?
A: Revisions within the same series are often compatible, but firmware differences may require reconfiguration. Contact us to confirm before ordering.
Q: Is the BHE036342R0101 still in production?
A: ABB periodically updates or discontinues legacy DCS modules. Konmask maintains stock of both current and legacy parts — contact us for availability.
Q: Do you offer repair or refurbishment services?
A: Yes. Konmask partners with certified repair facilities for ABB DCS boards. Request a repair quote via email.
Q: What warranty is provided?
A: New units carry the original manufacturer warranty. Refurbished units include a 90-day Konmask functional warranty.
Q: Can you cross-reference this part to a Siemens or Honeywell equivalent?
A: Cross-brand equivalency depends on system architecture. Our engineering team can assist — email your system specs for a free assessment.
