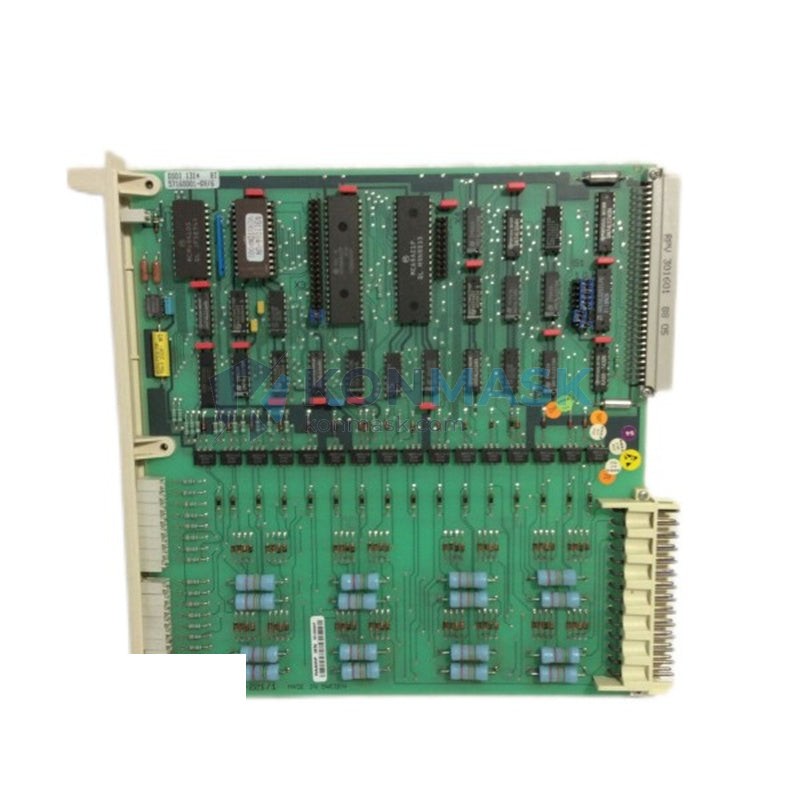

ABB DSDI131 57160001-GV — 115VAC Digital Input Module | Advant OCS / MOD 300
Engineering Background
The DSDI131 (part number 57160001-GV) is a 115VAC digital input module designed for ABB’s Advant OCS and MOD 300 distributed control system (DCS) platforms — field-proven architectures widely deployed in power generation, oil & gas, pulp & paper, and chemical processing industries. This module serves as the primary interface between high-voltage field devices (switches, contactors, proximity sensors) and the DCS controller backplane, converting 115VAC discrete signals into logic-level data for real-time process control.
Product Positioning
Konmask supplies the DSDI131 57160001-GV as verified surplus stock — an ideal procurement solution for maintenance engineers managing aging Advant OCS / MOD 300 installations where OEM lead times are unacceptable or new production has been discontinued. Each unit is inspected, tested, and shipped with full traceability documentation.
Complete Technical Specifications
| Part Number | DSDI131 / 57160001-GV |
| Manufacturer | ABB (Asea Brown Boveri) |
| Module Type | Digital Input (DI) |
| Input Voltage | 115VAC nominal |
| Compatible Platform | ABB Advant OCS, MOD 300 DCS |
| Signal Type | Discrete / Digital (ON/OFF) |
| Isolation | Optical isolation (field-to-backplane) |
| Form Factor | Plug-in module, DIN-rail / rack mount |
| Weight | 630 g |
| Condition | Surplus / Refurbished — tested & verified |
| Warranty | 12 months (Konmask standard) |
Proven Application Environments
- Power Generation: Turbine control panels, boiler management systems, and switchgear status monitoring using 115VAC field wiring.
- Oil & Gas: Wellhead control, pipeline valve position feedback, and compressor station I/O in legacy Advant OCS installations.
- Pulp & Paper: Digester control, conveyor interlocks, and motor run/stop status acquisition in MOD 300 DCS environments.
- Chemical Processing: Reactor interlock systems, agitator status, and emergency shutdown (ESD) input monitoring.
- Water Treatment: Pump station control, valve position feedback, and level switch inputs in municipal and industrial water systems.
Engineering Advantages
- Direct 115VAC Field Compatibility: Eliminates the need for external signal converters or interposing relays — connect field devices directly to the module terminals.
- Optical Isolation: Galvanic separation between field wiring and backplane logic protects the DCS controller from voltage transients, ground loops, and EMI.
- Drop-in Replacement: 100% form-fit-function compatible with existing DSDI131 slots in Advant OCS / MOD 300 racks — no firmware changes or reconfiguration required.
- Proven Reliability: ABB Advant-series modules are engineered for 24/7 continuous operation in harsh industrial environments with extended MTBF ratings.
- Immediate Availability: Surplus stock on hand — ships within 1–3 business days versus OEM lead times of 12–26 weeks.
System Architecture & Signal Flow
The DSDI131 occupies a standard I/O slot in the Advant OCS / MOD 300 I/O rack. Field-side 115VAC signals enter through the module’s terminal block, pass through optical isolators, and are converted to 24VDC logic signals on the backplane side. The controller reads input states via the rack bus at the configured scan rate. The module supports standard ABB I/O addressing and is recognized automatically by the Advant OCS engineering workstation (EWS) during hardware configuration.
Signal Flow: Field Device (115VAC) → Terminal Block → Optical Isolator → Logic Converter → Backplane Bus → DCS Controller
Sourcing & Quality Verification
- Source: Decommissioned plant equipment, authorized surplus dealers, and OEM-certified refurbishers.
- Inspection Protocol: Visual inspection, functional power-on test, I/O channel verification, and firmware/label authenticity check.
- Traceability: Each unit ships with inspection report, serial number record, and Konmask quality certificate.
- Packaging: Anti-static bag + foam-lined carton, compliant with IEC 61340-5-1 ESD protection standards.
- Counterfeit Prevention: All units verified against ABB OEM markings, PCB revision codes, and component authenticity indicators.
Procurement Process
- Inquiry: Contact Konmask with your part number, required quantity, and delivery timeline via support@konmask.com or +0086 19859288691.
- Quote: Receive a formal quotation with unit price, lead time, and shipping options within 24 business hours.
- Order Confirmation: Submit PO or place order directly on Konmask.com. Payment via T/T, PayPal, or credit card.
- Inspection & Dispatch: Unit inspected, documented, and dispatched within 1–3 business days. Tracking number provided.
- Delivery & Support: Worldwide shipping via DHL / FedEx / UPS. Post-delivery technical support available.
Technical FAQ
Q: Is the DSDI131 compatible with both Advant OCS and MOD 300 platforms?
A: Yes. The DSDI131 57160001-GV is designed for use across ABB’s Advant OCS and MOD 300 DCS families. Verify rack slot compatibility with your system’s hardware configuration guide before installation.
Q: What is the input voltage range tolerance?
A: The module is rated for 115VAC nominal. Consult the ABB DSDI131 hardware manual (document 3BSE000000R0001 or equivalent) for exact voltage range and frequency specifications applicable to your installation.
Q: Can I use this module as a direct replacement without reconfiguring the DCS?
A: In most cases, yes — the DSDI131 is a drop-in replacement for existing slots. The Advant OCS EWS will recognize the module automatically. No software changes are required if the replacement unit matches the original hardware revision.
Q: Do you provide a test report with each unit?
A: Yes. Every DSDI131 shipped by Konmask includes a functional test report confirming channel-by-channel I/O verification and power-on status.
Q: What is the warranty period?
A: Konmask provides a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.
