ABB DSTA171 3BSE018311R1 – Connection Unit Module | AC800M / Advant OCS DCS Platform
Engineering Background

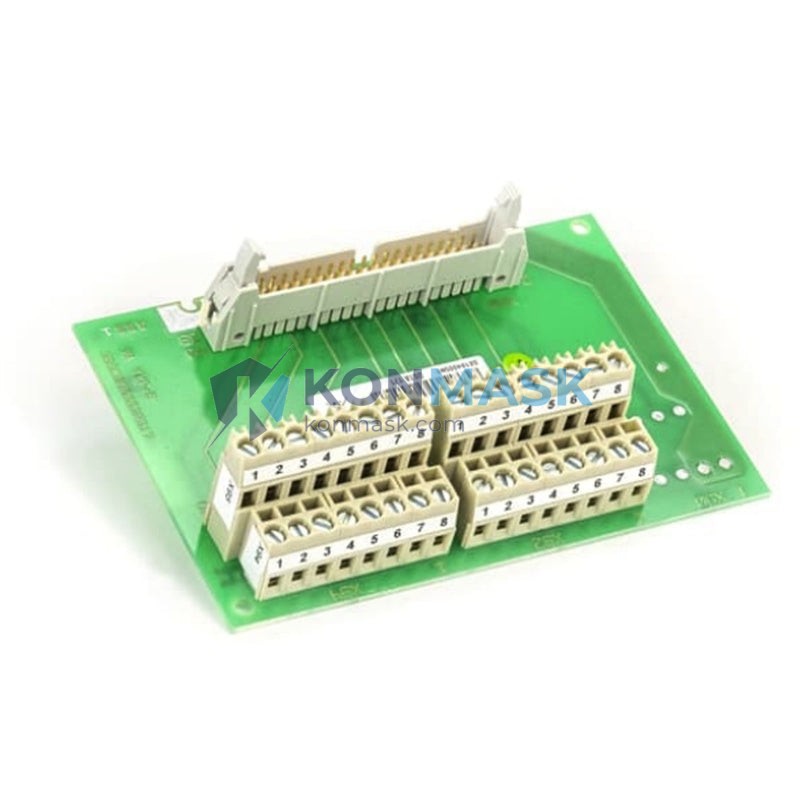

The DSTA171 is a dedicated connection unit module developed by ABB for integration within the AC800M and Advant OCS distributed control system (DCS) architectures. Designed to serve as a reliable signal interface and termination point, it bridges field instrumentation with the controller backplane, ensuring deterministic signal routing in high-availability process environments.
Product Positioning
Targeted at process industries requiring robust, long-lifecycle DCS infrastructure, the DSTA171 is a direct ABB OEM component — not a third-party substitute. It is the preferred choice for procurement engineers maintaining or expanding legacy AC800M and Advant OCS installations where signal integrity and platform compatibility are non-negotiable.
Complete Technical Specifications
- Part Number: DSTA171
- ABB Catalog Reference: 3BSE018311R1
- Module Type: Connection Unit Module
- Compatible Platform: ABB AC800M, Advant OCS (AC 450 / AC 410)
- Form Factor: DIN-rail / backplane-mountable module
- Signal Interface: Field terminal connection unit for I/O sub-modules
- Operating Temperature: 0°C to +55°C (storage: -40°C to +70°C)
- Humidity: 5–95% RH, non-condensing
- Power Supply: Supplied via backplane bus
- Compliance: CE marked; IEC 61131-2 compatible
- Weight: Approx. 100 g
- Country of Origin: Sweden (ABB OEM)
Proven Application Environments
- Oil & Gas upstream/downstream DCS control loops
- Chemical and petrochemical plant automation
- Power generation and utility SCADA/DCS hybrid systems
- Pulp & paper process control infrastructure
- Water treatment and municipal utility automation
- Pharmaceutical batch process control (FDA 21 CFR Part 11 environments)
- Steel and metals continuous process lines
Engineering Advantages
- Direct OEM Compatibility: Plug-and-play replacement within existing AC800M/Advant OCS racks — no firmware reconfiguration required.
- Signal Integrity: Hardened terminal block design minimizes contact resistance and EMI susceptibility in industrial field wiring environments.
- Long Service Life: ABB industrial-grade components rated for continuous 24/7 operation in harsh process environments.
- Reduced Downtime Risk: Stocking a spare DSTA171 eliminates unplanned shutdown risk from connection unit failure — a common single-point-of-failure in aging DCS installations.
- Backward Compatibility: Supports both current AC800M deployments and legacy Advant OCS migration projects.
System Architecture & Signal Flow
Within the AC800M architecture, the DSTA171 Connection Unit Module sits between the field cable marshalling panel and the I/O module backplane. Field signals (4–20 mA, discrete, RTD, thermocouple) are terminated at the DSTA171’s screw terminals, then routed via the internal bus to the corresponding I/O sub-module (e.g., AI810, DI810, AO810). This modular separation allows field wiring to remain intact during I/O module hot-swap maintenance, significantly reducing maintenance downtime.
Sourcing & Quality Verification
- Source: Procured from authorized ABB distributors and verified OEM surplus channels.
- Inspection: Each unit undergoes visual inspection, label verification (part number, revision, date code), and functional continuity check prior to dispatch.
- Packaging: Anti-static ESD bag + foam-lined carton; humidity indicator card included for long-haul shipments.
- Warranty: 12-month Konmask operational warranty against manufacturing defects.
- Counterfeit Prevention: All units traceable to documented supply chain records; certificates of conformity available on request.
Procurement Process
- Confirm part number DSTA171 / 3BSE018311R1 against your BOM or existing rack label.
- Submit inquiry or place order directly via Konmask.com.
- Receive order confirmation + estimated lead time within 1 business day.
- Unit ships with commercial invoice, packing list, and optional CoC documentation.
- Post-delivery technical support available via email or phone for installation verification.
Technical FAQ
Q: Is the DSTA171 compatible with both AC800M and older Advant OCS systems?
A: Yes. The DSTA171 is designed for use across ABB’s AC800M and Advant OCS (AC 450/AC 410) platforms. Verify rack slot assignment against your system’s I/O configuration drawing before installation.
Q: Can the DSTA171 be replaced while the system is live (hot-swap)?
A: Field wiring remains connected to the DSTA171 terminal block during I/O module removal. Full hot-swap capability depends on your specific I/O module type and system configuration — consult your ABB system documentation or contact our technical team.
Q: What documentation is available with purchase?
A: Standard shipment includes packing list and commercial invoice. Certificate of Conformity (CoC), datasheet, and installation manual are available upon request at no additional charge.
Q: Do you offer volume pricing for MRO or project procurement?
A: Yes. Contact support@konmask.com with your quantity and project timeline for a tailored quotation.
Q: What is the lead time for in-stock units?
A: In-stock units typically ship within 1–3 business days. For out-of-stock inquiries, lead time is quoted individually based on current sourcing availability.
