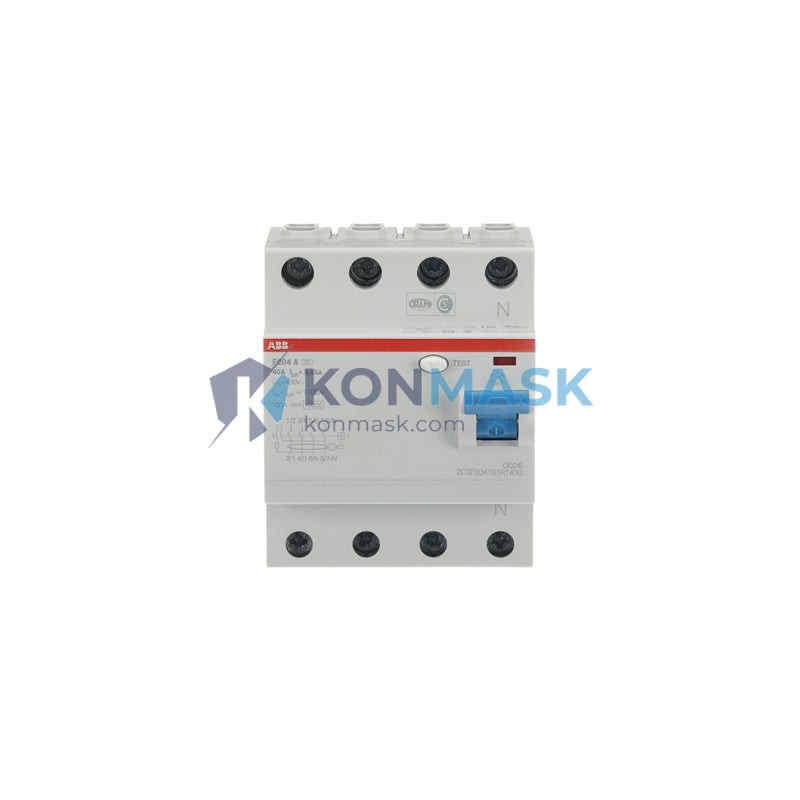

ABB F204A-2 (2CSF204101R1400) – 4-Pole Residual Current Circuit Breaker | F200A Series
The ABB F204A-2 is a high-performance 4-pole Residual Current Circuit Breaker (RCCB) engineered for industrial and commercial power distribution systems requiring reliable ground-fault protection. Designed within ABB’s proven F200A platform, this device combines precision current sensing with robust mechanical construction to deliver dependable personnel and equipment protection across demanding electrical environments.
Procurement engineers sourcing ground-fault protection for 3-phase+N distribution boards, industrial panels, or commercial building infrastructure will find the F204A-2 a code-compliant, long-service-life solution backed by ABB’s global quality assurance framework. Konmask.com supplies this unit as genuine ABB stock with full traceability documentation available on request.
Complete Technical Specifications
- Part Number: F204A-2 / 2CSF204101R1400
- Manufacturer: ABB
- Series / Platform: F200A
- Type: RCCB (Residual Current Circuit Breaker) — No overcurrent protection
- Poles: 4P (3-phase + Neutral)
- Rated Current (In): 25 A
- Rated Residual Current (IΔn): 30 mA
- Sensitivity Type: Type A (AC + pulsating DC fault currents)
- Rated Voltage (Un): 400 V AC, 50/60 Hz
- Conditional Short-Circuit Current (Inc): 6 kA
- Breaking Capacity: 6 kA @ 400 V
- Tripping Time: ≤ 300 ms (standard); ≤ 40 ms at 5×IΔn
- Mounting: DIN Rail (EN 60715 TH35)
- Width: 4 modules (72 mm)
- Degree of Protection: IP20 (terminals IP00)
- Operating Temperature: -25°C to +40°C
- Storage Temperature: -40°C to +70°C
- Weight: approx. 280 g
- Standards: IEC/EN 61008-1, IEC/EN 61008-2-1
- Country of Origin: Germany
- HS Code: 8536.20
Proven Application Environments
- Industrial distribution boards and motor control centers (MCC)
- Commercial building main and sub-distribution panels
- HVAC and pump control systems requiring 3-phase ground-fault protection
- Data center auxiliary power distribution
- Renewable energy (solar inverter output protection, wind turbine auxiliary circuits)
- Marine and offshore auxiliary panels (where Type A sensitivity is specified)
- Food & beverage processing facilities with wet-area electrical installations
Engineering Advantages
- Type A Sensitivity: Detects both sinusoidal AC and pulsating DC residual currents — essential for modern VFD-driven loads and switched-mode power supplies
- 4-Pole Architecture: Simultaneous disconnection of all live conductors including neutral — mandatory for TT and IT earthing systems
- 6 kA Conditional Rating: Coordinates with upstream MCBs and fuses in standard industrial distribution without requiring additional current-limiting devices
- Compact 72 mm Width: 4-module DIN rail footprint minimizes panel real estate in high-density enclosures
- Mechanical Endurance: ≥ 2,000 operating cycles (IEC 61008-1 verified)
- Vibration Resistance: Suitable for environments with mechanical vibration per IEC standards
- Test Button: Integrated monthly self-test function for compliance with IEC maintenance schedules
System Architecture & Signal Flow
The F204A-2 operates on a toroidal current transformer (CT) principle. Under normal conditions, the vectorial sum of currents through all 4 poles equals zero — no trip signal is generated. When a ground fault occurs, the imbalance current (IΔ) exceeds 30 mA, the CT output energizes the trip solenoid, and all 4 poles open simultaneously within the rated tripping time. The Type A detection circuit includes a half-wave rectifier stage to capture pulsating DC components generated by rectifier loads, ensuring reliable operation with modern electronic equipment.
Recommended upstream protection: ABB S200 series MCB or equivalent, rated ≥ 25 A with breaking capacity ≥ 6 kA. Downstream load: any 3-phase or single-phase loads not exceeding 25 A aggregate per phase.
Sourcing & Quality Verification
- Authenticity: All ABB units supplied by Konmask.com are sourced through authorized distribution channels with full supply-chain traceability
- Inspection: Each unit undergoes incoming inspection including label verification, date code check, and packaging integrity review
- Documentation: CE Declaration of Conformity, IEC 61008-1 test reports, and ABB factory certificates available upon request
- Counterfeit Risk Mitigation: ABB holographic labels and catalog number laser-marking verified against ABB’s official product database
- Shelf Life: Stored in climate-controlled warehouse; units dispatched within 24 months of manufacture date
Procurement Process
- Confirm part number: F204A-2 / 2CSF204101R1400 against your BOM or panel schedule
- Verify quantity and lead time requirements with Konmask.com sales team
- Request formal quotation including unit price, freight, and documentation package
- Submit PO — standard payment terms: T/T, PayPal, or credit card
- Receive shipment with packing list, invoice, and optional CoC documentation
- Perform incoming inspection per your QC procedure before installation
Technical FAQ
Q: Can the F204A-2 protect circuits with VFD (Variable Frequency Drive) loads?
A: Yes. The Type A sensitivity rating covers pulsating DC residual currents generated by VFD rectifier stages. However, for drives with significant high-frequency leakage, consider ABB’s selective (Type S) or high-immunity variants to avoid nuisance tripping.
Q: Is the F204A-2 suitable for TN-S earthing systems?
A: Yes. The 4-pole configuration is compatible with TN-S, TT, and IT earthing systems. For TN-C systems, a 4-pole RCCB is not applicable — use a 2-pole unit on the phase conductors only.
Q: What is the difference between F204A-2 and F204AC-2?
A: The F204A-2 (Type A) detects AC and pulsating DC residual currents. The F204AC-2 (Type AC) detects AC residual currents only. Type A is the recommended choice for modern installations with electronic loads.
Q: Can this RCCB be used with ABB’s S200 MCB in a coordinated protection scheme?
A: Yes. The F204A-2 is designed to coordinate with ABB S200 series MCBs. The upstream MCB provides overcurrent and short-circuit protection; the RCCB provides residual current (ground fault) protection — a standard split-function protection arrangement.
Q: What maintenance is required?
A: IEC 61008-1 recommends monthly functional testing using the integrated TEST button. Annual inspection of terminal torque and visual check for mechanical damage is also recommended.
