ABB FN258-16/29 3BHB011317R0001 EMC Line Filter | Replacement, Equivalent & Selection Guide

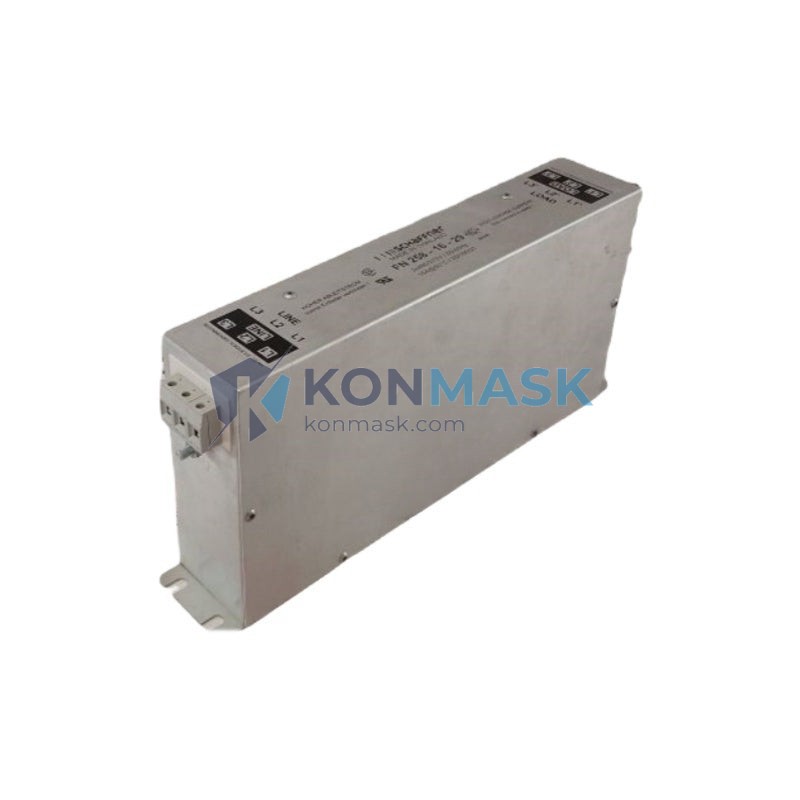

The ABB FN258-16/29 (Part No. 3BHB011317R0001) is a dedicated EMC (Electromagnetic Compatibility) line filter designed for ABB industrial drives and frequency converters. It suppresses conducted radio-frequency interference on the mains supply side, ensuring compliance with IEC/EN 61800-3 Category C2/C3 emission standards. Sourced through verified industrial channels, this filter is a critical component for stable, interference-free drive operation in demanding automation environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | FN258-16/29 / 3BHB011317R0001 |
| Manufacturer | ABB |
| Type | EMC / RFI Line Filter |
| Series | FN258 |
| Rated Current | 16 A |
| Rated Voltage | 3 × 480 VAC / 50–60 Hz |
| Leakage Current | ≤ 29 mA (per phase) |
| Attenuation Standard | IEC/EN 61800-3 C2/C3 |
| Mounting | DIN Rail / Panel Mount |
| Weight | Approx. 400 g |
| Operating Temperature | -25 °C to +85 °C |
| Protection Class | IP20 |
| Compliance | CE, RoHS |
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or drop-in replacements for the ABB FN258-16/29 3BHB011317R0001. Always verify rated current, voltage, and leakage current before substitution:
| Model | Brand | Rated Current | Notes |
|---|---|---|---|
| FN258-16/29 | Schaffner | 16 A | OEM equivalent (ABB-branded Schaffner) |
| FN3258-16-29 | Schaffner | 16 A | Updated series, same footprint |
| FS6019-16-07 | Schaffner | 16 A | Alternative 3-phase filter, verify leakage |
| 3BHB011317R0001 | ABB OEM | 16 A | Original ABB spare part number |
| EMF016-3-B | Murr Elektronik | 16 A | Cross-brand equivalent, confirm dimensions |
Note: Konmask.com supplies both original ABB parts and verified OEM-equivalent replacements. Contact us to confirm compatibility with your specific drive model.
Why Choose the Original Model
- Guaranteed Compatibility: Engineered specifically for ABB ACS550/ACS800/ACS880 drive families — no adaptation required.
- Certified Performance: Factory-tested to IEC/EN 61800-3 C2/C3; ensures CE-marked system compliance.
- Precise Leakage Control: 29 mA leakage rating matches ABB drive GFCI/RCD coordination requirements.
- Long Service Life: ABB-grade components rated for continuous industrial duty cycles.
- Warranty Preservation: Using the original part maintains ABB drive warranty validity.
Typical Applications
- ABB ACS550 / ACS800 / ACS880 variable speed drives
- ABB DCS800 DC drives and converters
- Industrial motor control panels and MCC cabinets
- CNC machine tool power supply filtering
- Pump, fan, and compressor drive installations
- Renewable energy inverter input filtering
- Factory automation lines requiring EMC compliance
System Compatibility
The FN258-16/29 3BHB011317R0001 is compatible with the following ABB drive series (verify frame size and input current before ordering):
- ABB ACS550 — Frame R1–R4 (up to 15 kW / 400 V)
- ABB ACS800 — Frame R2–R4
- ABB ACS880 — Frame R1–R3 (with appropriate cable screen clamp)
- ABB ACH550 HVAC drives
- Third-party drives with 3-phase 480 VAC input and ≤16 A rated current
Selection Guide
Use the following criteria to select the correct EMC filter for your ABB drive installation:
- Rated Input Current: Filter current rating must be ≥ drive input current. FN258-16/29 suits drives up to 16 A input.
- Supply Voltage: Confirm 3-phase 480 VAC (or 400 VAC with no derating required). Single-phase applications require a different filter series.
- Leakage Current Limit: 29 mA total leakage. If your installation uses a sensitive RCD (<30 mA), consult ABB application note 3AFE68586658.
- EMC Category: C2 for industrial environments; C3 for second environment. Confirm with local EMC authority.
- Physical Fit: Check panel depth and DIN rail spacing. FN258 series: 45 mm DIN rail, 85 mm depth.
- Cable Length: Longer motor cables increase leakage — select a filter with lower leakage if cable >50 m.
Quality Assurance & Sourcing
- Verified Supply Chain: All ABB parts at Konmask.com are sourced from authorized distributors or certified industrial surplus channels.
- Inspection Protocol: Each unit undergoes visual inspection, label verification, and continuity testing before dispatch.
- Traceability: Batch records and manufacturer date codes available on request.
- Anti-Counterfeit: We do not source from unverified grey-market channels. Authenticity documentation provided.
- Packaging: Original or equivalent ESD-safe packaging; suitable for long-term storage.
How to Order
- Add the ABB FN258-16/29 3BHB011317R0001 to your cart and proceed to checkout.
- For bulk orders (>5 units) or urgent requirements, contact us directly for lead time and pricing.
- Provide your drive model number for compatibility confirmation — our engineers will verify before shipment.
- International shipping available; DDP/DAP terms negotiable for B2B orders.
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can I use FN258-16/29 on a 400 V system instead of 480 V?
A: Yes. The filter is rated for up to 480 VAC; 400 V operation is within spec with no derating required.
Q: Is the Schaffner FN258-16/29 the same as ABB 3BHB011317R0001?
A: Yes. ABB sources this filter from Schaffner and relabels it. The electrical specifications are identical.
Q: Will this filter work with non-ABB drives?
A: It can be used with any 3-phase drive with ≤16 A input current at 480 VAC, but compatibility must be verified against the drive’s EMC filter requirements.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. Out-of-stock items typically have a 2–4 week lead time. Contact us for current availability.
Q: Do you provide a certificate of conformity?
A: Yes. CE declaration and test reports are available upon request for OEM and system integrator customers.
