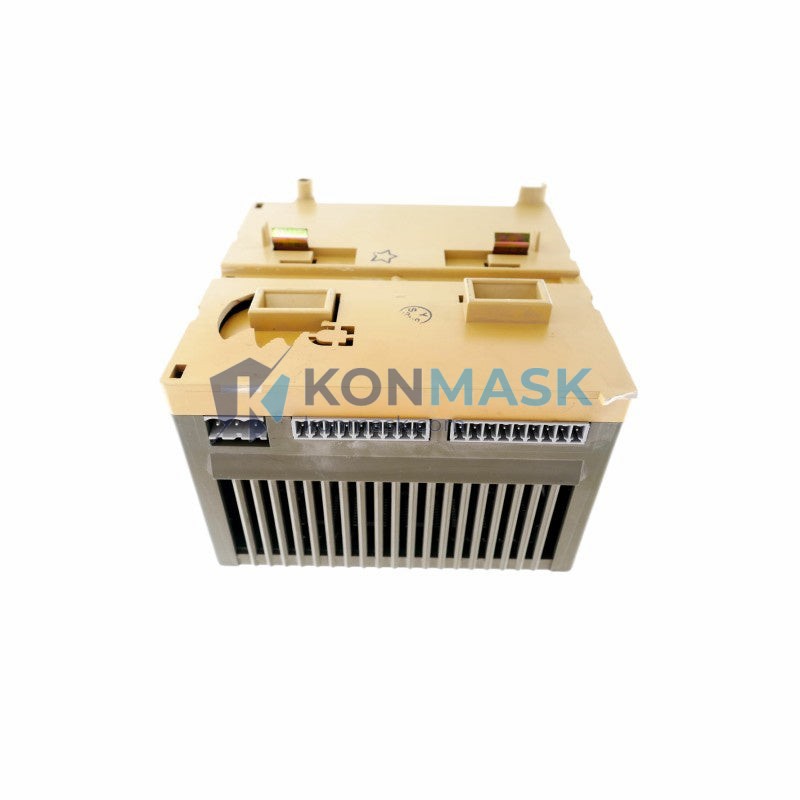

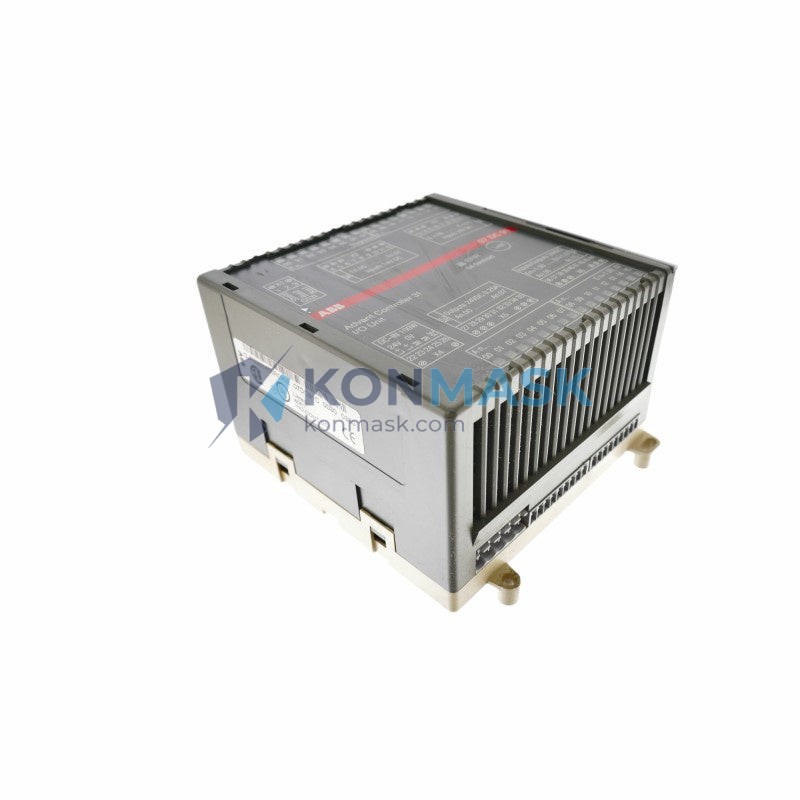

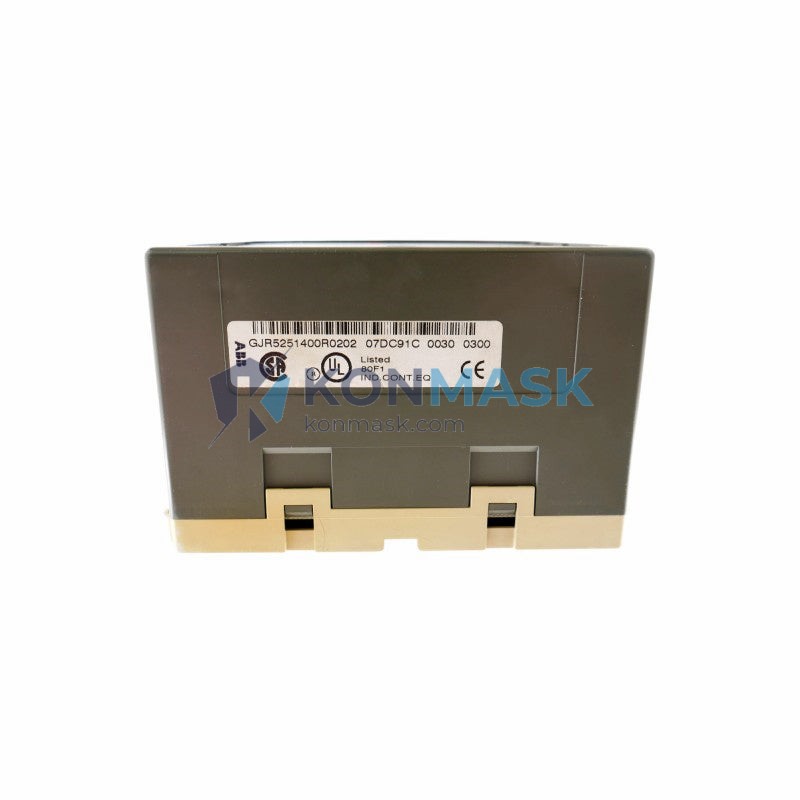

ABB GJR5251400R0202 07DC91 Advant Controller 31 I/O Unit | Replacement, Equivalent & Selection Guide
The ABB GJR5251400R0202 07DC91 is a dedicated I/O unit for the Advant Controller 31 (AC31) series — ABB’s compact, modular PLC platform widely deployed in industrial process control, machine automation, and utility applications. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Manufacturer: ABB
- Part Number: GJR5251400R0202
- Firmware / Version: 07DC91
- Series: Advant Controller 31 (AC31)
- Module Type: I/O Unit (Input/Output)
- Form Factor: Modular, DIN-rail mountable
- Weight: Approx. 300 g
- Communication: Compatible with AC31 backplane bus
- Operating Temperature: 0 °C to +55 °C (typical for AC31 series)
- Storage Temperature: −25 °C to +70 °C
- Humidity: 5–95% RH, non-condensing
- Power Supply: Via backplane / system bus
- Standards: CE marked; IEC 61131-2 compliant
- Country of Origin: Germany / Sweden (ABB manufacturing)
Note: Confirm exact I/O channel count and signal type (DI/DO/AI/AO) from the original ABB datasheet or nameplate before ordering.
Compatible Replacement & Equivalent Models
When the GJR5251400R0202 07DC91 is discontinued, hard to source, or cost-prohibitive, the following models may serve as functional equivalents or drop-in replacements depending on your system configuration:
- ABB GJR5251400R0201 – Earlier revision of the same I/O unit; verify firmware compatibility with your AC31 CPU.
- ABB GJR5251400R0203 – Later revision; may offer enhanced diagnostics; confirm backplane compatibility.
- ABB 07DC92 / GJR5251500R0xxx – Extended I/O variant in the AC31 family; check channel count and addressing.
- ABB PM564 / PM582 Series (AC500) – Next-generation platform; requires engineering migration but offers long-term support and expanded I/O.
- Third-party AC31-compatible I/O modules – Available from select automation suppliers; must validate signal compatibility and bus protocol before deployment.
⚠ Important: Always verify hardware revision, firmware version, and backplane slot compatibility before substituting any I/O module in a live system.
Why Choose the Original Model
- Guaranteed compatibility with existing AC31 CPU units and backplane configurations — no re-engineering required.
- Proven field reliability across decades of industrial deployments in power, water, and manufacturing sectors.
- Exact firmware match (07DC91) ensures deterministic I/O behavior and avoids unexpected diagnostic flags.
- Simplified spare-parts management — maintaining original part numbers reduces documentation overhead and audit risk.
- ABB technical support and documentation remain aligned to the original part number.
Typical Applications
- Process control in water treatment and wastewater plants
- Power distribution and substation automation
- Packaging and conveyor machine control
- HVAC and building management systems
- Oil & gas field instrumentation panels
- Retrofit and maintenance of legacy AC31-based control cabinets
System Compatibility
The GJR5251400R0202 07DC91 is designed for use within the ABB Advant Controller 31 (AC31) ecosystem. Confirmed compatible system components include:
- AC31 CPU modules (07CR41, 07CR91, 07KR51, etc.)
- AC31 power supply units and backplane racks
- ABB Advant OCS / Master Bus 300 communication networks
- Programming via ABB’s 907 PC tool (IEC 61131-3 compliant)
This module is not directly compatible with ABB AC500, AC800M, or third-party PLC backplanes without hardware adaptation.
Selection Guide
Use the following criteria to determine whether GJR5251400R0202 07DC91 is the right choice for your project:
- Existing AC31 system? → Original model is the safest and fastest path to restore operation.
- Need more I/O channels? → Consider 07DC92 or an AC31 expansion rack before migrating platforms.
- Long-term project (>10 years)? → Evaluate migration to ABB AC500 for extended lifecycle support.
- Budget-constrained retrofit? → Refurbished GJR5251400R0202 units (tested and warranted) offer cost savings vs. new.
- Uncertain about revision compatibility? → Contact our team with your CPU part number and we will confirm interoperability.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified industrial surplus channels.
- Each module undergoes visual inspection, functional power-on test, and firmware version verification prior to shipment.
- Anti-static packaging with humidity indicator cards for safe international transit.
- Traceability documentation (batch records, test reports) available upon request for regulated industries.
- Warranty: 90-day replacement warranty on all tested units; 12-month warranty on new-in-box stock.
How to Order
- Confirm your required quantity and delivery timeline.
- Contact us via email or phone with your PO or RFQ.
- Receive a formal quotation within 1 business day.
- Payment via T/T bank transfer, PayPal, or trade assurance.
- Shipment via DHL / FedEx / UPS with full tracking; lead time typically 3–7 business days.
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use GJR5251400R0201 instead of R0202?
A: In most cases yes — the R0201 and R0202 are hardware revisions of the same module. However, confirm with your AC31 CPU firmware version, as some revisions introduced diagnostic register changes.
Q: Is this module still in production by ABB?
A: The AC31 series has reached end-of-life (EOL) status. ABB recommends migration to AC500, but spare parts remain available through authorized distributors and industrial surplus suppliers like Konmask.
Q: Can I mix different I/O unit revisions in the same AC31 rack?
A: Generally yes, provided the CPU firmware supports all installed module revisions. Always test in a non-production environment first.
Q: Do you provide a test report with the unit?
A: Yes. A functional test report is available upon request for all refurbished units.
Q: What is the lead time for this part?
A: Typically 3–7 business days for in-stock units. Contact us for current availability.
