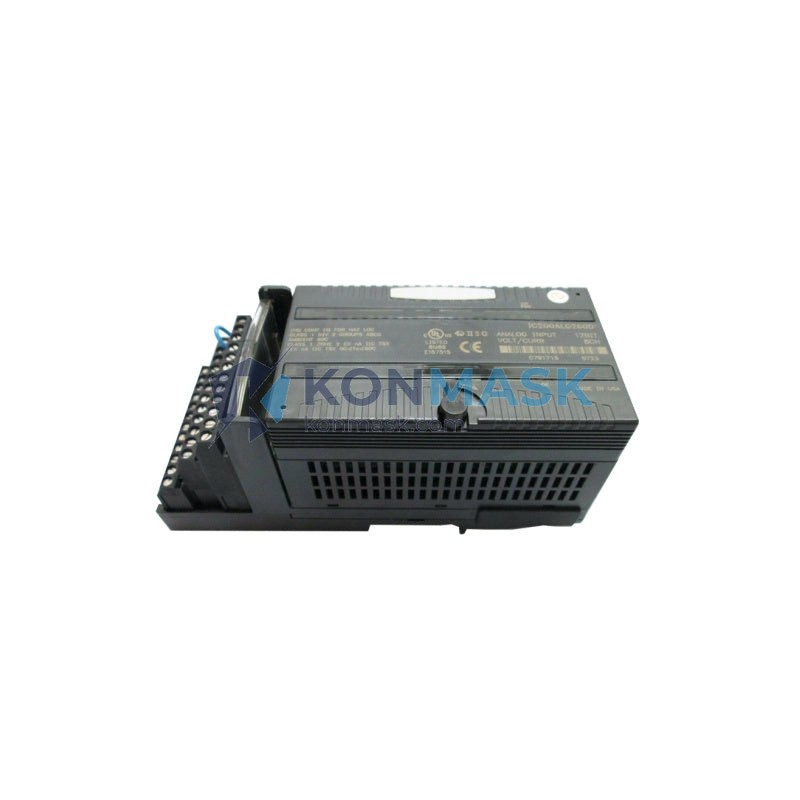

Process Control Solution – GE IC200ALG260 | VersaMax Analog Input Module
The GE IC200ALG260 is a high-density 15-channel analog input module from GE’s VersaMax I/O platform, engineered for demanding industrial process control, SCADA, and data acquisition environments. It accepts both voltage and current signals, making it a versatile front-end interface for sensors, transmitters, and field instruments across a wide range of industries.
Where This Product Is Used
The IC200ALG260 is specified by process engineers and system integrators in applications where high-channel-count analog acquisition is critical:
- Chemical & Petrochemical Plants – Monitoring pressure, temperature, and flow transmitters (4–20 mA) across reactor loops and pipeline segments.
- Water & Wastewater Treatment – Interfacing with level sensors, pH probes, and turbidity meters in SCADA-controlled treatment facilities.
- Oil & Gas Upstream/Midstream – Acquiring analog signals from wellhead instruments and compressor station sensors.
- Power Generation & Utilities – Reading voltage and current signals from generator auxiliaries and substation monitoring equipment.
- Food & Beverage Processing – Integrating with temperature and pressure transmitters in CIP (Clean-in-Place) and pasteurization systems.
- Automotive Manufacturing – Collecting analog feedback from robotic welding and assembly line sensors.
- Building Automation (BAS/BMS) – Monitoring HVAC sensors, chiller outputs, and energy metering signals.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | IC200ALG260 |
| Series | GE VersaMax |
| Module Type | Analog Input |
| Number of Channels | 15 (single-ended) / 7 (differential) |
| Input Signal Types | Voltage: 0–10 V, ±10 V; Current: 0–20 mA, 4–20 mA |
| Resolution | 12-bit (0.025% full scale) |
| Input Impedance (Voltage) | ≥ 1 MΩ |
| Input Impedance (Current) | 250 Ω (internal shunt) |
| Conversion Speed | ~1 ms per channel (typical) |
| Isolation | 500 V AC field-to-logic |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Power Consumption | 5 VDC from backplane (≤ 200 mA typical) |
| Backplane Compatibility | VersaMax Local / Remote I/O Carriers |
| Weight | Approx. 300 g |
| Country of Origin | United States |
Why Engineers Specify This Model
- High Channel Density – 15 single-ended channels in a single module slot reduces cabinet footprint and wiring cost versus multi-module alternatives.
- Dual Signal Compatibility – Accepts both voltage and current inputs without external signal converters, simplifying BOM and reducing failure points.
- Proven VersaMax Ecosystem – Plug-and-play compatibility with GE VersaMax CPUs, remote I/O heads, and Profibus/DeviceNet adapters already deployed in the field.
- Robust Isolation – 500 V AC field-to-logic isolation protects the controller from ground loops and transient surges common in industrial environments.
- Long Product Lifecycle – GE VersaMax has an extensive installed base; replacement modules are readily available through authorized distributors like Konmask.com.
Complete System Bill of Materials
For a complete VersaMax analog acquisition system, engineers typically specify the following alongside the IC200ALG260:
- CPU / Controller – IC200CPUE05, IC200CPUE05-AE, or compatible VersaMax CPU
- I/O Carrier / Backplane – IC200CHS002 (5-slot) or IC200CHS022 (10-slot) local carrier
- Power Supply – IC200PWR002 (120/240 VAC input) or IC200PWR001 (24 VDC input)
- Remote I/O Head – IC200BEM003 (Genius) or IC200BEM104 (Profibus DP) for distributed architectures
- Digital I/O Modules – IC200MDL640 (discrete input) / IC200MDL741 (discrete output) for mixed I/O panels
- Analog Output Module – IC200ALG320 or IC200ALG430 for closed-loop control loops
Compliance & Industry Standards
- CE Marking – EMC Directive 2014/30/EU
- UL Listed – UL 508 (Industrial Control Equipment)
- RoHS Compliant – Directive 2011/65/EU
- ATEX / IECEx – Consult factory for hazardous-area installation guidance
- IEC 61131-2 – Programmable Controllers: Equipment Requirements and Tests
Quality Assurance & Sourcing
All IC200ALG260 units supplied by Konmask.com undergo a rigorous incoming inspection process:
- Visual inspection for physical damage, label integrity, and date codes
- Functional power-on verification where applicable
- Anti-static packaging with humidity indicator cards
- Traceable documentation available upon request (test reports, CoC)
- Sourced from authorized distributors, OEM overstock, and verified secondary-market channels
We carry both new-in-box (NIB) and refurbished/tested units. Condition is clearly stated at time of quotation.
How to Source This Part
- Request a Quote – Email support@konmask.com with your required quantity, condition preference (new/refurbished), and delivery timeline.
- Receive Availability & Pricing – Our team responds within 1 business day with stock status, lead time, and pricing in your preferred currency.
- Place Order & Confirm Shipping – Orders are processed with DHL Express, FedEx, or UPS. Export documentation (commercial invoice, packing list, EAR99 classification) provided as standard.
- Receive & Verify – Each shipment includes a packing list. Contact us within 7 days of receipt for any discrepancies.
Application-Specific FAQ
Q: Can the IC200ALG260 accept HART signals from smart transmitters?
A: The IC200ALG260 reads the 4–20 mA analog signal from HART transmitters but does not natively decode HART digital data. A separate HART multiplexer or modem is required for full HART communication.
Q: Is the IC200ALG260 compatible with the VersaMax Micro CPU (IC200UDR series)?
A: No. The IC200ALG260 is designed for the VersaMax modular I/O platform and requires a VersaMax carrier. It is not compatible with VersaMax Micro or Nano CPUs.
Q: What is the maximum cable length for analog inputs?
A: GE recommends shielded twisted-pair cable up to 300 m (1,000 ft) for current inputs (4–20 mA). Voltage inputs are more susceptible to noise and should be kept under 30 m where possible.
Q: Can channels be mixed between voltage and current on the same module?
A: Yes. Each channel is individually configurable via software (Proficy Machine Edition) for voltage or current input mode.
Q: What is the equivalent or replacement module if IC200ALG260 is discontinued?
A: The IC200ALG261 (enhanced version with diagnostics) and IC200ALG262 are functional equivalents. Third-party replacements from Horner APG and AutomationDirect may also be evaluated depending on system requirements.
