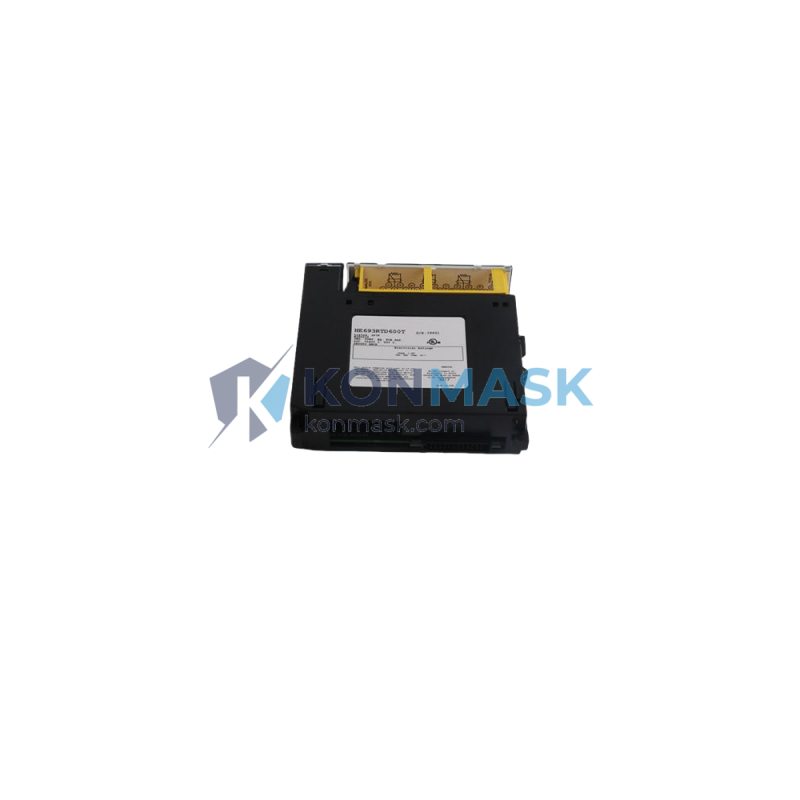

Temperature Measurement Solution – GE Fanuc HE693RTD600T | Series 90-70 RTD Input Card
Where This Product Is Used
The GE Fanuc HE693RTD600T RTD Input Card is deployed in demanding industrial environments where precise, multi-channel temperature acquisition is critical to process integrity. Typical deployment sites include:
- Chemical & Petrochemical Plants – Reactor temperature monitoring, distillation column control, and heat-exchanger regulation.
- Power Generation Facilities – Turbine bearing temperature surveillance, boiler feed-water control, and generator winding protection.
- Pharmaceutical Manufacturing – GMP-compliant batch temperature logging for autoclaves, fermenters, and clean-room HVAC.
- Food & Beverage Processing – Pasteurization loop control, cold-chain monitoring, and CIP (Clean-In-Place) temperature validation.
- Pulp & Paper Mills – Dryer section temperature profiling and digester process control.
- Water & Wastewater Treatment – Aeration basin temperature monitoring and sludge digester control.
- Steel & Metal Processing – Furnace zone temperature control and quench-bath monitoring.
Wherever a GE Fanuc Series 90-70 rack is the backbone of the control system, the HE693RTD600T provides the direct RTD interface that eliminates external signal conditioners and reduces wiring complexity.
Technical Specifications
| Part Number | HE693RTD600T |
| Manufacturer | GE Fanuc / ABB (legacy compatible) |
| Series | Series 90-70 PLC |
| Module Type | RTD (Resistance Temperature Detector) Analog Input |
| Input Channels | 6 differential RTD channels |
| Supported RTD Types | Pt100, Pt200, Pt500, Pt1000, Ni120, Cu10 |
| Measurement Range | –200 °C to +850 °C (type-dependent) |
| Resolution | 0.1 °C |
| Accuracy | ±0.5 °C typical |
| Isolation | Channel-to-backplane isolated |
| Backplane Bus | Series 90-70 VME-based I/O bus |
| Power Consumption | Supplied via Series 90-70 backplane |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5 % to 95 % non-condensing |
| Weight | 280 g |
| Form Factor | Single-slot Series 90-70 module |
| Configuration Tool | GE Proficy Machine Edition / Logicmaster 90 |
Why Engineers Specify This Model
- Direct RTD Interface – Eliminates the need for external transmitters or signal conditioners, reducing panel footprint and potential failure points.
- Multi-Sensor Flexibility – Supports Pt100 through Pt1000 and Ni120 in the same module, allowing mixed-sensor installations without additional hardware.
- High-Resolution Measurement – 0.1 °C resolution satisfies pharmaceutical and food-safety validation requirements.
- Differential Input Architecture – Rejects common-mode noise from long cable runs in electrically noisy plant environments.
- Seamless Series 90-70 Integration – Plug-and-play into any Series 90-70 rack; configuration is handled entirely within Proficy Machine Edition or Logicmaster 90 without custom drivers.
- Proven Long-Term Availability – Konmask.com maintains stock of legacy GE Fanuc modules to support brownfield plants with extended service life requirements.
Complete System Bill of Materials
A typical Series 90-70 temperature acquisition node using the HE693RTD600T includes:
- HE693RTD600T – RTD Input Card (this item)
- IC697CHS750 / IC697CHS782 – Series 90-70 5- or 9-slot baseplate
- IC697PWR711 / IC697PWR724 – Series 90-70 power supply module
- IC697CPU772 / IC697CPU781 – Series 90-70 CPU module
- IC697BEM713 – Remote I/O bus controller (for distributed racks)
- IC693CBL300 – Series 90-70 programming cable
- Shielded 3-wire or 4-wire RTD cable (customer-supplied, per IEC 60751)
- Terminal block or field wiring assembly compatible with Series 90-70 I/O connector
Contact support@konmask.com for bundle pricing on complete rack assemblies.
Compliance & Industry Standards
- IEC 60751 – Industrial platinum resistance thermometers (Pt100/Pt1000 calibration standard)
- IEC 61131-2 – Programmable controllers: equipment requirements and tests
- CE Marking – EMC Directive 2014/30/EU (original GE Fanuc certification)
- UL Listed – UL 508 industrial control equipment (original certification)
- RoHS Compliant – Directive 2011/65/EU (verify lot-specific documentation on request)
- ATEX / IECEx – Module itself is non-Ex rated; install in a purged or pressurized enclosure for Zone 2 applications
Quality Assurance & Sourcing
Konmask.com sources the HE693RTD600T exclusively through verified industrial surplus and authorized distribution channels. Every unit dispatched undergoes the following quality process:
- Visual Inspection – PCB, connector pins, and housing checked for physical damage, corrosion, and counterfeit indicators.
- Functional Power-On Test – Module is seated in a Series 90-70 test rack and powered to confirm backplane communication and channel initialization.
- Firmware Version Verification – Firmware revision recorded and disclosed in the shipment documentation.
- ESD-Safe Packaging – Shipped in anti-static bags with foam cushioning inside double-wall corrugated cartons.
- Traceability Record – Lot number, test date, and technician ID retained for 3 years.
A 30-day DOA (Dead-On-Arrival) warranty is included. Extended warranty and exchange programs are available — contact us for details.
How to Source This Part
- Add to Cart – Click Buy Now to place an immediate order for in-stock units.
- Request a Quote – For quantities ≥ 3 units or project-based procurement, email support@konmask.com with your PO number and required delivery date.
- Expedited Shipping – DHL Express, FedEx International Priority, and UPS Worldwide Expedited are available at checkout. Most orders ship within 1–2 business days.
- Export Documentation – Commercial invoice, packing list, and ECCN classification (EAR99) provided for all international shipments.
- Payment Terms – T/T (wire transfer), PayPal, and major credit cards accepted. Net-30 terms available for approved corporate accounts.
Application-Specific FAQ
Q: Is the HE693RTD600T compatible with the Series 90-30 or PACSystems RX7i rack?
A: No. This module is designed exclusively for the Series 90-70 VME backplane. It is not electrically or mechanically compatible with Series 90-30 or PACSystems RX7i/RX3i racks.
Q: Can I mix Pt100 and Ni120 sensors on the same module?
A: Yes. Each channel is configured independently in Proficy Machine Edition, allowing different RTD types on the same card.
Q: What is the maximum cable length for RTD sensors?
A: GE Fanuc recommends a maximum of 300 m (1,000 ft) for 3-wire Pt100 sensors using 1.5 mm² shielded cable. Lead resistance compensation is handled automatically by the module.
Q: Do you provide the GSD or EDS file for this module?
A: The HE693RTD600T communicates over the Series 90-70 backplane, not a fieldbus. Configuration is performed via Proficy Machine Edition hardware configuration — no GSD/EDS file is required.
Q: Can this module be used in a hot-standby redundancy configuration?
A: Yes, when paired with an IC697BEM713 and a redundant CPU pair (e.g., IC697CPU781). Consult GE Fanuc GFK-0867 for redundancy wiring guidelines.
Q: What is your lead time if the item is out of stock?
A: Typical sourcing lead time is 2–4 weeks. Contact support@konmask.com to join the back-order notification list.
