ABB DSQC532B (3HAC023447-001) I/O PCB Computer Board | Replacement, Equivalent & Selection Guide

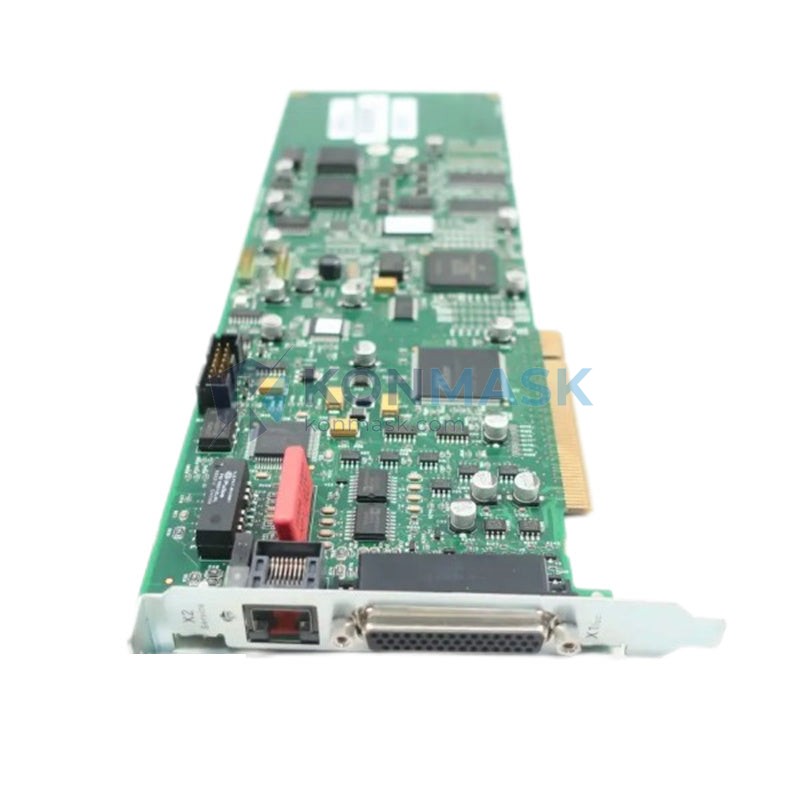

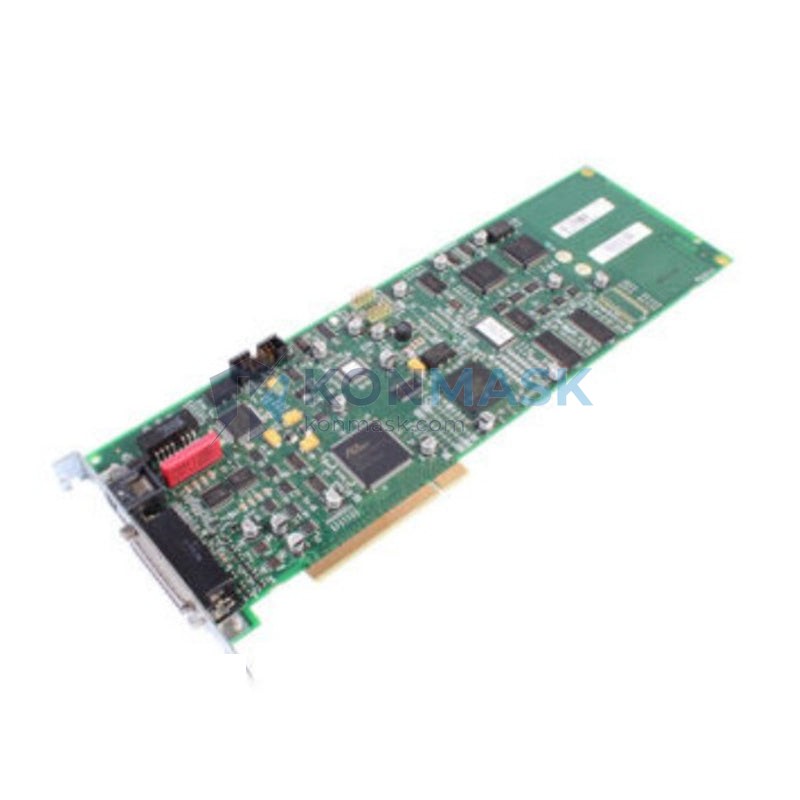

The ABB DSQC532B (part number 3HAC023447-001) is an I/O PCB Computer Board designed for ABB IRC5 robot controllers. It serves as the central interface board managing digital and analog I/O signal routing between the controller cabinet and connected field devices, enabling precise motion control and process automation in industrial robotic systems.
Buyers searching for an ABB DSQC532B replacement or a 3HAC023447-001 equivalent typically face urgent downtime situations or planned maintenance windows. Understanding which modules are direct drop-in replacements versus functional equivalents — and which cross-brand alternatives require engineering review — is critical to minimizing risk and restoring production quickly. This guide is designed to answer those questions clearly.
Technical Specifications
- Part Number: DSQC532B / 3HAC023447-001
- Manufacturer: ABB Robotics
- Module Type: I/O PCB Computer Board
- Compatible Controller: ABB IRC5 (single cabinet & dual cabinet)
- Digital Inputs: 16 DI (24 VDC, IEC 61131-2 Type 1/3)
- Digital Outputs: 16 DO (24 VDC, 0.5 A per channel)
- Analog I/O: 2 AI / 2 AO (±10 V / 0–20 mA)
- Communication Bus: DeviceNet (internal backplane)
- Operating Voltage: 24 VDC (±15%)
- Operating Temperature: 0 °C to +55 °C
- Protection Rating: IP20
- Dimensions (approx.): 233 × 130 × 35 mm
- Weight: ~200 g
- Firmware Compatibility: RobotWare 5.x / 6.x
- ⚠ Key Replacement Parameter: Firmware version and DeviceNet node address must match the outgoing board; mismatched firmware will cause IRC5 boot failure.
Compatible Replacement & Equivalent Models
Direct Drop-in Replacements — same form, fit, and function; no configuration changes required:
- ABB DSQC532A (3HAC14550-1) — earlier hardware revision; functionally identical for most IRC5 configurations. Verify RobotWare version compatibility before swapping.
- ABB DSQC532B (3HAC023447-001) — current production revision; this is the reference unit.
Functional Equivalents — same I/O count and bus protocol; may require minor parameter re-mapping in RobotWare:
- ABB DSQC651 (3HAC025917-001) — expanded I/O board (24 DI / 16 DO); superset of DSQC532B functionality. Suitable when additional I/O capacity is needed simultaneously.
- ABB DSQC652 (3HAC025784-001) — 24 DI / 16 DO with relay outputs; use when load-switching outputs are required.
- Prerequisite: Confirm IRC5 backplane slot compatibility and update I/O configuration in RobotWare System Parameters.
Cross-Brand Alternatives — third-party or aftermarket boards with equivalent I/O specifications; require engineering validation:
- Anybus X-gateway DeviceNet I/O modules — can substitute in non-safety I/O loops with gateway configuration; not recommended for safety-rated circuits.
- Generic IRC5-compatible I/O boards (various OEM suppliers) — verify DeviceNet MAC ID range, voltage tolerance, and RobotWare driver support before installation.
- ⚠ Note: Cross-brand substitutes are not endorsed by ABB and may void controller warranty. Always perform a full I/O checkout after installation.
Why Choose the Original Model
- Precision & Reliability: Factory-calibrated analog channels ensure ±0.1% full-scale accuracy — critical for force-controlled and path-sensitive robot applications.
- OEM Certification: Fully certified to IEC 61131-2 and CE/UL standards; maintains robot system safety certification integrity.
- Seamless Compatibility: Plug-and-play with IRC5 backplane — no firmware patching, no driver conflicts, no re-commissioning of unrelated I/O nodes.
- ABB Technical Support: Original part number ensures eligibility for ABB Robotics technical support and remote diagnostics via RobotStudio.
- Warranty Coverage: Genuine ABB modules supplied through authorized channels carry a 12-month hardware warranty; aftermarket boards typically do not.
- Long-Term Availability: ABB maintains spare parts availability for IRC5 components for a minimum of 10 years post-production; cross-brand alternatives carry no such commitment.
Typical Applications
- Automotive Body Shop: Spot welding robots (IRB 6700 series) requiring high-cycle I/O switching for gun control and part-present sensing.
- Electronics Assembly: IRB 120 / IRB 1200 pick-and-place cells with analog force feedback for delicate component placement.
- Palletizing & Logistics: IRB 460 / IRB 660 high-speed palletizers using digital I/O for conveyor interlocking and gripper control.
- Arc Welding: IRC5 welding cells where analog outputs drive wire feed speed and voltage references on welding power sources.
- Machine Tending: CNC machine tending cells requiring door interlock, chuck open/close, and part-in-place digital I/O coordination.
- Food & Beverage: Hygienic packaging lines where IP20 controller-side I/O boards interface with IP65/IP67 field junction boxes.
System Compatibility
The DSQC532B is designed to operate within the ABB IRC5 controller ecosystem. Typical companion components include:
- DSQC639 (3HAC025097-001) — Main Computer Unit; hosts RobotWare and communicates with DSQC532B via internal DeviceNet.
- DSQC643 (3HAC025338-001) — Axis Computer; coordinates motion with I/O state from DSQC532B.
- DSQC662 (3HAC026253-001) — Safety Board; monitors E-stop and safeguard signals in conjunction with DSQC532B digital inputs.
- DSQC609 (3HAC14265-1) — Power Distribution Board; supplies 24 VDC to DSQC532B and other IRC5 boards.
- FlexPendant (3HAC028357-001) — Teach pendant; I/O status visible in real time via RobotWare I/O panel.
- IRC5 Cabinet (3HAC029157-001 series) — Standard single-cabinet enclosure housing all above components.
Selection Guide
Answer these three questions to confirm the DSQC532B is the right choice for your application — or to identify the best alternative:
- Is your controller an ABB IRC5 (single or dual cabinet)? If yes, DSQC532B is a direct fit. If you have an IRC5 Compact or IRC5P (paint), verify backplane slot dimensions before ordering.
- Does your RobotWare version support DSQC532B? Compatible with RobotWare 5.x and 6.x. If running RobotWare 4.x (S4C+ era), you need DSQC328A or DSQC377B instead — contact Konmask for guidance.
- Do you need more than 16 DI / 16 DO? If yes, consider DSQC651 or DSQC652 as functional equivalents with expanded I/O. Konmask can advise on configuration changes required.
Not sure? Contact Konmask at support@konmask.com or +0086 19859288691 — our engineers respond within 24 hours.
Quality Assurance & Sourcing
Konmask sources ABB DSQC532B modules through authorized distribution channels and verified surplus markets. Every unit undergoes a 4-step inspection process before shipment:
- Visual Inspection: PCB surface, connector pins, and component markings checked against ABB factory standards; boards with burn marks, corrosion, or counterfeit labels are rejected.
- Electrical Bench Test: All 16 DI, 16 DO, 2 AI, and 2 AO channels verified at rated voltage; DeviceNet communication confirmed via test fixture.
- Firmware Verification: RobotWare-compatible firmware version confirmed and documented; boards with unknown or corrupted firmware are reflashed or quarantined.
- Functional Run-in: 48-hour powered soak test at operating temperature to screen for infant-mortality failures before dispatch.
Available documentation upon request: test report, CE declaration of conformity, country of origin certificate, and packing list.
How to Order
- Confirm Your Requirement: Share your IRC5 serial number, RobotWare version, and current part number (DSQC532B / 3HAC023447-001) with Konmask via email or phone.
- Receive a Quote: Konmask will confirm stock availability, lead time, and pricing within 24 hours. Expedited shipping options available for urgent downtime situations.
- Place Your Order: Proceed via the Konmask online store or direct invoice. Secure packaging with anti-static protection and full documentation included with every shipment.
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q1: Can I use DSQC532A as a direct replacement for DSQC532B (3HAC023447-001)?
A: In most cases, yes — DSQC532A (3HAC14550-1) is the predecessor revision and is functionally equivalent for IRC5 controllers running RobotWare 5.x. However, confirm that your RobotWare system parameters reference the correct board type, as some later RobotWare 6.x builds require the DSQC532B revision specifically. Konmask can verify compatibility for your exact system configuration.
Q2: Is the DSQC532B compatible with IRC5 Compact controllers?
A: The DSQC532B is designed for the standard IRC5 single and dual cabinet. The IRC5 Compact uses a different backplane form factor. If you need an I/O substitute for IRC5 Compact, contact Konmask — we can identify the correct compatible module for your compact controller variant.
Q3: What is the best substitute for DSQC532B if the original is discontinued or unavailable?
A: The closest functional equivalent is the ABB DSQC651 (3HAC025917-001), which offers a superset of I/O channels and is compatible with the same IRC5 backplane. It requires an I/O configuration update in RobotWare System Parameters. Konmask supplies both DSQC532B and DSQC651 and can provide the configuration change procedure as part of the order package.
