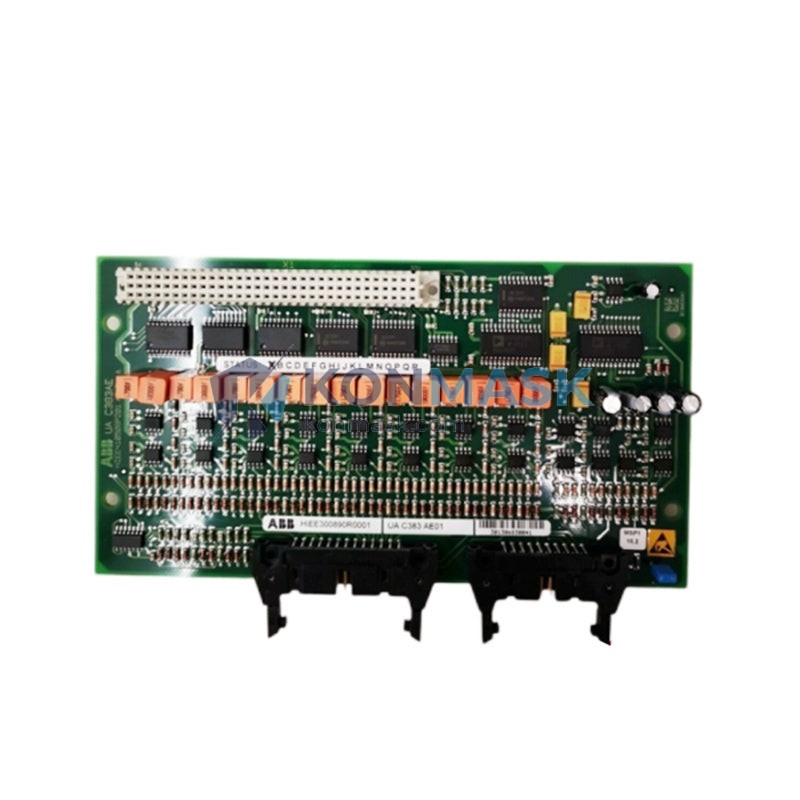

ABB HIEE300890R0001 UAC383AE01 – AC800M Series PCB Control Board | ABB DCS Platform
Engineering Background
The ABB AC800M is ABB’s flagship mid-range Distributed Control System (DCS) controller platform, widely deployed across power generation, oil & gas, pulp & paper, and chemical processing industries. The AC800M architecture relies on a modular PCB assembly approach, where individual boards such as the UAC383AE01 handle dedicated signal processing, communication arbitration, or power conditioning functions within the controller chassis.
Product Positioning
The HIEE300890R0001 / UAC383AE01 is a genuine OEM PCB assembly sourced from ABB-authorized supply chains. It is intended for procurement engineers and maintenance teams requiring a verified replacement or spare board for AC800M controller units in live production environments. Konmask.com supplies this component with full traceability documentation and pre-shipment functional verification.
Complete Technical Specifications
| Manufacturer | ABB |
| Part Number | HIEE300890R0001 |
| Reference Designation | UAC383AE01 |
| Component Type | PCB Assembly / Control Board |
| Platform Compatibility | ABB AC800M DCS Controller Series |
| Form Factor | Plug-in PCB module (chassis-mounted) |
| Weight | 380 g (approx.) |
| Operating Temperature | 0°C to +55°C (standard industrial range) |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5–95% RH, non-condensing |
| Compliance | CE, RoHS (per ABB product family declaration) |
| Condition | New / Refurbished (specify at inquiry) |
| Lead Time | In-stock / 3–7 business days (subject to availability) |
Proven Application Environments
- Power Generation: Turbine governor and boiler control systems using AC800M as the primary DCS controller
- Oil & Gas: Upstream and midstream process automation with redundant AC800M controller racks
- Pulp & Paper: Continuous process lines requiring high-availability DCS with hot-standby controller modules
- Chemical & Petrochemical: Reactor control and safety-instrumented system (SIS) integration environments
- Water & Wastewater: SCADA-integrated AC800M installations for pump station and treatment plant automation
- Mining & Minerals: Conveyor, crusher, and flotation cell control using ABB Extended Automation System 800xA
Engineering Advantages
- OEM Traceability: Each unit ships with part number label, revision marking, and optional Certificate of Conformance (CoC)
- Drop-in Replacement: Maintains full backward compatibility within the AC800M chassis — no firmware re-flashing required in most configurations
- Pre-shipment Verification: Visual inspection, board-level continuity check, and functional power-on test performed before dispatch
- Reduced Downtime Risk: Stocked inventory enables same-week dispatch, minimizing unplanned production outage duration
- Dual-sourcing Support: Konmask.com can supply both new OEM and tested-refurbished units to match budget and lead-time constraints
System Architecture & Signal Flow
Within the AC800M controller chassis, the UAC383AE01 PCB interfaces with the main CPU module (e.g., PM861, PM864, PM866 series) via the internal backplane bus. Depending on its functional role (communication, I/O expansion, or power distribution), it receives configuration parameters from the AC800M engineering tool (Control Builder M) and participates in the controller’s cyclic task execution. Signal integrity is maintained through ABB’s proprietary backplane protocol, ensuring deterministic scan times consistent with IEC 61131-3 programming standards.
For redundant controller configurations, the board supports hot-standby switchover without interrupting process I/O — a critical requirement for SIL-rated loops and continuous process industries.
Sourcing & Quality Verification
- All units are sourced from ABB-authorized distributors, decommissioned OEM installations, or certified refurbishment partners
- Anti-counterfeit checks: holographic label verification, PCB silkscreen inspection, and component date-code analysis
- ESD-safe packaging with desiccant and anti-static foam insert for international freight
- Optional third-party inspection report available upon request for critical procurement
- Warranty: 12 months from shipment date (new units); 6 months (refurbished units)
Procurement Process
- Submit Inquiry: Contact support@konmask.com with your required quantity, delivery timeline, and destination country
- Quotation: Receive a formal quotation with unit price (HKD/USD), lead time, and shipping options within 1 business day
- Order Confirmation: Issue a Purchase Order (PO) referencing part number HIEE300890R0001 / UAC383AE01
- Payment: T/T bank transfer, PayPal, or Shopify checkout (credit card / Shop Pay)
- Dispatch & Tracking: ESD-safe packed, shipped via DHL / FedEx / SF Express with full tracking number provided
- After-sales: Technical support and warranty claims handled directly by Konmask.com engineering team
Technical FAQ
Q: Is HIEE300890R0001 compatible with both PM861 and PM864 CPU modules?
A: Compatibility depends on the specific functional role of the UAC383AE01 board within your chassis configuration. Please share your controller BOM or rack layout for a definitive compatibility confirmation.
Q: Can this board be used in a redundant AC800M controller pair?
A: Yes, provided the board’s function supports redundancy in your specific system revision. Redundancy configuration is managed at the Control Builder M software level.
Q: Do you provide an IEC 61508 / SIL certification document for this board?
A: SIL certification is issued at the system level by ABB. We can provide the ABB product safety manual reference and assist in locating the applicable TÜV certificate for your system version.
Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 unit. Volume pricing is available for orders of 3 units or more.
Q: Can you supply the matching firmware or configuration backup?
A: Firmware is managed by the AC800M CPU module, not this PCB. Configuration backups are the responsibility of the end-user’s engineering team via Control Builder M.
