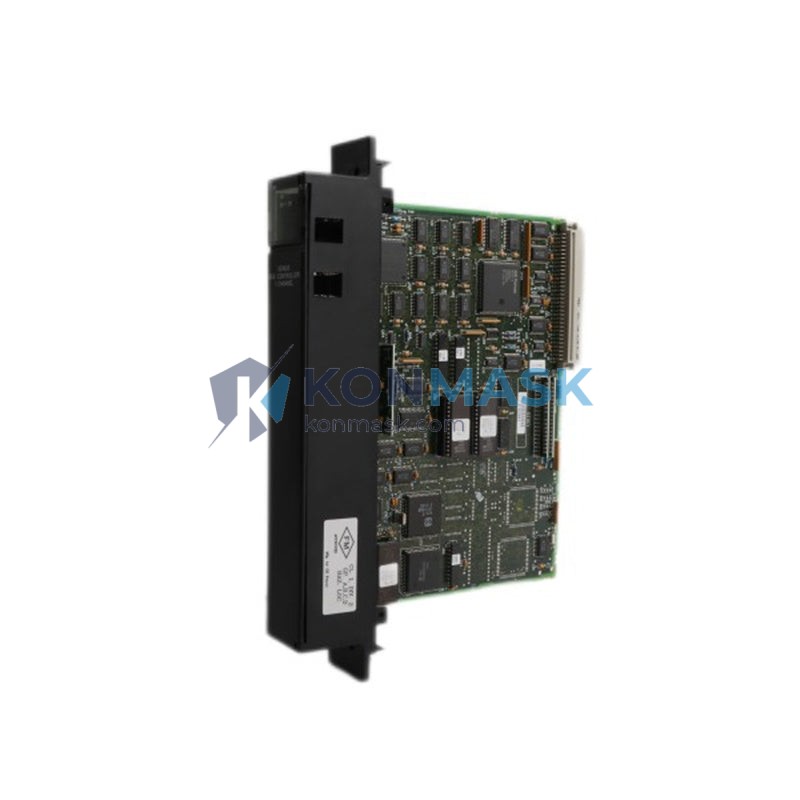

ABB IC697BEM731F – Remote I/O Bus Controller Module | Series 90-70 Platform
Engineering Background
The IC697BEM731F is a Bus Controller Module designed for GE Fanuc / ABB Series 90-70 programmable logic controller systems. It serves as the communication bridge between the main CPU rack and remote I/O expansion racks, enabling distributed control architectures across large-scale industrial installations. This module was engineered to meet the demanding requirements of continuous-process and discrete-manufacturing environments where rack-to-rack communication integrity is non-negotiable.
Product Positioning
Targeted at maintenance engineers, system integrators, and procurement specialists managing legacy Series 90-70 infrastructure, the IC697BEM731F provides a direct, drop-in replacement path with no firmware re-engineering. Konmask.com stocks this module to support rapid MRO (Maintenance, Repair & Operations) procurement cycles with verified provenance and pre-shipment functional screening.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | IC697BEM731F |
| Manufacturer | ABB (formerly GE Fanuc / GE Intelligent Platforms) |
| Module Type | Bus Controller Module (BCM) |
| Platform | Series 90-70 (VME-based) |
| Function | Remote I/O bus master for Series 90-70 expansion racks |
| Communication Bus | GE Series 90 Remote I/O Bus (proprietary coaxial) |
| Max Remote Drops | Up to 31 remote I/O drops per bus |
| Bus Speed | 1 Mbps (standard Series 90-70 remote I/O rate) |
| Max Cable Distance | 750 m (coaxial, per segment) |
| Backplane Interface | VME 6U form factor |
| Power Consumption | Refer to GE Fanuc Series 90-70 Hardware Reference Manual |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Approvals | UL, CE (per original GE Fanuc certification) |
| Module Weight | ~500 g |
| Firmware Revision | F (suffix denotes hardware/firmware revision level) |
Proven Application Environments
- Automotive Manufacturing – Body-in-white assembly lines with distributed I/O across multi-zone conveyor systems
- Chemical & Petrochemical Plants – Continuous-process control with remote rack expansion in hazardous-area-adjacent panels
- Power Generation & Utilities – Turbine control and substation automation using legacy Series 90-70 CPU racks
- Pulp & Paper Mills – High-I/O-count process lines requiring reliable rack-to-rack bus communication
- Water & Wastewater Treatment – SCADA-integrated PLC systems with geographically distributed I/O drops
- Food & Beverage Processing – Washdown-environment panels where remote I/O reduces main panel wiring complexity
- OEM Machine Builders – Legacy machine retrofits and spare-parts programs maintaining Series 90-70 installed base
Engineering Advantages
- Direct Drop-In Replacement – Pin-compatible with all IC697BEM731 revision levels; no rack modification required
- Deterministic Bus Timing – Fixed-scan remote I/O bus ensures predictable latency for time-critical control loops
- High Drop Count – Supports up to 31 remote drops, enabling large distributed I/O architectures from a single BCM slot
- Robust Coaxial Interface – Industrial-grade RG-6 coaxial bus connection with noise immunity for plant-floor EMI environments
- Status LED Diagnostics – Onboard LEDs provide real-time bus health and communication fault indication without requiring programming software
- Long Cable Reach – 750 m per segment supports large facility footprints without signal repeaters
- Proven Longevity – Series 90-70 platform has 30+ years of installed-base history; spare parts availability is a strategic procurement priority
System Architecture & Signal Flow
The IC697BEM731F occupies a standard VME slot in the Series 90-70 CPU rack. The CPU communicates with the BCM over the VME backplane. The BCM then acts as bus master on the coaxial remote I/O bus, polling each remote drop (Bus Receiver Module, BRM) in a deterministic round-robin scan. Each remote drop can house a full complement of Series 90-70 I/O modules. The signal flow is:
CPU Rack (VME Backplane) → IC697BEM731F (BCM) → Coaxial Remote I/O Bus → Remote Drop BRM → Remote I/O Modules → Field Devices
Configuration is performed via the GE Proficy Machine Edition (formerly Logicmaster 90-70) programming environment. The BCM appears as a configured hardware element in the I/O tree; no separate BCM firmware programming is required beyond rack/slot assignment.
Sourcing & Quality Verification
- Provenance – Modules sourced from decommissioned OEM lines, authorized distributors, and verified surplus channels; full traceability documentation available on request
- Pre-Shipment Inspection – Visual inspection for physical damage, connector integrity, and label authenticity; functional power-on test performed where test fixtures are available
- Counterfeit Mitigation – Part markings, date codes, and PCB characteristics cross-referenced against known-genuine reference units
- Packaging – ESD-safe anti-static bag, foam-lined carton; humidity indicator card included for long-distance shipments
- Documentation – GE Fanuc hardware reference manual excerpt and test report available upon request
Procurement Process
- Inquiry – Submit your part number, required quantity, and delivery timeline via email or phone
- Quote – Receive a formal quotation with unit price, lead time, and shipping options within 1 business day
- Order Confirmation – Purchase order or proforma invoice issued; payment terms confirmed
- Quality Check & Dispatch – Pre-shipment inspection completed; tracking number provided within 24–48 hours of payment clearance
- After-Sales Support – Technical assistance available for installation verification and compatibility questions
📦 Typical Lead Time: 3–7 business days for in-stock units | Express shipping available
✈️ Shipping: DHL / FedEx / UPS international; local courier for domestic CN orders
Technical FAQ
Q: Is the IC697BEM731F compatible with all Series 90-70 CPU models?
A: Yes. The BCM communicates over the VME backplane and is compatible with all Series 90-70 CPUs (IC697CPU7xx series) that support remote I/O bus configuration.
Q: Can I use this module with a Series 90-30 or PACSystems RX7i rack?
A: No. The IC697BEM731F is specific to the Series 90-70 VME rack form factor. PACSystems RX7i uses a different backplane architecture and requires IC698-series bus controllers.
Q: How many IC697BEM731F modules can I install in one CPU rack?
A: Multiple BCMs can be installed in a single rack (subject to power budget), each managing an independent remote I/O bus with up to 31 drops.
Q: What coaxial cable type is required for the remote I/O bus?
A: GE specifies RG-6 coaxial cable with BNC connectors. Maximum segment length is 750 m. Proper termination resistors (75 Ω) must be installed at each bus end.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 90-day functional warranty on all modules. Extended warranty options are available — contact us for details.
Q: Can you provide a Certificate of Conformance (CoC) or test report?
A: Yes, upon request. Please specify your documentation requirements at the time of inquiry.
