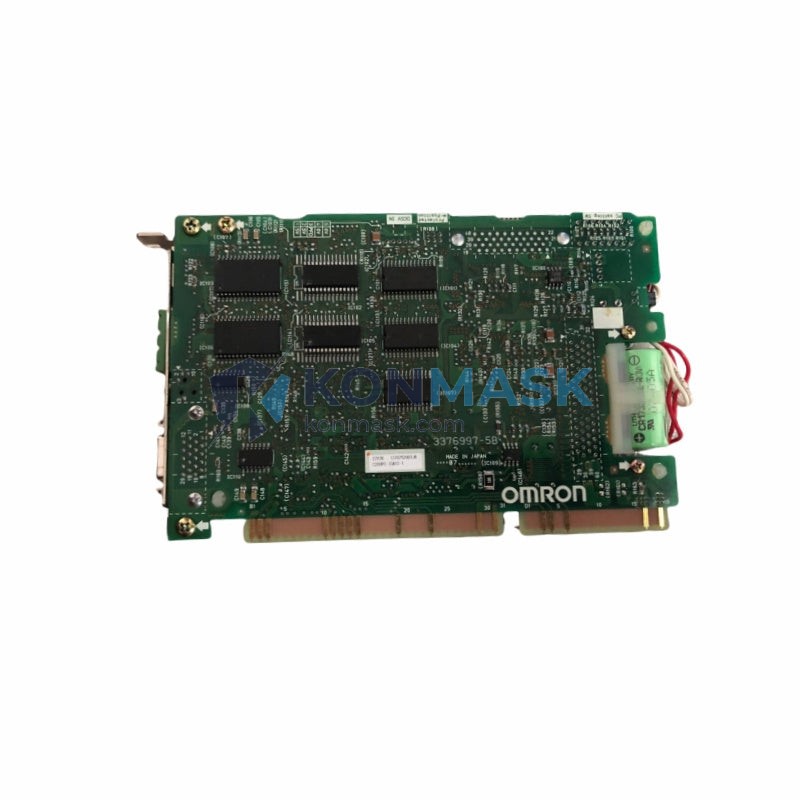

Remote I/O Distributed Control Solution – Omron C200PC-ISA13-SRM-E | SYSMAC C200H Series
Where This Product Is Used
The Omron C200PC-ISA13-SRM-E Serial Remote Master (SRM) module is engineered for applications requiring distributed I/O control over serial communication links. Typical deployment environments include:
- Automotive Assembly Lines – Coordinating remote I/O stations across conveyor and welding cells without running extensive parallel wiring.
- Food & Beverage Processing – Managing distributed sensor/actuator nodes in hygienic zones where centralized wiring is impractical.
- Packaging Machinery – Synchronizing remote I/O slaves on high-speed filling and labeling lines.
- Intralogistics & Warehousing – Controlling remote I/O points on conveyor sorters and automated storage systems.
- Water Treatment Plants – Linking remote field I/O panels back to a central C200H CPU over serial links.
- Machine Tool & CNC Integration – Extending I/O reach of C200H-based controllers to remote operator panels and safety interlocks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | C200PC-ISA13-SRM-E |
| Series | SYSMAC C200H |
| Module Type | Serial Remote Master (SRM) Communication Module |
| Manufacturer | Omron Corporation |
| Communication Protocol | SYSMAC BUS/2 Serial Remote I/O |
| Mountable Rack | C200H CPU Rack / Expansion I/O Rack |
| Remote Slave Capacity | Up to 32 remote I/O slaves per master |
| I/O Points (Remote) | Up to 512 I/O points per SRM link |
| Power Consumption | 5 VDC (from backplane) |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | –20 °C to 75 °C |
| Humidity | 10% to 90% RH (non-condensing) |
| Weight | Approx. 300 g |
| Compliance | CE, UL, cUL |
Why Engineers Specify This Model
- Reduced Wiring Cost – Serial remote I/O topology replaces parallel home-run wiring, cutting cable costs by up to 60% on large distributed systems.
- Seamless C200H Integration – Plugs directly into the C200H backplane; no external interface converter required.
- High I/O Density – Supports up to 512 remote I/O points per SRM link, scaling with production demands.
- Deterministic Scan Time – SYSMAC BUS/2 protocol delivers consistent, low-latency I/O refresh for time-critical control loops.
- Proven Field Reliability – Omron SYSMAC C200H platform has decades of validated uptime in harsh industrial environments.
- Simplified Diagnostics – Onboard LED indicators and CX-Programmer integration enable rapid fault isolation.
Complete System Bill of Materials
For a fully operational SYSMAC C200H remote I/O system using the C200PC-ISA13-SRM-E, engineers typically specify:
- C200H-CPU43-E / C200H-CPU63-E – Host CPU Unit
- C200H-BC051-V2 / C200H-BC101-V2 – CPU Backplane (5-slot / 10-slot)
- C200H-PA204S – Power Supply Unit
- C200PC-ISA13-SRM-E – Serial Remote Master Module (this unit)
- C200H-RM201 – Remote I/O Slave Unit (field end)
- C200H-ID212 / C200H-OD212 – Digital Input / Output Modules (slave rack)
- C200H-AD003 / C200H-DA003 – Analog I/O Modules (optional, slave rack)
- Shielded twisted-pair cable (Omron-specified, per SYSMAC BUS/2 wiring guide)
Compliance & Industry Standards
- CE Marking – EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- UL / cUL Listed – UL 508 Industrial Control Equipment
- RoHS Compliant – Directive 2011/65/EU
- IEC 61131-2 – Programmable Controllers: Equipment Requirements and Tests
Quality Assurance & Sourcing
Every C200PC-ISA13-SRM-E unit offered by Konmask.com undergoes a documented inspection process:
- Visual inspection for physical damage, corrosion, and connector integrity
- Label and serial number verification against Omron manufacturing records
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator card
- Traceable sourcing from authorized distributors and verified industrial surplus channels
We do not list, sell, or knowingly source counterfeit or non-genuine components. All units are represented accurately by condition (new, refurbished, or tested surplus).
How to Source This Part
- Add to Cart – Proceed directly if quantity and lead time meet your requirements.
- Request a Quote – For volume orders (>5 units) or project-based procurement, contact [email protected] for a formal quotation.
- Expedited Sourcing – If this unit shows out of stock, our sourcing team can locate verified stock within 3–7 business days for most Omron C200H series parts.
- Export & Cross-Border Orders – We support international shipments with commercial invoice, packing list, and HS code documentation. HS Code reference: 8537.10.
Application-Specific FAQ
Q: Is the C200PC-ISA13-SRM-E compatible with the C200HE / C200HG / C200HX CPUs?
A: Yes. The SRM module is compatible across the C200H, C200HE, C200HG, and C200HX CPU families that support the SYSMAC BUS/2 remote I/O protocol. Verify slot availability on your specific CPU rack before ordering.
Q: How many C200PC-ISA13-SRM-E modules can be installed in one CPU rack?
A: Omron allows up to two SRM master modules per C200H CPU rack, subject to backplane slot and power budget constraints. Consult the C200H System Manual (W130-E1) for rack configuration rules.
Q: Can this module communicate with third-party remote I/O slaves?
A: No. The C200PC-ISA13-SRM-E uses Omron’s proprietary SYSMAC BUS/2 protocol and is designed to communicate exclusively with Omron-compatible remote I/O slave units (e.g., C200H-RM201).
Q: What programming software is required?
A: CX-Programmer (CX-One suite) is the standard tool for configuring and programming C200H-based systems. Legacy SYSMAC Support Software (SSS) may also be used for older installations.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 90-day functional warranty on all tested surplus units. New-in-box units carry the original Omron manufacturer warranty where applicable.
