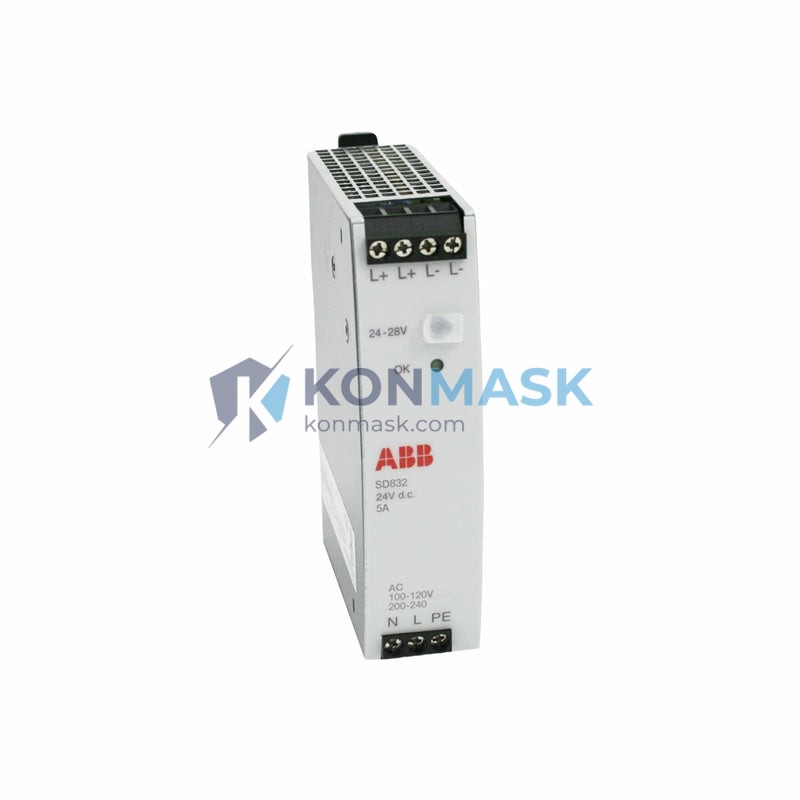

ABB SD832 (3BSC610065R1) – DCS Power Supply Module | AC800M Platform
Engineering Background: The ABB SD832 is a dedicated power supply module engineered for the AC800M Distributed Control System (DCS) platform — ABB’s flagship process automation architecture deployed across oil & gas, petrochemical, pulp & paper, and power generation industries worldwide. Designed to deliver stable, conditioned DC power to controller and I/O modules within the S800 I/O family, the SD832 is a mission-critical component in high-availability control architectures.
Product Positioning: Konmask.com supplies the ABB SD832 (Part No. 3BSC610065R1) as a verified OEM module, sourced through qualified industrial channels. This unit is targeted at procurement engineers and MRO buyers requiring a drop-in replacement or expansion module for existing AC800M installations, with full traceability and quality documentation available upon request.
Complete Technical Specifications
- Manufacturer: ABB Ltd.
- Model / SKU: SD832
- Part Number: 3BSC610065R1
- Platform: AC800M DCS / S800 I/O System
- Module Type: Power Supply Module
- Output Voltage: 24 VDC (nominal)
- Input Voltage: 100–240 VAC, 50/60 Hz (universal input)
- Redundancy: Supports parallel redundant power supply configuration
- Mounting: DIN rail / S800 I/O baseplate compatible
- Protection Class: IP20
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -40°C to +70°C
- Humidity: 5–95% RH, non-condensing
- Weight: 4,460 g (shipping weight)
- Certifications: CE, UL (per ABB product documentation)
- Country of Origin: Sweden (ABB manufacturing)
Proven Application Environments
- Oil & Gas upstream/downstream process control panels
- Petrochemical plant DCS cabinet power distribution
- Pulp & paper mill automation systems
- Power generation and utilities control rooms
- Water treatment and municipal infrastructure SCADA/DCS
- Pharmaceutical batch process control (21 CFR Part 11 environments)
- Marine and offshore platform control systems
Engineering Advantages
- Redundant Power Architecture: Two SD832 units can be paralleled for N+1 redundancy, eliminating single points of failure in critical process loops.
- Universal AC Input: Accepts 100–240 VAC without manual switching, simplifying global deployment and spare parts standardization.
- Seamless AC800M Integration: Plug-and-play compatibility with PM851, PM856, PM860, PM861, PM864, PM866 controller modules and the full S800 I/O range.
- Compact DIN-Rail Form Factor: Minimizes cabinet footprint while delivering full rated power output.
- Long Service Life: ABB industrial-grade components rated for continuous 24/7 operation in harsh environments.
System Architecture & Signal Flow
In a standard AC800M cabinet, the SD832 receives AC mains input and converts it to regulated 24 VDC bus power. This DC bus feeds the PM8xx controller module backplane and all connected S800 I/O modules (AI810, AO810, DI810, DO810, etc.) via the S800 I/O bus. In redundant configurations, two SD832 units share the load; upon failure of one unit, the second assumes full load without interruption to the control process. The module’s status LED provides local diagnostics, and fault signals can be wired to the controller’s digital input for supervisory monitoring via ABB 800xA or Symphony Plus.
Sourcing & Quality Verification
- OEM Authenticity: All SD832 units supplied by Konmask.com are sourced from verified industrial channels with full traceability to ABB-authorized distributors or decommissioned plant assets with documented service history.
- Inspection Protocol: Each unit undergoes visual inspection, label verification (3BSC610065R1 part number confirmation), and functional power-on test prior to shipment.
- Documentation Available: ABB datasheet, CE declaration of conformity, and test report available upon request.
- Packaging: Anti-static ESD bag + foam-lined carton for international freight protection.
Procurement Process
- Inquiry: Submit your RFQ via support@konmask.com or WhatsApp +0086 19859288691 with quantity and required delivery date.
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 business hours.
- Order Confirmation: Place order via this product page or via purchase order (PO) for B2B accounts.
- Quality Check & Dispatch: Unit inspected, photographed, and dispatched via DHL / FedEx / UPS with tracking number provided.
- After-Sales Support: 12-month warranty on verified OEM units. Technical support available for installation and commissioning queries.
Technical FAQ
Q: Is the SD832 compatible with the AC800M PM864 controller?
A: Yes. The SD832 provides the 24 VDC bus power required by all PM8xx series controllers including PM851, PM856, PM860, PM861, PM864, and PM866.
Q: Can I use two SD832 units in a redundant configuration?
A: Yes. ABB supports parallel redundant power supply using two SD832 modules on the same DC bus. No additional hardware is required beyond standard diode ORing or the ABB redundancy module.
Q: What is the difference between SD832 and SD833?
A: The SD832 (3BSC610065R1) is the standard 24 VDC output power supply. The SD833 is a higher-capacity variant. Confirm your cabinet’s power budget before selecting the appropriate model.
Q: Do you provide a certificate of conformity?
A: Yes. ABB CE declaration and our internal inspection report are available upon request at no additional charge.
Q: What is the lead time?
A: In-stock units ship within 1–3 business days. For bulk orders or specific firmware revisions, lead time is 5–10 business days.
