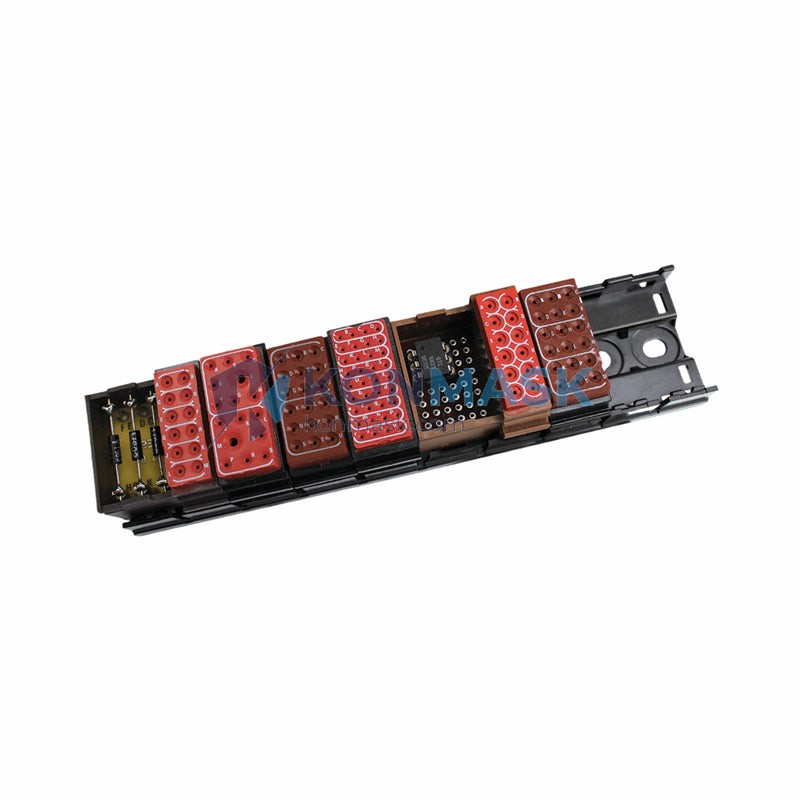

ABB TRL810K2 Terminal Module for Field Signal Wiring – S800 I/O Series
When a terminal module fails in an active S800 I/O station, the consequences are immediate and severe: field signal wiring loses its secure connection point, I/O modules become non-functional, and the entire control loop goes blind. In continuous-process industries — refining, power generation, chemical production — even a momentary loss of field signal integrity can trigger emergency shutdowns, product loss, or safety incidents. The ABB TRL810K2 is the engineered solution that prevents this scenario, providing the robust, reliable wiring interface that keeps your S800 I/O station operating without interruption.
The TRL810K2 occupies a critical position within ABB’s S800 I/O product family, the field I/O platform of choice for AC800M and Symphony Plus DCS architectures worldwide. As a terminal module, it serves as the physical bridge between field instrument cabling and the I/O module’s signal processing circuitry. Its design reflects ABB’s decades of experience in process automation, delivering the mechanical durability and electrical integrity demanded by SIL-rated control loops in the world’s most demanding industrial environments.
Technical Specifications
- Part Number: TRL810K2
- Manufacturer: ABB Ltd.
- Product Family: S800 I/O – Terminal Module Series
- Compatible Platform: ABB AC800M DCS / Symphony Plus
- Module Function: Field Signal Terminal / Wiring Interface Module
- Mounting: DIN rail, compatible with S800 I/O module base
- Weight: 1,230 g (as configured)
- Operating Temperature: Per ABB S800 I/O platform specification
- Certifications: CE; per ABB S800 I/O platform approvals
- Country of Origin: Per ABB manufacturing standard
Note: Full electrical specifications (terminal count, wire gauge range, signal type compatibility) are available in the ABB S800 I/O System Product Manual. Contact Konmask.com for the latest datasheet.
Key Features & Benefits
- Secure Field Wiring Interface: Provides a stable, vibration-resistant terminal connection point for field instrument cables, eliminating signal intermittency caused by loose wiring
- Module-Swap Without Rewiring: The TRL810K2 design allows the I/O module to be replaced without disturbing field wiring — critical for hot-swap maintenance in live process environments
- S800 I/O Ecosystem Compatibility: Engineered to mate precisely with ABB S800 I/O modules, ensuring correct signal routing and mechanical alignment within the I/O station
- Industrial-Grade Construction: Robust housing and terminal block design rated for the thermal cycling, humidity, and vibration conditions of industrial control cabinets
- Simplified Cabinet Layout: Standardized form factor integrates cleanly into S800 I/O station assemblies, supporting structured cable management and reduced commissioning time
- Long Service Life: Designed for the multi-decade lifecycle expectations of process plant infrastructure
Industry & Equipment Applications
- Oil & Gas: Upstream wellhead control panels, offshore platform DCS cabinets, pipeline SCADA stations using AC800M controllers
- Power Generation: Turbine control systems, boiler management units, and balance-of-plant I/O stations with S800 field I/O
- Chemical & Petrochemical: SIL 2/3 process control loops requiring reliable field signal termination in hazardous-area marshalling cabinets
- Pulp & Paper: High-humidity mill environments where terminal integrity is critical for continuous digester and recovery boiler control
- Pharmaceutical: GMP-compliant process control cabinets with validated I/O wiring infrastructure
- Water & Wastewater: Remote pump station and treatment plant DCS nodes with S800 I/O field stations
- Mining & Minerals: Conveyor, crusher, and flotation circuit control systems built on AC800M architecture
System Integration & Compatible Parts
The TRL810K2 is designed for use within ABB’s S800 I/O system, which integrates with the AC800M controller platform via ModuleBus or PROFIBUS DP. Typical compatible components in the same station assembly include:
- ABB S800 I/O Modules (AI810, AO810, DI810, DO810 series and variants)
- ABB S800 I/O Module Base Units (TB820, TB840 series)
- ABB ModuleBus Cluster Modem (CI820, CI830 series)
- ABB AC800M Controller Modules (PM860, PM861, PM864, PM866 series)
- ABB S800 I/O Power Supply Modules (SD821, SD822, SD823 series)
Contact our technical team to confirm exact compatibility with your cabinet revision and I/O station configuration before ordering.
Our Quality Assurance Process
- Verified OEM Origin: All TRL810K2 units are sourced through established industrial distribution channels; counterfeit screening is performed against ABB serial number and label standards
- Incoming Inspection: Visual inspection, label verification, and mechanical fit check performed on every unit before dispatch
- ESD-Safe Packaging: Anti-static bag + foam-lined carton with humidity indicator card for international shipments
- Documentation Package: ABB datasheet and certificate of conformance available upon request at no additional charge
- Konmask Warranty: 12-month warranty covering manufacturing defects; DOA replacement within 7 business days
How to Order
- Confirm Compatibility: Verify your S800 I/O station revision and I/O module type against ABB’s compatibility matrix (available on request from Konmask.com)
- Request a Quote: Email support@konmask.com with part number TRL810K2, required quantity, and your target delivery date
- Lead Time: In-stock units ship within 2 business days; ex-stock sourcing typically 7–14 business days
- Shipping: DHL Express / FedEx International Priority; full export documentation included (commercial invoice, packing list, certificate of origin)
- Payment: T/T bank transfer, PayPal, or credit card; Net 30 available for qualified accounts
- After-Sales Support: Technical guidance via email or WhatsApp throughout installation and commissioning
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on DCS, PLC, and process control components — our team understands your application, not just the part number
- Global Reach, Local Expertise: Serving procurement engineers and MRO teams across Asia, Europe, the Middle East, and the Americas
- Fast Response: Quote turnaround within 4 business hours; urgent requirements accommodated
- Transparent Sourcing: We tell you where the part comes from and provide documentation to support your incoming inspection process
- Long-Term Partnership: Many of our clients are plant engineers managing 10+ year spare-parts programs — we support the full lifecycle, not just the first order
Frequently Asked Questions
Q: Is the TRL810K2 compatible with all S800 I/O modules?
A: The TRL810K2 is designed for use within the S800 I/O family. Compatibility depends on the specific I/O module type and station configuration. Please share your I/O module part number and station revision with our team for confirmation before ordering.
Q: Can field wiring remain connected when replacing the I/O module?
A: Yes. The terminal module design allows the I/O module to be removed and replaced without disturbing field wiring connections — a key advantage for maintenance in live process environments.
Q: Do you supply the matching I/O modules (AI810, DI810, etc.) as well?
A: Yes. Konmask.com stocks a broad range of ABB S800 I/O modules and AC800M components. Contact us with your full BOM for a consolidated quote.
Q: What documentation is included with the TRL810K2?
A: We provide the ABB product datasheet and certificate of conformance. Factory acceptance test documentation is available upon request.
Q: What is the minimum order quantity?
A: MOQ is 1 unit. Volume pricing is available for orders of 5 or more units — contact us for a tiered quote.
Q: How do I verify the unit is genuine ABB?
A: All units undergo label and serial number verification against ABB standards prior to dispatch. We can provide photographic inspection reports upon request.
{
