ABB NTLS01 Logic Station Termination Unit | Replacement, Equivalent & Selection Guide

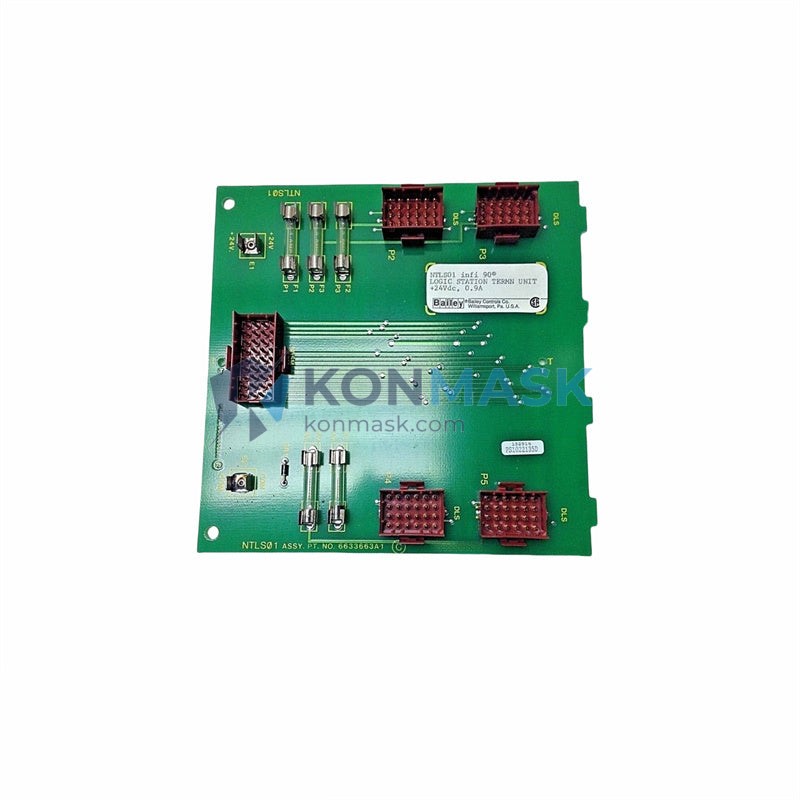

The ABB NTLS01 is a Logic Station Termination Unit designed for use within ABB’s AC800M Distributed Control System (DCS) architecture. It provides the critical interface between field wiring and the logic station, ensuring reliable signal routing, grounding, and cable management in process automation environments.
Technical Specifications
| Part Number | NTLS01 |
| Manufacturer | ABB |
| Series | AC800M / Advant Controller |
| Function | Logic Station Termination Unit |
| Weight | 420 g |
| Mounting | DIN Rail / Panel Mount |
| Application | DCS Field Wiring Termination |
| Condition | New / Refurbished Available |
Compatible Replacement & Equivalent Models
When the NTLS01 is discontinued or unavailable, engineers may evaluate the following alternatives. Always verify electrical and mechanical compatibility before substitution:
- ABB NTLS02 – Upgraded termination unit with enhanced channel density; verify backplane compatibility
- ABB NTTL01 – Alternate termination layout for AC800M logic stations
- ABB TB820V2 – ModuleBus Modem Unit, used in adjacent termination roles within AC800M
- Third-party DIN-rail terminal blocks – Custom wiring solutions for legacy retrofit projects (requires engineering review)
Note: Konmask recommends using original ABB part numbers wherever possible to maintain system certification and warranty integrity.
Why Choose the Original Model
- Guaranteed Compatibility: Factory-matched to ABB AC800M backplane and logic station connectors
- System Certification: Maintains SIL, ATEX, and IEC compliance when using OEM components
- Reduced Commissioning Risk: No re-engineering of cable schedules or I/O mapping required
- Long-term Support: ABB spare parts ecosystem ensures availability of matching accessories
- Traceability: Full OEM documentation and revision history available
Typical Applications
- Oil & gas upstream/downstream DCS panel wiring termination
- Chemical plant process control cabinet field wiring interface
- Power generation plant AC800M controller station integration
- Pulp & paper mill automation system field cable management
- Water treatment facility SCADA/DCS hybrid termination panels
System Compatibility
- Controller Platform: ABB AC800M (PM851, PM856, PM860, PM861, PM864, PM866)
- Communication Bus: ModuleBus / PROFIBUS compatible configurations
- I/O Modules: Compatible with AI810, AO810, DI810, DO810 series and equivalents
- Cabinet Standards: Suitable for IEC 61439-compliant control panels
- Software: Configured via ABB Control Builder M (CBM)
Selection Guide
Use the following criteria to confirm NTLS01 is the correct part for your application:
- Step 1 – Identify your controller: Confirm AC800M series and firmware revision
- Step 2 – Check logic station slot: Verify the physical slot position and backplane connector type
- Step 3 – Review I/O count: Ensure termination channel count matches your field wiring schedule
- Step 4 – Confirm revision: Match hardware revision to existing installed base to avoid mismatch
- Step 5 – Validate certifications: For SIL or hazardous area installations, confirm applicable approvals
Not sure which part fits your system? Contact our selection team with your system nameplate data.
Quality Assurance & Sourcing
- All NTLS01 units are inspected upon receipt and prior to dispatch
- Sourced from authorized ABB distributors and verified OEM supply chains
- Each unit ships with test report and traceability documentation on request
- Refurbished units undergo full functional testing to ABB factory specifications
- Secure anti-static packaging with humidity indicators for international shipment
How to Order
- Add the ABB NTLS01 to your cart on Konmask.com
- For bulk orders or project BOM requirements, email support@konmask.com
- Include your system model, revision, and required quantity for fastest response
- Lead time: In-stock units ship within 2–5 business days; sourced units 7–15 business days
- Export documentation (CO, packing list, commercial invoice) available for international orders
Replacement & Compatibility FAQ
Q: Can NTLS02 directly replace NTLS01?
A: In most cases yes, but verify the backplane slot revision and connector pinout before substitution. Contact ABB or Konmask for a compatibility confirmation.
Q: Is the NTLS01 still in production?
A: ABB has transitioned some AC800M accessories to newer revisions. Konmask maintains stock of both current and legacy variants — contact us for availability.
Q: Can I use a third-party termination unit?
A: Third-party units may function electrically but can void system certifications (SIL, ATEX). We recommend OEM parts for certified installations.
Q: What documentation is available?
A: ABB product manual, wiring diagrams, and revision notes are available upon request with your order.
Q: Do you offer exchange or repair services?
A: Yes. Konmask offers board-level repair and exchange programs for NTLS01 and related AC800M accessories. Inquire via email.
