ADVANTEST BLG-022829 – High-Speed Test Diagnostic Board | ADVANTEST ATE Platform

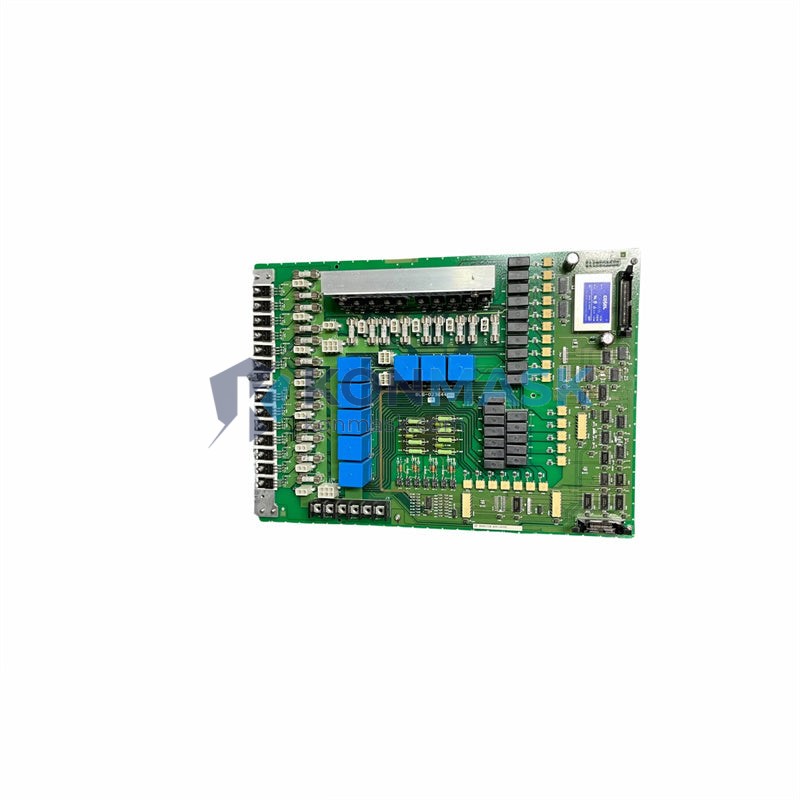

Engineering Background: ADVANTEST Corporation is a world-leading manufacturer of automatic test equipment (ATE) for semiconductor devices, with decades of deployment in wafer-level and package-level testing environments. The BLG-022829 HTD (High-speed Test Diagnostic) Board is an internal functional PCB module engineered for integration within ADVANTEST’s high-throughput ATE mainframes. It serves as a critical signal-conditioning and diagnostic interface layer between the test head and the device under test (DUT) handler system.
Product Positioning: Designed for procurement engineers and field service teams maintaining ADVANTEST ATE installations, the BLG-022829 is a direct replacement or spare board for sustaining test cell uptime. Its robust PCB construction and precision signal routing make it suitable for high-frequency, high-channel-count semiconductor test applications where signal integrity and repeatability are non-negotiable.
Complete Technical Specifications
- Part Number / SKU: BLG-022829
- Manufacturer: ADVANTEST Corporation
- Module Type: HTD Board (High-Speed Test Diagnostic PCB)
- Form Factor: Proprietary ADVANTEST ATE PCB module
- Weight: 740 g (as-shipped)
- Interface: Internal ATE backplane / test head connector
- Application Platform: ADVANTEST ATE mainframe systems
- Operating Environment: Controlled cleanroom / ATE lab environment
- Condition: Verified surplus / refurbished
- Compliance: RoHS-compatible (verify with OEM datasheet for specific revision)
Proven Application Environments
- Semiconductor wafer-level and final package test cells
- ADVANTEST ATE mainframe field service and preventive maintenance
- High-volume production test lines for logic ICs, memory, and mixed-signal devices
- ATE system integration labs requiring spare diagnostic board inventory
- Failure analysis and test cell recovery operations
Engineering Advantages
- OEM-Sourced Precision: Manufactured to ADVANTEST’s internal quality standards for ATE signal integrity
- Drop-In Replacement: Direct form-fit-function substitute for BLG-022829 in compatible ADVANTEST platforms
- Reduced Downtime: Stocking this board eliminates critical-path delays caused by OEM lead times
- Verified Functionality: Each unit inspected and tested prior to shipment by Konmask technical staff
- Traceable Provenance: Full sourcing documentation available upon request for audit compliance
System Architecture & Signal Flow
The BLG-022829 HTD Board operates as an internal diagnostic and signal-routing module within the ADVANTEST ATE test head assembly. It interfaces with the mainframe backplane via proprietary edge connectors, receiving test vectors and timing signals from the system controller. The board conditions, buffers, and routes high-speed digital and analog test signals to the DUT interface board layer. Its diagnostic functions enable real-time fault detection and signal integrity monitoring during test execution, supporting both production and engineering debug modes.
Sourcing & Quality Verification
- Source: Verified surplus from decommissioned ADVANTEST ATE installations
- Inspection: Visual inspection, functional power-on verification, and connector integrity check performed by Konmask engineers
- Packaging: ESD-safe anti-static bag + foam-padded carton for international transit
- Documentation: Certificate of conformance and inspection report available on request
- Warranty: 90-day Konmask operational warranty against DOA and functional defects
Procurement Process
- Inquiry: Submit your PO or RFQ to support@konmask.com with quantity and required delivery date
- Stock Confirmation: Konmask confirms availability and provides formal quotation within 1 business day
- Payment: T/T bank transfer, PayPal, or agreed credit terms for qualified accounts
- Export & Shipping: Export documentation (commercial invoice, packing list, COO) prepared; DHL / FedEx / UPS international express available
- Delivery: Typical lead time 3–7 business days for in-stock units
Technical FAQ
Q: Which ADVANTEST ATE models is the BLG-022829 compatible with?
A: The BLG-022829 is designed for ADVANTEST ATE platforms. Please contact our engineering team with your mainframe model number to confirm compatibility before ordering.
Q: Is this a new or refurbished unit?
A: Units are verified surplus/refurbished, sourced from decommissioned ADVANTEST systems. Each board undergoes Konmask’s incoming inspection protocol.
Q: Can you provide an OEM datasheet?
A: ADVANTEST does not publicly release internal board-level datasheets. Konmask can provide available inspection reports and sourcing documentation. For OEM technical support, contact ADVANTEST directly.
Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 unit. Volume pricing is available for orders of 3+ units.
Q: Do you accept returns?
A: Yes, within 30 days of receipt for units in original condition. DOA claims are covered under the 90-day warranty.
