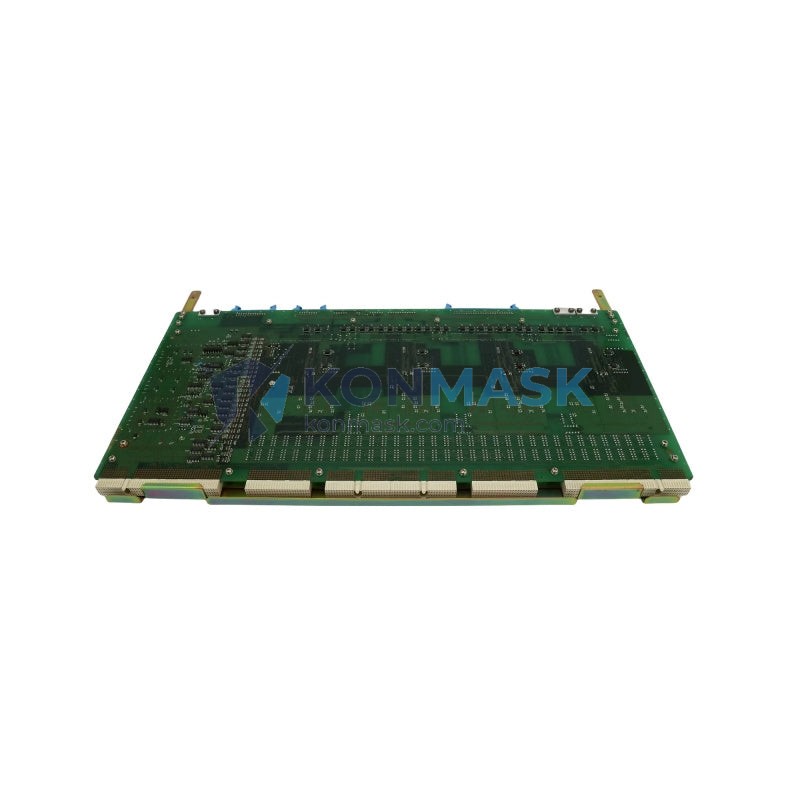

ADVANTEST BGQ-023036 PH566-A – PCB Assembly | AFG/AFD Series Platform
Engineering Background: The ADVANTEST AFG/AFD series represents a flagship line of automated test equipment (ATE) platforms widely deployed in semiconductor wafer-level and package-level testing environments. These systems demand precision-grade internal assemblies to maintain measurement integrity across millions of test cycles.
Product Positioning: The BGQ-023036 PH566-A is an OEM-specification PCB assembly designed for the AFG/AFD platform’s 8.4-inch display subsystem. Sourced directly from verified ADVANTEST supply channels, this board serves as a direct replacement for field-failed or end-of-life display controller assemblies, restoring full system functionality without requiring platform-level recertification.
Complete Technical Specifications
- Part Number: BGQ-023036 / PH566-A
- Compatible Platform: ADVANTEST AFG Series / AFD Series ATE
- Assembly Type: PCB Assembly (ASSY)
- Display Interface: 8.4″ (KR33 OM80 RL configuration)
- Cable/Harness Length: 33CM
- Board Designation: KR33 OM80 RL 8.4
- Country of Origin: Japan
- Weight: 2,600 g (shipping weight)
- Condition: New / Refurbished OEM (specify at inquiry)
- RoHS Compliance: Per ADVANTEST OEM specification
Proven Application Environments
- Semiconductor wafer-level automated test equipment (ATE) facilities
- IC package-level burn-in and functional test systems
- ADVANTEST AFG/AFD platform maintenance and depot repair operations
- Fab-level spare parts inventory programs for high-uptime ATE fleets
- Third-party ATE service providers performing ADVANTEST platform overhauls
Engineering Advantages
- OEM-Matched Specification: BGQ-023036 / PH566-A part numbers ensure direct form-fit-function compatibility with AFG/AFD chassis without modification.
- Display Subsystem Integrity: Maintains original 8.4″ display controller signal fidelity, preserving operator interface accuracy critical for test recipe management.
- Reduced Downtime Risk: Drop-in replacement eliminates re-engineering time; restores system to production-ready state in a single swap cycle.
- Verified Supply Chain: Sourced through traceable channels with documentation available upon request for quality audit compliance.
- Long-Term Availability: Konmask.com maintains strategic stock of legacy ADVANTEST assemblies to support extended platform lifecycles beyond OEM EOL dates.
System Architecture & Signal Flow
The BGQ-023036 PCB assembly functions as the display controller interface board within the AFG/AFD operator console subsystem. It bridges the main system backplane to the 8.4″ LCD panel via the KR33 OM80 RL signal path, managing display refresh, backlight control, and touch/input interface signals over the 33CM internal harness. Failure modes typically present as blank display, intermittent screen artifacts, or loss of operator console responsiveness — all resolved by this assembly replacement.
Sourcing & Quality Verification
- All assemblies are inspected prior to shipment for physical integrity and connector condition.
- Part number labels (BGQ-023036 / PH566-A) are verified against OEM markings.
- Certificate of conformance (CoC) and packing documentation available upon request.
- Traceability records maintained for enterprise procurement audit requirements.
- ESD-safe packaging used for all PCB assembly shipments.
Procurement Process
- Step 1: Confirm your AFG/AFD platform variant and current display assembly part number against BGQ-023036 / PH566-A.
- Step 2: Contact Konmask.com via email or phone to confirm stock availability and lead time.
- Step 3: Submit purchase order with shipping destination and any required documentation (CoC, test report).
- Step 4: Receive ESD-safe packaged assembly with full packing list within agreed lead time.
- Step 5: Install per ADVANTEST AFG/AFD service manual procedures; contact support if technical assistance is required.
Technical FAQ
Q: Is BGQ-023036 compatible with both AFG and AFD platform variants?
A: Yes. The PH566-A assembly is specified for both AFG and AFD series platforms sharing the 8.4″ display console configuration. Confirm your chassis revision with Konmask support if uncertain.
Q: What is the lead time for this assembly?
A: Standard lead time is 3–10 business days depending on stock status. Contact us for real-time availability.
Q: Can you provide a test report or functional verification certificate?
A: Yes. Functional test documentation is available upon request for enterprise and fab procurement requirements.
Q: Do you support international shipping for this assembly?
A: Yes. Konmask.com ships globally with ESD-safe packaging and full export documentation including commercial invoice and packing list.
Q: What warranty is provided?
A: A 90-day warranty against defects in materials and workmanship is standard. Extended warranty terms available for volume orders.
