Allen-Bradley 1734-4IOL IO-Link Digital Input | Replacement, Equivalent & Selection Guide

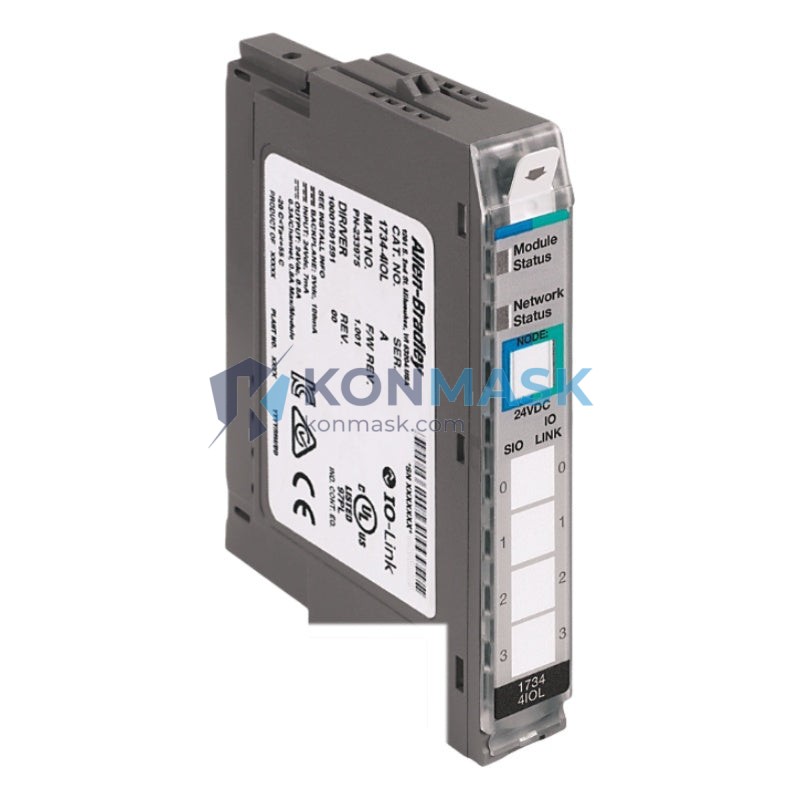

The Allen-Bradley 1734-4IOL is a 4-channel IO-Link digital input module in the POINT I/O platform, designed for seamless integration with Rockwell Automation ControlLogix, CompactLogix, and GuardLogix controllers. This page provides a comprehensive selection guide, compatible replacement models, and application context to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Part Number: 1734-4IOL
- Series: POINT I/O
- Manufacturer: Allen-Bradley / Rockwell Automation
- Module Type: IO-Link Digital Input Module
- Number of Channels: 4 IO-Link channels (Class A)
- IO-Link Version: V1.1 compliant
- Supply Voltage: 24V DC (via POINT I/O adapter)
- Communication: IO-Link over POINT I/O backplane
- Input Signal: Digital (PNP/NPN compatible per device)
- Mounting: DIN rail via POINT I/O base unit
- Weight: Approx. 150 g
- Certifications: CE, UL, cUL
- Compatible Adapters: 1734-AENT, 1734-AENTR, 1734-AENTRXT
Compatible Replacement & Equivalent Models
When the 1734-4IOL is unavailable or under evaluation, the following models may serve as functional equivalents or replacements depending on system architecture:
- 1734-IB4 / 1734-IB8 — Standard 4/8-channel digital input modules (non-IO-Link); suitable when IO-Link device intelligence is not required
- 1734-4IOL Series B — Revised hardware revision with identical electrical specs; fully backward compatible
- Balluff BNI IOL-302-000-K006 — Third-party IO-Link hub; compatible in mixed-vendor IO-Link topologies
- Turck TBIL-M1-16DXP — IO-Link multiprotocol input module; suitable for EtherNet/IP environments
- Pepperl+Fuchs ICE1-8IOL-G60L-V1D — IO-Link master with 8 ports; consider when expanding channel count
- Phoenix Contact FL IL 24 BK-PAC — Inline IO-Link master; alternative for Phoenix Inline architecture
Note: Always verify firmware compatibility, IO-Link device class (Class A/B), and backplane communication protocol before substituting modules.
Why Choose the Original Model
- Native Rockwell Integration: Full Studio 5000 / RSLogix 5000 Add-On Profile (AOP) support — no custom EDS mapping required
- IO-Link V1.1 Compliance: Supports ISDU (Indexed Service Data Unit) for remote parameter access and diagnostics
- Compact Form Factor: POINT I/O modular design minimizes panel footprint vs. standalone IO-Link masters
- Proven Reliability: Widely deployed in automotive, food & beverage, and pharmaceutical lines globally
- Unified Diagnostics: Fault data surfaced directly in ControlLogix tag database — no additional middleware
- Long Product Lifecycle: Rockwell Automation provides extended support and firmware updates for POINT I/O platform
Typical Applications
- Automotive Assembly Lines: IO-Link smart sensors (presence, distance, vision) connected to POINT I/O drops at each station
- Food & Beverage Packaging: Hygienic IO-Link sensors for fill-level, cap detection, and label verification
- Pharmaceutical Manufacturing: Validated sensor networks with remote parameter logging for 21 CFR Part 11 compliance
- Intralogistics & Conveyor Systems: Distributed I/O drops with IO-Link barcode readers and RFID heads
- Machine Tool & CNC: Tool presence detection and spindle monitoring via IO-Link proximity sensors
- Water Treatment: Remote sensor diagnostics in distributed pump and valve control panels
System Compatibility
- Controllers: ControlLogix (1756), CompactLogix (1769), GuardLogix (1756-L7x)
- Adapters: 1734-AENT, 1734-AENTR, 1734-AENTRXT (EtherNet/IP); 1734-ADN (DeviceNet)
- Software: Studio 5000 Logix Designer v21+, FactoryTalk View SE/ME
- IO-Link Devices: Any IO-Link V1.0/V1.1 Class A device (4-pin M12 connector)
- Power Supply: 24V DC POINT I/O power supply (1734-EP24DC or equivalent)
Selection Guide
Use the following criteria to confirm the 1734-4IOL is the right choice — or to identify the best alternative:
- Need IO-Link intelligence? → 1734-4IOL is correct. If only digital on/off is needed → use 1734-IB4/IB8
- Channel count > 4? → Consider 1734-8IOL (8-channel IO-Link) or a third-party IO-Link hub
- Non-Rockwell controller? → Evaluate Turck TBIL or Balluff BNI series for EtherNet/IP or PROFINET
- Class B IO-Link devices (power pins 2/5)? → 1734-4IOL supports Class A only; use 1734-8IOL or external IO-Link master
- Hazardous area (Zone 2 / Div 2)? → Verify 1734-4IOL ATEX/IECEx rating or use intrinsically safe alternatives
- Budget-constrained retrofit? → Refurbished 1734-4IOL from Konmask.com offers OEM-equivalent performance at reduced cost
Quality Assurance & Sourcing
- All units sourced from verified industrial distributors and OEM-authorized channels
- Pre-shipment functional testing: power-on, backplane communication, and IO-Link port verification
- Anti-counterfeit inspection: label authentication, PCB marking verification, and firmware version check
- Packaging: original or equivalent ESD-safe packaging with desiccant
- Traceability: lot number and serial number documented per shipment
- Warranty: 12-month replacement warranty against manufacturing defects
How to Order
- Part Number: 1734-4IOL
- Manufacturer: Allen-Bradley / Rockwell Automation
- Minimum Order: 1 unit
- Lead Time: In-stock units ship within 1–3 business days; contact us for bulk order scheduling
- Quote Request: Email support@konmask.com with quantity and required delivery date
- Payment: T/T, PayPal, and trade credit available for qualified accounts
Replacement & Compatibility FAQ
Q: Can I replace 1734-4IOL with 1734-IB4 without changing my PLC program?
A: No. The 1734-IB4 is a standard digital input module and does not support IO-Link ISDU communication. Tag structures and AOP configuration will differ — program changes are required.
Q: Is the 1734-4IOL backward compatible with IO-Link V1.0 devices?
A: Yes. The module supports both IO-Link V1.0 and V1.1 devices in SIO (Standard I/O) and IO-Link communication modes.
Q: Can I mix 1734-4IOL with other POINT I/O modules on the same adapter?
A: Yes. POINT I/O is a modular platform — the 1734-4IOL can be combined with digital output, analog, and safety modules on the same 1734-AENT adapter, subject to power budget limits.
Q: What is the maximum cable length for IO-Link devices connected to 1734-4IOL?
A: Per IO-Link specification, maximum cable length is 20 meters for standard IO-Link (COM2/COM3) using unshielded 3-wire M12 cable.
Q: Does Konmask.com provide IODD files for connected IO-Link devices?
A: We can assist with IODD file sourcing for common IO-Link sensors. Contact our technical team with your device model number.
