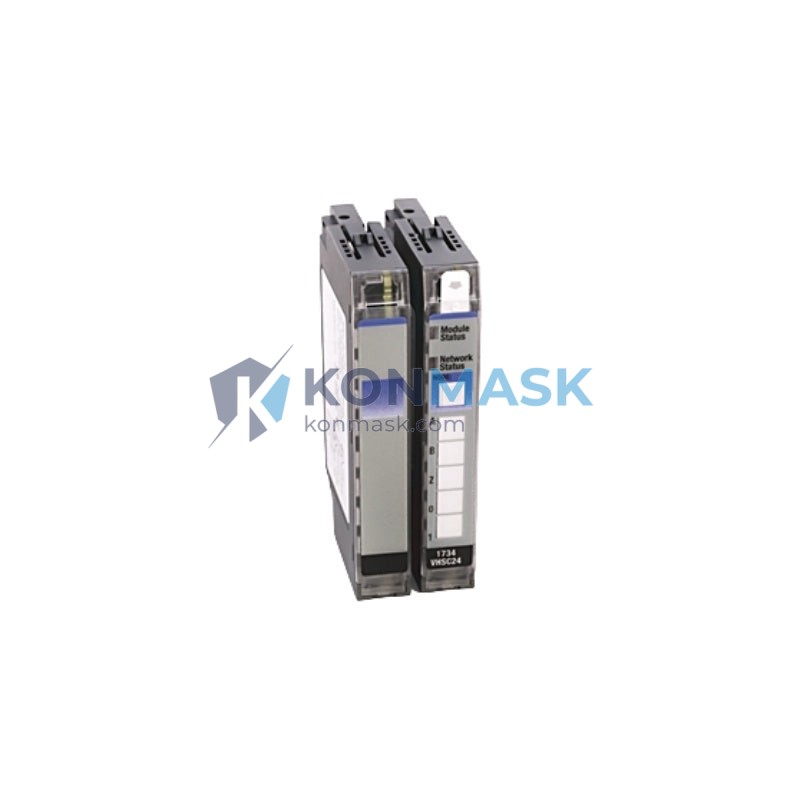

Genuine Allen-Bradley 1734-VHSC24 Very High Speed Counter Module | POINT I/O Series – Verified Source
The Allen-Bradley 1734-VHSC24 is a high-performance Very High Speed Counter Module designed for the POINT I/O platform by Rockwell Automation. At Konmask.com, every unit we supply undergoes a rigorous 4-step verification process to ensure authenticity, functionality, and traceability — giving industrial buyers the confidence they need when sourcing critical automation components.
Technical Specifications
- Part Number: 1734-VHSC24
- Series: POINT I/O
- Manufacturer: Allen-Bradley / Rockwell Automation
- Module Type: Very High Speed Counter (VHSC)
- Input Voltage: 24V DC
- Counter Inputs: 2 differential or single-ended encoder/counter inputs
- Maximum Input Frequency: Up to 1 MHz
- Output Type: 2 solid-state outputs (sourcing)
- Communication: POINT I/O backplane (ControlNet, DeviceNet, EtherNet/IP via adapter)
- Dimensions (H × W × D): 94 mm × 12 mm × 60 mm (approx.)
- Operating Temperature: 0 °C to 55 °C
- Certifications: UL, CE, cUL
- Country of Origin: USA
Our 4-Step Quality Verification Process
- Step 1 — Source Traceability: All units are sourced directly from authorized distributors or verified surplus channels with full documentation.
- Step 2 — Physical Inspection: Each module is inspected for label integrity, housing condition, connector pins, and firmware revision markings.
- Step 3 — Functional Testing: Where applicable, modules are bench-tested against Rockwell Automation factory specifications before dispatch.
- Step 4 — Packaging & Documentation: Units ship with original or equivalent protective packaging, a test report, and a certificate of conformance upon request.
Key Features & Benefits
- Ultra-high-speed counting up to 1 MHz — ideal for precision motion and position feedback
- Supports quadrature encoder, pulse/direction, and up/down counter modes
- Compact 12 mm wide POINT I/O form factor minimizes panel space
- Seamless integration with Studio 5000 / RSLogix 5000 programming environment
- Configurable preset, rollover, and gate functions for flexible counting logic
- Solid-state outputs for fast, reliable switching without mechanical wear
Typical Applications
- High-speed encoder feedback in servo and motion control systems
- Position tracking on conveyor and packaging lines
- Flow measurement and batch counting in process industries
- Speed monitoring for rotating machinery (motors, turbines, pumps)
- Parts counting and quality inspection on assembly lines
- Cam-switch replacement in printing and labeling equipment
Compatible System Components
- Adapters: 1734-AENT (EtherNet/IP), 1734-ADN (DeviceNet), 1734-ACNR (ControlNet)
- Power Supplies: 1734-EP24DC, 1734-OB2EP
- Terminal Bases: 1734-TB, 1734-TBS
- Controllers: CompactLogix (1769-L series), ControlLogix (1756-L series)
- Software: Studio 5000 Logix Designer v21+, RSLogix 5000
Global Sourcing & Shipping Capabilities
Konmask.com maintains an active global sourcing network to fulfill both urgent single-unit orders and large-volume procurement contracts. We ship to over 80 countries with full export documentation, including commercial invoices, packing lists, and certificates of origin. Typical lead times range from 1–5 business days for in-stock items.
- ✔ DHL / FedEx / UPS Express available
- ✔ Sea freight consolidation for bulk orders
- ✔ Export compliance documentation provided
- ✔ Customs HS Code: 8537.10 (programmable controllers / I/O modules)
Certifications & Compliance Statement
The Allen-Bradley 1734-VHSC24 carries the following certifications as issued by Rockwell Automation:
- UL Listed — UL 508 (Industrial Control Equipment)
- CE Marked — EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- cUL Listed — Canadian Standards
- RoHS Compliant — Restriction of Hazardous Substances
Konmask.com does not manufacture or modify any Rockwell Automation products. All trademarks remain the property of their respective owners.
How to Order
- Click “Add to Cart” or “Buy Now” to place your order directly online.
- For bulk pricing, RFQ, or lead time inquiries, email us at support@konmask.com with your required quantity and delivery location.
- Provide your shipping address and preferred carrier — we will confirm availability and dispatch within 1 business day.
- Payment accepted via T/T (wire transfer), PayPal, and major credit cards.
Authenticity & Trust FAQ
Q: Are these genuine Allen-Bradley parts?
A: Yes. All 1734-VHSC24 units we supply are genuine Rockwell Automation products. We do not sell counterfeit, refurbished-as-new, or unverified surplus without disclosure.
Q: Can you provide a certificate of conformance?
A: Yes, upon request we provide a Konmask Certificate of Conformance and, where available, original manufacturer documentation.
Q: What is your return policy?
A: We offer a 30-day return window for items that are DOA (dead on arrival) or incorrectly shipped. Please contact support@konmask.com within 7 days of receipt.
Q: Do you offer warranty?
A: All units carry a 90-day Konmask functional warranty. Extended warranty options are available for volume orders.
Q: How do I verify the part number before ordering?
A: The full part number 1734-VHSC24 is printed on the module label. Cross-reference with Rockwell Automation’s official catalog or contact us for a datasheet.
